Click on the column header to sort by that column. Get some documentation about the columns at CCID descriptor statistics.
The background color indicates the section of the reader:
| supported | should work | unsupported | disabled |
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 0x00 | supported | ACS | ACR 38U-CCID |  | 0x072F | 0x90CC | 0 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x01 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 129032 bps | 254 | 0x00000000 | 0x00000000 | 0x00010030 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | Old versions of this reader are bogus: the reader do timeout when a special USB frame is sent from the reader. If the frame size is a multiple of wMaxPacketSize the communication is stopped. | 1.0.0 | ||
| 2 | 0x00 | supported | Athena | ASEDrive IIIe KB |  | 0x0DC3 | 0x1102 | 4 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 333333 bps | 252 | 0x00000000 | 0x00000000 | 0x00010330 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x03 | 1 | PIN Verification, PIN Modification | Firmware older than 6.07 is bogus | 1.0.1 | |
| 3 | 0x00 | supported | Athena | ASE IIIe |  | 0x0DC3 | 0x1004 | 4 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 333333 bps | 252 | 0x00000000 | 0x00000000 | 0x00010330 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.0.0 | |||
| 4 | 0x00 | supported | Alcor Micro | AU9520 |  | 0x058F | 0x9520 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x03 | 0x0000 0x0003 | 3.700 MHz | 3.700 MHz | 9946 bps | 318280 bps | 254 | 0x00000007 | 0x00000000 | 0x000204BE | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | No extended APDU | Firmware 1.01 is bogus. The time request sent by the card is not forwarded by the reader to the host. Use CCID driver version 1.4.34 or more. The reader does not support USB suspend and will consume more power than needed. | 1.1.0 | |
| 5 | 0x00 | supported | ActivIdentity | USB Reader V3 | | 0x09C3 | 0x0013 | CCID Interface | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 8.000 MHz | 12903 bps | 412903 bps | 252 | 0x00000000 | 0x00000000 | 0x000101BA | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.0.0 | |||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 6 | 0x00 | supported | ActivIdentity | Activkey_Sim |  | 0x09C3 | 0x0014 | CCID Bulk Interface | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 4.800 MHz | 12903 bps | 412903 bps | 254 | 0x00000000 | 0x00000000 | 0x00010030 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.1.0 | |||
| 7 | 0x00 | supported | COVADIS | ALYA |  | 0x0982 | 0x0007 | 0 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 344086 bps | 254 | 0x00000000 | 0x00000000 | 0x00010230 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | biometric | 1.3.6 | ||
| 8 | 0x00 | supported | BLUTRONICS | BLUDRIVE II CCID |  | 0x1B0E | 0x1078 | 0 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x01 | 0x0000 0x0003 | 3.580 MHz | 3.580 MHz | 9600 bps | 115200 bps | 252 | 0x00000000 | 0x00000000 | 0x00010130 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.3.3 | |||
| 9 | 0x00 | supported | OMNIKEY AG | CardMan 3121 |  | 0x076B | 0x3021 | 0 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 3.000 MHz | 12.000 MHz | 8065 bps | 96774 bps | 254 | 0x00000007 | 0x00000000 | 0x000205B2 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | No extended APDU | 0.1.0 | ||
| 10 | 0x00 | supported | Cherry GmbH | SmartTerminal XX44 |  | 0x046A | 0x002D | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 8.000 MHz | 10752 bps | 412903 bps | 254 | 0x00000007 | 0x00000000 | 0x000207B2 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | No extended APDU | 0.9.4 | ||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 11 | 0x00 | supported | Cherry GmbH | SmartTerminal ST-2xxx |  | 0x046A | 0x003E | Vendor Interface | 3 | 0xFF | 1.00 | 0x01 | 0x0000 0x0003 | 4.000 MHz | 8.000 MHz | 10753 bps | 344105 bps | 254 | 0x00000000 | 0x00000000 | 0x000100BA | 270 bytes | 0xFF | 0xFF | 0x0000 | 0x03 | 1 | PIN Verification, PIN Modification | 0.9.4 | ||
| 12 | 0x00 | supported | Cherry GmbH | SmartBoard XX33 | | 0x046A | 0x0005 | 0 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x01 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 344086 bps | 254 | 0x00000000 | 0x00000000 | 0x00020472 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x01 | 1 | PIN Verification | No extended APDU | 0.9.0 | |
| 13 | 0x00 | supported | Cherry GmbH | SmartBoard XX44 |  | 0x046A | 0x0010 | 4 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 8.000 MHz | 10752 bps | 412903 bps | 254 | 0x00000007 | 0x00000000 | 0x000207B2 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x03 | 1 | PIN Verification, PIN Modification | No extended APDU | 0.9.3 | |
| 14 | 0x00 | supported | Cherry GmbH | CHERRY SECURE BOARD 1.0 |  | 0x046A | 0x01A2 | CHERRY SECURE BOARD 1.0 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 3.685 MHz | 14.320 MHz | 9909 bps | 848000 bps | 254 | 0x00000000 | 0x00000000 | 0x000404BA | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x03 | 1 | contactless, PIN Verification, PIN Modification | Does not work on macOS. The reader firmware is bogus and does not support card status polling. macOS does not support card events by TAG_IFD_POLLING_THREAD_WITH_TIMEOUT. | 1.4.32 | |
| 15 | 0x00 | supported | Eutron | CryptoIdentity CCID | | 0x073D | 0x0007 | 0 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 344068 bps | 254 | 0x00000000 | 0x00000000 | 0x00010330 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 0.9.4 | |||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 16 | 0x00 | supported | Dell | Dell Smart Card Reader Keyboard |  | 0x413C | 0x2101 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.01 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 4.800 MHz | 12903 bps | 825806 bps | 254 | 0x00000000 | 0x00000000 | 0x00010230 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x03 | 1 | PIN Verification, PIN Modification | Seems to support SPE only if the VERIFY command has a fixed length. See http://comments.gmane.org/gmane.comp.encryption.opensc.devel/12773 | 0.9.0 | |
| 17 | 0x00 | supported | Dell | keyboard SK-3106 |  | 0x413C | 0x2100 | ????? | 3 | 0xFF | 1.00 | 0x03 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 129032 bps | 254 | 0x00000000 | 0x00000000 | 0x00010230 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x01 | 1 | PIN Verification | 0.9.0 | ||
| 18 | 0x00 | supported | Eutron | CryptoIdentity CCID |  | 0x073D | 0x0008 | 0 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 344086 bps | 254 | 0x00000000 | 0x00000000 | 0x00010230 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.3.1 | |||
| 19 | 0x00 | supported | Eutron | Digipass 860 |  | 0x073D | 0x0B00 | 0 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 344086 bps | 254 | 0x00000000 | 0x00000000 | 0x00010230 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.3.1 | |||
| 20 | 0x00 | supported | Eutron | Card Reader |  | 0x073D | 0x0C00 | ? | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 344068 bps | 254 | 0x00000000 | 0x00000000 | 0x00010330 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | The device contains a hub with 3 devices: 2 CCID card readers and a USB Mass storage | 1.4.2 | ||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 21 | 0x00 | supported | Eutron | SIM Reader | | 0x073D | 0x0C00 | ? | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 344068 bps | 254 | 0x00000000 | 0x00000000 | 0x00010330 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | The device contains a hub with 3 devices: 2 CCID card readers and a USB Mass storage | 1.4.2 | ||
| 22 | 0x00 | supported | Eutron | Smart Pocket |  | 0x073D | 0x0C01 | 0 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 344086 bps | 254 | 0x00000000 | 0x00000000 | 0x00010230 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.3.1 | |||
| 23 | 0x00 | supported | Gemalto | Gemplus USB SmartCard Reader 433-Swap |  | 0x08E6 | 0x4433 | 0 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x01 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 344086 bps | 254 | 0x00000000 | 0x00000000 | 0x00020472 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | No extended APDU | 0.1.0 | ||
| 24 | 0x00 | supported | Gemalto | USB Shell Token V2 |  | 0x08E6 | 0x3438 | 0 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 344086 bps | 254 | 0x00000000 | 0x00000000 | 0x00010230 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 0.1.0 | |||
| 25 | 0x00 | supported | Gemalto | USB GemPCPinpad SmartCard Reader |  | 0x08E6 | 0x3478 | 0 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 500000 bps | 254 | 0x00000000 | 0x00000000 | 0x00010230 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x03 | 1 | firewall, PIN Verification, PIN Modification | Known problems/limitations: - Does not support minimum PIN length (wPINMaxExtraDigit) lower than 4 - Does not support maximum PIN length (wPINMaxExtraDigit) greater than 8 - Does send a VERIFY PIN command with an empty PIN to get the number of remaining trials. This may be problematic with some smart cards like the Belgian eID card that does not support this and will decrement the counter | 1.0.0 | |
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 26 | 0x00 | supported | Gemalto | PC Twin Reader |  | 0x08E6 | 0x3437 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 344086 bps | 254 | 0x00000000 | 0x00000000 | 0x00010230 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 0.1.0 | |||
| 27 | 0x00 | supported | Gemalto | PC Twin Reader (serial) |  | 0x08E6 | 0x3437 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 344086 bps | 254 | 0x00000000 | 0x00000000 | 0x00010230 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | serial | 1.4.32 | ||
| 28 | 0x00 | supported | Gemalto | Prox Dual USB PC Link Reader |  | 0x08E6 | 0x5503 | Prox-DU Contactless_10500231 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 10752 bps | 254 | 0x00000000 | 0x00000000 | 0x00040672 | 512 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless, interface 0: Prox-DU Contactless_10500231, Multi interface reader | 1.4.2 | ||
| 29 | 0x00 | supported | Gemalto | Prox Dual USB PC Link Reader | | 0x08E6 | 0x5503 | Prox-DU Contact_10500231 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 500000 bps | 254 | 0x00000000 | 0x00000000 | 0x00010230 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless, interface 1: Prox-DU Contact_10500231, Multi interface reader | 1.4.2 | ||
| 30 | 0x00 | supported | Gemalto | Prox SU USB PC LinkReader |  | 0x08E6 | 0x5504 | Prox-SU Contact interface | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 500000 bps | 254 | 0x00000000 | 0x00000000 | 0x00010230 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless, interface 0: Prox-SU Contact interface, Multi interface reader | 1.4.2 | ||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 31 | 0x00 | supported | Gemalto | Prox SU USB PC LinkReader | | 0x08E6 | 0x5504 | Prox-SU Contactless interface | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 10752 bps | 254 | 0x00000000 | 0x00000000 | 0x00020672 | 278 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless, interface 1: Prox-SU Contactless interface, Multi interface reader | No extended APDU | 1.4.2 | |
| 32 | 0x00 | supported | Gemalto | Smart Enterprise Guardian Secure USB Device |  | 0x08E6 | 0x8000 | 4 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x01 | 0x0000 0x0001 | 3.580 MHz | 7.500 MHz | 20112 bps | 223200 bps | 252 | 0x00000000 | 0x00000000 | 0x0001007A | 270 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.3.2 | |||
| 33 | 0x00 | supported | Gemalto | EZIO CB+ |  | 0x08E6 | 0x34C3 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 344086 bps | 254 | 0x00000000 | 0x00000000 | 0x000204BA | 271 bytes | 0x00 | 0x00 | 0x0211 | 0x03 | 1 | PIN Verification, PIN Modification | No extended APDU | 1.4.4 | |
| 34 | 0x00 | supported | Gemalto | Ezio Shield | | 0x08E6 | 0x34C0 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 344086 bps | 254 | 0x00000000 | 0x00000000 | 0x000204BA | 271 bytes | 0x00 | 0x00 | 0x0211 | 0x03 | 1 | PIN Verification, PIN Modification | No extended APDU | 1.4.4 | |
| 35 | 0x00 | supported | Gemalto | IDBridge K3000 |  | 0x08E6 | 0x8141 | IDBridge K3000 ?5300029B | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x02 | 0x0000 0x0003 | 4.714 MHz | 4.714 MHz | 12672 bps | 589250 bps | 254 | 0x00000000 | 0x00000000 | 0x00010230 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | I have USB problems on a iMac on some USB ports. Just connect the token to another USB bus/port. | 1.4.10 | ||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 36 | 0x00 | supported | Gemalto | PDT | | 0x08E6 | 0x1227 | ICCD | 0 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0002 | 3.580 MHz | 3.580 MHz | 9600 bps | 9600 bps | 254 | 0x00000000 | 0x00000000 | 0x00020840 | 261 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | ICCD | No extended APDU | 1.3.9 | |
| 37 | 0x00 | supported | Giesecke & Devrient GmbH | StarSign Crypto USB Token |  | 0x1059 | 0x0017 | ? | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 3.700 MHz | 3.700 MHz | 9946 bps | 318280 bps | 254 | 0x00000007 | 0x00000000 | 0x000404BE | 272 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.6 | |||
| 38 | 0x00 | supported | Giesecke & Devrient GmbH | StarSign CUT S | | 0x1059 | 0x0019 | . | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0002 | 3.580 MHz | 3.580 MHz | 9600 bps | 9600 bps | 254 | 0x00000000 | 0x00000000 | 0x0002047E | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | No extended APDU | 1.4.24 | ||
| 39 | 0x00 | supported | SCM Microsystems Inc. | HP USB Smartcard Reader | | 0x03F0 | 0x0824 | 4 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x01 | 0x0000 0x0003 | 4.000 MHz | 12.000 MHz | 9600 bps | 307200 bps | 252 | 0x00000000 | 0x00000000 | 0x000100BA | 263 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.2.0 | |||
| 40 | 0x00 | supported | INGENICO | Leo |  | 0x0F14 | 0x003B | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 9600 bps | 230400 bps | 254 | 0x00000000 | 0x00000000 | 0x000204BA | 356 bytes | 0xFF | 0xFF | 0x0210 | 0x03 | 1 | PIN Verification, PIN Modification | No extended APDU | 1.4.26 | |
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 41 | 0x00 | supported | Ingenico | WITEO USB Smart Card Reader |  | 0x0F14 | 0x003D | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x03 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 130000 bps | 254 | 0x00000000 | 0x00000000 | 0x000204BA | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | No extended APDU | 1.4.12 | ||
| 42 | 0x00 | supported | Ingenico | WITEO USB Smart Card Reader |  | 0x0F14 | 0x003D | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x03 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 130000 bps | 254 | 0x00000000 | 0x00000000 | 0x000204BA | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | No extended APDU | 1.4.12 | ||
| 43 | 0x00 | supported | KOBIL | KAAN Advanced |  | 0x0D46 | 0x3002 | 0 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 4.800 MHz | 12903 bps | 412903 bps | 254 | 0x00000007 | 0x00000000 | 0x000406BA | 432 bytes | 0xFF | 0xFF | 0x0000 | 0x03 | 1 | PIN Verification, PIN Modification | Firmware older than 0.37 is bogus | 0.9.3 | |
| 44 | 0x00 | supported | KOBIL | KAAN Base |  | 0x0D46 | 0x3001 | 0 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 4.800 MHz | 12903 bps | 412903 bps | 254 | 0x00000007 | 0x00000000 | 0x000406BA | 432 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | Firwmare older than 0.37 is bogus | 0.9.3 | ||
| 45 | 0x00 | supported | KOBIL | KAAN SIM III |  | 0x0D46 | 0x3003 | 0 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 4.800 MHz | 12903 bps | 412903 bps | 254 | 0x00000000 | 0x00000000 | 0x000206BA | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | No extended APDU | 0.9.3 | ||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 46 | 0x00 | supported | KOBIL | EMV CAP - SecOVID Reader III |  | 0x0D46 | 0x3010 | ? | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x01 | 0x0000 0x0003 | 2.000 MHz | 4.000 MHz | 10573 bps | 344086 bps | 254 | 0x00000000 | 0x00000000 | 0x000406BA | 536 bytes | 0xFF | 0xFF | 0x0210 | 0x03 | 1 | PIN Verification, PIN Modification | The reader declares support of Extended APDU but it does not work. The CCID driver disables extended APDU in version 1.4.35. | 1.3.1 | |
| 47 | 0x00 | supported | C3PO | LTC31 v2 |  | 0x0783 | 0x0006 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.01 | 0x01 | 0x0000 0x0003 | 4.000 MHz | 8.000 MHz | 9600 bps | 230400 bps | 254 | 0x00000007 | 0x00000000 | 0x000100BA | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x03 | 1 | PIN Verification, PIN Modification | New model with USB product ID 0x0006 | 1.1.0 | |
| 48 | 0x00 | supported | Lenovo | Integrated Smart Card Reader | | 0x17EF | 0x1003 | ? | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 500000 bps | 254 | 0x00000000 | 0x00000000 | 0x00010230 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.3.1 | |||
| 49 | 0x00 | supported | MYSMART | MySMART PAD V2.0 |  | 0x09BE | 0x0002 | 0 | 3 | 0xFF | 1.00 | 0x00 | 0x0000 0x0300 | 1024.000 MHz | 1024.000 MHz | 10752 bps | 129032 bps | 0 | 0x00000000 | 0x03000000 | 0x00010230 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 0.9.4 | |||
| 50 | 0x00 | supported | Precise Biometrics | Sense MC |  | 0x076B | 0xA022 | ? | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 8.000 MHz | 10752 bps | 412903 bps | 254 | 0x00000007 | 0x00000000 | 0x000207B2 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | biometric | No extended APDU | 1.4.5 | |
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 51 | 0x00 | supported | SCM Microsystems Inc. | SCR 331 |  | 0x04E6 | 0xE001 | 4 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0003 | 4.000 MHz | 8.000 MHz | 10753 bps | 344105 bps | 252 | 0x00000000 | 0x00000000 | 0x000100BA | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | You have to upgrade the firmware using version 5.18 or later. | 0.1.0 | ||
| 52 | 0x00 | supported | SCM Microsystems Inc. | SCR 3310 |  | 0x04E6 | 0x5116 | 4 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0003 | 4.000 MHz | 8.000 MHz | 10753 bps | 344105 bps | 252 | 0x00000000 | 0x00000000 | 0x000100BA | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 0.9.3 | |||
| 53 | 0x00 | supported | SCM Microsystems Inc. | SCR 3311 |  | 0x04E6 | 0x511D | 4 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0003 | 4.000 MHz | 8.000 MHz | 10753 bps | 344105 bps | 252 | 0x00000000 | 0x00000000 | 0x000100BA | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.0.0 | |||
| 54 | 0x00 | supported | SCM Microsystems Inc. | SCR 355 | | 0x04E6 | 0x5410 | 4 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x01 | 0x0000 0x0003 | 4.000 MHz | 8.000 MHz | 10753 bps | 344105 bps | 252 | 0x00000000 | 0x00000000 | 0x000100BA | 263 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.0.0 | |||
| 55 | 0x00 | supported | SCM Microsystems Inc. | SPR 532 |  | 0x04E6 | 0xE003 | 4 | 3 | 0xFF | 1.00 | 0x01 | 0x0000 0x0003 | 4.000 MHz | 8.000 MHz | 10753 bps | 344105 bps | 254 | 0x00000000 | 0x00000000 | 0x000100BA | 270 bytes | 0xFF | 0xFF | 0x0000 | 0x03 | 1 | PIN Verification, PIN Modification | You have to upgrade the firmware using version 5.10 or later. | 0.3.2 | |
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 56 | 0x00 | supported | XIRING | Teo |  | 0x076B | 0xA022 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 8.000 MHz | 10752 bps | 412903 bps | 254 | 0x00000007 | 0x00000000 | 0x000207B2 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | No extended APDU | 1.2.0 | ||
| 57 | 0x00 | supported | TianYu CCID Key | TianYu CCID SmartKey | | 0xA625 | 0x0801 | 0 | 2 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x01 | 0x0000 0x0001 | 3.580 MHz | 3.580 MHz | 9600 bps | 115200 bps | 0 | 0x00000000 | 0x00000000 | 0x00020840 | 512 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | ICCD | No extended APDU | 1.3.10 | |
| 58 | 0x00 | supported | Verisign | Secure Storage Token |  | 0x08E6 | 0x1359 | 0 | 2 | 0xFF | 1.00 | 0x01 | 0x0000 0x0003 | 1.500 MHz | 1.500 MHz | 4032 bps | 46875 bps | 254 | 0x00000000 | 0x00000000 | 0x00010230 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 0.9.4 | |||
| 59 | 0x00 | supported | Verisign | Secure Token | | 0x08E6 | 0xACE0 | 0 | 2 | 0xFF | 1.00 | 0x01 | 0x0000 0x0003 | 1.500 MHz | 1.500 MHz | 4032 bps | 46875 bps | 254 | 0x00000000 | 0x00000000 | 0x00010230 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 0.9.4 | |||
| 60 | 0x00 | supported | XIRING | Leo v2 |  | 0x0F14 | 0x0038 | ? | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 9600 bps | 230400 bps | 254 | 0x00000000 | 0x00000000 | 0x000204BA | 271 bytes | 0xFF | 0xFF | 0x0210 | 0x03 | 1 | firewall, PIN Verification, PIN Modification | No extended APDU | 1.4.1 | |
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 61 | 0x00 | supported | XIRING | MyLeo |  | 0x0F14 | 0x0037 | ? | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 9600 bps | 230400 bps | 254 | 0x00000000 | 0x00000000 | 0x000204BA | 522 bytes | 0xFF | 0xFF | 0x020C | 0x03 | 1 | PIN Verification, PIN Modification | No extended APDU | 1.4.2 | |
| 62 | 0x00 | supported | XIRING | XI-SIGN USB V2 |  | 0x0F14 | 0x0011 | 0 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 3.600 MHz | 3.600 MHz | 9600 bps | 115200 bps | 254 | 0x00000000 | 0x00000000 | 0x000204BA | 271 bytes | 0xFF | 0xFF | 0x020C | 0x03 | 1 | PIN Verification, PIN Modification | No extended APDU | 1.3.9 | |
| 63 | 0x00 | supported | id3 Semiconductors | CL1356T |  | 0x0B81 | 0x0200 | 0 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0002 | 4.000 MHz | 4.000 MHz | 106000 bps | 847000 bps | 254 | 0x00000000 | 0x00000000 | 0x00040042 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless | 1.3.12 | ||
| 64 | 0x00 | shouldwork | ACS | ACR122U | | 0x072F | 0x90CC | 0 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 250000 bps | 247 | 0x00000000 | 0x00000000 | 0x00010030 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.3.5 | |||
| 65 | 0x00 | shouldwork | ACS | ACR100 | | 0x072F | 0x90CC | 0 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 344100 bps | 247 | 0x00000000 | 0x00000000 | 0x00010030 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.3.10 | |||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 66 | 0x00 | shouldwork | ACS | ACR101 ICC Reader |  | 0x072F | 0x1204 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 344100 bps | 247 | 0x00000000 | 0x00000000 | 0x00010030 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.4.7 | |||
| 67 | 0x00 | shouldwork | ACS | ACR1251 Dual Reader |  | 0x072F | 0x221A | ACR1251 Dual Reader PICC | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0002 | 4.000 MHz | 4.000 MHz | 10752 bps | 250000 bps | 512 | 0x00000000 | 0x00000000 | 0x00040040 | 522 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless, interface 0: ACR1251 Dual Reader PICC, Multi interface reader | 1.4.20 | ||
| 68 | 0x00 | shouldwork | ACS | ACR1251 Dual Reader | | 0x072F | 0x221A | ACR1251 Dual Reader SAM | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 4.800 MHz | 12903 bps | 344100 bps | 254 | 0x00000000 | 0x00000000 | 0x000200BA | 288 bytes | 0x00 | 0x00 | 0x0000 | 0x03 | 1 | contactless, interface 1: ACR1251 Dual Reader SAM, Multi interface reader, PIN Verification, PIN Modification | No extended APDU | 1.4.20 | |
| 69 | 0x00 | shouldwork | ACS | ACR1252IMP Reader | | 0x072F | 0x2259 | ACR1252IMP Reader PICC | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0002 | 4.000 MHz | 4.000 MHz | 10752 bps | 250000 bps | 254 | 0x00000000 | 0x00000000 | 0x000404BA | 522 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | Multi interface reader, interface 0: ACR1252IMP Reader PICC | known as the Imprivata Mifare 75 Reader (HDW-IMP-MFR75) | 1.4.34 | |
| 70 | 0x00 | shouldwork | ACS | ACR1252IMP Reader | | 0x072F | 0x2259 | ACR1252IMP Reader SAM | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0003 | 3.420 MHz | 3.420 MHz | 9193 bps | 213750 bps | 254 | 0x00000000 | 0x00000000 | 0x000204BA | 288 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | Multi interface reader, interface 1: ACR1252IMP Reader SAM | No extended APDU | known as the Imprivata Mifare 75 Reader (HDW-IMP-MFR75) | 1.4.34 |
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 71 | 0x00 | shouldwork | ACS | ACR1252 Dual Reader |  | 0x072F | 0x223B | ACR1252 Dual Reader PICC | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0002 | 4.000 MHz | 4.000 MHz | 10752 bps | 250000 bps | 254 | 0x00000000 | 0x00000000 | 0x00040040 | 522 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless, interface 0: ACR1252 Dual Reader PICC, Multi interface reader | 1.4.21 | ||
| 72 | 0x00 | shouldwork | ACS | ACR1252 Dual Reader | | 0x072F | 0x223B | ACR1252 Dual Reader SAM | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0003 | 3.420 MHz | 3.420 MHz | 9193 bps | 213750 bps | 254 | 0x00000000 | 0x00000000 | 0x000204BA | 288 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless, interface 1: ACR1252 Dual Reader SAM, Multi interface reader | No extended APDU | 1.4.21 | |
| 73 | 0x00 | shouldwork | ACS | ACR1252 Reader | | 0x072F | 0x223E | ACR1252 Reader PICC | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0002 | 4.000 MHz | 4.000 MHz | 10752 bps | 250000 bps | 254 | 0x00000000 | 0x00000000 | 0x000404BA | 522 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless | 1.4.31 | ||
| 74 | 0x00 | shouldwork | ACS | ACR1255U-J1 |  | 0x072F | 0x223F | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0002 | 4.000 MHz | 4.000 MHz | 10752 bps | 129032 bps | 512 | 0x00000000 | 0x00000000 | 0x00040040 | 522 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless | Bluetooth | 1.4.27 | |
| 75 | 0x00 | shouldwork | ACS | ACR1552 CL Reader |  | 0x072F | 0x2308 | ACR1552 CL Reader PICC | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 5.000 MHz | 13.560 MHz | 105938 bps | 847500 bps | 506 | 0x00000000 | 0x00000000 | 0x000404BA | 516 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless | 1.5.3 | ||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 76 | 0x00 | shouldwork | ACS | ACR1552 1S CL Reader | | 0x072F | 0x2303 | ACR1552 1S CL Reader PICC | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 5.000 MHz | 13.560 MHz | 105938 bps | 847500 bps | 506 | 0x00000000 | 0x00000000 | 0x000404BA | 516 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless, interface 0: ACR1552 1S CL Reader PICC, Multi interface reader | 1.5.3 | ||
| 77 | 0x00 | shouldwork | ACS | ACR1552 1S CL Reader | | 0x072F | 0x2303 | ACR1552 1S CL Reader SAM | 2 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0003 | 5.000 MHz | 5.000 MHz | 13441 bps | 625000 bps | 506 | 0x00000000 | 0x00000000 | 0x000404BA | 516 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless, interface 1: ACR1552 1S CL Reader SAM, Multi interface reader | 1.5.3 | ||
| 78 | 0x00 | shouldwork | ACS | ACR1581 1S Dual Reader |  | 0x072F | 0x2301 | ACR1581 1S Dual Reader PICC | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 5.000 MHz | 13.560 MHz | 105938 bps | 847500 bps | 506 | 0x00000000 | 0x00000000 | 0x000404BA | 516 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | Multi interface reader, interface 0: ACR1581 1S Dual Reader PICC | 1.5.3 | ||
| 79 | 0x00 | shouldwork | ACS | ACR1581 1S Dual Reader | | 0x072F | 0x2301 | ACR1581 1S Dual Reader ICC | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 5.000 MHz | 5.000 MHz | 13441 bps | 625000 bps | 506 | 0x00000000 | 0x00000000 | 0x000404BA | 516 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | Multi interface reader, interface 1: ACR1581 1S Dual Reader ICC | 1.5.3 | ||
| 80 | 0x00 | shouldwork | ACS | ACR1581 1S Dual Reader | | 0x072F | 0x2301 | ACR1581 1S Dual Reader SAM | 2 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0003 | 5.000 MHz | 5.000 MHz | 13441 bps | 625000 bps | 506 | 0x00000000 | 0x00000000 | 0x000404BA | 516 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | Multi interface reader, interface 2: ACR1581 1S Dual Reader SAM | 1.5.3 | ||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 81 | 0x00 | shouldwork | ACS | ACR38 plugin |  | 0x072F | 0x90CC | 0 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 344100 bps | 247 | 0x00000000 | 0x00000000 | 0x00010030 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.3.10 | |||
| 82 | 0x00 | shouldwork | ACS | ACR3901U ICC Reader |  | 0x072F | 0xB000 | ACR3901U ICC Reader | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 4.800 MHz | 12903 bps | 600000 bps | 247 | 0x00000000 | 0x00000000 | 0x000200BA | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | No extended APDU | Bluetooth | 1.4.23 | |
| 83 | 0x00 | shouldwork | ACS | ACR39U ICC Reader | | 0x072F | 0xB100 | <F?? | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 16.000 MHz | 12903 bps | 826000 bps | 247 | 0x00000000 | 0x00000000 | 0x000100B2 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | The PC/SC reader name will look weirdo in applications because of issues in reader firmware | 1.4.19 | ||
| 84 | 0x00 | shouldwork | ACS | ACR40T ICC Reader |  | 0x072F | 0xB501 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 4.800 MHz | 12903 bps | 826000 bps | 247 | 0x00000000 | 0x00000000 | 0x000107BA | 512 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.5.3 | |||
| 85 | 0x00 | shouldwork | ACS | ACR40U ICC Reader | | 0x072F | 0xB506 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 4.800 MHz | 12903 bps | 826000 bps | 247 | 0x00000000 | 0x00000000 | 0x000103BA | 512 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.5.3 | |||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 86 | 0x00 | shouldwork | ACS | AET65 |  | 0x072F | 0x90CC | ? | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 344100 bps | 247 | 0x00000000 | 0x00000000 | 0x00010030 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.4.0 | |||
| 87 | 0x00 | shouldwork | ACS | APG8201 PINhandy 1 |  | 0x072F | 0x8201 | ? | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x01 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 344100 bps | 254 | 0x00000000 | 0x00000000 | 0x00010030 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x03 | 1 | PIN Verification, PIN Modification | 1.4.2 | ||
| 88 | 0x00 | shouldwork | ACS | APG8201 USB Reader | | 0x072F | 0x8202 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x01 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 344100 bps | 254 | 0x00000000 | 0x00000000 | 0x00020430 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x03 | 1 | PIN Verification, PIN Modification | No extended APDU | 1.4.10 | |
| 89 | 0x00 | shouldwork | ACS | CryptoMate64 |  | 0x072F | 0x90DB | ? | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 344100 bps | 247 | 0x00000000 | 0x00000000 | 0x00010030 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.4.7 | |||
| 90 | 0x00 | shouldwork | ACS | CryptoMate (T2) | .png) | 0x072F | 0xB106 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 16.000 MHz | 12903 bps | 826000 bps | 247 | 0x00000000 | 0x00000000 | 0x000100B2 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.27 | |||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 91 | 0x00 | shouldwork | ACS | CryptoMate EVO |  | 0x072F | 0xB112 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 16.000 MHz | 12903 bps | 826000 bps | 247 | 0x00000000 | 0x00000000 | 0x000100B2 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.34 | |||
| 92 | 0x00 | shouldwork | ACS | WalletMate 1S CL Reader |  | 0x072F | 0x226B | WalletMate 1S CL Reader PICC | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0002 | 4.000 MHz | 4.000 MHz | 10752 bps | 250000 bps | 512 | 0x00000000 | 0x00000000 | 0x000404BA | 522 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | Multi interface reader, interface 0: WalletMate 1S CL Reader PICC | 1.5.3 | ||
| 93 | 0x00 | shouldwork | ACS | WalletMate 1S CL Reader | | 0x072F | 0x226B | WalletMate 1S CL Reader SAM | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0003 | 3.420 MHz | 3.420 MHz | 9193 bps | 213750 bps | 254 | 0x00000000 | 0x00000000 | 0x000204BA | 288 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | Multi interface reader, interface 1: WalletMate 1S CL Reader SAM | No extended APDU | 1.5.3 | |
| 94 | 0x00 | shouldwork | AK910 | CKey |  | 0x2021 | 0x0001 | akCCID | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x02 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 250000 bps | 247 | 0x00000000 | 0x00000000 | 0x000100B6 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.19 | |||
| 95 | 0x00 | shouldwork | AK910 | CKey | | 0x2021 | 0x0011 | akCCID | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x02 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 250000 bps | 247 | 0x00000000 | 0x00000000 | 0x000100B6 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.19 | |||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 96 | 0x00 | shouldwork | AK910 | IDONE |  | 0x2021 | 0x0101 | akCCID | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x02 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 250000 bps | 247 | 0x00000000 | 0x00000000 | 0x000100B6 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.19 | |||
| 97 | 0x00 | shouldwork | ANCUD | CCID USB Reader & RNG |  | 0x0483 | 0xACD1 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x03 | 0x0000 0x0001 | 3.600 MHz | 3.600 MHz | 9677 bps | 9677 bps | 0 | 0x00000000 | 0x00000000 | 0x000104BA | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.4.27 | |||
| 98 | 0x00 | shouldwork | ATMEL | AT90SCR050 | | 0x03EB | 0x6011 | 0 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 344064 bps | 254 | 0x00000000 | 0x00000000 | 0x00010230 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.3.12 | |||
| 99 | 0x00 | shouldwork | ATMEL | AT90SCR100 | | 0x03EB | 0x6010 | 0 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 344064 bps | 254 | 0x00000000 | 0x00000000 | 0x00010230 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.3.12 | |||
| 100 | 0x00 | shouldwork | ATMEL | AT91SC192192CT-USB ICCD reader | | 0x03EB | 0x600B | 4 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0001 | 3.580 MHz | 3.580 MHz | 9600 bps | 9600 bps | 0 | 0x00000000 | 0x00000000 | 0x00020840 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | ICCD | No extended APDU | 1.3.11 | |
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 101 | 0x00 | shouldwork | ATMEL | AT98SC032CT-USB | | 0x03EB | 0x6009 | 4 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0001 | 3.580 MHz | 3.580 MHz | 9600 bps | 9600 bps | 0 | 0x00000000 | 0x00000000 | 0x00020840 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | ICCD | No extended APDU | 1.3.10 | |
| 102 | 0x00 | shouldwork | ATMEL | VaultIC420 Smart Object | | 0x03EB | 0x6012 | 4 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0001 | 3.580 MHz | 3.580 MHz | 9600 bps | 9600 bps | 0 | 0x00000000 | 0x00000000 | 0x00020840 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | ICCD | No extended APDU | 1.3.12 | |
| 103 | 0x00 | shouldwork | ATMEL | VaultIC440 | | 0x03EB | 0x6014 | 4 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0001 | 3.580 MHz | 3.580 MHz | 9600 bps | 9600 bps | 0 | 0x00000000 | 0x00000000 | 0x00020840 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | ICCD | No extended APDU | 1.3.12 | |
| 104 | 0x00 | shouldwork | Access IS | ATR210 |  | 0x0DB5 | 0x0170 | NFC0 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0003 | 4.000 MHz | 13.560 MHz | 106000 bps | 848000 bps | 2048 | 0x00000000 | 0x00000000 | 0x0004007A | 2048 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless | 1.4.32 | ||
| 105 | 0x00 | shouldwork | Access IS | ATR220 | | 0x0DB5 | 0x0180 | NFC0 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0003 | 4.000 MHz | 13.560 MHz | 106000 bps | 848000 bps | 2048 | 0x00000000 | 0x00000000 | 0x0004007A | 2048 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless | 1.4.32 | ||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 106 | 0x00 | shouldwork | Access IS | ATR220 | | 0x0DB5 | 0x0184 | NFC0 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0003 | 4.000 MHz | 13.560 MHz | 106000 bps | 848000 bps | 2048 | 0x00000000 | 0x00000000 | 0x0004007A | 2048 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless, interface 0: NFC0, Multi interface reader | 1.5.1 | ||
| 107 | 0x00 | shouldwork | Access IS | ATR220 | | 0x0DB5 | 0x0184 | SMC0 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 10752 bps | 1024 | 0x00000000 | 0x00000000 | 0x0004067E | 1024 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless, interface 1: SMC0, Multi interface reader | 1.5.1 | ||
| 108 | 0x00 | shouldwork | Access IS | ATR220 | | 0x0DB5 | 0x0184 | SMC1 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 10752 bps | 1024 | 0x00000000 | 0x00000000 | 0x0004067E | 1024 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless, interface 2: SMC1, Multi interface reader | 1.5.1 | ||
| 109 | 0x00 | shouldwork | Access IS | ATR220 | | 0x0DB5 | 0x0184 | SMC2 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 10752 bps | 1024 | 0x00000000 | 0x00000000 | 0x0004067E | 1024 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless, interface 3: SMC2, Multi interface reader | 1.5.1 | ||
| 110 | 0x00 | shouldwork | Access IS | ATR220 | | 0x0DB5 | 0x0184 | SMC3 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 10752 bps | 1024 | 0x00000000 | 0x00000000 | 0x0004067E | 1024 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless, interface 4: SMC3, Multi interface reader | 1.5.1 | ||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 111 | 0x00 | shouldwork | Access IS | NFC Smart Module | | 0x0DB5 | 0x0160 | NFC0 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 10752 bps | 2048 | 0x00000000 | 0x00000000 | 0x0004007A | 2048 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless | Chip included in different Access IS products "LSR116 barcode reader", "LSR118 barcode & contactless NFC/RFID reader", "ATR110 Contactless NFC and 2D Barcode Reader" | 1.4.20 | |
| 112 | 0x00 | shouldwork | Access IS | NFC Smart Module |  | 0x0DB5 | 0x0164 | NFC0 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0003 | 4.000 MHz | 13.560 MHz | 106000 bps | 848000 bps | 2048 | 0x00000000 | 0x00000000 | 0x0004007A | 2048 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless, interface 0: NFC0, Multi interface reader | 1.4.29 | ||
| 113 | 0x00 | shouldwork | Access IS | NFC Smart Module | | 0x0DB5 | 0x0164 | SMC0 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 10752 bps | 1024 | 0x00000000 | 0x00000000 | 0x0004067E | 1024 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless, interface 1: SMC0, Multi interface reader | 1.4.29 | ||
| 114 | 0x00 | shouldwork | Access IS | NFC Smart Module | | 0x0DB5 | 0x0164 | SMC1 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 10752 bps | 1024 | 0x00000000 | 0x00000000 | 0x0004067E | 1024 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless, interface 2: SMC1, Multi interface reader | 1.4.29 | ||
| 115 | 0x00 | shouldwork | Access IS | NFC Smart Module | | 0x0DB5 | 0x0164 | SMC2 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 10752 bps | 1024 | 0x00000000 | 0x00000000 | 0x0004067E | 1024 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless, interface 3: SMC2, Multi interface reader | 1.4.29 | ||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 116 | 0x00 | shouldwork | Access IS | NFC Smart Module | | 0x0DB5 | 0x0164 | SMC3 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 10752 bps | 1024 | 0x00000000 | 0x00000000 | 0x0004067E | 1024 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless, interface 4: SMC3, Multi interface reader | 1.4.29 | ||
| 117 | 0x00 | shouldwork | Access IS | ePassport Reader |  | 0x0DB5 | 0x0138 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 10752 bps | 254 | 0x00000000 | 0x00000000 | 0x0004007A | 278 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless | Also known as OCR601 Half-Page MRZ Passport & ID Document Reader | 1.4.13 | |
| 118 | 0x00 | shouldwork | Akasa | AK-CR-03 |  | 0x058F | 0x9520 | ? | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x03 | 0x0000 0x0003 | 3.700 MHz | 3.700 MHz | 9946 bps | 318280 bps | 254 | 0x00000007 | 0x00000000 | 0x000204BE | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | No extended APDU | 1.4.1 | ||
| 119 | 0x00 | shouldwork | Aktiv | Rutoken ECP |  | 0x0A89 | 0x0030 | 0 | 2 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x01 | 0x0000 0x0002 | 3.580 MHz | 3.580 MHz | 9600 bps | 9600 bps | 254 | 0x00000000 | 0x00000000 | 0x00020840 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | ICCD | No extended APDU | 1.3.11 | |
| 120 | 0x00 | shouldwork | Aktiv | Rutoken lite | | 0x0A89 | 0x0025 | ? | 2 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0002 | 3.580 MHz | 3.580 MHz | 9600 bps | 9600 bps | 254 | 0x00000000 | 0x00000000 | 0x00020840 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | ICCD | No extended APDU | 1.4.2 | |
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 121 | 0x00 | shouldwork | Aktiv Co., ProgramPark | Rutoken Magistra | | 0x0A89 | 0x0060 | 0 | 0 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x01 | 0x0000 0x0002 | 3.580 MHz | 3.580 MHz | 9600 bps | 9600 bps | 254 | 0x00000000 | 0x00000000 | 0x00020840 | 261 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | ICCD | No extended APDU | 1.3.10 | |
| 122 | 0x00 | shouldwork | Aktiv | Rutoken PINPad 2 |  | 0x0A89 | 0x0082 | NO NAME | 2 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0002 | 3.580 MHz | 3.580 MHz | 9600 bps | 9600 bps | 254 | 0x00000000 | 0x00000000 | 0x00020840 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | ICCD | No extended APDU | 1.4.22 | |
| 123 | 0x00 | shouldwork | Aktiv | Rutoken SCR 3001 Reader |  | 0x0A89 | 0x0069 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 3.580 MHz | 5.000 MHz | 9600 bps | 625000 bps | 254 | 0x00000000 | 0x00000000 | 0x000204B8 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | No extended APDU | 1.4.34 | ||
| 124 | 0x00 | shouldwork | Aktiv | Rutoken SCR 3101 NFC Reader |  | 0x0A89 | 0x006A | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x01 | 0x0000 0x0003 | 3.580 MHz | 5.000 MHz | 9600 bps | 312500 bps | 254 | 0x00000000 | 0x00000000 | 0x000204B8 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless | No extended APDU | 1.5.3 | |
| 125 | 0x00 | shouldwork | Aladdin R.D. | JCR-770 |  | 0x24DC | 0x0201 | CCID | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x03 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 344086 bps | 254 | 0x00000000 | 0x00000000 | 0x000404B2 | 271 bytes | 0x00 | 0x00 | 0x0511 | 0x03 | 1 | PIN Verification, PIN Modification | 1.4.22 | ||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 126 | 0x00 | shouldwork | Aladdin R.D. | JCR SecurBio |  | 0x24DC | 0x0420 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10753 bps | 250000 bps | 253 | 0x00000000 | 0x00000000 | 0x0002004A | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | No extended APDU | 1.6.0 | ||
| 127 | 0x00 | shouldwork | Aladdin R.D. | JaCarta |  | 0x24DC | 0x0101 | Main Interface | 2 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 10752 bps | 252 | 0x00000000 | 0x00000000 | 0x0001023C | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.4.22 | |||
| 128 | 0x00 | shouldwork | Aladdin R.D. | JaCarta | | 0x24DC | 0x0402 | NO NAME | 2 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0002 | 4.000 MHz | 4.000 MHz | 9600 bps | 250000 bps | 261 | 0x00000000 | 0x00000000 | 0x00040042 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.4.25 | |||
| 129 | 0x00 | shouldwork | Aladdin R.D. | JaCartaReader |  | 0x24DC | 0x0428 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10753 bps | 250000 bps | 254 | 0x00000000 | 0x00000000 | 0x00010038 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.4.31 | |||
| 130 | 0x00 | shouldwork | Aladdin R.D. | JaCarta Flash |  | 0x24DC | 0x100F | JaCarta | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x02 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 344086 bps | 252 | 0x00000007 | 0x00000000 | 0x00010330 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.4.22 | |||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 131 | 0x00 | shouldwork | Aladdin R.D. | JaCarta LT |  | 0x24DC | 0x0102 | Main Interface | 2 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 10752 bps | 252 | 0x00000000 | 0x00000000 | 0x0001023C | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.4.22 | |||
| 132 | 0x00 | shouldwork | Aladdin R.D. | JaCarta U2F (JC602) |  | 0x24DC | 0x0501 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 2.00 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 672 bps | 250000 bps | 261 | 0x00000000 | 0x00000000 | 0x00040042 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.4.22 | |||
| 133 | 0x00 | shouldwork | Aladdin R.D. | JC-WebPass (JC600) | | 0x24DC | 0x0401 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 2.00 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 672 bps | 250000 bps | 261 | 0x00000000 | 0x00000000 | 0x00040042 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.4.22 | |||
| 134 | 0x00 | shouldwork | Alcor Link | AK9563 | | 0x2CE3 | 0x9563 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 12.000 MHz | 10753 bps | 688172 bps | 254 | 0x00000007 | 0x00000000 | 0x000404BE | 272 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.31 | |||
| 135 | 0x00 | shouldwork | Alcor Link | AK9567 | | 0x2CE3 | 0x9567 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 12.000 MHz | 10753 bps | 688172 bps | 254 | 0x00000007 | 0x00000000 | 0x000404BE | 272 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless, interface 0: NO NAME, Multi interface reader | 1.5.1 | ||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 136 | 0x00 | shouldwork | Alcor Link | AK9567 | | 0x2CE3 | 0x9567 | Contactless Card Reader | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 3.700 MHz | 12.000 MHz | 9946 bps | 688172 bps | 254 | 0x00000007 | 0x00000000 | 0x000404BE | 272 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless, interface 1: Contactless Card Reader, Multi interface reader | 1.5.1 | ||
| 137 | 0x00 | shouldwork | Alcor Link | AK9572 | | 0x2CE3 | 0x9573 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 12.000 MHz | 10753 bps | 688172 bps | 254 | 0x00000007 | 0x00000000 | 0x000404BE | 272 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless, interface 0: NO NAME, Multi interface reader | 1.5.1 | ||
| 138 | 0x00 | shouldwork | Alcor Link | AK9572 | | 0x2CE3 | 0x9573 | Contactless Card Reader | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 3.700 MHz | 12.000 MHz | 9946 bps | 688172 bps | 254 | 0x00000007 | 0x00000000 | 0x000404BE | 272 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless, interface 1: Contactless Card Reader, Multi interface reader | 1.5.1 | ||
| 139 | 0x00 | shouldwork | Alcor Micro | SCR001 |  | 0x058F | 0x9520 | 0 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x03 | 0x0000 0x0003 | 3.700 MHz | 3.700 MHz | 9946 bps | 318280 bps | 254 | 0x00000007 | 0x00000000 | 0x000204BE | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | No extended APDU | 1.3.11 | ||
| 140 | 0x00 | shouldwork | Alpha-Project | ANGARA Token |  | 0x2A0C | 0x0021 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 10.01 | 0x01 | 0x0000 0x0003 | 3.700 MHz | 3.700 MHz | 9600 bps | 115200 bps | 271 | 0x00000000 | 0x00000000 | 0x000104B4 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.5.5 | |||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 141 | 0x00 | shouldwork | ArkSigner | Connect2Sign |  | 0x33B6 | 0x0001 | Arksigner CCID Device | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x06 | 0x0000 0x0003 | 4.800 MHz | 4.800 MHz | 12903 bps | 312500 bps | 254 | 0x00000000 | 0x00000000 | 0x0002007E | 510 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | No extended APDU | 1.4.35 | ||
| 142 | 0x00 | shouldwork | ASK-RFID | CPL108 |  | 0x1FD3 | 0xCC1D | Contactless | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0002 | 3.580 MHz | 3.580 MHz | 9600 bps | 9600 bps | 254 | 0x00000000 | 0x00000000 | 0x000400FE | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless | 1.3.12 | ||
| 143 | 0x00 | shouldwork | Athena | ASEDrive IIIe Combo Bio PIV |  | 0x0DC3 | 0x1008 | ASEDrive IIIe Combo? | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 18.000 MHz | 10752 bps | 999936 bps | 253 | 0x00000000 | 0x00000000 | 0x00010230 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.4.22 | |||
| 144 | 0x00 | shouldwork | Athena | ASEDrive IIIe KB Bio PIV |  | 0x0DC3 | 0x1007 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 18.000 MHz | 10752 bps | 999936 bps | 253 | 0x00000000 | 0x00000000 | 0x00010230 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.4.22 | |||
| 145 | 0x00 | shouldwork | Athena | IDProtect Key v2 |  | 0x0DC3 | 0x0900 | Main Interface | 2 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 10752 bps | 252 | 0x00000000 | 0x00000000 | 0x0001023C | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | Be to have a v2 token (bcdDevice: 2.00). The V1 token is bogus: PPS to set the card in T=1 fails. See http://www.opensc-project.org/pipermail/opensc-user/2010-May/004023.html | 1.3.12 | ||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 146 | 0x00 | shouldwork | AvestUA | AvestKey |  | 0xC1A6 | 0x0131 | NO NAME | 2 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x01 | 0x0000 0x0002 | 3.580 MHz | 3.580 MHz | 9600 bps | 9600 bps | 254 | 0x00000000 | 0x00000000 | 0x00040840 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | ICCD | 1.4.31 | ||
| 147 | 0x00 | shouldwork | AvidCard | CAC Smart Card Reader |  | 0x04E6 | 0x5824 | CCID Interface | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 16.000 MHz | 12903 bps | 600000 bps | 252 | 0x00000000 | 0x00000000 | 0x000100BA | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.6.0 | |||
| 148 | 0x00 | shouldwork | ~Avtor | KP-375BLE |  | 0x096E | 0x0624 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 12.000 MHz | 10752 bps | 688172 bps | 271 | 0x00000000 | 0x00000000 | 0x000404BA | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.34 | |||
| 149 | 0x00 | shouldwork | Avtor | SC Reader 371 |  | 0x15CF | 0x001D | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 10.01 | 0x01 | 0x0000 0x0003 | 3.571 MHz | 3.571 MHz | 9600 bps | 115200 bps | 254 | 0x00000000 | 0x00000000 | 0x000204BA | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | No extended APDU | 1.4.6 | ||
| 150 | 0x00 | shouldwork | ~Avtor | SC Reader KP382 |  | 0x096E | 0x0608 | KP382 Contactless Reader | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x01 | 0x0000 0x0002 | 4.000 MHz | 4.000 MHz | 10752 bps | 688172 bps | 252 | 0x00000007 | 0x00000000 | 0x000404BE | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless | 1.4.34 | ||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 151 | 0x00 | shouldwork | Avtor | SecureToken |  | 0x15CF | 0x0019 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 3.580 MHz | 3.580 MHz | 9600 bps | 9600 bps | 254 | 0x00000000 | 0x00000000 | 0x000204BA | 272 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | No extended APDU | 1.4.6 | ||
| 152 | 0x00 | shouldwork | Avtor | SecureToken |  | 0x15CF | 0x0020 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x02 | 0x0000 0x0002 | 3.571 MHz | 3.571 MHz | 9600 bps | 115200 bps | 254 | 0x00000007 | 0x00000000 | 0x000207B2 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | No extended APDU | 1.4.31 | ||
| 153 | 0x00 | shouldwork | Axalto | Reflex USB v3 |  | 0x04E6 | 0x511C | CCID Interface | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x01 | 0x0000 0x0003 | 4.000 MHz | 12.000 MHz | 9600 bps | 307200 bps | 252 | 0x00000000 | 0x00000000 | 0x000100BA | 263 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.0.1 | |||
| 154 | 0x00 | shouldwork | BIFIT | ANGARA |  | 0x23A0 | 0x0008 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0001 | 5.000 MHz | 5.000 MHz | 13440 bps | 430107 bps | 0 | 0x00000000 | 0x00000000 | 0x000100B8 | 270 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.30 | |||
| 155 | 0x00 | shouldwork | BIFIT | USB-Token iBank2key |  | 0x23A0 | 0x0001 | ? | 2 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0002 | 5.000 MHz | 5.000 MHz | 13440 bps | 430107 bps | 254 | 0x00000000 | 0x00000000 | 0x000205B8 | 272 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | No extended APDU | 1.4.5 | ||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 156 | 0x00 | shouldwork | BIFIT | iBank2Key |  | 0x23A0 | 0x0002 | iBank2Key | 0 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0001 | 3.580 MHz | 3.580 MHz | 9600 bps | 9600 bps | 64 | 0x00000000 | 0x00000000 | 0x00000840 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | ICCD | 1.4.5 | ||
| 157 | 0x00 | shouldwork | BIFIT | iToken |  | 0x23A0 | 0x0003 | iToken | 2 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0001 | 1.500 MHz | 1.500 MHz | 4032 bps | 93750 bps | 0 | 0x00000000 | 0x00000000 | 0x000100B8 | 270 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.4.20 | |||
| 158 | 0x00 | shouldwork | BIT4ID | miniLector AIR NFC v3 |  | 0x25DD | 0x3403 | miniLector AIR DI v3 CLESS | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x01 | 0x0000 0x0002 | 4.000 MHz | 4.000 MHz | 10752 bps | 688172 bps | 252 | 0x00000007 | 0x00000000 | 0x000404BE | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless | 1.4.34 | ||
| 159 | 0x00 | shouldwork | BLUTRONICS | TAURUS NFC | | 0x1B0E | 0x5A02 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 3.685 MHz | 13.560 MHz | 9909 bps | 848000 bps | 254 | 0x00000000 | 0x00000000 | 0x0004047E | 273 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless | 1.5.1 | ||
| 160 | 0x00 | shouldwork | HDZB | uKeyCI800-K18 |  | 0x1677 | 0x0025 | ? | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 250000 bps | 254 | 0x00000000 | 0x00000000 | 0x00010030 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.4.1 | |||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 161 | 0x00 | shouldwork | Bit4id | Digital-DNA Key BT |  | 0x25DD | 0x2361 | CCID Digital DNA Key | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x02 | 0x0000 0x0002 | 4.000 MHz | 4.000 MHz | 10752 bps | 129500 bps | 247 | 0x00000000 | 0x00000000 | 0x00010030 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.4.29 | |||
| 162 | 0x00 | shouldwork | Bit4id | Digital-DNA Key | | 0x25DD | 0x2362 | CCID Digital DNA Key | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x02 | 0x0000 0x0002 | 4.000 MHz | 4.000 MHz | 10752 bps | 129500 bps | 247 | 0x00000000 | 0x00000000 | 0x00010030 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.4.29 | |||
| 163 | 0x00 | shouldwork | Bit4id | Digital DNA Key |  | 0x25DD | 0x2351 | ? | 2 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0002 | 3.580 MHz | 3.580 MHz | 9600 bps | 115200 bps | 1080 | 0x00000000 | 0x00000000 | 0x000404BE | 1090 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.26 | |||
| 164 | 0x00 | shouldwork | Bit4id | Digital-DNA Key |  | 0x25DD | 0x2354 | CCID | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x02 | 0x0000 0x0002 | 4.000 MHz | 4.000 MHz | 10752 bps | 129500 bps | 254 | 0x00000000 | 0x00000000 | 0x00010030 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.4.34 | |||
| 165 | 0x00 | shouldwork | Bit4id | tokenME FIPS v3 | | 0x25DD | 0x2341 | ? | 2 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0002 | 3.580 MHz | 3.580 MHz | 9600 bps | 115200 bps | 1080 | 0x00000000 | 0x00000000 | 0x000404BE | 1090 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.26 | |||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 166 | 0x00 | shouldwork | BLUTRONICS | BLUDRIVE II CCID | | 0x1B0E | 0x1079 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 3.700 MHz | 3.700 MHz | 9946 bps | 318280 bps | 254 | 0x00000007 | 0x00000000 | 0x000404BE | 272 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.20 | |||
| 167 | 0x00 | shouldwork | Bluink Ltd. | Bluink CCID | | 0x2ABE | 0x1003 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 3.580 MHz | 3.580 MHz | 9600 bps | 115200 bps | 254 | 0x00000000 | 0x00000000 | 0x000200FE | 240 bytes | 0xFF | 0xFF | 0x0410 | 0x03 | 1 | PIN Verification, PIN Modification | No extended APDU | 1.4.29 | |
| 168 | 0x00 | shouldwork | Broadcom Corp | 58200 | | 0x0A5C | 0x5842 | Contacted SmartCard | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 9600 bps | 250000 bps | 247 | 0x00000000 | 0x00000000 | 0x000102BA | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless, interface 0: Contacted SmartCard, Multi interface reader | The contactless interface is not supported | 1.4.30 | |
| 169 | 0x00 | shouldwork | Broadcom Corp | 58200 | | 0x0A5C | 0x5842 | Contactless SmartCard | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.01 | 0x01 | 0x0000 0x0003 | 3.580 MHz | 3.580 MHz | 9600 bps | 9600 bps | 254 | 0x00000000 | 0x00000000 | 0x000204BA | 512 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless, interface 1: Contactless SmartCard, Multi interface reader | No extended APDU | The contactless interface is not supported | 1.4.30 |
| 170 | 0x00 | shouldwork | Broadcom Corp | 58200 | | 0x0A5C | 0x5843 | Contacted SmartCard | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 9600 bps | 250000 bps | 247 | 0x00000000 | 0x00000000 | 0x000102BA | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless, interface 0: Contacted SmartCard, Multi interface reader | The contactless interface is not supported | 1.4.31 | |
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 171 | 0x00 | shouldwork | Broadcom Corp | 58200 | | 0x0A5C | 0x5843 | Contactless SmartCard | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.01 | 0x01 | 0x0000 0x0003 | 3.580 MHz | 3.580 MHz | 9600 bps | 9600 bps | 254 | 0x00000000 | 0x00000000 | 0x000204BA | 512 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless, interface 1: Contactless SmartCard, Multi interface reader | No extended APDU | The contactless interface is not supported | 1.4.31 |
| 172 | 0x00 | shouldwork | Broadcom Corp | 58200 | | 0x0A5C | 0x5864 | Contacted SmartCard | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 9600 bps | 250000 bps | 247 | 0x00000000 | 0x00000000 | 0x000102BA | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless, interface 0: Contacted SmartCard, Multi interface reader | The contactless interface is not supported | 1.5.5 | |
| 173 | 0x00 | shouldwork | Broadcom Corp | 58200 | | 0x0A5C | 0x5864 | Contactless SmartCard | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.01 | 0x01 | 0x0000 0x0003 | 3.580 MHz | 3.580 MHz | 9600 bps | 9600 bps | 528 | 0x00000000 | 0x00000000 | 0x000404BA | 528 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless, interface 1: Contactless SmartCard, Multi interface reader | The contactless interface is not supported | 1.5.5 | |
| 174 | 0x00 | shouldwork | Broadcom Corp | 58200 | | 0x0A5C | 0x5865 | Contacted SmartCard | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 9600 bps | 250000 bps | 247 | 0x00000000 | 0x00000000 | 0x000102BA | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless, interface 0: Contacted SmartCard, Multi interface reader | The contactless interface is not supported | 1.5.5 | |
| 175 | 0x00 | shouldwork | Broadcom Corp | 58200 | | 0x0A5C | 0x5865 | Contactless SmartCard | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.01 | 0x01 | 0x0000 0x0003 | 3.580 MHz | 3.580 MHz | 9600 bps | 9600 bps | 528 | 0x00000000 | 0x00000000 | 0x000404BA | 528 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless, interface 1: Contactless SmartCard, Multi interface reader | The contactless interface is not supported | 1.5.5 | |
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 176 | 0x00 | shouldwork | Broadcom Corp | 5880 | | 0x0A5C | 0x5832 | Contacted SmartCard | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 9600 bps | 250000 bps | 247 | 0x00000000 | 0x00000000 | 0x000102BA | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless, interface 0: Contacted SmartCard, Multi interface reader | The contactless interface is not supported | 1.4.25 | |
| 177 | 0x00 | shouldwork | Broadcom Corp | 5880 | | 0x0A5C | 0x5832 | Contactless SmartCard | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.01 | 0x01 | 0x0000 0x0003 | 3.580 MHz | 3.580 MHz | 9600 bps | 9600 bps | 254 | 0x00000000 | 0x00000000 | 0x000204BA | 512 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless, interface 1: Contactless SmartCard, Multi interface reader | No extended APDU | The contactless interface is not supported | 1.4.25 |
| 178 | 0x00 | shouldwork | Broadcom Corp | 5880 | | 0x0A5C | 0x5833 | Contacted SmartCard | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 9600 bps | 250000 bps | 247 | 0x00000000 | 0x00000000 | 0x000102BA | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.4.25 | |||
| 179 | 0x00 | shouldwork | Broadcom Corp | 5880 | | 0x0A5C | 0x5834 | Contacted SmartCard | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 9600 bps | 250000 bps | 247 | 0x00000000 | 0x00000000 | 0x000102BA | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless, interface 0: Contacted SmartCard, Multi interface reader | The contactless interface is not supported | 1.4.25 | |
| 180 | 0x00 | shouldwork | Broadcom Corp | 5880 | | 0x0A5C | 0x5834 | Contactless SmartCard | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.01 | 0x01 | 0x0000 0x0003 | 3.580 MHz | 3.580 MHz | 9600 bps | 9600 bps | 254 | 0x00000000 | 0x00000000 | 0x000204BA | 512 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless, interface 1: Contactless SmartCard, Multi interface reader | No extended APDU | The contactless interface is not supported | 1.4.25 |
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 181 | 0x00 | shouldwork | Broadcom Corp | 5880 | | 0x0A5C | 0x5802 | Contacted SmartCard | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 9600 bps | 250000 bps | 247 | 0x00000000 | 0x00000000 | 0x000102BA | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.4.0 | |||
| 182 | 0x00 | shouldwork | Broadcom Corp | 5880 | | 0x0A5C | 0x5802 | Contacted SmartCard | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 9600 bps | 250000 bps | 247 | 0x00000000 | 0x00000000 | 0x000102BA | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless, interface 0: Contacted SmartCard, Multi interface reader | The contactless interface is not supported | 1.4.2 | |
| 183 | 0x00 | shouldwork | Broadcom Corp | 5880 | | 0x0A5C | 0x5802 | Contactless SmartCard | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.01 | 0x01 | 0x0000 0x0003 | 3.580 MHz | 3.580 MHz | 9600 bps | 9600 bps | 254 | 0x00000000 | 0x00000000 | 0x000204BA | 512 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless, interface 1: Contactless SmartCard, Multi interface reader | No extended APDU | The contactless interface is not supported | 1.4.2 |
| 184 | 0x00 | shouldwork | Broadcom Corp | 5880 | | 0x0A5C | 0x5804 | Contacted SmartCard | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 9600 bps | 250000 bps | 247 | 0x00000000 | 0x00000000 | 0x000102BA | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless, interface 0: Contacted SmartCard, Multi interface reader | The contactless interface is not supported | 1.4.19 | |
| 185 | 0x00 | shouldwork | Broadcom Corp | 5880 | | 0x0A5C | 0x5804 | Contactless SmartCard | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.01 | 0x01 | 0x0000 0x0003 | 3.580 MHz | 3.580 MHz | 9600 bps | 9600 bps | 254 | 0x00000000 | 0x00000000 | 0x000204BA | 512 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless, interface 1: Contactless SmartCard, Multi interface reader | No extended APDU | The contactless interface is not supported | 1.4.19 |
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 186 | 0x00 | shouldwork | C3PO | KBR36 |  | 0x0783 | 0x0009 | 0 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x01 | 0x0000 0x0003 | 4.000 MHz | 20.000 MHz | 9600 bps | 230400 bps | 254 | 0x00000007 | 0x00000000 | 0x000100BA | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x03 | 1 | PIN Verification, PIN Modification | 1.2.0 | ||
| 187 | 0x00 | shouldwork | C3PO | LTC32 |  | 0x0783 | 0x0010 | 0 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x01 | 0x0000 0x0003 | 4.000 MHz | 20.000 MHz | 9600 bps | 230400 bps | 254 | 0x00000007 | 0x00000000 | 0x000100BA | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x03 | 1 | PIN Verification, PIN Modification | 1.2.0 | ||
| 188 | 0x00 | shouldwork | C3PO | TLTC2USB | | 0x0783 | 0x0007 | 0 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x01 | 0x0000 0x0003 | 4.000 MHz | 20.000 MHz | 9600 bps | 230400 bps | 254 | 0x00000001 | 0x00000000 | 0x000100BA | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.2.0 | |||
| 189 | 0x00 | shouldwork | CASTLES | EZCCID Smart Card Reader |  | 0x0CA6 | 0x00A0 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x01 | 0x0000 0x0003 | 3.580 MHz | 3.580 MHz | 9600 bps | 115200 bps | 252 | 0x00000000 | 0x00000000 | 0x00010130 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.4.19 | |||
| 190 | 0x00 | shouldwork | CCB | eSafeLD |  | 0x8829 | 0xCCB2 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x01 | 0x0000 0x0002 | 3.580 MHz | 3.580 MHz | 9600 bps | 9600 bps | 1041 | 0x00000000 | 0x00000000 | 0x00040672 | 1041 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.7 | |||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 191 | 0x00 | shouldwork | CIRIGHT | ONE PASS U2F |  | 0x1FC9 | 0x0905 | ? | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x02 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 800000 bps | 254 | 0x00000000 | 0x00000000 | 0x00010330 | 271 bytes | 0x00 | 0x0000 | 0x00 | 1 | 1.5.3 | ||||
| 192 | 0x00 | shouldwork | CREATOR | CRT-603(CZ1) CCR | | 0x23D8 | 0x0603 | CRT-603 (CZ1) CCR SAM1 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 2.10 | 0x07 | 0x0000 0x0003 | 3.700 MHz | 3.700 MHz | 9946 bps | 318280 bps | 254 | 0x00000000 | 0x00000000 | 0x000204FE | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | Multi interface reader, interface 0: CRT-603 (CZ1) CCR SAM1 | No extended APDU | 1.5.1 | |
| 193 | 0x00 | shouldwork | CREATOR | CRT-603(CZ1) CCR | | 0x23D8 | 0x0603 | CRT-603 (CZ1) CCR SAM2 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 2.10 | 0x07 | 0x0000 0x0003 | 3.700 MHz | 3.700 MHz | 9946 bps | 318280 bps | 254 | 0x00000000 | 0x00000000 | 0x000204BE | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | Multi interface reader, interface 1: CRT-603 (CZ1) CCR SAM2 | No extended APDU | 1.5.1 | |
| 194 | 0x00 | shouldwork | Canokeys | Canokey |  | 0x20A0 | 0x42D4 | OpenPGP PIV OATH | 2 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0002 | 4.000 MHz | 4.000 MHz | 307200 bps | 307200 bps | 1342 | 0x00000000 | 0x00000000 | 0x000400FE | 1352 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.34 | |||
| 195 | 0x00 | shouldwork | OMNIKEY | CardMan 1021 |  | 0x076B | 0x1021 | 0 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 3.692 MHz | 3.692 MHz | 9924 bps | 317591 bps | 254 | 0x00000007 | 0x00000000 | 0x000103B1 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.2.0 | |||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 196 | 0x00 | shouldwork | OMNIKEY AG | CardMan 3021 |  | 0x076B | 0x3021 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 8.000 MHz | 10752 bps | 412903 bps | 254 | 0x00000007 | 0x00000000 | 0x000207B2 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | No extended APDU | 1.1.0 | ||
| 197 | 0x00 | shouldwork | OMNIKEY AG | CardMan 3621 |  | 0x076B | 0x3621 | 0 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 8.000 MHz | 10752 bps | 412903 bps | 254 | 0x00000007 | 0x00000000 | 0x000207B2 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x03 | 1 | PIN Verification, PIN Modification | No extended APDU | Does not support minimum PIN length (wPINMaxExtraDigit) lower than 5 | 1.0.1 |
| 198 | 0x00 | shouldwork | OMNIKEY AG | CardMan 3821 |  | 0x076B | 0x3821 | 0 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 8.000 MHz | 10752 bps | 412903 bps | 254 | 0x00000007 | 0x00000000 | 0x000207B2 | 271 bytes | 0xFF | 0xFF | 0x0210 | 0x03 | 1 | PIN Verification, PIN Modification | No extended APDU | Did not support minimum PIN length (wPINMaxExtraDigit) lower than 5. Seems to be fixed in recent firmware with a min size of 1. | 1.0.0 |
| 199 | 0x00 | shouldwork | OMNIKEY | CardMan 4321 |  | 0x076B | 0x4321 | 0 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 8.000 MHz | 10752 bps | 412903 bps | 254 | 0x00000007 | 0x00000000 | 0x000207B2 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | ExpressCard | No extended APDU | The reader may report a card present if no card is inserted. See <a href="https://bugzilla.redhat.com/show_bug.cgi?id=531998">pcscd spams the log with "SCardConnect() Card Not Powered"</a> | 1.3.0 |
| 200 | 0x00 | shouldwork | OMNIKEY AG | CardMan 5121 |  | 0x076B | 0x5121 | 0 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 8.000 MHz | 10752 bps | 412903 bps | 254 | 0x00000007 | 0x00000000 | 0x000207B2 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless | No extended APDU | The RFID interface is not supported. | 1.2.0 |
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 201 | 0x00 | shouldwork | OMNIKEY AG | CardMan 5125 | | 0x076B | 0x5125 | 0 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 8.000 MHz | 10752 bps | 412903 bps | 254 | 0x00000007 | 0x00000000 | 0x000207B2 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless | No extended APDU | The HID PROX interface is not supported. | 1.0.0 |
| 202 | 0x00 | shouldwork | OMNIKEY | CardMan 5321 |  | 0x076B | 0x5321 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 8.000 MHz | 10752 bps | 412903 bps | 254 | 0x00000007 | 0x00000000 | 0x000103B0 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless | The RFID interface is not supported. | 1.3.1 | |
| 203 | 0x00 | shouldwork | OMNIKEY AG | CardMan 6121 |  | 0x076B | 0x6622 | ? | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 8.000 MHz | 10752 bps | 412903 bps | 254 | 0x00000007 | 0x00000000 | 0x000207B2 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | No extended APDU | 1.0.0 | ||
| 204 | 0x00 | shouldwork | Certgate GmbH | AirID 2 USB |  | 0x2DFF | 0xB601 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x02 | 0x0000 0x0003 | 3.580 MHz | 3.580 MHz | 9600 bps | 9600 bps | 254 | 0x00000000 | 0x00000000 | 0x00040040 | 8192 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.30 | |||
| 205 | 0x00 | shouldwork | Certgate GmbH | ONEKEY ID 2 USB |  | 0x2DFF | 0xB602 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x02 | 0x0000 0x0003 | 3.580 MHz | 3.580 MHz | 9600 bps | 9600 bps | 254 | 0x00000000 | 0x00000000 | 0x00040040 | 8192 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | NFC Bluetooth | 1.4.31 | ||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 206 | 0x00 | shouldwork | charismathics | plug'n'crypt CCID token | | 0x19E7 | 0x0002 | 0 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 344086 bps | 254 | 0x00000000 | 0x00000000 | 0x00010230 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.3.1 | |||

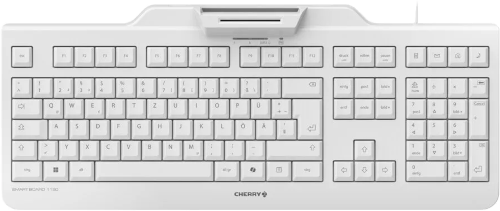

| 207 | 0x00 | shouldwork | Cherry GmbH | SmartBoard XX1X | | 0x046A | 0x005B | 4 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.01 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 8.000 MHz | 10752 bps | 412903 bps | 254 | 0x00000000 | 0x00000000 | 0x000207B2 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x03 | 1 | PIN Verification, PIN Modification | No extended APDU | 1.3.5 | |
| 208 | 0x00 | shouldwork | Cherry GmbH | SmartTerminal XX1X |  | 0x046A | 0x0070 | 4 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.01 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 8.000 MHz | 10752 bps | 412903 bps | 254 | 0x00000000 | 0x00000000 | 0x000207B2 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | No extended APDU | 1.3.9 | ||
| 209 | 0x00 | shouldwork | Cherry GmbH | SmartTerminal ST-1275 |  | 0x046A | 0x0072 | Smart Card Reader CCID | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.01 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 8.000 MHz | 10752 bps | 412903 bps | 254 | 0x00000007 | 0x00000000 | 0x000207B2 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless | No extended APDU | The contactless interface is not supported. | 1.3.12 |
| 210 | 0x00 | shouldwork | Cherry | KC 1000 SC |  | 0x046A | 0x00A1 | KC 1000 SC | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 8.000 MHz | 10752 bps | 412903 bps | 254 | 0x00000007 | 0x00000000 | 0x000407BA | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x03 | 1 | PIN Verification, PIN Modification | With older versions of the firmware (1.00) it is possible to enable extended APDU. See <a href="https://www.cherry.de/files/manual/PLT-02339_A.2_CHERRY_KC_1000_SC_SW_Dev_Guide_en.pdf">CHERRY KC 1000 SC Software Developer Guide</a>. The reader limits the maximum size in the dwLength field of the PC_to_RDR_Secure message to 128 bytes. A longer length makes the reader reject the message with "CCID_Receive error on byte 8". This limitation was seen in the current firmware (version 1.02) and makes it impossible to use secure PIN change commands where multiple, long, padded PINs are used, such as 64-byte PINs in IAS-ECC cards from Idemia". | 1.4.19 | |
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 211 | 0x00 | shouldwork | Cherry | KC 1000 SC/DI | | 0x046A | 0x00A2 | KC 1000 SC/DI | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 8.000 MHz | 10752 bps | 412903 bps | 254 | 0x00000007 | 0x00000000 | 0x000207B8 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x03 | 1 | PIN Verification, PIN Modification | No extended APDU | 1.4.19 | |
| 212 | 0x00 | shouldwork | Cherry | KC 1000 SC/DI Z | | 0x046A | 0x00A5 | KC 1000 SC/DI Z | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 8.000 MHz | 10752 bps | 412903 bps | 254 | 0x00000007 | 0x00000000 | 0x000207B8 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x03 | 1 | PIN Verification, PIN Modification | No extended APDU | 1.4.19 | |
| 213 | 0x00 | shouldwork | Cherry | KC 1000 SC Z | | 0x046A | 0x00A4 | KC 1000 SC Z | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 8.000 MHz | 10752 bps | 412903 bps | 254 | 0x00000007 | 0x00000000 | 0x000407BA | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x03 | 1 | PIN Verification, PIN Modification | 1.4.19 | ||
| 214 | 0x00 | shouldwork | CHERRY | SmartTerminal ST-1144 | | 0x046A | 0x00A7 | Smart Terminal XX44 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 8.000 MHz | 10752 bps | 412903 bps | 254 | 0x00000007 | 0x00000000 | 0x000407B8 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x03 | 1 | PIN Verification, PIN Modification | 1.5.1 | ||
| 215 | 0x00 | shouldwork | Cherry | SmartTerminal XX44 | | 0x046A | 0x00A7 | Cherry Smart Terminal XX44 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 8.000 MHz | 10752 bps | 412903 bps | 254 | 0x00000007 | 0x00000000 | 0x000207B8 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x03 | 1 | PIN Verification, PIN Modification | No extended APDU | 1.4.23 | |
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 216 | 0x00 | shouldwork | Cherry | Smart Card Reader USB | | 0x046A | 0x0090 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 8.000 MHz | 10752 bps | 412903 bps | 254 | 0x00000007 | 0x00000000 | 0x000207B2 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | No extended APDU | 1.4.18 | ||
| 217 | 0x00 | shouldwork | Cherry | TC 1300 |  | 0x046A | 0x0092 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 8.000 MHz | 10752 bps | 412903 bps | 254 | 0x00000007 | 0x00000000 | 0x000103B0 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless | The contactless interface is not supported. | 1.4.19 | |
| 218 | 0x00 | shouldwork | Cherry | Cherry TC 1100 |  | 0x046A | 0x0090 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 8.000 MHz | 10752 bps | 412903 bps | 492 | 0x00000007 | 0x00000000 | 0x000407B2 | 502 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.18 | |||
| 219 | 0x00 | shouldwork | Cherry | Smartcard Keyboard G87-1xx44 | | 0x046A | 0x00A3 | SmartCard Reader USB | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 8.000 MHz | 10752 bps | 412903 bps | 254 | 0x00000007 | 0x00000000 | 0x000207B2 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x03 | 1 | PIN Verification, PIN Modification | No extended APDU | 1.4.18 | |
| 220 | 0x00 | shouldwork | Chicony | HP Skylab USB Smartcard Keyboard |  | 0x04F2 | 0x1469 | HP Skylab Smartcard Reader | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 12.000 MHz | 12903 bps | 412903 bps | 254 | 0x00000000 | 0x00000000 | 0x000104BA | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x03 | 1 | PIN Verification, PIN Modification | 1.4.29 | ||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 221 | 0x00 | shouldwork | Hewlett Packard | HP USB Smartcard CCID Keyboard |  | 0x03F0 | 0x104A | HP Smartcard Keyboard | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 12.000 MHz | 12903 bps | 412903 bps | 254 | 0x00000000 | 0x00000000 | 0x000404BA | 1034 bytes | 0xFF | 0xFF | 0x0000 | 0x03 | 1 | PIN Verification, PIN Modification | 1.4.16 | ||
| 222 | 0x00 | shouldwork | Chicony | HP USB Smartcard CCID Keyboard JP | | 0x03F0 | 0x124A | HP Smartcard Keyboard | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 12.000 MHz | 12903 bps | 412903 bps | 254 | 0x00000000 | 0x00000000 | 0x000104BA | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x03 | 1 | PIN Verification, PIN Modification | 1.4.21 | ||
| 223 | 0x00 | shouldwork | Chicony | HP USB Smartcard CCID Keyboard KR | | 0x03F0 | 0x114A | HP Smartcard Keyboard | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 12.000 MHz | 12903 bps | 412903 bps | 254 | 0x00000000 | 0x00000000 | 0x000104BA | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x03 | 1 | PIN Verification, PIN Modification | 1.4.21 | ||
| 224 | 0x00 | shouldwork | Chicony | USB Smart Card Keyboard |  | 0x04F2 | 0x0967 | USB Keyboard Smart Card Reader | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 12.000 MHz | 12903 bps | 412903 bps | 254 | 0x00000000 | 0x00000000 | 0x000104BA | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x03 | 1 | PIN Verification, PIN Modification | 1.4.19 | ||
| 225 | 0x00 | shouldwork | Circle | CCR7115 ICC | | 0x31AA | 0x7001 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 12.000 MHz | 10753 bps | 688172 bps | 254 | 0x00000007 | 0x00000000 | 0x000404BE | 272 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.35 | |||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 226 | 0x00 | shouldwork | Circle | CCR7125 ICC | | 0x31AA | 0x7005 | CCR7125 ICC | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 4.800 MHz | 12903 bps | 826000 bps | 254 | 0x00000000 | 0x00000000 | 0x000100B2 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless | 1.5.0 | ||
| 227 | 0x00 | shouldwork | Circle | CCR7315 | | 0x31AA | 0x7003 | CCR7315 PICC | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 4.800 MHz | 12903 bps | 412903 bps | 512 | 0x00000000 | 0x00000000 | 0x000404BA | 522 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless, interface 0: CCR7315 PICC, Multi interface reader | 1.4.35 | ||
| 228 | 0x00 | shouldwork | Circle | CCR7315 | | 0x31AA | 0x7003 | CCR7315 SAM | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0003 | 0.250 MHz | 0.250 MHz | 10752 bps | 129032 bps | 254 | 0x00000000 | 0x00000000 | 0x000200BA | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless, interface 1: CCR7315 SAM, Multi interface reader | No extended APDU | 1.4.35 | |
| 229 | 0x00 | shouldwork | Circle | CIR115 ICC | | 0x31AA | 0x1000 | CIR115 ICC | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 16.000 MHz | 12903 bps | 826000 bps | 247 | 0x00000000 | 0x00000000 | 0x000100B2 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.35 | |||
| 230 | 0x00 | shouldwork | Circle | CIR125-DOT ICC | | 0x31AA | 0x7006 | CIR125-DOT ICC | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 4.800 MHz | 12903 bps | 826000 bps | 254 | 0x00000000 | 0x00000000 | 0x000100B2 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless | 1.5.0 | ||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 231 | 0x00 | shouldwork | Circle | CIR125 ICC | | 0x31AA | 0x1100 | CIR125 ICC | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 4.800 MHz | 12903 bps | 826000 bps | 254 | 0x00000000 | 0x00000000 | 0x000100B2 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless | 1.5.0 | ||
| 232 | 0x00 | shouldwork | Circle | CIR215 CL | | 0x31AA | 0x2001 | CIR215 CL | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 16.000 MHz | 12903 bps | 826000 bps | 247 | 0x00000000 | 0x00000000 | 0x000200BA | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless | No extended APDU | 1.4.35 | |
| 233 | 0x00 | shouldwork | Circle | CIR215 CL | | 0x31AA | 0x2100 | CIR215 CL | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 4.800 MHz | 12903 bps | 412903 bps | 512 | 0x00000000 | 0x00000000 | 0x000404BA | 522 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless | 1.5.0 | ||
| 234 | 0x00 | shouldwork | Circle | CIR215 PICC | | 0x31AA | 0x2000 | CIR215 PICC | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 16.000 MHz | 12903 bps | 826000 bps | 247 | 0x00000000 | 0x00000000 | 0x000200BA | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless | No extended APDU | 1.4.35 | |
| 235 | 0x00 | shouldwork | Circle | CIR315 | | 0x31AA | 0x3001 | CIR315 PICC | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 4.800 MHz | 12903 bps | 412903 bps | 512 | 0x00000000 | 0x00000000 | 0x000404BA | 522 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless, interface 0: CIR315 PICC, Multi interface reader | 1.4.35 | ||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 236 | 0x00 | shouldwork | Circle | CIR315 | | 0x31AA | 0x3001 | CIR315 SAM | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0003 | 0.250 MHz | 0.250 MHz | 10752 bps | 129032 bps | 254 | 0x00000000 | 0x00000000 | 0x000200BA | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless, interface 1: CIR315 SAM, Multi interface reader | No extended APDU | 1.4.35 | |
| 237 | 0x00 | shouldwork | Circle | CIR315 | | 0x31AA | 0x0324 | Idaxis SecureTouch PICC | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 4.800 MHz | 12903 bps | 412903 bps | 512 | 0x00000000 | 0x00000000 | 0x000404BA | 522 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless, interface 0: Idaxis SecureTouch PICC, Multi interface reader | 1.5.0 | ||
| 238 | 0x00 | shouldwork | Circle | CIR315 | | 0x31AA | 0x0324 | Idaxis SecureTouch SAM | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0003 | 0.250 MHz | 0.250 MHz | 10752 bps | 129032 bps | 254 | 0x00000000 | 0x00000000 | 0x000200BA | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless, interface 1: Idaxis SecureTouch SAM, Multi interface reader | No extended APDU | 1.5.0 | |
| 239 | 0x00 | shouldwork | Circle | CIR315 | | 0x31AA | 0x3100 | CIR315A IMP PICC | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 4.800 MHz | 12903 bps | 412903 bps | 512 | 0x00000000 | 0x00000000 | 0x000404BA | 522 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless, interface 0: CIR315A IMP PICC, Multi interface reader | 1.4.35 | ||
| 240 | 0x00 | shouldwork | Circle | CIR315 | | 0x31AA | 0x3100 | CIR315A IMP SAM | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0003 | 0.250 MHz | 0.250 MHz | 10752 bps | 129032 bps | 254 | 0x00000000 | 0x00000000 | 0x000200BA | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless, interface 1: CIR315A IMP SAM, Multi interface reader | No extended APDU | 1.4.35 | |
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 241 | 0x00 | shouldwork | Circle | CIR315 | | 0x31AA | 0x7004 | CIR315A-DOT PICC | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 4.800 MHz | 12903 bps | 412903 bps | 512 | 0x00000000 | 0x00000000 | 0x000404BA | 522 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless, interface 0: CIR315A-DOT PICC, Multi interface reader | 1.5.0 | ||
| 242 | 0x00 | shouldwork | Circle | CIR315 | | 0x31AA | 0x7004 | CIR315A-DOT SAM | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0003 | 0.250 MHz | 0.250 MHz | 10752 bps | 129032 bps | 254 | 0x00000000 | 0x00000000 | 0x000200BA | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless, interface 1: CIR315A-DOT SAM, Multi interface reader | No extended APDU | 1.5.0 | |
| 243 | 0x00 | shouldwork | Circle | CIR315 CL | | 0x31AA | 0x3002 | CIR315 CL | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 4.800 MHz | 12903 bps | 412903 bps | 512 | 0x00000000 | 0x00000000 | 0x000404BA | 522 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless | 1.4.35 | ||
| 244 | 0x00 | shouldwork | Circle | CIR315 DI | | 0x31AA | 0x3003 | CIR315 DI | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 4.800 MHz | 12903 bps | 412903 bps | 512 | 0x00000000 | 0x00000000 | 0x000404BA | 522 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless | 1.5.0 | ||
| 245 | 0x00 | shouldwork | Circle | CIR415 CL | | 0x31AA | 0x4001 | CIR415 CL | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 129032 bps | 254 | 0x00000000 | 0x00000000 | 0x000404BA | 522 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless | 1.5.0 | ||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 246 | 0x00 | shouldwork | Circle | CIR515 ICC | | 0x31AA | 0x5000 | CIR515 ICC | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 129032 bps | 254 | 0x00000000 | 0x00000000 | 0x000404BA | 522 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless | 1.5.0 | ||
| 247 | 0x00 | shouldwork | Circle | Idaxis SecurePIV | | 0x31AA | 0x0224 | Idaxis SecurePIV | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 16.000 MHz | 12903 bps | 826000 bps | 247 | 0x00000000 | 0x00000000 | 0x000100B2 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.35 | |||
| 248 | 0x00 | shouldwork | DC.Ltd | DC4 5CCID READER | | 0x257B | 0xC305 | DC4 Smart_Card_Reader | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 4.800 MHz | 12903 bps | 412903 bps | 3266 | 0x00000000 | 0x00000000 | 0x000204B2 | 3266 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | Multi interface reader, interface 0: DC4 Smart_Card_Reader | No extended APDU | 1.4.30 | |
| 249 | 0x00 | shouldwork | DC.Ltd | DC4 5CCID READER | | 0x257B | 0xC305 | DC4 Contactless_Reader | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0002 | 4.800 MHz | 4.800 MHz | 12903 bps | 412903 bps | 3266 | 0x00000000 | 0x00000000 | 0x000204B2 | 3266 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | Multi interface reader, interface 1: DC4 Contactless_Reader | No extended APDU | 1.4.30 | |
| 250 | 0x00 | shouldwork | DC.Ltd | DC4 5CCID READER | | 0x257B | 0xC305 | DC4 SAMX_Reader | 2 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 4.800 MHz | 12903 bps | 412903 bps | 3266 | 0x00000000 | 0x00000000 | 0x000204B2 | 3266 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | Multi interface reader, interface 2: DC4 SAMX_Reader | No extended APDU | 1.4.30 | |
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 251 | 0x00 | shouldwork | DC.Ltd | DC4 5CCID READER | | 0x257B | 0xC305 | DC4 NFC_Peer_T0_Peer_Device | 2 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 4.800 MHz | 12903 bps | 412903 bps | 3266 | 0x00000000 | 0x00000000 | 0x000204B2 | 3266 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | Multi interface reader, interface 3: DC4 NFC_Peer_T0_Peer_Device | No extended APDU | 1.4.30 | |
| 252 | 0x00 | shouldwork | DESKO GmbH | IDenty chrom |  | 0x1AC2 | 0x0300 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 3.685 MHz | 14.320 MHz | 9909 bps | 848000 bps | 254 | 0x00000000 | 0x00000000 | 0x000404BE | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless | 1.4.34 | ||
| 253 | 0x00 | shouldwork | DESKO GmbH | PENTA Scanner |  | 0x1AC2 | 0x0302 | SmartCard Reader | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 3.685 MHz | 14.320 MHz | 9909 bps | 848000 bps | 254 | 0x00000000 | 0x00000000 | 0x000404BE | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless, interface 0: SmartCard Reader, Multi interface reader | 1.4.34 | ||
| 254 | 0x00 | shouldwork | DESKO GmbH | PENTA Scanner | | 0x1AC2 | 0x0302 | SmartCard Reader CT | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 8.000 MHz | 9909 bps | 848000 bps | 254 | 0x00000000 | 0x00000000 | 0x000204BE | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless, interface 1: SmartCard Reader CT, Multi interface reader | No extended APDU | 1.4.34 | |
| 255 | 0x00 | shouldwork | DUALi | DE-620 Combi |  | 0x1DB2 | 0x0801 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x03 | 0x0000 0x0003 | 3.600 MHz | 3.600 MHz | 9677 bps | 619354 bps | 254 | 0x00000000 | 0x00000000 | 0x000406BA | 2038 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless | 1.4.27 | ||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 256 | 0x00 | shouldwork | DUALi | DE-ABCM6 RFRW |  | 0x1DB2 | 0x080C | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x03 | 0x0000 0x0003 | 3.600 MHz | 3.600 MHz | 9677 bps | 619354 bps | 254 | 0x00000000 | 0x00000000 | 0x000406BA | 1014 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless | 1.4.35 | ||
| 257 | 0x00 | shouldwork | DUALi | DRAGON NFC READER |  | 0x1DB2 | 0x088B | DRAGON NFC READER | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x03 | 0x0000 0x0003 | 3.600 MHz | 3.600 MHz | 9677 bps | 619354 bps | 254 | 0x00000000 | 0x00000000 | 0x000406BA | 2048 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless, interface 0: DRAGON NFC READER, Multi interface reader | 1.4.15 | ||
| 258 | 0x00 | shouldwork | DUALi | DRAGON NFC READER | | 0x1DB2 | 0x088B | DRAGON SAM READER | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x03 | 0x0000 0x0003 | 3.600 MHz | 3.600 MHz | 9677 bps | 619354 bps | 254 | 0x00000000 | 0x00000000 | 0x000406BA | 2048 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless, interface 1: DRAGON SAM READER, Multi interface reader | 1.4.15 | ||
| 259 | 0x00 | shouldwork | Dexon Tecnologias Digitais LTDA | DXToken |  | 0x0483 | 0xA389 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 3.580 MHz | 3.580 MHz | 9600 bps | 9600 bps | 252 | 0x00000000 | 0x00000000 | 0x0001023C | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.5.1 | |||
| 260 | 0x00 | shouldwork | Dexon Tecnologias Digitais LTDA | eSmartDX |  | 0x0483 | 0xA40B | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 9600 bps | 688172 bps | 254 | 0x00000000 | 0x00000000 | 0x000404BE | 272 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.5.3 | |||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 261 | 0x00 | shouldwork | ELYCTIS | CL reader |  | 0x1FFA | 0x0002 | CCID Interfa00 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0002 0x0003 | 3.686 MHz | 3.686 MHz | 10753 bps | 344105 bps | 1024 | 0x00000000 | 0x00000000 | 0x000404BE | 1034 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless, interface 0: CCID Interfa00, Multi interface reader | the 2 contact readers are in fact 2 Identive CLOUD 2700 R Smart Card Reader | 1.5.0 | |
| 262 | 0x00 | shouldwork | ~ELYCTIS | CNT reader | | 0x04E6 | 0x5810 | CCID Interface | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 16.000 MHz | 12903 bps | 600000 bps | 254 | 0x00000000 | 0x00000000 | 0x000100BA | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless, interface 1: CCID Interface, Multi interface reader | the 2 contact readers are in fact 2 Identive CLOUD 2700 R Smart Card Reader | 1.5.0 | |
| 263 | 0x00 | shouldwork | ~ELYCTIS | CNT reader | | 0x04E6 | 0x5810 | CCID Interface | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 16.000 MHz | 12903 bps | 600000 bps | 254 | 0x00000000 | 0x00000000 | 0x000100BA | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless, interface 2: CCID Interface, Multi interface reader | the 2 contact readers are in fact 2 Identive CLOUD 2700 R Smart Card Reader | 1.5.0 | |
| 264 | 0x00 | shouldwork | ESMART | Reader ER433x ICC |  | 0x2CE4 | 0x5001 | Reader ER433x ICC | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 4.800 MHz | 12903 bps | 826000 bps | 254 | 0x00000000 | 0x00000000 | 0x000100B2 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.5.1 | |||
| 265 | 0x00 | shouldwork | Elatec | TWN4/B1.06/CPF3.05/S1SC1.32/P (Beta 3) |  | 0x09D8 | 0x0428 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 5.000 MHz | 15.000 MHz | 13441 bps | 625000 bps | 254 | 0x00000001 | 0x00000000 | 0x000404B2 | 64 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | You may need to use the Windows tool AppBlaster to load a firmware with CCID support. | 1.4.28 | ||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 266 | 0x00 | shouldwork | Excelsecu | Card reader | | 0x1EA8 | 0x8013 | SCSI | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 3.580 MHz | 6.000 MHz | 9600 bps | 230400 bps | 4098 | 0x00000000 | 0x00000000 | 0x000404BE | 4108 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.5.3 | |||
| 267 | 0x00 | shouldwork | F-Secure Foundry | USB Armory Mk II |  | 0x1209 | 0x2702 | Smart Card Control | 2 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0002 | 16.384 MHz | 16.384 MHz | 307200 bps | 307200 bps | 254 | 0x00000000 | 0x00000000 | 0x000400FE | 20480 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.32 | |||
| 268 | 0x00 | shouldwork | Generic | EMV Smartcard Reader |  | 0x058C | 0x9590 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 10752 bps | 254 | 0x00000000 | 0x00000000 | 0x000407BA | 273 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.35 | |||
| 269 | 0x00 | shouldwork | FT | Biopass CCID |  | 0x096E | 0x086C | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0003 | 3.700 MHz | 3.700 MHz | 9600 bps | 115200 bps | 271 | 0x00000000 | 0x00000000 | 0x000404B4 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | biometric | 1.4.34 | ||
| 270 | 0x00 | shouldwork | FT | Biopass FIDO2 | | 0x096E | 0x0867 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0003 | 3.700 MHz | 3.700 MHz | 9600 bps | 115200 bps | 271 | 0x00000000 | 0x00000000 | 0x000404B4 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | biometric | 1.4.34 | ||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 271 | 0x00 | shouldwork | FT | Biopass KB CCID | | 0x096E | 0x0869 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0003 | 3.700 MHz | 3.700 MHz | 9600 bps | 115200 bps | 271 | 0x00000000 | 0x00000000 | 0x000404B4 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | biometric | 1.4.34 | ||
| 272 | 0x00 | shouldwork | FT | Biopass KB FIDO CCID | | 0x096E | 0x0868 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0003 | 3.700 MHz | 3.700 MHz | 9600 bps | 115200 bps | 271 | 0x00000000 | 0x00000000 | 0x000404B4 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | biometric | 1.4.34 | ||
| 273 | 0x00 | shouldwork | FT | CCID |  | 0x096E | 0x0859 | CCID | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0002 | 4.000 MHz | 4.000 MHz | 307200 bps | 307200 bps | 1024 | 0x00000000 | 0x00000000 | 0x000400FE | 1034 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | NFC | 1.4.27 | ||
| 274 | 0x00 | shouldwork | FT | CCID KB | | 0x096E | 0x0855 | CCID | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0002 | 4.000 MHz | 4.000 MHz | 307200 bps | 307200 bps | 1024 | 0x00000000 | 0x00000000 | 0x000400FE | 1034 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | NFC | 1.4.27 | ||
| 275 | 0x00 | shouldwork | FT | U2F CCID | | 0x096E | 0x0856 | CCID | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0002 | 4.000 MHz | 4.000 MHz | 307200 bps | 307200 bps | 1024 | 0x00000000 | 0x00000000 | 0x000400FE | 1034 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | NFC | 1.4.27 | ||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 276 | 0x00 | shouldwork | FT | U2F CCID KB | | 0x096E | 0x0853 | CCID | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0002 | 4.000 MHz | 4.000 MHz | 307200 bps | 307200 bps | 1024 | 0x00000000 | 0x00000000 | 0x000400FE | 1034 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | NFC | 1.4.27 | ||
| 277 | 0x00 | shouldwork | FT | ePass2003Auto |  | 0x096E | 0x080A | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0002 | 3.580 MHz | 3.580 MHz | 9600 bps | 9600 bps | 2080 | 0x00000000 | 0x00000000 | 0x00040840 | 2102 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | ICCD | 1.4.21 | ||
| 278 | 0x00 | shouldwork | Feitian | BLE CCID Dongle |  | 0x096E | 0x0621 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 3.700 MHz | 3.700 MHz | 9946 bps | 318280 bps | 384 | 0x00000007 | 0x00000000 | 0x000404BE | 516 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | BLE dongle to work with the Feitian BLE readers | 1.4.34 | ||
| 279 | 0x00 | shouldwork | Feitian | 502-CL |  | 0x096E | 0x0608 | R502 Contactless Reader | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x01 | 0x0000 0x0002 | 4.000 MHz | 4.000 MHz | 10752 bps | 688172 bps | 252 | 0x00000007 | 0x00000000 | 0x000404BE | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless | 1.4.19 | ||
| 280 | 0x00 | shouldwork | Feitian | R502 |  | 0x096E | 0x060D | R502 Contactless Reader | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x01 | 0x0000 0x0002 | 4.000 MHz | 4.000 MHz | 10752 bps | 688172 bps | 252 | 0x00000007 | 0x00000000 | 0x000404BE | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless, interface 0: R502 Contactless Reader, Multi interface reader | 1.4.17 | ||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 281 | 0x00 | shouldwork | Feitian | R502 | | 0x096E | 0x060D | R502 Contact Reader | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 688172 bps | 252 | 0x00000007 | 0x00000000 | 0x000102B8 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless, interface 1: R502 Contact Reader, Multi interface reader | 1.4.17 | ||
| 282 | 0x00 | shouldwork | Feitian | R502 | | 0x096E | 0x060D | R502 SAM1 Reader | 2 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 688172 bps | 252 | 0x00000007 | 0x00000000 | 0x000102B8 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless, interface 2: R502 SAM1 Reader, Multi interface reader | 1.4.17 | ||
| 283 | 0x00 | shouldwork | Feitian | R502 | | 0x096E | 0x060D | R502 SAM2 Reader | 2 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 688172 bps | 252 | 0x00000007 | 0x00000000 | 0x000102B8 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless, interface 3: R502 SAM2 Reader, Multi interface reader | 1.4.17 | ||
| 284 | 0x00 | shouldwork | Feitian | R701 |  | 0x096E | 0x062E | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 3.850 MHz | 10752 bps | 500000 bps | 252 | 0x00000000 | 0x00000000 | 0x000404BA | 271 bytes | 0xFF | 0xFF | 0x0418 | 0x00 | 1 | 1.4.35 | |||
| 285 | 0x00 | shouldwork | Feitian | R805 |  | 0x096E | 0x0685 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 3.700 MHz | 3.700 MHz | 9946 bps | 318280 bps | 1024 | 0x00000007 | 0x00000000 | 0x000404BE | 1024 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.34 | |||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 286 | 0x00 | shouldwork | Feitian Technologies | FT SCR310 |  | 0x096E | 0x0505 | ? | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 8.000 MHz | 10752 bps | 600000 bps | 248 | 0x00000000 | 0x00000000 | 0x00010230 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 0 | 1.4.2 | |||
| 287 | 0x00 | shouldwork | FEITIAN | bR301 |  | 0x096E | 0x061A | bR301 Bluetooth Reader | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 3.700 MHz | 3.700 MHz | 9946 bps | 318280 bps | 272 | 0x00000007 | 0x00000000 | 0x000404BE | 272 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.15 | |||
| 288 | 0x00 | shouldwork | Feitian | bR301 |  | 0x096E | 0x0624 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 12.000 MHz | 10752 bps | 688172 bps | 271 | 0x00000000 | 0x00000000 | 0x000404BA | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.21 | |||
| 289 | 0x00 | shouldwork | Feitian | bR500 |  | 0x096E | 0x0623 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 3.700 MHz | 3.700 MHz | 9946 bps | 318280 bps | 516 | 0x00000007 | 0x00000000 | 0x000404BE | 516 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless | 1.4.25 | ||
| 290 | 0x00 | shouldwork | Feitian | eJAVA Token | | 0x096E | 0x080F | NO NAME | 2 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 9600 bps | 600000 bps | 240 | 0x00000000 | 0x00000000 | 0x00010230 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.4.19 | |||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 291 | 0x00 | shouldwork | Feitian | ePass2003 |  | 0x096E | 0x0807 | ? | 2 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0002 | 3.580 MHz | 3.580 MHz | 9600 bps | 9600 bps | 2048 | 0x00000000 | 0x00000000 | 0x00040840 | 2100 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | ICCD | The device may fail at generating keys onboard. See <a href="https://github.com/OpenSC/OpenSC/issues/301">epass2003 RSA/2048 Failed to Generate Key on OSX, VirtualBOX</a> | 1.4.3 | |
| 292 | 0x00 | shouldwork | FEITIAN | iR301 |  | 0x096E | 0x0619 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 3.700 MHz | 3.700 MHz | 9946 bps | 318280 bps | 272 | 0x00000007 | 0x00000000 | 0x000404BE | 272 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.21 | |||
| 293 | 0x00 | shouldwork | FEITIAN | iR301 |  | 0x096E | 0x061C | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10753 bps | 344086 bps | 272 | 0x00000007 | 0x00000000 | 0x000404BE | 272 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.21 | |||
| 294 | 0x00 | shouldwork | Feitian | VR504 VHBR Contactless & Contact Card Reader |  | 0x096E | 0x0622 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 3.700 MHz | 3.700 MHz | 9600 bps | 115200 bps | 2296 | 0x00000007 | 0x00000000 | 0x000404BE | 4106 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless, interface 0: NO NAME, Multi interface reader | 1.4.25 | ||
| 295 | 0x00 | shouldwork | Feitian | VR504 VHBR Contactless & Contact Card Reader | | 0x096E | 0x0622 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10753 bps | 344086 bps | 272 | 0x00000007 | 0x00000000 | 0x000404BE | 272 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless, interface 1: NO NAME, Multi interface reader | 1.4.25 | ||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 296 | 0x00 | shouldwork | Feitian | vR504 Contactless Reader |  | 0x096E | 0x0622 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 3.700 MHz | 3.700 MHz | 9600 bps | 115200 bps | 4106 | 0x00000007 | 0x00000000 | 0x000404BE | 4106 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless | 1.4.34 | ||
| 297 | 0x00 | shouldwork | Flight system consulting | Incredist |  | 0x2925 | 0x700A | Incredist Contact | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 16.000 MHz | 12903 bps | 250000 bps | 1024 | 0x00000000 | 0x00000000 | 0x000404BA | 65535 bytes | 0xFF | 0xFF | 0x0000 | 0x03 | 1 | contactless, interface 0: Incredist Contact, Multi interface reader, PIN Verification, PIN Modification | 1.5.1 | ||
| 298 | 0x00 | shouldwork | Flight system consulting | Incredist | | 0x2925 | 0x700A | Incredist Contactless | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 9600 bps | 250000 bps | 1024 | 0x00000000 | 0x00000000 | 0x000404BE | 65535 bytes | 0xFF | 0xFF | 0x0000 | 0x03 | 1 | contactless, interface 1: Incredist Contactless, Multi interface reader, PIN Verification, PIN Modification | 1.5.1 | ||
| 299 | 0x00 | shouldwork | Free Software Initiative of Japan | Gnuk | | 0x234B | 0x0000 | ? | 2 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x01 | 0x0000 0x0002 | 3.580 MHz | 3.580 MHz | 9600 bps | 9600 bps | 254 | 0x00000000 | 0x00000000 | 0x00040042 | 64 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.1 | |||
| 300 | 0x00 | shouldwork | Fujitsu Siemens Computers | SmartCard Keyboard USB 2A |  | 0x0BF8 | 0x1005 | 4 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 8.000 MHz | 10752 bps | 412903 bps | 254 | 0x00000007 | 0x00000000 | 0x000207B2 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x03 | 1 | PIN Verification, PIN Modification | No extended APDU | 1.3.0 | |
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 301 | 0x00 | shouldwork | Fujitsu Siemens Computers | SmartCard USB 2A |  | 0x0BF8 | 0x1006 | 4 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 8.000 MHz | 10752 bps | 412903 bps | 254 | 0x00000007 | 0x00000000 | 0x000207B2 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x03 | 1 | PIN Verification, PIN Modification | No extended APDU | 1.3.0 | |
| 302 | 0x00 | shouldwork | FujitsuTechnologySolutions GmbH | Dual Smartcard Reader D321 |  | 0x0BF8 | 0x101B | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 8.000 MHz | 10752 bps | 412903 bps | 254 | 0x00000007 | 0x00000000 | 0x000103B0 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless | The contactless interface is not supported. | 1.6.0 | |
| 303 | 0x00 | shouldwork | Fujitsu | Keyboard KB100 SCR |  | 0x0BF8 | 0x1022 | Keyboard KB100 SCR | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 8.000 MHz | 10752 bps | 412903 bps | 254 | 0x00000007 | 0x00000000 | 0x000407BA | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x03 | 1 | PIN Verification, PIN Modification | 1.4.19 | ||
| 304 | 0x00 | shouldwork | Fujitsu | Keyboard KB100 SCR eSIG | | 0x0BF8 | 0x1023 | Keyboard KB100 SCR eSIG | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 8.000 MHz | 10752 bps | 412903 bps | 254 | 0x00000007 | 0x00000000 | 0x000407BA | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x03 | 1 | PIN Verification, PIN Modification | 1.4.19 | ||
| 305 | 0x00 | shouldwork | FujitsuTechnologySolutions GmbH | Keyboard KB SCR2 |  | 0x0BF8 | 0x1021 | SmartCard Reader USB | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 8.000 MHz | 10752 bps | 412903 bps | 254 | 0x00000007 | 0x00000000 | 0x000207B2 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x03 | 1 | PIN Verification, PIN Modification | No extended APDU | 1.4.18 | |
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 306 | 0x00 | shouldwork | FujitsuTechnologySolutions GmbH | SmartCase KB SCR eSIG | | 0x0BF8 | 0x1017 | SmartCase Smartcard Reader | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0003 | 4.800 MHz | 8.000 MHz | 12903 bps | 307200 bps | 252 | 0x00000000 | 0x00000001 | 0x000100BA | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x03 | 1 | PIN Verification, PIN Modification | Secure PIN Entry feature do not work (according to a user report). SPE disabled in version 1.4.15 of the driver. | 1.4.6 | |
| 307 | 0x00 | shouldwork | Fujitsu | Smartcard Reader D323 |  | 0x0BF8 | 0x1024 | Smartcard Reader D323 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 8.000 MHz | 10752 bps | 412903 bps | 254 | 0x00000007 | 0x00000000 | 0x000407B8 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x03 | 1 | PIN Verification, PIN Modification | The USB descriptor is bogus. The reader has NO pinpad. | 1.4.23 | |
| 308 | 0x00 | shouldwork | GHI | NC001 |  | 0xAE68 | 0x8001 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0002 | 4.000 MHz | 4.000 MHz | 10752 bps | 250000 bps | 256 | 0x00000000 | 0x00000000 | 0x00020040 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | No extended APDU | 1.5.3 | ||
| 309 | 0x00 | shouldwork | GIS Ltd | SmartMouse USB |  | 0x0F1A | 0x0002 | ? | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x03 | 0x0000 0x0003 | 3.700 MHz | 3.700 MHz | 9946 bps | 318280 bps | 254 | 0x00000007 | 0x00000000 | 0x000204BE | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | No extended APDU | 1.4.10 | ||
| 310 | 0x00 | shouldwork | German Privacy Foundation | Crypto Stick v1.2 |  | 0x20A0 | 0x4107 | 0 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x02 | 0x0000 0x0002 | 3.600 MHz | 3.600 MHz | 9677 bps | 116129 bps | 254 | 0x00000000 | 0x00000000 | 0x000104BA | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.3.12 | |||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 311 | 0x00 | shouldwork | Gemalto | USB GemPCPinpad SmartCard Reader | | 0x08E6 | 0x3478 | ? | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 500000 bps | 254 | 0x00000000 | 0x00000000 | 0x00010230 | 271 bytes | 0x00 | 0x00 | 0x0210 | 0x03 | 1 | PIN Verification, PIN Modification | 1.3.13 | ||
| 312 | 0x00 | shouldwork | Gemalto | GemPC Express |  | 0x08E6 | 0x34EC | ? | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 500000 bps | 254 | 0x00000000 | 0x00000000 | 0x00010230 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | ExpressCard | 1.0.0 | ||
| 313 | 0x00 | shouldwork | Gemalto | Gem e-Seal Pro USB Token | | 0x08E6 | 0x2202 | 0 | 2 | 0xFF | 1.00 | 0x01 | 0x0000 0x0003 | 1.500 MHz | 1.500 MHz | 4032 bps | 46875 bps | 254 | 0x00000000 | 0x00000000 | 0x00010230 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.3.5 | |||
| 314 | 0x00 | shouldwork | GEMALTO | CT1100 |  | 0x08E6 | 0x3440 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x02 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 500000 bps | 254 | 0x00000000 | 0x00000000 | 0x000404B2 | 540 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | Bluetooth | 1.4.22 | ||
| 315 | 0x00 | shouldwork | Gemalto | Ezio Shield Branch Reader | | 0x08E6 | 0x34C5 | ? | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x03 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 500000 bps | 254 | 0x00000000 | 0x00000000 | 0x000204B2 | 271 bytes | 0x00 | 0x00 | 0x0211 | 0x03 | 1 | PIN Verification, PIN Modification | No extended APDU | 1.4.7 | |
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 316 | 0x00 | shouldwork | Gemalto | Ezio Shield | | 0x08E6 | 0x34C2 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x03 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 500000 bps | 254 | 0x00000000 | 0x00000000 | 0x000404B2 | 271 bytes | 0x00 | 0x00 | 0x0211 | 0x03 | 1 | firewall, PIN Verification, PIN Modification | Also known as IDBridge CT700 or CT710 | 1.4.5 | |
| 317 | 0x00 | shouldwork | Gemalto | Ezio Shield Pro SC |  | 0x08E6 | 0x34C0 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x03 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 500000 bps | 254 | 0x00000000 | 0x00000000 | 0x000204B2 | 271 bytes | 0x00 | 0x00 | 0x0411 | 0x03 | 1 | PIN Verification, PIN Modification | No extended APDU | 1.4.15 | |
| 318 | 0x00 | shouldwork | Gemalto | Ezio Shield Secure Channel | | 0x08E6 | 0x34C1 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x03 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 500000 bps | 254 | 0x00000000 | 0x00000000 | 0x000204B2 | 271 bytes | 0x00 | 0x00 | 0x0411 | 0x03 | 1 | firewall?, PIN Verification, PIN Modification | No extended APDU | 1.4.14 | |
| 319 | 0x00 | shouldwork | Gemalto | IDBridge CT30 |  | 0x08E6 | 0x3437 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.01 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 4.800 MHz | 12903 bps | 825806 bps | 254 | 0x00000000 | 0x00000000 | 0x00010230 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | This reader is a new version of the GemPC Twin but with firmware F. Be sure to use a version F (or more) of the firmware (last letter of the P/N number written on the back of the reader). Version F also has bcdDevice: 2.01 (2.00 for version E) and firmware "GemCore USB 3.1" ("GemCore USB 3.0" for version E). Version E of the firmware may not work since it generates USB Zero Length Packets (ZLP). A fix was introduced in version 1.4.11 of the CCID driver but is problematic and was removed in version 1.4.19. | 1.4.11 | ||
| 320 | 0x00 | shouldwork | Gemalto | IDBridge K30 |  | 0x08E6 | 0x3438 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.01 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 4.800 MHz | 12903 bps | 825806 bps | 254 | 0x00000000 | 0x00000000 | 0x00010230 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | See the note about the IDBridge CT30. | 1.4.11 | ||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 321 | 0x00 | shouldwork | GEMALTO | K1100 |  | 0x08E6 | 0x3440 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x02 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 500000 bps | 254 | 0x00000000 | 0x00000000 | 0x000404B2 | 540 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | Bluetooth | 1.4.22 | ||
| 322 | 0x00 | shouldwork | Gemalto | K50 |  | 0x08E6 | 0x3437 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.01 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 4.800 MHz | 12903 bps | 825806 bps | 254 | 0x00000000 | 0x00000000 | 0x00010230 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.4.25 | |||
| 323 | 0x00 | shouldwork | Gemalto | RF CR5400 |  | 0x0898 | 0x0101 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 3.685 MHz | 13.560 MHz | 9909 bps | 848000 bps | 254 | 0x00000000 | 0x00000000 | 0x0004047E | 273 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.32 | |||
| 324 | 0x00 | shouldwork | Gemalto | SA .NET Dual |  | 0x08E6 | 0x4042 | ? | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x03 | 0x0000 0x0001 | 1.500 MHz | 1.500 MHz | 4032 bps | 23437 bps | 254 | 0x00000000 | 0x00000000 | 0x00010230 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.4.5 | |||
| 325 | 0x00 | shouldwork | Gemalto | Smart Enterprise Guardian Secure USB Device |  | 0x08E6 | 0x8108 | Smart Card Reader | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x01 | 0x0000 0x0001 | 2.000 MHz | 4.000 MHz | 5376 bps | 250000 bps | 252 | 0x00000000 | 0x00000000 | 0x0001007A | 270 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.1 | |||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 326 | 0x00 | shouldwork | Generic | MultiCard Device |  | 0x048D | 0x1366 | Smart Card Reader Interface | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 3.750 MHz | 7.500 MHz | 10080 bps | 312500 bps | 254 | 0x00000000 | 0x00000000 | 0x00010030 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | Also known as "Sunpak 72-in-1 high-speed card reader" <a href="http://www.tocad.com/products/72-in-1-card-reader/">Sunpak 72-in-1 card reader</a> | 1.4.20 | ||
| 327 | 0x00 | shouldwork | Generic USB | Smart Card Reader |  | 0x076B | 0x3A21 | Smart Card Reader | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 8.000 MHz | 10752 bps | 412903 bps | 254 | 0x00000007 | 0x00000000 | 0x000407B8 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x03 | 1 | PIN Verification, PIN Modification | No pinpad support | 1.4.24 | |
| 328 | 0x00 | shouldwork | Genesys Logic | CCID Card Reader | | 0x05E3 | 0x0757 | Smart Interface | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 3.000 MHz | 3.000 MHz | 9946 bps | 318280 bps | 254 | 0x00000007 | 0x00000000 | 0x000204BE | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | No extended APDU | 1.4.30 | ||
| 329 | 0x00 | shouldwork | Genesys Logic | CCID Card Reader | | 0x05E3 | 0x0771 | Smart Interface | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 3.000 MHz | 3.000 MHz | 9946 bps | 318280 bps | 254 | 0x00000007 | 0x00000000 | 0x000404BE | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.33 | |||
| 330 | 0x00 | shouldwork | Genesys Logic | Combo Card Reader | | 0x05E3 | 0x0758 | Smart Interface | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 3.000 MHz | 3.000 MHz | 9946 bps | 318280 bps | 254 | 0x00000007 | 0x00000000 | 0x000204BE | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | No extended APDU | 1.4.30 | ||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 331 | 0x00 | shouldwork | Giesecke & Devrient GmbH | Star Sign Card Token 350 (ICCD) |  | 0x1059 | 0x000C | 0 | 1 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0002 | 3.580 MHz | 3.580 MHz | 9600 bps | 9600 bps | 254 | 0x00000000 | 0x00000000 | 0x00020840 | 280 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | ICCD | No extended APDU | 1.3.1 | |
| 332 | 0x00 | shouldwork | Giesecke & Devrient GmbH | Star Sign Card Token 550 (ICCD) | | 0x1059 | 0x000D | 0 | 1 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0002 | 3.580 MHz | 3.580 MHz | 9600 bps | 9600 bps | 254 | 0x00000000 | 0x00000000 | 0x00020840 | 261 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | ICCD | No extended APDU | 1.3.1 | |
| 333 | 0x00 | shouldwork | GoTrust | Idem Key |  | 0x32A3 | 0x3201 | FIDO2 DEVICE | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x02 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 800000 bps | 254 | 0x00000000 | 0x00000000 | 0x00010330 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.4.34 | |||
| 334 | 0x00 | shouldwork | GoldKey Security | PIV Token |  | 0x19C8 | 0x0012 | 0 | 2 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x01 | 0x0000 0x0002 | 3.580 MHz | 3.580 MHz | 9600 bps | 9600 bps | 254 | 0x00000000 | 0x00000000 | 0x00020870 | 2048 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | ICCD | No extended APDU | 1.3.12 | |
| 335 | 0x00 | shouldwork | HID | AVIATOR Generic | | 0x076B | 0x3A21 | Smart Card Reader | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 8.000 MHz | 10752 bps | 412903 bps | 254 | 0x00000007 | 0x00000000 | 0x000207B8 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x03 | 1 | PIN Verification, PIN Modification | No extended APDU | No pinpad support | 1.4.24 |
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 336 | 0x00 | shouldwork | HID Global | Crescendo Key |  | 0x09C3 | 0x0028 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x02 | 0x0000 0x0002 | 4.000 MHz | 4.000 MHz | 10753 bps | 250000 bps | 254 | 0x00000000 | 0x00000000 | 0x000104F2 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.4.31 | |||
| 337 | 0x00 | shouldwork | HID Global | Crescendo Key | | 0x09C3 | 0x0029 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x02 | 0x0000 0x0002 | 4.000 MHz | 4.000 MHz | 10753 bps | 250000 bps | 254 | 0x00000000 | 0x00000000 | 0x000104F2 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.4.31 | |||
| 338 | 0x00 | shouldwork | HID Global | Crescendo Key | | 0x09C3 | 0x002B | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x02 | 0x0000 0x0002 | 4.000 MHz | 4.000 MHz | 10753 bps | 250000 bps | 254 | 0x00000000 | 0x00000000 | 0x000104F2 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.4.31 | |||
| 339 | 0x00 | shouldwork | HID Global | Crescendo Key | | 0x09C3 | 0x002D | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x02 | 0x0000 0x0002 | 4.000 MHz | 4.000 MHz | 10753 bps | 250000 bps | 254 | 0x00000000 | 0x00000000 | 0x000104F2 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.4.31 | |||
| 340 | 0x00 | shouldwork | HID Global | OMNIKEY 3x21 Smart Card Reader |  | 0x076B | 0x3031 | OMNIKEY 3x21 Smart Card Reader | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 4.800 MHz | 10752 bps | 412903 bps | 254 | 0x00000007 | 0x00000000 | 0x000407BA | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.23 | |||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 341 | 0x00 | shouldwork | HID Global | OMNIKEY 5022 Smart Card Reader |  | 0x076B | 0x5022 | OMNIKEY 5022 Smart Card Reader | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 4.800 MHz | 12903 bps | 825807 bps | 254 | 0x00000000 | 0x00000000 | 0x000404BA | 520 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless | 1.4.23 | ||
| 342 | 0x00 | shouldwork | HID Global | OMNIKEY 5023 Smart Card Reader | | 0x076B | 0x5023 | OMNIKEY 5023 Smart Card Reader | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0002 | 4.800 MHz | 4.800 MHz | 12903 bps | 825807 bps | 254 | 0x00000000 | 0x00000000 | 0x000404BA | 520 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless | 1.4.29 | ||
| 343 | 0x00 | shouldwork | HID Global | OMNIKEY 5027CK CCID CONFIG IF | | 0x076B | 0x5A27 | OMNIKEY 5027CK CCID CONFIG IF | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 4.800 MHz | 10752 bps | 412903 bps | 254 | 0x00000000 | 0x00000000 | 0x000407BA | 520 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless | 1.4.29 | ||
| 344 | 0x00 | shouldwork | HID Global | OMNIKEY 5122 Dual | | 0x076B | 0x5432 | OMNIKEY 5122CL Dual | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 4.800 MHz | 12903 bps | 825807 bps | 254 | 0x00000000 | 0x00000000 | 0x000404BA | 520 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless, interface 0: OMNIKEY 5122CL Dual, Multi interface reader | 1.4.28 | ||
| 345 | 0x00 | shouldwork | HID Global | OMNIKEY 5122 Dual | | 0x076B | 0x5432 | OMNIKEY 5122 Dual | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 8.000 MHz | 10752 bps | 412903 bps | 254 | 0x00000000 | 0x00000000 | 0x000407B8 | 520 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless, interface 1: OMNIKEY 5122 Dual, Multi interface reader | 1.4.28 | ||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 346 | 0x00 | shouldwork | HID Global | OMNIKEY 5122 Smartcard Reader | | 0x076B | 0x5412 | OMNIKEY 5122CL Smartcard Reader | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 4.800 MHz | 12903 bps | 825807 bps | 254 | 0x00000000 | 0x00000000 | 0x000404BA | 520 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless, interface 0: OMNIKEY 5122CL Smartcard Reader, Multi interface reader | 1.4.28 | ||
| 347 | 0x00 | shouldwork | HID Global | OMNIKEY 5122 Smartcard Reader | | 0x076B | 0x5412 | OMNIKEY 5122 Smartcard Reader | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 8.000 MHz | 10752 bps | 412903 bps | 254 | 0x00000000 | 0x00000000 | 0x000407B8 | 520 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless, interface 1: OMNIKEY 5122 Smartcard Reader, Multi interface reader | 1.4.28 | ||
| 348 | 0x00 | shouldwork | HID Global | OMNIKEY 6121 Smart Card Reader |  | 0x076B | 0x6632 | OMNIKEY 6121 Smart Card Reader | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 4.800 MHz | 10752 bps | 412903 bps | 254 | 0x00000007 | 0x00000000 | 0x000407B8 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.23 | |||
| 349 | 0x00 | shouldwork | HID OMNIKEY | 5025-CL | | 0x076B | 0x502A | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 3.580 MHz | 3.580 MHz | 9600 bps | 9600 bps | 352 | 0x00000000 | 0x00000000 | 0x000406B2 | 384 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless | 1.4.17 | ||
| 350 | 0x00 | shouldwork | HID OMNIKEY | 5326 DFR |  | 0x076B | 0x5326 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 3.580 MHz | 3.580 MHz | 9600 bps | 9600 bps | 254 | 0x00000000 | 0x00000000 | 0x000406B2 | 1024 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless | Only the the Low Frequency (LF) contactless interface is available. The High Frequency (HF) contactless interface is not supported. | 1.4.12 | |
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 351 | 0x00 | shouldwork | HID Global | OMNIKEY 5422 Smartcard Reader |  | 0x076B | 0x5422 | OMNIKEY 5422CL Smartcard Reader | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 4.800 MHz | 12903 bps | 825807 bps | 254 | 0x00000000 | 0x00000000 | 0x000404BA | 520 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless, interface 0: OMNIKEY 5422CL Smartcard Reader, Multi interface reader | 1.4.27 | ||
| 352 | 0x00 | shouldwork | HID Global | OMNIKEY 5422 Smartcard Reader | | 0x076B | 0x5422 | OMNIKEY 5422 Smartcard Reader | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 8.000 MHz | 10752 bps | 412903 bps | 254 | 0x00000000 | 0x00000000 | 0x000407B8 | 520 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless, interface 1: OMNIKEY 5422 Smartcard Reader, Multi interface reader | 1.4.27 | ||
| 353 | 0x00 | shouldwork | HID OMNIKEY | 5427 CK |  | 0x076B | 0x5427 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 4.800 MHz | 12903 bps | 825807 bps | 254 | 0x00000000 | 0x00000000 | 0x000404BA | 520 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless | 1.4.12 | ||
| 354 | 0x00 | shouldwork | Hewlett Packard | MFP Smart Card Reader |  | 0x03F0 | 0x2924 | 4 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x01 | 0x0000 0x0003 | 4.000 MHz | 8.000 MHz | 10753 bps | 344105 bps | 252 | 0x00000000 | 0x00000000 | 0x000100BA | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.3.9 | |||
| 355 | 0x00 | shouldwork | Hewlett-Packard | HP lt4112 Gobi 4G Module | | 0x03F0 | 0x581D | HP Mobile Connect - PCSC Interface | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x02 | 0x0000 0x0001 | 3.580 MHz | 3.580 MHz | 9600 bps | 9600 bps | 0 | 0x00000000 | 0x00000000 | 0x0002007E | 512 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | No extended APDU | 1.4.19 | ||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 356 | 0x00 | shouldwork | Hitachi, Ltd. | Hitachi Biometric Reader | | 0x04A4 | 0x00C7 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0001 | 5.000 MHz | 5.000 MHz | 13440 bps | 161280 bps | 0 | 0x00000000 | 0x00000000 | 0x00020082 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | No extended APDU | 1.4.22 | ||
| 357 | 0x00 | shouldwork | Hitachi, Ltd. | Hitachi Portable Biometric Reader | | 0x04A4 | 0x00D4 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0001 | 5.000 MHz | 5.000 MHz | 13440 bps | 161280 bps | 0 | 0x00000000 | 0x00000000 | 0x00020082 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | No extended APDU | 1.4.22 | ||
| 358 | 0x00 | shouldwork | IID | AT90S064 CCID READER | | 0x2406 | 0x6200 | ICCD 1.0 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0001 | 3.580 MHz | 3.580 MHz | 9600 bps | 9600 bps | 0 | 0x00000000 | 0x00000000 | 0x00020840 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | ICCD | No extended APDU | 1.4.16 | |
| 359 | 0x00 | shouldwork | IIT | E.Key Almaz-1C |  | 0x03EB | 0x9324 | NO NAME | 2 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x02 | 0x0000 0x0002 | 5.000 MHz | 5.000 MHz | 161290 bps | 161290 bps | 254 | 0x00000000 | 0x00000000 | 0x0002044E | 264 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | No extended APDU | 1.4.15 | ||
| 360 | 0x00 | shouldwork | IIT | E.Key Crystal-1 |  | 0x03EB | 0x9308 | NO NAME | 2 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x02 | 0x0000 0x0002 | 5.000 MHz | 5.000 MHz | 161290 bps | 161290 bps | 254 | 0x00000000 | 0x00000000 | 0x0002044E | 264 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | No extended APDU | 1.4.28 | ||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 361 | 0x00 | shouldwork | INMAX | DWR18 HC |  | 0x1403 | 0x750C | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 10752 bps | 254 | 0x00000000 | 0x00000000 | 0x000207BA | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | No extended APDU | 1.4.35 | ||
| 362 | 0x00 | shouldwork | INMAX | DWR18 HPC | | 0x1403 | 0x750D | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 10752 bps | 254 | 0x00000000 | 0x00000000 | 0x000207BA | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | No extended APDU | 1.4.35 | ||
| 363 | 0x00 | shouldwork | INSIDE Secure | VaultIC 405 Smart Object |  | 0x2406 | 0x6303 | ICCD 1.00 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0001 | 3.580 MHz | 3.580 MHz | 9600 bps | 9600 bps | 0 | 0x00000000 | 0x00000000 | 0x00020840 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | ICCD | No extended APDU | 1.4.16 | |
| 364 | 0x00 | shouldwork | INSIDE Secure | VaultIC 441 Smart Object | | 0x2406 | 0x6305 | ICCD 1.00 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0001 | 3.580 MHz | 3.580 MHz | 9600 bps | 9600 bps | 0 | 0x00000000 | 0x00000000 | 0x00020840 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | ICCD | No extended APDU | 1.4.16 | |
| 365 | 0x00 | shouldwork | ESMART | Token GOST |  | 0x2CE4 | 0x7479 | ESMART Reader | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x02 | 0x0000 0x0003 | 4.800 MHz | 12.000 MHz | 9600 bps | 150000 bps | 254 | 0x00000000 | 0x00000000 | 0x000107BE | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.25 | |||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 366 | 0x00 | shouldwork | Identiv | @MAXX ID-1 Smart Card Reader |  | 0x04E6 | 0x5819 | CCID Interface | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 16.000 MHz | 12903 bps | 600000 bps | 252 | 0x00000000 | 0x00000000 | 0x000100BA | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.21 | |||
| 367 | 0x00 | shouldwork | Identiv | @MAXX Light2 token |  | 0x04E6 | 0x5818 | CCID Interface | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 16.000 MHz | 12903 bps | 600000 bps | 252 | 0x00000000 | 0x00000000 | 0x000100BA | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.21 | |||
| 368 | 0x00 | shouldwork | Identiv | CLOUD 2980 F Smart Card Reader | | 0x04E6 | 0x5713 | CCID Interface | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 12.000 MHz | 12903 bps | 412903 bps | 254 | 0x00000000 | 0x00000000 | 0x000104BA | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.21 | |||
| 369 | 0x00 | shouldwork | Identiv | Identiv uTrust 4701 F Dual Interface Reader |  | 0x04E6 | 0x5724 | uTrust 4701 F Contact Reader | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 12.000 MHz | 12903 bps | 412903 bps | 254 | 0x00000000 | 0x00000000 | 0x000104BA | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless, interface 0: uTrust 4701 F Contact Reader, Multi interface reader | 1.4.21 | ||
| 370 | 0x00 | shouldwork | Identiv | Identiv uTrust 4701 F Dual Interface Reader | | 0x04E6 | 0x5724 | uTrust 4701 F CL Reader | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0003 | 4.800 MHz | 12.000 MHz | 12903 bps | 412903 bps | 1024 | 0x00000000 | 0x00000001 | 0x000404BE | 1034 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless, interface 1: uTrust 4701 F CL Reader, Multi interface reader | 1.4.21 | ||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 371 | 0x00 | shouldwork | Identiv | Identiv uTrust 4711 F CL + SAM Reader |  | 0x04E6 | 0x5725 | uTrust 4711 F SAM Reader | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 12.000 MHz | 12903 bps | 412903 bps | 254 | 0x00000000 | 0x00000000 | 0x000104BA | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless, interface 0: uTrust 4711 F SAM Reader, Multi interface reader | 1.4.35 | ||
| 372 | 0x00 | shouldwork | Identiv | Identiv uTrust 4711 F CL + SAM Reader | | 0x04E6 | 0x5725 | uTrust 4711 F CL Reader | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0003 | 4.800 MHz | 12.000 MHz | 12903 bps | 412903 bps | 1024 | 0x00000000 | 0x00000001 | 0x000404BE | 1034 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless, interface 1: uTrust 4711 F CL Reader, Multi interface reader | 1.4.35 | ||
| 373 | 0x00 | shouldwork | Identiv | SCR3500 A Contact Reader |  | 0x04E6 | 0x5814 | CCID Interface | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 16.000 MHz | 12903 bps | 600000 bps | 252 | 0x00000000 | 0x00000000 | 0x000100BA | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.21 | |||
| 374 | 0x00 | shouldwork | Identiv | SCR3500 B Contact Reader | | 0x04E6 | 0x5815 | CCID Interface | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 16.000 MHz | 12903 bps | 600000 bps | 252 | 0x00000000 | 0x00000000 | 0x000100BA | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.21 | |||
| 375 | 0x00 | shouldwork | Identiv | SCR3500 C Contact Reader | | 0x04E6 | 0x581D | CCID Interface | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 16.000 MHz | 12903 bps | 600000 bps | 252 | 0x00000000 | 0x00000000 | 0x000100BA | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.31 | |||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 376 | 0x00 | shouldwork | Identiv | SCR35xx USB Smart Card Reader | | 0x04E6 | 0x581C | CCID Interface | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 16.000 MHz | 12903 bps | 600000 bps | 252 | 0x00000000 | 0x00000000 | 0x000100BA | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.21 | |||
| 377 | 0x00 | shouldwork | Identiv | uTrust 2900 R Smart Card Reader |  | 0x04E6 | 0x5811 | CCID Interface | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 16.000 MHz | 12903 bps | 600000 bps | 252 | 0x00000000 | 0x00000000 | 0x000100BA | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.21 | |||
| 378 | 0x00 | shouldwork | Identiv | uTrust 2910 R Smart Card Reader | | 0x04E6 | 0x5812 | CCID Interface | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 16.000 MHz | 12903 bps | 600000 bps | 252 | 0x00000000 | 0x00000000 | 0x000100BA | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.21 | |||
| 379 | 0x00 | shouldwork | Identiv | uTrust 2910 R Taglio SC Reader | | 0x04E6 | 0x581B | CCID Interface | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 16.000 MHz | 12903 bps | 600000 bps | 252 | 0x00000000 | 0x00000000 | 0x000100BA | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.21 | |||
| 380 | 0x00 | shouldwork | Identiv | uTrust 3512 SAM slot Token |  | 0x04E6 | 0x5816 | CCID Interface | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 16.000 MHz | 12903 bps | 600000 bps | 252 | 0x00000000 | 0x00000000 | 0x000100BA | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.21 | |||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 381 | 0x00 | shouldwork | Identiv | uTrust 3522 embd SE RFID Token | | 0x04E6 | 0x581A | CCID Interface | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 16.000 MHz | 12903 bps | 600000 bps | 252 | 0x00000000 | 0x00000000 | 0x000100BA | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.21 | |||
| 382 | 0x00 | shouldwork | Identiv | uTrust 3700 F CL Reader |  | 0x04E6 | 0x5790 | uTrust 3700 F CL Reader | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0003 | 4.800 MHz | 12.000 MHz | 12903 bps | 412903 bps | 1024 | 0x00000000 | 0x00000001 | 0x000404BE | 1034 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless | The reader sometimes fails to power up a card. See <a href="https://github.com/LudovicRousseau/PCSC/issues/102">Identiv 3700F occasionally fails to power up card #102</a>. Update the firmware to v1.19 or more to fix this issue. | 1.4.21 | |
| 383 | 0x00 | shouldwork | Identiv | uTrust 3701 F CL Reader | | 0x04E6 | 0x5791 | uTrust 3701 F CL Reader | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0003 | 4.800 MHz | 12.000 MHz | 12903 bps | 412903 bps | 1024 | 0x00000000 | 0x00000001 | 0x000404BE | 1034 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless | 1.4.21 | ||
| 384 | 0x00 | shouldwork | Identiv | uTrust 3720 Contactless Reader |  | 0x04E6 | 0x5612 | uTrust 3720 Contactless Reader | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 12.000 MHz | 12903 bps | 412903 bps | 253 | 0x00000000 | 0x00000000 | 0x000204BE | 263 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless | No extended APDU | 1.4.34 | |
| 385 | 0x00 | shouldwork | Identiv | uTrust 3721 Contactless Reader | | 0x04E6 | 0x5613 | uTrust 3721 Contactless Reader | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 12.000 MHz | 12903 bps | 412903 bps | 253 | 0x00000000 | 0x00000000 | 0x000204BE | 263 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless | No extended APDU | 1.4.35 | |
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 386 | 0x00 | shouldwork | Identiv | uTrust Token Flex |  | 0x04E6 | 0x5826 | CCID Interface | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 16.000 MHz | 12903 bps | 600000 bps | 252 | 0x00000000 | 0x00000000 | 0x000100BA | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.5.3 | |||
| 387 | 0x00 | shouldwork | Identive | CLOUD 2700 F Smart Card Reader |  | 0x04E6 | 0x5710 | CCID Interface | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 12.000 MHz | 12903 bps | 412903 bps | 254 | 0x00000000 | 0x00000000 | 0x000404BA | 1034 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.10 | |||
| 388 | 0x00 | shouldwork | Identive | CLOUD 2700 R Smart Card Reader | | 0x04E6 | 0x5810 | CCID Interface | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 16.000 MHz | 12903 bps | 600000 bps | 254 | 0x00000000 | 0x00000000 | 0x000404BA | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.10 | |||
| 389 | 0x00 | shouldwork | Identive | Identive CLOUD 4500 F Dual Interface Reader | | 0x04E6 | 0x5720 | CLOUD 4500 F Contact Reader | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 12.000 MHz | 12903 bps | 412903 bps | 254 | 0x00000000 | 0x00000000 | 0x000404BA | 1034 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless, interface 0: CLOUD 4500 F Contact Reader, Multi interface reader | 1.4.10 | ||
| 390 | 0x00 | shouldwork | Identive | Identive CLOUD 4500 F Dual Interface Reader | | 0x04E6 | 0x5720 | CLOUD 4500 F Contactless Reader | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0003 | 4.800 MHz | 12.000 MHz | 12903 bps | 412903 bps | 1024 | 0x00000000 | 0x00000001 | 0x000404BE | 1034 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless, interface 1: CLOUD 4500 F Contactless Reader, Multi interface reader | 1.4.10 | ||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 391 | 0x00 | shouldwork | Identive | Identive CLOUD 4510 F Contactless + SAM Reader | | 0x04E6 | 0x5721 | CLOUD 4510 F SAM Reader | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 12.000 MHz | 12903 bps | 412903 bps | 254 | 0x00000000 | 0x00000000 | 0x000404BA | 1034 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless, interface 0: CLOUD 4510 F SAM Reader, Multi interface reader | 1.4.10 | ||
| 392 | 0x00 | shouldwork | Identive | Identive CLOUD 4510 F Contactless + SAM Reader | | 0x04E6 | 0x5721 | CLOUD 4510 F Contactless Reader | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0003 | 4.800 MHz | 12.000 MHz | 12903 bps | 412903 bps | 1024 | 0x00000000 | 0x00000001 | 0x000404BE | 1034 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless, interface 1: CLOUD 4510 F Contactless Reader, Multi interface reader | 1.4.10 | ||
| 393 | 0x00 | shouldwork | Identive | Identive CLOUD 4700 F Dual Interface Reader |  | 0x04E6 | 0x5720 | CLOUD 4700 F Contact Reader | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 12.000 MHz | 12903 bps | 412903 bps | 254 | 0x00000000 | 0x00000000 | 0x000404BA | 1034 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless, interface 0: CLOUD 4700 F Contact Reader, Multi interface reader | 1.4.10 | ||
| 394 | 0x00 | shouldwork | Identive | Identive CLOUD 4700 F Dual Interface Reader | | 0x04E6 | 0x5720 | CLOUD 4700 F Contactless Reader | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0003 | 4.800 MHz | 12.000 MHz | 12903 bps | 412903 bps | 1024 | 0x00000000 | 0x00000001 | 0x000404BE | 1034 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless, interface 1: CLOUD 4700 F Contactless Reader, Multi interface reader | 1.4.10 | ||
| 395 | 0x00 | shouldwork | Identive | Identive CLOUD 4710 F Contactless + SAM Reader |  | 0x04E6 | 0x5721 | CLOUD 4710 F SAM Reader | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 12.000 MHz | 12903 bps | 412903 bps | 254 | 0x00000000 | 0x00000000 | 0x000404BA | 1034 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless, interface 0: CLOUD 4710 F SAM Reader, Multi interface reader | 1.4.10 | ||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 396 | 0x00 | shouldwork | Identive | Identive CLOUD 4710 F Contactless + SAM Reader | | 0x04E6 | 0x5721 | CLOUD 4710 F Contactless Reader | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0003 | 4.800 MHz | 12.000 MHz | 12903 bps | 412903 bps | 1024 | 0x00000000 | 0x00000001 | 0x000404BE | 1034 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless, interface 1: CLOUD 4710 F Contactless Reader, Multi interface reader | 1.4.10 | ||
| 397 | 0x00 | shouldwork | Identive | Identive CLOUD 4000 F DTC | | 0x04E6 | 0x5723 | CLOUD 4000 F DTC Contact Reader | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 12.000 MHz | 12903 bps | 412903 bps | 254 | 0x00000000 | 0x00000000 | 0x000404BA | 1034 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | Multi interface reader, interface 0: CLOUD 4000 F DTC Contact Reader | 1.4.21 | ||
| 398 | 0x00 | shouldwork | Identive | Identive CLOUD 4000 F DTC | | 0x04E6 | 0x5723 | CLOUD 4000 F DTC CL Reader | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0003 | 4.800 MHz | 12.000 MHz | 12903 bps | 412903 bps | 1024 | 0x00000000 | 0x00000001 | 0x000404BE | 1034 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | Multi interface reader, interface 1: CLOUD 4000 F DTC CL Reader | 1.4.21 | ||
| 399 | 0x00 | shouldwork | Identive | SCT3522CC token |  | 0x04E6 | 0x5817 | CCID Interface | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 16.000 MHz | 12903 bps | 600000 bps | 254 | 0x00000000 | 0x00000000 | 0x000404BA | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.19 | |||
| 400 | 0x00 | shouldwork | Identive Technologies | Multi-ISO HF Reader - USB |  | 0x1FFA | 0x000C | CCID IFD | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0002 0x0003 | 3.686 MHz | 3.686 MHz | 10753 bps | 344105 bps | 1024 | 0x00000000 | 0x00000000 | 0x000404BE | 1034 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless | 1.4.17 | ||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 401 | 0x00 | shouldwork | InfoCert | WirelessKey | | 0x2FD2 | 0x0100 | CCID interface | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x02 | 0x0000 0x0002 | 4.000 MHz | 4.000 MHz | 9600 bps | 9600 bps | 254 | 0x00000000 | 0x00000000 | 0x0002047A | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | No extended APDU | 1.4.31 | ||
| 402 | 0x00 | shouldwork | InfoThink | IT-102MU Reader | | 0x1FC9 | 0x0102 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 3.685 MHz | 14.320 MHz | 9909 bps | 848000 bps | 254 | 0x00000000 | 0x00000000 | 0x000204BE | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | No extended APDU | 1.4.27 | ||
| 403 | 0x00 | shouldwork | InfoThink | IT-500U Reader |  | 0x1403 | 0x7506 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x03 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 10752 bps | 254 | 0x00000000 | 0x00000000 | 0x000207BA | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | No extended APDU | 1.4.30 | ||
| 404 | 0x00 | shouldwork | Infocrypt | HWDSSL DEVICE |  | 0x2022 | 0x016C | NO NAME | 2 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0002 | 3.580 MHz | 3.580 MHz | 9600 bps | 9600 bps | 16665 | 0x00000000 | 0x00000000 | 0x0004007E | 16672 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.35 | |||
| 405 | 0x00 | shouldwork | Infocrypt | Token++ lite |  | 0x2FB0 | 0x003A | NO NAME | 2 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0002 | 3.580 MHz | 3.580 MHz | 9600 bps | 9600 bps | 281 | 0x00000000 | 0x00000000 | 0x0004007E | 288 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.35 | |||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 406 | 0x00 | shouldwork | Inside Secure | AT90SCR050 | | 0x2406 | 0x6404 | CCID Bulk Interface | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 4.800 MHz | 12902 bps | 412903 bps | 254 | 0x00000000 | 0x00000000 | 0x00010230 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.4.10 | |||
| 407 | 0x00 | shouldwork | Inside Secure | AT90SCR100 | | 0x2406 | 0x6403 | CCID Bulk Interface | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 4.800 MHz | 12902 bps | 412903 bps | 254 | 0x00000000 | 0x00000000 | 0x00010230 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.4.10 | |||
| 408 | 0x00 | shouldwork | Inside Secure | AT90SCR200 | | 0x2406 | 0x6407 | CCID Bulk Interface | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 4.800 MHz | 12902 bps | 412903 bps | 254 | 0x00000000 | 0x00000000 | 0x00010230 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.4.10 | |||
| 409 | 0x00 | shouldwork | Inside Secure | VaultIC 420 Smart Object |  | 0x2406 | 0x6300 | ICCD 1.00 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0001 | 3.580 MHz | 3.580 MHz | 9600 bps | 9600 bps | 0 | 0x00000000 | 0x00000000 | 0x00020840 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | ICCD | No extended APDU | 1.4.8 | |
| 410 | 0x00 | shouldwork | Inside Secure | VaultIC 440 Smart Object | | 0x2406 | 0x6301 | ICCD 1.00 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0001 | 3.580 MHz | 3.580 MHz | 9600 bps | 9600 bps | 0 | 0x00000000 | 0x00000000 | 0x00020840 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | ICCD | No extended APDU | 1.4.8 | |
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 411 | 0x00 | shouldwork | Inside Secure | VaultIC 460 Smart Object | | 0x2406 | 0x6302 | ICCD 1.00 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0001 | 3.580 MHz | 3.580 MHz | 9600 bps | 9600 bps | 0 | 0x00000000 | 0x00000000 | 0x00020840 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | ICCD | No extended APDU | 1.4.6 | |
| 412 | 0x00 | shouldwork | IonIDe | Smartcard Reader | | 0x076B | 0x3B01 | Smartcard Reader | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 8.000 MHz | 10752 bps | 412903 bps | 254 | 0x00000007 | 0x00000000 | 0x000207B8 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x03 | 1 | PIN Verification, PIN Modification | No extended APDU | 1.4.23 | |
| 413 | 0x00 | shouldwork | Philips Semiconductors | JCOP41V221 | | 0x0471 | 0x040F | 0 | 0 | 0x0B [Chip Card Interface Device Class (CCID)] | 2.00 | 0x01 | 0x0000 0x0002 | 3.580 MHz | 3.580 MHz | 9600 bps | 9600 bps | 254 | 0x00000000 | 0x00000000 | 0x00020840 | 261 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | ICCD | No extended APDU | 1.3.1 | |
| 414 | 0x00 | shouldwork | KACST | HSID Reader |  | 0x2A18 | 0x5000 | HSID Reader | 2 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 5.000 MHz | 5.000 MHz | 115200 bps | 115200 bps | 254 | 0x00000000 | 0x00000000 | 0x0004047E | 65504 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.23 | |||
| 415 | 0x00 | shouldwork | KACST | HSID Reader Dual Storage | | 0x2A18 | 0x5002 | HSID Reader | 2 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 5.000 MHz | 5.000 MHz | 115200 bps | 115200 bps | 254 | 0x00000000 | 0x00000000 | 0x0004047E | 65504 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.23 | |||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 416 | 0x00 | shouldwork | KACST | HSID Reader Single Storage | | 0x2A18 | 0x5001 | HSID Reader | 2 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 5.000 MHz | 5.000 MHz | 115200 bps | 115200 bps | 254 | 0x00000000 | 0x00000000 | 0x0004047E | 65504 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.23 | |||
| 417 | 0x00 | shouldwork | KAPELSE | KAP-Care |  | 0x2947 | 0x0102 | 00012587 KAP-Care 1 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x03 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 344064 bps | 254 | 0x00000000 | 0x00000000 | 0x000100BA | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | Multi interface reader, interface 0: 00012587 KAP-Care 1 | 1.5.5 | ||
| 418 | 0x00 | shouldwork | KAPELSE | KAP-Care | | 0x2947 | 0x0102 | 00012587 KAP-Care 2 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x03 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 344064 bps | 254 | 0x00000000 | 0x00000000 | 0x000100BA | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | Multi interface reader, interface 1: 00012587 KAP-Care 2 | 1.5.5 | ||
| 419 | 0x00 | shouldwork | KAPELSE | KAP-GO |  | 0x2947 | 0x0103 | 00025637 TL KAP-GO 1 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x03 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 344064 bps | 254 | 0x00000000 | 0x00000000 | 0x000100BA | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | Multi interface reader, interface 0: 00025637 TL KAP-GO 1 | 1.5.5 | ||
| 420 | 0x00 | shouldwork | KAPELSE | KAP-GO | | 0x2947 | 0x0103 | 00025637 TL KAP-GO 2 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x03 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 344064 bps | 254 | 0x00000000 | 0x00000000 | 0x000100BA | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | Multi interface reader, interface 1: 00025637 TL KAP-GO 2 | 1.5.5 | ||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 421 | 0x00 | shouldwork | KAPELSE | KAP-LINK |  | 0x2947 | 0x0101 | 01810175 KAP-LINK 0 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x03 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 344064 bps | 254 | 0x00000000 | 0x00000000 | 0x000100BA | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | Multi interface reader, interface 0: 01810175 KAP-LINK 0 | 1.5.2 | ||
| 422 | 0x00 | shouldwork | KAPELSE | KAP-LINK | | 0x2947 | 0x0101 | 01810175 KAP-LINK 1 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x03 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 344064 bps | 254 | 0x00000000 | 0x00000000 | 0x000100BA | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | Multi interface reader, interface 1: 01810175 KAP-LINK 1 | 1.5.2 | ||
| 423 | 0x00 | shouldwork | KAPELSE | KAP-LINK2 |  | 0x2947 | 0x0105 | 00478521 KAP-LINK2 0 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x03 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 344064 bps | 254 | 0x00000000 | 0x00000000 | 0x000100BA | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless, interface 0: 00478521 KAP-LINK2 0, Multi interface reader | 1.5.5 | ||
| 424 | 0x00 | shouldwork | KAPELSE | KAP-LINK2 | | 0x2947 | 0x0105 | 00478521 KAP-LINK2 1 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x03 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 344064 bps | 254 | 0x00000000 | 0x00000000 | 0x000100BA | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless, interface 1: 00478521 KAP-LINK2 1, Multi interface reader | 1.5.5 | ||
| 425 | 0x00 | shouldwork | KAPELSE | KAP-LINK2 | | 0x2947 | 0x0105 | 00478521 KAP-LINK2 2 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0001 | 4.000 MHz | 4.000 MHz | 10752 bps | 344064 bps | 254 | 0x00000000 | 0x00000000 | 0x00010270 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless, interface 2: 00478521 KAP-LINK2 2, Multi interface reader | 1.5.5 | ||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 426 | 0x00 | shouldwork | KAPELSE | KAP-eCV |  | 0x2947 | 0x0112 | 00000034 KAP-eCV | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0001 | 4.800 MHz | 4.800 MHz | 10752 bps | 344064 bps | 254 | 0x00000000 | 0x00000000 | 0x00010230 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless | 1.5.5 | ||
| 427 | 0x00 | shouldwork | KAPELSE | eS-KAP-Ad |  | 0x2947 | 0x0104 | 00285432 TL eS-KAP-Ad 1 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x03 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 344064 bps | 254 | 0x00000000 | 0x00000000 | 0x000100BA | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | Multi interface reader, interface 0: 00285432 TL eS-KAP-Ad 1 | 1.5.5 | ||
| 428 | 0x00 | shouldwork | KAPELSE | eS-KAP-Ad | | 0x2947 | 0x0104 | 00285432 TL eS-KAP-Ad 2 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x03 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 344064 bps | 254 | 0x00000000 | 0x00000000 | 0x000100BA | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | Multi interface reader, interface 1: 00285432 TL eS-KAP-Ad 2 | 1.5.5 | ||
| 429 | 0x00 | shouldwork | KRONEGGER | Micro Core Platform |  | 0x2D25 | 0x0001 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 3.685 MHz | 14.320 MHz | 9909 bps | 848000 bps | 254 | 0x00000000 | 0x00000000 | 0x000204BE | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | No extended APDU | 1.4.28 | ||
| 430 | 0x00 | shouldwork | KRONEGGER | NFC blue Reader Platform | | 0x2D25 | 0x0000 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 3.685 MHz | 14.320 MHz | 9909 bps | 848000 bps | 254 | 0x00000000 | 0x00000000 | 0x000204BE | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | No extended APDU | 1.4.28 | ||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 431 | 0x00 | shouldwork | Kapelse | KAP-Move |  | 0x2947 | 0x0114 | CCID Interface slot0 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x03 | 0x0000 0x0003 | 4.800 MHz | 4.800 MHz | 10752 bps | 344064 bps | 254 | 0x00000000 | 0x00000000 | 0x000100BA | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless, interface 0: CCID Interface slot0, Multi interface reader | 1.5.5 | ||
| 432 | 0x00 | shouldwork | Kapelse | KAP-Move | | 0x2947 | 0x0114 | CCID Interface slot1 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x03 | 0x0000 0x0003 | 4.800 MHz | 4.800 MHz | 10752 bps | 344064 bps | 254 | 0x00000000 | 0x00000000 | 0x000100BA | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless, interface 1: CCID Interface slot1, Multi interface reader | 1.5.5 | ||
| 433 | 0x00 | shouldwork | Kapelse | KAP-Move | | 0x2947 | 0x0114 | CCID Interface CLESS slot2 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0001 | 4.800 MHz | 4.800 MHz | 10752 bps | 344064 bps | 254 | 0x00000000 | 0x00000000 | 0x00010230 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless, interface 2: CCID Interface CLESS slot2, Multi interface reader | 1.5.5 | ||
| 434 | 0x00 | shouldwork | Kapelse | Ti-Kap |  | 0x2947 | 0x0111 | CCID Interface slot0 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x03 | 0x0000 0x0003 | 4.800 MHz | 4.800 MHz | 10752 bps | 344064 bps | 254 | 0x00000000 | 0x00000000 | 0x000100BA | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless, interface 0: CCID Interface slot0, Multi interface reader | 1.5.5 | ||
| 435 | 0x00 | shouldwork | Kapelse | Ti-Kap | | 0x2947 | 0x0111 | CCID Interface slot1 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x03 | 0x0000 0x0003 | 4.800 MHz | 4.800 MHz | 10752 bps | 344064 bps | 254 | 0x00000000 | 0x00000000 | 0x000100BA | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless, interface 1: CCID Interface slot1, Multi interface reader | 1.5.5 | ||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 436 | 0x00 | shouldwork | Kapelse | Ti-Kap | | 0x2947 | 0x0111 | CCID Interface CLESS slot2 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0001 | 4.800 MHz | 4.800 MHz | 10752 bps | 344064 bps | 254 | 0x00000000 | 0x00000000 | 0x00010230 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless, interface 2: CCID Interface CLESS slot2, Multi interface reader | 1.5.5 | ||
| 437 | 0x00 | shouldwork | Kapelse | inSide |  | 0x2947 | 0x0113 | CCID Interface slot0 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x03 | 0x0000 0x0003 | 4.800 MHz | 4.800 MHz | 10752 bps | 344064 bps | 254 | 0x00000000 | 0x00000000 | 0x000100BA | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless, interface 0: CCID Interface slot0, Multi interface reader | 1.5.5 | ||
| 438 | 0x00 | shouldwork | Kapelse | inSide | | 0x2947 | 0x0113 | CCID Interface slot1 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x03 | 0x0000 0x0003 | 4.800 MHz | 4.800 MHz | 10752 bps | 344064 bps | 254 | 0x00000000 | 0x00000000 | 0x000100BA | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless, interface 1: CCID Interface slot1, Multi interface reader | 1.5.5 | ||
| 439 | 0x00 | shouldwork | Kapelse | inSide | | 0x2947 | 0x0113 | CCID Interface CLESS slot2 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0001 | 4.800 MHz | 4.800 MHz | 10752 bps | 344064 bps | 254 | 0x00000000 | 0x00000000 | 0x00010230 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless, interface 2: CCID Interface CLESS slot2, Multi interface reader | 1.5.5 | ||
| 440 | 0x00 | shouldwork | Kapsch TrafficCom | USB SAM reader | | 0x28B9 | 0x0002 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x02 | 0x0000 0x0002 | 3.580 MHz | 14.320 MHz | 9600 bps | 1250000 bps | 254 | 0x00000000 | 0x00000000 | 0x00020000 | 512 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | No extended APDU | 1.4.27 | ||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 441 | 0x00 | shouldwork | KeyXentic Inc. | KX906 Smart Card Reader |  | 0x2F76 | 0x0906 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 10752 bps | 254 | 0x00000000 | 0x00000000 | 0x000407BA | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.29 | |||
| 442 | 0x00 | shouldwork | Kingtrust | Multi-Reader | | 0x0483 | 0x0007 | ? | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x03 | 0x0000 0x0001 | 4.000 MHz | 4.000 MHz | 10752 bps | 344086 bps | 254 | 0x00000000 | 0x00000000 | 0x00010230 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.4.0 | |||
| 443 | 0x00 | shouldwork | KOBIL Systems | IDToken |  | 0x0D46 | 0x301D | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 3.685 MHz | 3.685 MHz | 9600 bps | 847500 bps | 254 | 0x00000000 | 0x00000000 | 0x0004047E | 273 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless | 1.4.6 | ||
| 444 | 0x00 | shouldwork | KOBIL Systems | Smart Token |  | 0x0D46 | 0x3014 | ? | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x03 | 0x0000 0x0003 | 4.800 MHz | 4.800 MHz | 12903 bps | 412896 bps | 254 | 0x00000000 | 0x00000000 | 0x000406BA | 586 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.3.12 | |||
| 445 | 0x00 | shouldwork | KOBIL Systems | mIDentity 4smart |  | 0x0D46 | 0x4189 | ? | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x03 | 0x0000 0x0003 | 4.615 MHz | 4.615 MHz | 12407 bps | 397024 bps | 254 | 0x00000000 | 0x00000000 | 0x000406BA | 512 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.3.12 | |||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 446 | 0x00 | shouldwork | KOBIL Systems | mIDentity 4smart AES | | 0x0D46 | 0x41A9 | ? | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x03 | 0x0000 0x0003 | 4.615 MHz | 4.615 MHz | 12407 bps | 397024 bps | 254 | 0x00000000 | 0x00000000 | 0x000406BA | 512 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.3.12 | |||
| 447 | 0x00 | shouldwork | KOBIL Systems | mIDentity fullsize |  | 0x0D46 | 0x4389 | ? | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x03 | 0x0000 0x0003 | 4.615 MHz | 4.615 MHz | 12407 bps | 397024 bps | 254 | 0x00000000 | 0x00000000 | 0x000406BA | 512 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.3.12 | |||
| 448 | 0x00 | shouldwork | KOBIL Systems | mIDentity fullsize AES | | 0x0D46 | 0x43A9 | ? | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x03 | 0x0000 0x0003 | 4.615 MHz | 4.615 MHz | 12407 bps | 397024 bps | 254 | 0x00000000 | 0x00000000 | 0x000406BA | 512 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.3.12 | |||
| 449 | 0x00 | shouldwork | KOBIL Systems | mIDentity visual |  | 0x0D46 | 0x4289 | ? | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x03 | 0x0000 0x0003 | 4.615 MHz | 4.615 MHz | 12407 bps | 397024 bps | 254 | 0x00000000 | 0x00000000 | 0x000406BA | 512 bytes | 0xFF | 0xFF | 0x0210 | 0x03 | 1 | PIN Verification, PIN Modification | 1.3.12 | ||
| 450 | 0x00 | shouldwork | LDU | LANDI | | 0x0925 | 0x900A | NO NAME | 2 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 344086 bps | 254 | 0x00000000 | 0x00000000 | 0x00010230 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.5.2 | |||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 451 | 0x00 | shouldwork | C3PO | LTC36 | | 0x0783 | 0x0036 | ? | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x01 | 0x0000 0x0003 | 4.000 MHz | 8.000 MHz | 9600 bps | 230400 bps | 254 | 0x00000007 | 0x00000000 | 0x000100BA | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.4.0 | |||
| 452 | 0x00 | shouldwork | Ledger | Flex |  | 0x2C97 | 0x7009 | Ledger Flex | 2 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x03 | 0x0000 0x0001 | 3.600 MHz | 3.600 MHz | 9677 bps | 9677 bps | 0 | 0x00000000 | 0x00000000 | 0x000206BA | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x03 | 1 | PIN Verification, PIN Modification | No extended APDU | GIT | |
| 453 | 0x00 | shouldwork | Ledger | Nano S |  | 0x2C97 | 0x0001 | Nano S | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x03 | 0x0000 0x0001 | 3.600 MHz | 3.600 MHz | 9677 bps | 9677 bps | 0 | 0x00000000 | 0x00000000 | 0x00020038 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x03 | 1 | PIN Verification, PIN Modification | No extended APDU | 1.4.28 | |
| 454 | 0x00 | shouldwork | Ledger | Nano SP |  | 0x2C97 | 0x0005 | Nano SP | 2 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x03 | 0x0000 0x0001 | 3.600 MHz | 3.600 MHz | 9677 bps | 9677 bps | 0 | 0x00000000 | 0x00000000 | 0x000206BA | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x03 | 1 | PIN Verification, PIN Modification | No extended APDU | 1.5.1 | |
| 455 | 0x00 | shouldwork | Ledger | Nano S | | 0x2C97 | 0x1009 | Nano S | 2 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x03 | 0x0000 0x0001 | 3.600 MHz | 3.600 MHz | 9677 bps | 9677 bps | 0 | 0x00000000 | 0x00000000 | 0x000206BA | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x03 | 1 | PIN Verification, PIN Modification | No extended APDU | 1.5.1 | |
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 456 | 0x00 | shouldwork | Ledger | Nano S Plus | | 0x2C97 | 0x5009 | Nano S Plus | 2 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x03 | 0x0000 0x0001 | 3.600 MHz | 3.600 MHz | 9677 bps | 9677 bps | 0 | 0x00000000 | 0x00000000 | 0x000206BA | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x03 | 1 | PIN Verification, PIN Modification | No extended APDU | 1.5.1 | |
| 457 | 0x00 | shouldwork | Ledger | Nano X |  | 0x2C97 | 0x0004 | Nano X | 2 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x03 | 0x0000 0x0001 | 3.600 MHz | 3.600 MHz | 9677 bps | 9677 bps | 0 | 0x00000000 | 0x00000000 | 0x000206BA | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x03 | 1 | PIN Verification, PIN Modification | No extended APDU | 1.4.32 | |
| 458 | 0x00 | shouldwork | Ledger | Nano X | | 0x2C97 | 0x4009 | Nano X | 2 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x03 | 0x0000 0x0001 | 3.600 MHz | 3.600 MHz | 9677 bps | 9677 bps | 0 | 0x00000000 | 0x00000000 | 0x000206BA | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x03 | 1 | PIN Verification, PIN Modification | No extended APDU | 1.5.1 | |
| 459 | 0x00 | shouldwork | Ledger | Stax |  | 0x2C97 | 0x6009 | Ledger Stax | 2 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x03 | 0x0000 0x0001 | 3.600 MHz | 3.600 MHz | 9677 bps | 9677 bps | 0 | 0x00000000 | 0x00000000 | 0x000206BA | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x03 | 1 | PIN Verification, PIN Modification | No extended APDU | 1.6.0 | |
| 460 | 0x00 | shouldwork | Lenovo | Lenovo USB Smartcard Keyboard |  | 0x17EF | 0x6007 | Lenovo Keyboard Smartcard Reader | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0003 | 4.800 MHz | 8.000 MHz | 12903 bps | 307200 bps | 252 | 0x00000000 | 0x00000001 | 0x000100BA | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x03 | 1 | PIN Verification, PIN Modification | 1.4.12 | ||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 461 | 0x00 | shouldwork | Lenovo | Lenovo Smartcard Wired Keyboard II |  | 0x17EF | 0x6111 | Smartcard Wired Keyboard II | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 12.000 MHz | 12903 bps | 412903 bps | 254 | 0x00000000 | 0x00000000 | 0x000104BA | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x03 | 1 | PIN Verification, PIN Modification | 1.4.36 | ||
| 462 | 0x00 | shouldwork | Lenovo | Lenovo USB Smartcard Keyboard | | 0x17EF | 0x6055 | Lenovo USB Smartcard Keyboard | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 12.000 MHz | 12903 bps | 412903 bps | 254 | 0x00000000 | 0x00000000 | 0x000404BA | 1034 bytes | 0xFF | 0xFF | 0x0000 | 0x03 | 1 | PIN Verification, PIN Modification | 1.4.18 | ||
| 463 | 0x00 | shouldwork | Liteon | HP SC Keyboard - Apollo JP (Liteon) | | 0x03F0 | 0x184A | HP Keyboard Smartcard Reader | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 12.000 MHz | 12903 bps | 412903 bps | 254 | 0x00000000 | 0x00000000 | 0x000104BA | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x03 | 1 | PIN Verification, PIN Modification | 1.4.21 | ||
| 464 | 0x00 | shouldwork | Liteon | HP SC Keyboard - Apollo KR (Liteon) | | 0x03F0 | 0x174A | HP Keyboard Smartcard Reader | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 12.000 MHz | 12903 bps | 412903 bps | 254 | 0x00000000 | 0x00000000 | 0x000104BA | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x03 | 1 | PIN Verification, PIN Modification | 1.4.21 | ||
| 465 | 0x00 | shouldwork | Liteon | HP SC Keyboard - Apollo (Liteon) | | 0x03F0 | 0x164A | HP Keyboard Smartcard Reader | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 12.000 MHz | 12903 bps | 412903 bps | 254 | 0x00000000 | 0x00000000 | 0x000104BA | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x03 | 1 | PIN Verification, PIN Modification | 1.4.21 | ||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 466 | 0x00 | shouldwork | MK Technology | KeyPass D1 |  | 0x0416 | 0xC137 | SAM Reader | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x02 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 62500 bps | 254 | 0x00000000 | 0x00000000 | 0x000204BA | 271 bytes | 0xFF | 0x00 | 0x0000 | 0x00 | 1 | Multi interface reader, interface 0: SAM Reader | No extended APDU | 1.4.35 | |
| 467 | 0x00 | shouldwork | MK Technology | KeyPass D1 | | 0x0416 | 0xC137 | SC Reader | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x02 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 62500 bps | 254 | 0x00000000 | 0x00000000 | 0x000204BA | 271 bytes | 0xFF | 0x00 | 0x0000 | 0x00 | 1 | Multi interface reader, interface 1: SC Reader | No extended APDU | 1.4.35 | |
| 468 | 0x00 | shouldwork | MK Technology | KeyPass S1 | | 0x0416 | 0xC136 | SAM Reader | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x02 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 62500 bps | 254 | 0x00000000 | 0x00000000 | 0x000204BA | 271 bytes | 0xFF | 0x00 | 0x0000 | 0x00 | 1 | No extended APDU | 1.4.27 | ||
| 469 | 0x00 | shouldwork | MSI | StarReader SMART |  | 0x0BDA | 0x0161 | Smart Card Reader Interface | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 3.750 MHz | 7.500 MHz | 10080 bps | 312500 bps | 254 | 0x00000000 | 0x00000000 | 0x00010030 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | You may need to unload/blacklist the mceusb Linux kernel driver to use the device. Also known as the APPROX USB 2.0 External DNI-e http://approx.es/APPCRDNI | 1.3.10 | ||
| 470 | 0x00 | shouldwork | Macally | NFC CCID eNetPad |  | 0x08AE | 0x0BDF | Macally CCID READER | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0002 | 4.000 MHz | 4.000 MHz | 10752 bps | 344100 bps | 256 | 0x00000000 | 0x00000000 | 0x00020040 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless | No extended APDU | 1.4.6 | |
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 471 | 0x00 | shouldwork | Microchip | SEC1110 |  | 0x0424 | 0x1104 | CCID Interface | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 16.000 MHz | 12903 bps | 826000 bps | 254 | 0x00000000 | 0x00000000 | 0x000100B2 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.16 | |||
| 472 | 0x00 | shouldwork | Microchip | SEC1210 |  | 0x0424 | 0x1202 | CCID Interface | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 16.000 MHz | 12903 bps | 826000 bps | 254 | 0x00000000 | 0x00000000 | 0x000100B2 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | Multi interface reader, interface 0: CCID Interface | 1.4.16 | ||
| 473 | 0x00 | shouldwork | Microchip | SEC1210 | | 0x0424 | 0x1202 | CCID Interface | 2 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 16.000 MHz | 12903 bps | 826000 bps | 254 | 0x00000000 | 0x00000000 | 0x000100B2 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | Multi interface reader, interface 1: CCID Interface | 1.4.16 | ||
| 474 | 0x00 | shouldwork | Morpho | MSO1350 Fingerprint Sensor & SmartCard Reader |  | 0x079B | 0x0052 | SAGEM SMARTCARD READER | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 129032 bps | 247 | 0x00000000 | 0x00000000 | 0x00010030 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | biometric | 1.4.10 | ||
| 475 | 0x00 | shouldwork | Morpho | MSO350/MSO351 Fingerprint Sensor & SmartCard Reader |  | 0x079B | 0x0026 | SAGEM SMARTCARD READER | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 344086 bps | 254 | 0x00000000 | 0x00000000 | 0x00010230 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | biometric | 1.4.10 | ||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 476 | 0x00 | shouldwork | Mulann | PVT |  | 0x4D55 | 0x0010 | SmartCard Reader C | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x03 | 0x0000 0x0003 | 3.600 MHz | 3.600 MHz | 9677 bps | 9677 bps | 254 | 0x00000000 | 0x00000000 | 0x0002007A | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | Multi interface reader, interface 0: SmartCard Reader C | No extended APDU | 1.4.27 | |
| 477 | 0x00 | shouldwork | Mulann | PVT | | 0x4D55 | 0x0010 | SmartCard Reader CL | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x03 | 0x0000 0x0003 | 3.600 MHz | 3.600 MHz | 9677 bps | 9677 bps | 254 | 0x00000000 | 0x00000000 | 0x0002007A | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | Multi interface reader, interface 1: SmartCard Reader CL | No extended APDU | 1.4.27 | |
| 478 | 0x00 | shouldwork | NXP | PN7462AU CCID | | 0x1FC9 | 0x0117 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 3.685 MHz | 14.320 MHz | 9909 bps | 848000 bps | 254 | 0x00000000 | 0x00000000 | 0x000204BE | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless | No extended APDU | 1.4.31 | |
| 479 | 0x00 | shouldwork | NXP | PR533 |  | 0x1FC9 | 0x010B | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 3.685 MHz | 13.560 MHz | 9909 bps | 848000 bps | 254 | 0x00000000 | 0x00000000 | 0x0004047E | 273 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless | 1.4.7 | ||
| 480 | 0x00 | shouldwork | NXP | Pegoda 2 N |  | 0x1FC9 | 0x0107 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 8.000 MHz | 10752 bps | 250000 bps | 254 | 0x00000000 | 0x00000000 | 0x00020430 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless | No extended APDU | known as "Pegoda CLRD710" and "MFEV710 evaluation package" | 1.4.20 |
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 481 | 0x00 | shouldwork | NXP | Pegoda 3 |  | 0x1FC9 | 0x0157 | NXP Pegoda 3 (CL) | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 3.685 MHz | 14.320 MHz | 9909 bps | 848000 bps | 254 | 0x00000000 | 0x00000000 | 0x000204BE | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless, interface 0: NXP Pegoda 3 (CL), Multi interface reader | No extended APDU | 1.6.0 | |
| 482 | 0x00 | shouldwork | NXP | Pegoda 3 | | 0x1FC9 | 0x0157 | NXP Pegoda 3 (CT) | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 3.685 MHz | 14.320 MHz | 9909 bps | 848000 bps | 254 | 0x00000000 | 0x00000000 | 0x000204BE | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless, interface 1: NXP Pegoda 3 (CT), Multi interface reader | No extended APDU | 1.6.0 | |
| 483 | 0x00 | shouldwork | Neowave | Weneo | | 0x1E0D | 0x8033 | 5 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x02 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 9600 bps | 115200 bps | 254 | 0x00000000 | 0x00000000 | 0x00010030 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.3.10 | |||
| 484 | 0x00 | shouldwork | Neowave | Weneo | | 0x1E0D | 0x0013 | 5 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x02 | 0x0000 0x0003 | 3.570 MHz | 3.570 MHz | 9600 bps | 115200 bps | 254 | 0x00000000 | 0x00000000 | 0x00010030 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.3.11 | |||
| 485 | 0x00 | shouldwork | Neowave | Weneo | | 0x1E0D | 0x0033 | Weneo Reader | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x02 | 0x0000 0x0003 | 3.570 MHz | 3.570 MHz | 9600 bps | 115200 bps | 254 | 0x00000000 | 0x00000000 | 0x00010230 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.2 | |||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 486 | 0x00 | shouldwork | Neowave | Weneo | | 0x1E0D | 0x1023 | Weneo SIM Reader | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 3.570 MHz | 3.570 MHz | 9600 bps | 115200 bps | 254 | 0x00000000 | 0x00000000 | 0x0001023A | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.3 | |||
| 487 | 0x00 | shouldwork | Nitrokey | Nitrokey HSM |  | 0x20A0 | 0x4230 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x02 | 0x0000 0x0002 | 3.600 MHz | 3.600 MHz | 9677 bps | 116129 bps | 254 | 0x00000000 | 0x00000000 | 0x000104BA | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.4.21 | |||
| 488 | 0x00 | shouldwork | Nitrokey | Nitrokey 3 |  | 0x20A0 | 0x42B2 | CCID/ICCD Interface | 2 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0002 | 3.580 MHz | 3.580 MHz | 9600 bps | 9600 bps | 254 | 0x00000000 | 0x00000000 | 0x00040840 | 3072 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | ICCD | 1.5.0 | ||
| 489 | 0x00 | shouldwork | Nitrokey | Nitrokey Pro | | 0x20A0 | 0x4108 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x02 | 0x0000 0x0002 | 3.600 MHz | 3.600 MHz | 9677 bps | 116129 bps | 254 | 0x00000000 | 0x00000000 | 0x000104BA | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.4.21 | |||
| 490 | 0x00 | shouldwork | Nitrokey | Nitrokey Start | | 0x20A0 | 0x4211 | NO NAME | 2 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0002 | 3.571 MHz | 3.571 MHz | 9600 bps | 9600 bps | 254 | 0x00000000 | 0x00000000 | 0x00020842 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | ICCD | No extended APDU | 1.4.21 | |
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 491 | 0x00 | shouldwork | Nitrokey | Nitrokey Storage |  | 0x20A0 | 0x4109 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x02 | 0x0000 0x0002 | 3.600 MHz | 3.600 MHz | 9677 bps | 116129 bps | 48 | 0x00000000 | 0x00000000 | 0x000104BA | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.4.22 | |||
| 492 | 0x00 | shouldwork | OMNIKEY | 5421 |  | 0x076B | 0x5421 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 8.000 MHz | 10752 bps | 412903 bps | 254 | 0x00000007 | 0x00000000 | 0x000103B0 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless | The contactless interface is not supported. | 1.4.17 | |
| 493 | 0x00 | shouldwork | OMNIKEY AG | 3121 USB | | 0x076B | 0x3022 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 8.000 MHz | 10752 bps | 412903 bps | 492 | 0x00000007 | 0x00000000 | 0x000407B2 | 502 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.17 | |||
| 494 | 0x00 | shouldwork | OCS ID-One Cosmo Card | USB Smart Chip Device | | 0x1A74 | 0x6354 | 4 | 0 | 0xFF | 2.00 | 0x01 | 0x0000 0x0002 | 3.580 MHz | 3.580 MHz | 9600 bps | 9600 bps | 254 | 0x00000000 | 0x00000000 | 0x00020840 | 261 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | ICCD | No extended APDU | 1.3.8 | |
| 495 | 0x00 | shouldwork | OBERTHUR TECHNOLOGIES | ID-ONE TOKEN SLIM v2 |  | 0x1A74 | 0xB111 | ? | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x03 | 0x0000 0x0003 | 4.800 MHz | 12.000 MHz | 12903 bps | 825807 bps | 252 | 0x00000000 | 0x00000000 | 0x00010200 | 270 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.2 | |||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 496 | 0x00 | shouldwork | HID OMNIKEY | 5127 CK | | 0x076B | 0x5127 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 4.800 MHz | 12903 bps | 825807 bps | 254 | 0x00000000 | 0x00000000 | 0x000404BA | 520 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless | 1.4.12 | ||
| 497 | 0x00 | shouldwork | OMNIKEY AG | 6121 USB mobile | | 0x076B | 0x6623 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 8.000 MHz | 10752 bps | 412903 bps | 492 | 0x00000007 | 0x00000000 | 0x000407B2 | 502 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.19 | |||
| 498 | 0x00 | shouldwork | OMNIKEY | 6321 CLi USB |  | 0x076B | 0x6321 | ? | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 8.000 MHz | 10752 bps | 412903 bps | 254 | 0x00000007 | 0x00000000 | 0x000207B2 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | No extended APDU | 1.4.6 | ||
| 499 | 0x00 | shouldwork | OMNIKEY AG | Smart Card Reader |  | 0x076B | 0xA021 | 0 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 3.692 MHz | 3.692 MHz | 9924 bps | 119096 bps | 254 | 0x00000007 | 0x00000000 | 0x000207B2 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | No extended APDU | 1.3.10 | ||
| 500 | 0x00 | shouldwork | PIVKey | T800 |  | 0x096E | 0x0603 | NO NAME | 2 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 9600 bps | 600000 bps | 254 | 0x00000000 | 0x00000000 | 0x00010230 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.4.19 | |||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 501 | 0x00 | shouldwork | Panasonic | Panasonic USB Smart Card Reader 7A-Smart |  | 0x04DA | 0x117A | 0 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 344086 bps | 254 | 0x00000000 | 0x00000000 | 0x00010230 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.3.11 | |||
| 502 | 0x00 | shouldwork | Philips Semiconductors | SmartMX Sample |  | 0x04B9 | 0x1400 | 0 | 1 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0002 | 3.580 MHz | 3.580 MHz | 9600 bps | 9600 bps | 254 | 0x00000000 | 0x00000000 | 0x00020840 | 261 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | ICCD | No extended APDU | used in some SafeNet iKey 4000 | 1.3.10 |
| 503 | 0x00 | shouldwork | Planeta | RC700-NFC CCID |  | 0x21AB | 0x0010 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x00 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 106000 bps | 424000 bps | 272 | 0x00000000 | 0x00000000 | 0x0002047E | 280 bytes | 0x00 | 0x01 | 0x0000 | 0x00 | 1 | contactless | No extended APDU | 1.4.13 | |
| 504 | 0x00 | shouldwork | Purism, SPC | Librem Key |  | 0x316D | 0x4C4B | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x02 | 0x0000 0x0002 | 3.600 MHz | 3.600 MHz | 9677 bps | 116129 bps | 254 | 0x00000000 | 0x00000000 | 0x000104BA | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.4.32 | |||
| 505 | 0x00 | shouldwork | Raritan | D2CIM-DVUSB VM/CCID |  | 0x14DD | 0x1006 | 18 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 344086 bps | 254 | 0x00000000 | 0x00000000 | 0x00010238 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.3.11 | |||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 506 | 0x00 | shouldwork | Regula | RFID Reader |  | 0x1C6A | 0x7050 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 13.560 MHz | 672 bps | 250000 bps | 1024 | 0x00000000 | 0x00000000 | 0x00020042 | 512 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless | No extended APDU | 1.4.27 | |
| 507 | 0x00 | shouldwork | REINER SCT | cyberJack RFID basis |  | 0x0C4B | 0x9102 | ? | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0002 | 1.000 MHz | 1.000 MHz | 2688 bps | 2688 bps | 254 | 0x00000000 | 0x00000000 | 0x000404B0 | 266 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.1 | |||
| 508 | 0x00 | shouldwork | REINER SCT | cyberJack go |  | 0x0C4B | 0x0504 | ? | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 1.000 MHz | 1.000 MHz | 2688 bps | 2688 bps | 254 | 0x00000000 | 0x00000000 | 0x000404B0 | 1014 bytes | 0xFF | 0xFF | 0x1002 | 0x03 | 1 | PIN Verification, PIN Modification | 1.4.9 | ||
| 509 | 0x00 | shouldwork | REINER SCT | cyberJack one |  | 0x0C4B | 0x0580 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x02 | 0x0000 0x0003 | 1.000 MHz | 1.000 MHz | 2688 bps | 2688 bps | 254 | 0x00000000 | 0x00000000 | 0x000404B0 | 1014 bytes | 0xFF | 0xFF | 0x0310 | 0x03 | 1 | PIN Verification, PIN Modification | 1.4.28 | ||
| 510 | 0x00 | shouldwork | REINER SCT | tanJack Bluetooth |  | 0x0C4B | 0x0520 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x02 | 0x0000 0x0002 | 1.000 MHz | 1.000 MHz | 2688 bps | 2688 bps | 254 | 0x00000000 | 0x00000000 | 0x000404BA | 384 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | Bluetooth | 1.4.19 | ||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 511 | 0x00 | shouldwork | REINER SCT | tanJack USB |  | 0x0C4B | 0x0551 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x02 | 0x0000 0x0002 | 1.000 MHz | 1.000 MHz | 2688 bps | 2688 bps | 254 | 0x00000000 | 0x00000000 | 0x000404BA | 512 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.36 | |||
| 512 | 0x00 | shouldwork | Rocketek | RT-SCR1 |  | 0x14CD | 0x8166 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 3.000 MHz | 3.000 MHz | 8065 bps | 258065 bps | 254 | 0x00000007 | 0x00000000 | 0x000404B2 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.21 | |||
| 513 | 0x00 | shouldwork | Route1 | MobiKEY Fusion3 |  | 0x13FE | 0xC831 | CCID | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x06 | 0x0000 0x0003 | 3.571 MHz | 3.571 MHz | 9600 bps | 614400 bps | 254 | 0x00000000 | 0x00000000 | 0x000100BE | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.31 | |||
| 514 | 0x00 | shouldwork | Aktiv | PINPad Ex |  | 0x0A89 | 0x0080 | NO NAME | 2 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0002 | 3.580 MHz | 3.580 MHz | 9600 bps | 9600 bps | 254 | 0x00000000 | 0x00000000 | 0x00020840 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | ICCD | No extended APDU | 1.4.9 | |
| 515 | 0x00 | shouldwork | Aktiv | PINPad In |  | 0x0A89 | 0x0081 | NO NAME | 2 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0002 | 3.580 MHz | 3.580 MHz | 9600 bps | 9600 bps | 254 | 0x00000000 | 0x00000000 | 0x00020840 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | ICCD | No extended APDU | 1.4.9 | |
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 516 | 0x00 | shouldwork | SAFETRUST | SABRE SCR |  | 0x2EE1 | 0x0001 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 500000 bps | 254 | 0x00000000 | 0x00000000 | 0x00010230 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.4.28 | |||
| 517 | 0x00 | shouldwork | SCM Microsystems Inc. | SCL010 Contactless Reader |  | 0x04E6 | 0x5291 | SCL010 Contactless Reader | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0003 | 4.000 MHz | 12.000 MHz | 10753 bps | 344105 bps | 252 | 0x00000000 | 0x00000001 | 0x000404BE | 262 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless | Be sure to have firmware version 1.12 or above. | 1.4.11 | |
| 518 | 0x00 | shouldwork | SCM Microsystems Inc. | SCL01x Contactless Reader |  | 0x04E6 | 0x5293 | SCL01x Contactless Reader | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0003 | 4.000 MHz | 12.000 MHz | 10753 bps | 344105 bps | 252 | 0x00000000 | 0x00000001 | 0x000404BE | 262 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless | You have to upgrade the firmware using version 1.12 or later | 1.4.3 | |
| 519 | 0x00 | shouldwork | NTT Communications Corp. | SCR3310-NTTCom USB SmartCard Reader |  | 0x04E6 | 0x511A | Vendor Interface | 3 | 0xFF | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 8.000 MHz | 12903 bps | 412903 bps | 252 | 0x00000000 | 0x00000000 | 0x000101BA | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.8 | |||
| 520 | 0x00 | shouldwork | SCM Microsystems Inc. | SCR3310 USB Smart Card Reader | | 0x04E6 | 0x511F | CCID Interface | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x01 | 0x0000 0x0003 | 4.000 MHz | 8.000 MHz | 10753 bps | 344105 bps | 252 | 0x00000000 | 0x00000000 | 0x000100BA | 263 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.1 | |||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 521 | 0x00 | shouldwork | SCM Microsystems Inc. | SCR3320 - Smart Card Reader |  | 0x04E6 | 0x5117 | 4 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0003 | 4.000 MHz | 8.000 MHz | 10753 bps | 344105 bps | 252 | 0x00000000 | 0x00000000 | 0x000100BA | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.0.0 | |||
| 522 | 0x00 | shouldwork | SCM Microsystems Inc. | SCR33x USB Smart Card Reader |  | 0x04E6 | 0x5113 | 4 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0003 | 4.000 MHz | 8.000 MHz | 10753 bps | 344105 bps | 252 | 0x00000000 | 0x00000000 | 0x000100BA | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.0.0 | |||
| 523 | 0x00 | shouldwork | SCM Microsystems Inc. | SCR3340 - ExpressCard54 Smart Card Reader |  | 0x04E6 | 0x5119 | 4 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0003 | 4.000 MHz | 8.000 MHz | 10753 bps | 344105 bps | 252 | 0x00000000 | 0x00000000 | 0x000100BA | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | ExpressCard | 1.0.0 | ||
| 524 | 0x00 | shouldwork | SCM Microsystems Inc. | SCR 335 |  | 0x04E6 | 0x5115 | CCID Interface | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 8.000 MHz | 12903 bps | 412903 bps | 252 | 0x00000000 | 0x00000000 | 0x000101BA | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | You have to upgrade the firmware using version 5.18 or later. Or use a v2.0 model. | 0.1.0 | ||
| 525 | 0x00 | shouldwork | SCM Microsystems Inc. | SCR35xx v2.0 USB SC Reader |  | 0x04E6 | 0x5410 | CCID Interface | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 8.000 MHz | 12903 bps | 412903 bps | 252 | 0x00000000 | 0x00000000 | 0x000101BA | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.3.12 | |||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 526 | 0x00 | shouldwork | Secure Device Solutions | DOMINO-Key TWIN |  | 0x0B81 | 0x8007 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x03 | 0x0000 0x0003 | 4.800 MHz | 12.000 MHz | 12903 bps | 825807 bps | 252 | 0x00000000 | 0x00000000 | 0x00010200 | 270 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.5 | |||
| 527 | 0x00 | shouldwork | SIMHUB | pcsc reader |  | 0x1677 | 0x0341 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0001 | 3.580 MHz | 3.580 MHz | 9600 bps | 9600 bps | 0 | 0x00000000 | 0x00000000 | 0x00020840 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | ICCD | No extended APDU | 1.5.5 | |
| 528 | 0x00 | shouldwork | SONY | FeliCa RC-S300/P |  | 0x054C | 0x0DC9 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0002 | 4.000 MHz | 4.000 MHz | 115200 bps | 921600 bps | 254 | 0x00000000 | 0x00000000 | 0x0004007E | 522 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless | 1.4.35 | ||
| 529 | 0x00 | shouldwork | SONY | FeliCa RC-S300/S | | 0x054C | 0x0DC8 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0002 | 4.000 MHz | 4.000 MHz | 115200 bps | 921600 bps | 254 | 0x00000000 | 0x00000000 | 0x0004007E | 522 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless | 1.4.35 | ||
| 530 | 0x00 | shouldwork | SONY | FeliCa RC-S660/U | | 0x054C | 0x0D8F | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0002 | 4.000 MHz | 4.000 MHz | 115200 bps | 921600 bps | 254 | 0x00000000 | 0x00000000 | 0x0004007E | 522 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless | 1.4.35 | ||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 531 | 0x00 | shouldwork | SPECINFOSYSTEMS | DIAMOND HSM | | 0x316E | 0x0010 | CCID Interface | 2 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0002 | 4.000 MHz | 4.000 MHz | 307200 bps | 307200 bps | 3042 | 0x00000000 | 0x00000000 | 0x0004044E | 3072 bytes | 0x00 | 0x00 | 0x0000 | 0x03 | 1 | PIN Verification, PIN Modification | 1.4.32 | ||
| 532 | 0x00 | shouldwork | SPECINFOSYSTEMS | DIAMOND PLUS token | | 0x316E | 0x0003 | CCID Interface | 2 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0002 | 4.000 MHz | 4.000 MHz | 307200 bps | 307200 bps | 3042 | 0x00000000 | 0x00000000 | 0x0004044E | 3072 bytes | 0x00 | 0x00 | 0x0A14 | 0x03 | 1 | PIN Verification, PIN Modification | 1.4.32 | ||
| 533 | 0x00 | shouldwork | SPECINFOSYSTEMS | DIAMOND PRO token | | 0x316E | 0x0002 | CCID Interface | 2 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0002 | 4.000 MHz | 4.000 MHz | 307200 bps | 307200 bps | 3042 | 0x00000000 | 0x00000000 | 0x0004044E | 3072 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.4.32 | |||
| 534 | 0x00 | shouldwork | SPECINFOSYSTEMS | DIAMOND token |  | 0x316E | 0x0001 | CCID Interface | 2 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0002 | 4.000 MHz | 4.000 MHz | 307200 bps | 307200 bps | 254 | 0x00000000 | 0x00000000 | 0x0002044E | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | No extended APDU | 1.4.31 | ||
| 535 | 0x00 | shouldwork | SYC | USB CCID Reader |  | 0x0483 | 0x2017 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 16.000 MHz | 12903 bps | 600000 bps | 252 | 0x00000000 | 0x00000000 | 0x000100BA | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | GIT | |||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 536 | 0x00 | shouldwork | SYNNIX | CL-2100R |  | 0x1206 | 0x2107 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 3.685 MHz | 13.560 MHz | 9909 bps | 847500 bps | 254 | 0x00000000 | 0x00000000 | 0x0004047E | 273 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless | 1.4.35 | ||
| 537 | 0x00 | shouldwork | SafeNet | eToken 5100 |  | 0x0529 | 0x0620 | Main Interface | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 10752 bps | 252 | 0x00000000 | 0x00000000 | 0x0001023C | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.4.20 | |||
| 538 | 0x00 | shouldwork | SafeNet | eToken 5110+ FIPS | | 0x08E6 | 0x34CF | eToken 5110+ FIPS | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x02 | 0x0000 0x0002 | 4.800 MHz | 4.800 MHz | 12903 bps | 825806 bps | 254 | 0x00000000 | 0x00000000 | 0x00010230 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.4.36 | |||
| 539 | 0x00 | shouldwork | SafeNet | eToken 5300 |  | 0x08E6 | 0x34CC | eToken 5300 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x02 | 0x0000 0x0002 | 4.800 MHz | 4.800 MHz | 12903 bps | 825806 bps | 254 | 0x00000000 | 0x00000000 | 0x00010230 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.4.28 | |||
| 540 | 0x00 | shouldwork | SafeNet | eToken 5300 C | | 0x08E6 | 0x34CE | eToken 5300 C | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x02 | 0x0000 0x0002 | 4.800 MHz | 4.800 MHz | 12903 bps | 825806 bps | 254 | 0x00000000 | 0x00000000 | 0x00010230 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.4.36 | |||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 541 | 0x00 | shouldwork | SafeNet | eToken 7300 |  | 0x0529 | 0x0602 | eToken 7300 SC | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0002 | 4.000 MHz | 4.000 MHz | 10752 bps | 10752 bps | 252 | 0x00000000 | 0x00000000 | 0x000102FC | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.4.20 | |||
| 542 | 0x00 | shouldwork | SafeNet | eToken Fusion | | 0x08E6 | 0x34D2 | eToken Fusion | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x02 | 0x0000 0x0003 | 4.800 MHz | 4.800 MHz | 12903 bps | 825806 bps | 254 | 0x00000000 | 0x00000000 | 0x00040472 | 275 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.5.1 | |||
| 543 | 0x00 | shouldwork | SafeTech | SafeTouch |  | 0x24A2 | 0x0102 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x02 | 0x0000 0x0003 | 4.000 MHz | 8.000 MHz | 10752 bps | 421052 bps | 252 | 0x00000000 | 0x00000000 | 0x00010000 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.4.10 | |||
| 544 | 0x00 | shouldwork | SecuTech | SecuTech Token |  | 0x0403 | 0xC587 | ? | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0001 | 3.580 MHz | 3.580 MHz | 9600 bps | 9600 bps | 0 | 0x00000000 | 0x00000000 | 0x00010000 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.12 | |||
| 545 | 0x00 | shouldwork | Sensyl | SSC-HV Reader |  | 0x356F | 0x23FE | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 12.000 MHz | 10752 bps | 500000 bps | 252 | 0x00000000 | 0x00000000 | 0x00010238 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.5.2 | |||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 546 | 0x00 | shouldwork | Sensyl | SSC-NFC Reader |  | 0x356F | 0x22FC | SSC-NFC Reader | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0002 | 4.000 MHz | 4.000 MHz | 10752 bps | 688172 bps | 271 | 0x00000000 | 0x00000000 | 0x000404BE | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless | 1.5.1 | ||
| 547 | 0x00 | shouldwork | Sitecom | Sitecom USB simcard reader MD-010 |  | 0x0DF6 | 0x800A | 0 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x03 | 0x0000 0x0003 | 3.700 MHz | 3.700 MHz | 9946 bps | 318280 bps | 254 | 0x00000007 | 0x00000000 | 0x000204BE | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | No extended APDU | 1.3.0 | ||
| 548 | 0x00 | shouldwork | Softforum Co., Ltd | XecureHSM |  | 0x04E8 | 0x0007 | 0 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x03 | 0x0000 0x0001 | 4.000 MHz | 4.000 MHz | 10752 bps | 344086 bps | 254 | 0x00000000 | 0x00000000 | 0x00010230 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.3.11 | |||
| 549 | 0x00 | shouldwork | SoloKeys | Solo 2 |  | 0x1209 | 0xBEEE | CCID/ICCD Interface | 2 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0002 | 3.580 MHz | 3.580 MHz | 9600 bps | 9600 bps | 254 | 0x00000000 | 0x00000000 | 0x00040840 | 3072 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | ICCD | 1.4.35 | ||
| 550 | 0x00 | shouldwork | SpringCard | CSB6 Basic |  | 0x1C34 | 0x7121 | 0 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x03 | 0x0000 0x0003 | 3.686 MHz | 13.560 MHz | 9909 bps | 12643980 bps | 254 | 0x00000000 | 0x00000000 | 0x0002047E | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless | No extended APDU | 1.3.9 | |
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 551 | 0x00 | shouldwork | SpringCard | NFC'Roll |  | 0x1C34 | 0x8141 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x03 | 0x0000 0x0003 | 3.850 MHz | 3.850 MHz | 10752 bps | 200080 bps | 254 | 0x00000000 | 0x00000000 | 0x0002047E | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless | No extended APDU | 1.4.10 | |
| 552 | 0x00 | shouldwork | SpringCard | Prox'N'Roll |  | 0x1C34 | 0x7141 | 0 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x03 | 0x0000 0x0003 | 3.686 MHz | 13.560 MHz | 9909 bps | 12643980 bps | 254 | 0x00000000 | 0x00000000 | 0x0002047E | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless | No extended APDU | 1.3.9 | |
| 553 | 0x00 | shouldwork | Spyrus Inc | PocketVault P-3X |  | 0x08DF | 0x3201 | NO NAME | 2 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0001 | 3.580 MHz | 3.580 MHz | 9600 bps | 9600 bps | 256 | 0x00000000 | 0x00000000 | 0x00040840 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | ICCD | 1.4.27 | ||
| 554 | 0x00 | shouldwork | Spyrus Inc | PocketVault P-3X | | 0x08DF | 0x3203 | NO NAME | 2 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0001 | 3.580 MHz | 3.580 MHz | 9600 bps | 9600 bps | 256 | 0x00000000 | 0x00000000 | 0x00040840 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | ICCD | 1.4.35 | ||
| 555 | 0x00 | shouldwork | Spyrus Inc | Rosetta USB |  | 0x08DF | 0x0004 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0001 | 3.580 MHz | 3.580 MHz | 9600 bps | 9600 bps | 256 | 0x00000000 | 0x00000000 | 0x00010840 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | ICCD | 1.4.29 | ||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 556 | 0x00 | shouldwork | Spyrus Inc | WorkSafe Pro |  | 0x08DF | 0x3115 | NO NAME | 2 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0001 | 3.580 MHz | 3.580 MHz | 9600 bps | 9600 bps | 256 | 0x00000000 | 0x00000000 | 0x00040840 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | ICCD | 1.4.29 | ||
| 557 | 0x00 | shouldwork | Spyrus Inc | WorkSafe Pro |  | 0x08DF | 0x3117 | NO NAME | 2 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0001 | 3.580 MHz | 3.580 MHz | 9600 bps | 9600 bps | 256 | 0x00000000 | 0x00000000 | 0x00040840 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | ICCD | 1.4.30 | ||
| 558 | 0x00 | shouldwork | Sunrex | HP USB Business Slim Smartcard CCID Keyboard |  | 0x05AF | 0x605A | HP Skylab Smartcard Reader | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 12.000 MHz | 12903 bps | 412903 bps | 254 | 0x00000000 | 0x00000000 | 0x000104BA | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x03 | 1 | PIN Verification, PIN Modification | 1.4.34 | ||
| 559 | 0x00 | shouldwork | Swissbit | Secure USB PU-50n SE/PE | | 0x1370 | 0x0901 | NO NAME | 2 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0002 | 5.000 MHz | 5.000 MHz | 161290 bps | 161290 bps | 254 | 0x00000000 | 0x00000000 | 0x0004047A | 512 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.33 | |||
| 560 | 0x00 | shouldwork | SYNNIX | STD200 | | 0x1206 | 0x2105 | 4 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 129032 bps | 254 | 0x00000000 | 0x00000000 | 0x00010138 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.3.11 | |||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 561 | 0x00 | shouldwork | Sysking | MII136C |  | 0x0E6A | 0x5083 | Smart Card Reader | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 129032 bps | 254 | 0x00000000 | 0x00000000 | 0x00010030 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.4.32 | |||
| 562 | 0x00 | shouldwork | TOKEN2 | FIDO2 Security Key(0026) |  | 0x349E | 0x0026 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0003 | 3.580 MHz | 3.580 MHz | 9600 bps | 9600 bps | 2344 | 0x00000000 | 0x00000000 | 0x00040480 | 2344 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | GIT | |||
| 563 | 0x00 | shouldwork | TOKEN2 MFA | NFC Reader |  | 0x349E | 0x0430 | R502 Contactless Reader | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x01 | 0x0000 0x0002 | 4.000 MHz | 4.000 MHz | 10752 bps | 688172 bps | 252 | 0x00000007 | 0x00000000 | 0x000404BE | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless | 1.5.2 | ||
| 564 | 0x00 | shouldwork | TOKEN2 | Molto2 |  | 0x349E | 0x0300 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0003 | 3.580 MHz | 3.580 MHz | 9600 bps | 9600 bps | 2088 | 0x00000000 | 0x00000000 | 0x00040480 | 2088 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.5.2 | |||
| 565 | 0x00 | shouldwork | TOPPAN FORMS CO.,LTD | TC63CUT021 |  | 0x23EB | 0x0003 | TC63CUT021 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 106000 bps | 106000 bps | 254 | 0x00000000 | 0x00000000 | 0x0002067E | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 0 | contactless | No extended APDU | 1.4.33 | |
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 566 | 0x00 | shouldwork | Thales | RF Reader | | 0x17B9 | 0x400B | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 3.685 MHz | 13.560 MHz | 9909 bps | 848000 bps | 254 | 0x00000000 | 0x00000000 | 0x0004047E | 2058 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless | 1.5.2 | ||
| 567 | 0x00 | shouldwork | Thales | Shield M4 Reader | | 0x08E6 | 0x34C7 | CCID Interface | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x03 | 0x0000 0x0003 | 3.600 MHz | 3.600 MHz | 9677 bps | 9677 bps | 254 | 0x00000000 | 0x00000000 | 0x000204B2 | 271 bytes | 0x00 | 0x00 | 0x0811 | 0x03 | 1 | PIN Verification, PIN Modification | No extended APDU | 1.5.0 | |
| 568 | 0x00 | shouldwork | THURSBY SOFTWARE | TSS-PK1 | | 0x1976 | 0x0001 | Reader0 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 3.700 MHz | 3.700 MHz | 9946 bps | 318280 bps | 254 | 0x00000007 | 0x00000000 | 0x000404BE | 272 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.22 | |||
| 569 | 0x00 | shouldwork | Thursby Software Systems, Inc. | TSS-PK7 |  | 0x096E | 0x061C | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 3.700 MHz | 3.700 MHz | 9946 bps | 318280 bps | 272 | 0x00000007 | 0x00000000 | 0x000404BE | 272 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.22 | |||
| 570 | 0x00 | shouldwork | Thursby Software Systems, Inc. | TSS-PK8 |  | 0x096E | 0x0619 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 3.700 MHz | 3.700 MHz | 9946 bps | 318280 bps | 254 | 0x00000007 | 0x00000000 | 0x000404BE | 272 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.22 | |||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 571 | 0x00 | shouldwork | Tianyu | Smart Card Reader | | 0xA625 | 0x0810 | ? | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 344086 bps | 254 | 0x00000000 | 0x00000000 | 0x00010230 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.4.0 | |||
| 572 | 0x00 | shouldwork | Todos | Argos Mini II |  | 0x0B0C | 0x0050 | ? | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 344086 bps | 254 | 0x00000000 | 0x00000000 | 0x000204BA | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | No extended APDU | Use at least firmware 1.01. The previous one is bogus. | 1.3.12 | |
| 573 | 0x00 | shouldwork | Todos | CX00 |  | 0x0B0C | 0x0052 | ? | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 344086 bps | 254 | 0x00000000 | 0x00000000 | 0x000204BA | 271 bytes | 0x00 | 0x00 | 0x0211 | 0x00 | 1 | No extended APDU | 1.4.0 | ||
| 574 | 0x00 | shouldwork | ubisys | 13.56MHz RFID (CCID) |  | 0x19A6 | 0x0009 | ? | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0002 | 3.580 MHz | 3.580 MHz | 9600 bps | 9600 bps | 254 | 0x00000000 | 0x00000000 | 0x00020042 | 288 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless | No extended APDU | 1.4.5 | |
| 575 | 0x00 | shouldwork | Unicept GmbH | AirID USB |  | 0x2DFF | 0x1540 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 3.686 MHz | 3.686 MHz | 9909 bps | 230400 bps | 254 | 0x00000000 | 0x00000000 | 0x00040040 | 300 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.27 | |||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 576 | 0x00 | shouldwork | Unicept GmbH | AirID USB Dongle | | 0x2DFF | 0x1543 | AirID CCID 6000011 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 3.686 MHz | 3.686 MHz | 9909 bps | 230400 bps | 254 | 0x00000000 | 0x00000000 | 0x00040040 | 300 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | When connected using the USB/Bluetooth dongle | 1.4.28 | ||
| 577 | 0x00 | shouldwork | VMware | Virtual USB CCID | | 0x0E0F | 0x0004 | 0 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 4.800 MHz | 9600 bps | 9600 bps | 254 | 0x00000000 | 0x00000000 | 0x0002004E | 512 bytes | 0xFF | 0xFF | 0x0000 | 0x03 | 1 | PIN Verification, PIN Modification | No extended APDU | 1.3.9 | |
| 578 | 0x00 | shouldwork | Validy | TokenA sl vt |  | 0x1CF0 | 0x0001 | 0 | 2 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0003 | 3.580 MHz | 3.580 MHz | 9600 bps | 9600 bps | 254 | 0x00000000 | 0x00000000 | 0x00040042 | 1024 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.3.6 | |||
| 579 | 0x00 | shouldwork | VASCO | DIGIPASS 870 |  | 0x1A44 | 0x0870 | CCID | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 344086 bps | 254 | 0x00000000 | 0x00000000 | 0x000404B2 | 271 bytes | 0x00 | 0x00 | 0x0511 | 0x03 | 1 | PIN Verification, PIN Modification | 1.4.15 | ||
| 580 | 0x00 | shouldwork | VASCO | DIGIPASS 875 |  | 0x1A44 | 0x0875 | CCID | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x03 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 344086 bps | 254 | 0x00000000 | 0x00000000 | 0x000404B2 | 271 bytes | 0x00 | 0x00 | 0x0511 | 0x03 | 1 | PIN Verification, PIN Modification | 1.4.21 | ||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 581 | 0x00 | shouldwork | VASCO | DIGIPASS KEY 202 | | 0x1A44 | 0x0120 | ? | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x02 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 344086 bps | 254 | 0x00000000 | 0x00000000 | 0x000404B2 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.4.6 | |||
| 582 | 0x00 | shouldwork | VASCO | DIGIPASS KEY 202 | | 0x1A44 | 0x0122 | ? | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x02 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 344086 bps | 254 | 0x00000000 | 0x00000000 | 0x000404B2 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.4.6 | |||
| 583 | 0x00 | shouldwork | VASCO | DIGIPASS KEY 200 |  | 0x1A44 | 0x0119 | ? | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x02 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 344086 bps | 254 | 0x00000000 | 0x00000000 | 0x000404B2 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.4.2 | |||
| 584 | 0x00 | shouldwork | VASCO | DP855 |  | 0x1A44 | 0x0855 | 3 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 344086 bps | 254 | 0x00000000 | 0x00000000 | 0x000404B2 | 271 bytes | 0x00 | 0x00 | 0x020C | 0x03 | 1 | PIN Verification, PIN Modification | 1.3.12 | ||
| 585 | 0x00 | shouldwork | VASCO | DIGIPASS KEY 860 |  | 0x1A44 | 0x0117 | ? | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x02 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 344086 bps | 254 | 0x00000000 | 0x00000000 | 0x000404B2 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.4.2 | |||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 586 | 0x00 | shouldwork | VASCO | DP865 |  | 0x1A44 | 0x0865 | 3 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x03 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 344086 bps | 254 | 0x00000000 | 0x00000000 | 0x000404B2 | 271 bytes | 0x00 | 0x00 | 0x0818 | 0x03 | 1 | PIN Verification, PIN Modification | 1.3.12 | ||
| 587 | 0x00 | shouldwork | VASCO | DP905v1.1 |  | 0x1A44 | 0x0001 | ? | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x03 | 0x0000 0x0003 | 3.700 MHz | 3.700 MHz | 9946 bps | 318280 bps | 254 | 0x00000007 | 0x00000000 | 0x000404BE | 272 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.3.6 | |||
| 588 | 0x00 | shouldwork | VASCO | DIGIPASS KEY 101 |  | 0x1A44 | 0x0101 | ? | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x03 | 0x0000 0x0003 | 3.700 MHz | 3.700 MHz | 9946 bps | 318280 bps | 254 | 0x00000007 | 0x00000000 | 0x000404BE | 272 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.6 | |||
| 589 | 0x00 | shouldwork | VASCO | DIGIPASS KEY 200 |  | 0x1A44 | 0x0115 | 0 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x02 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 344086 bps | 254 | 0x00000000 | 0x00000000 | 0x000404B2 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x03 | 1 | PIN Verification, PIN Modification | 1.3.12 | ||
| 590 | 0x00 | shouldwork | VASCO | DIGIPASS KEY 860 |  | 0x1A44 | 0x0112 | 0 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x02 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 344086 bps | 254 | 0x00000000 | 0x00000000 | 0x000404B2 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x03 | 1 | PIN Verification, PIN Modification | 1.3.12 | ||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 591 | 0x00 | shouldwork | VASCO | DIGIPASS 920 |  | 0x1A44 | 0x0920 | CCID | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x03 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 344086 bps | 254 | 0x00000000 | 0x00000000 | 0x000404B2 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x03 | 1 | PIN Verification, PIN Modification | 1.4.3 | ||
| 592 | 0x00 | shouldwork | COVADIS | VEGA-ALPHA |  | 0x0982 | 0x0008 | 0 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 500000 bps | 254 | 0x00000000 | 0x00000000 | 0x00010230 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x03 | 1 | PIN Verification, PIN Modification | 1.3.6 | ||
| 593 | 0x00 | shouldwork | WatchCNPC | USB CCID Key |  | 0x163C | 0x0406 | NO NAME | 2 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0001 | 3.580 MHz | 3.580 MHz | 9600 bps | 9600 bps | 0 | 0x00000000 | 0x00000000 | 0x00010030 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.21 | |||
| 594 | 0x00 | shouldwork | Watchdata | USB Key | | 0x163C | 0x0407 | USB CCID Key | 2 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0001 | 3.580 MHz | 3.580 MHz | 9600 bps | 9600 bps | 0 | 0x00000000 | 0x00000000 | 0x00010030 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.19 | |||
| 595 | 0x00 | shouldwork | Watchdata | USB Key | | 0x163C | 0x0417 | WDIND USB CCID Key | 2 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0001 | 3.580 MHz | 14.320 MHz | 9600 bps | 115200 bps | 254 | 0x00000000 | 0x00000000 | 0x00010030 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.4.28 | |||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 596 | 0x00 | shouldwork | Watchdata | USB Key | | 0x163C | 0x0418 | WDIND USB CCID Key | 2 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0001 | 3.580 MHz | 14.320 MHz | 9600 bps | 115200 bps | 254 | 0x00000000 | 0x00000000 | 0x00010030 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.4.29 | |||
| 597 | 0x00 | shouldwork | Watchdata W5181 | Watchdata W5181 |  | 0x163C | 0x0A03 | Contact Reader | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 8.000 MHz | 10752 bps | 412903 bps | 254 | 0x00000007 | 0x00000000 | 0x000207B2 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless, interface 0: Contact Reader, Multi interface reader | No extended APDU | The contactless interface is not supported | 1.4.16 |
| 598 | 0x00 | shouldwork | Watchdata W5181 | Watchdata W5181 | | 0x163C | 0x0A03 | Contactless Reader | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0002 | 4.000 MHz | 4.000 MHz | 10752 bps | 250000 bps | 256 | 0x00000000 | 0x00000000 | 0x00020040 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless, interface 1: Contactless Reader, Multi interface reader | No extended APDU | The contactless interface is not supported | 1.4.16 |
| 599 | 0x00 | shouldwork | Watchdata W5181 | Watchdata W5181 | | 0x163C | 0x0A03 | SAM Reader | 2 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0003 | 3.580 MHz | 14.320 MHz | 9600 bps | 2703401 bps | 252 | 0x00000000 | 0x00000000 | 0x000100BA | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless, interface 2: SAM Reader, Multi interface reader | The contactless interface is not supported | 1.4.16 | |
| 600 | 0x00 | shouldwork | WCMi | SD5931 |  | 0x34EB | 0x1506 | PCSC QR Code Reader | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 13.560 MHz | 106000 bps | 424000 bps | 512 | 0x00000000 | 0x00000001 | 0x000404BE | 528 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.5.3 | |||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 601 | 0x00 | shouldwork | Winbond | CCID SmartCard Controller | | 0x0416 | 0x3815 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x01 | 0x0000 0x0003 | 3.000 MHz | 3.000 MHz | 8065 bps | 32258 bps | 123 | 0x00000000 | 0x00000000 | 0x000004B2 | 138 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.0.1 | |||
| 602 | 0x00 | shouldwork | XIRING | XI-SIGN USB V2 | | 0x0F14 | 0x0011 | 0 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 3.600 MHz | 3.600 MHz | 9600 bps | 115200 bps | 254 | 0x00000000 | 0x00000000 | 0x000204BA | 271 bytes | 0xFF | 0xFF | 0x020C | 0x00 | 1 | No extended APDU | 1.3.9 | ||
| 603 | 0x00 | shouldwork | Yubico | YubiKey CCID |  | 0x1050 | 0x0404 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0002 | 4.000 MHz | 4.000 MHz | 307200 bps | 307200 bps | 3062 | 0x00000000 | 0x00000000 | 0x000400FE | 3072 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.20 | |||
| 604 | 0x00 | shouldwork | Yubico | YubiKey OTP+CCID | | 0x1050 | 0x0405 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0002 | 4.000 MHz | 4.000 MHz | 307200 bps | 307200 bps | 3062 | 0x00000000 | 0x00000000 | 0x000400FE | 3072 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.20 | |||
| 605 | 0x00 | shouldwork | Yubico | YubiKey OTP+FIDO+CCID | | 0x1050 | 0x0407 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0002 | 4.000 MHz | 4.000 MHz | 307200 bps | 307200 bps | 3062 | 0x00000000 | 0x00000000 | 0x000400FE | 3072 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.20 | |||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 606 | 0x00 | shouldwork | Yubico | YubiKey FIDO+CCID | | 0x1050 | 0x0406 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0002 | 4.000 MHz | 4.000 MHz | 307200 bps | 307200 bps | 3062 | 0x00000000 | 0x00000000 | 0x000400FE | 3072 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.20 | |||
| 607 | 0x00 | shouldwork | Yubico | Yubikey NEO OTP+U2F+CCID |  | 0x1050 | 0x0116 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0002 | 4.000 MHz | 4.000 MHz | 307200 bps | 307200 bps | 1400 | 0x00000000 | 0x00000000 | 0x000400FE | 1400 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.18 | |||
| 608 | 0x00 | shouldwork | Yubico | Yubikey NEO U2F+CCID | | 0x1050 | 0x0115 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0002 | 4.000 MHz | 4.000 MHz | 307200 bps | 307200 bps | 1400 | 0x00000000 | 0x00000000 | 0x000400FE | 1400 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.18 | |||
| 609 | 0x00 | shouldwork | Yubico | Yubikey NEO CCID | | 0x1050 | 0x0112 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0002 | 4.000 MHz | 4.000 MHz | 9600 bps | 9600 bps | 1400 | 0x00000000 | 0x00000000 | 0x000400FE | 1400 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.10 | |||
| 610 | 0x00 | shouldwork | Yubico | Yubikey NEO OTP+CCID | | 0x1050 | 0x0111 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0002 | 4.000 MHz | 4.000 MHz | 9600 bps | 307200 bps | 1400 | 0x00000000 | 0x00000000 | 0x000400FE | 1400 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.10 | |||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 611 | 0x00 | shouldwork | appidkey GmbH | ID100L-USB-SC-Reader |  | 0x2406 | 0x5004 | CCID Bulk Interface | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 4.800 MHz | 12902 bps | 412903 bps | 254 | 0x00000000 | 0x00000000 | 0x00010230 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.4.25 | |||
| 612 | 0x00 | shouldwork | appidkey GmbH | ID50 -USB |  | 0x2406 | 0x5003 | CCID Bulk Interface | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 4.800 MHz | 12902 bps | 412903 bps | 254 | 0x00000000 | 0x00000000 | 0x00010230 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.4.25 | |||
| 613 | 0x00 | shouldwork | appidkey GmbH | ID60-USB | | 0x2406 | 0x5006 | CCID Bulk Interface | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 4.800 MHz | 12902 bps | 412903 bps | 254 | 0x00000000 | 0x00000000 | 0x00010230 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.4.26 | |||
| 614 | 0x00 | shouldwork | authenton | #1- CTAP2.1 | | 0x3606 | 0x5A11 | authenton#1- CTAP2.1 | 2 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0002 | 3.580 MHz | 3.580 MHz | 9600 bps | 9600 bps | 254 | 0x00000000 | 0x00000000 | 0x00010622 | 64 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.6.0 | |||
| 615 | 0x00 | shouldwork | Bit4id | TokenME EVO v2 |  | 0x25DD | 0x2371 | bit4CCID | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x02 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 129032 bps | 247 | 0x00000000 | 0x00000000 | 0x00010030 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.31 | |||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 616 | 0x00 | shouldwork | Bit4id | cryptokey |  | 0x25DD | 0x1201 | bit4CCID | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x02 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 250000 bps | 247 | 0x00000000 | 0x00000000 | 0x000100B6 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.7 | |||
| 617 | 0x00 | shouldwork | Bit4id | iAM |  | 0x25DD | 0x2221 | bit4CCID | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x02 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 250000 bps | 247 | 0x00000000 | 0x00000000 | 0x000100B6 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.7 | |||
| 618 | 0x00 | shouldwork | Bit4id | CKey4 |  | 0x25DD | 0x2321 | bit4CCID | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x02 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 250000 bps | 247 | 0x00000000 | 0x00000000 | 0x000100B6 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.7 | |||
| 619 | 0x00 | shouldwork | Bit4id | miniLector AIR EVO | | 0x25DD | 0x3211 | CCID mLectorAir | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0002 | 4.000 MHz | 4.000 MHz | 10752 bps | 250000 bps | 254 | 0x00000000 | 0x00000000 | 0x00010040 | 250 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless | NFC | 1.4.31 | |
| 620 | 0x00 | shouldwork | Bit4id | miniLector Blue |  | 0x25DD | 0xB001 | miniLector Blue ICC Reader | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 4.800 MHz | 12903 bps | 600000 bps | 254 | 0x00000000 | 0x00000000 | 0x000404BA | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | Bluetooth | 1.4.31 | ||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 621 | 0x00 | shouldwork | Bit4id | miniLector-s |  | 0x25DD | 0x1101 | bit4CCID | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x02 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 129032 bps | 247 | 0x00000000 | 0x00000000 | 0x00010030 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 1.4.7 | |||
| 622 | 0x00 | shouldwork | bit4id | miniLector-EVO |  | 0x25DD | 0x3111 | miniLector-EVO | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x02 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 250000 bps | 247 | 0x00000000 | 0x00000000 | 0x000100B6 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x03 | 1 | PIN Verification, PIN Modification | The firmware announces pinpad support but it is a wrong and bogus. You need to use libccid version 1.4.35 or later to "fix" that. | 1.4.7 | |
| 623 | 0x00 | shouldwork | BIT4ID | mLector AIR DI V3 |  | 0x25DD | 0x3503 | miniLector AIR DI v3 CLESS | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x01 | 0x0000 0x0002 | 4.000 MHz | 4.000 MHz | 10752 bps | 688172 bps | 252 | 0x00000007 | 0x00000000 | 0x000404BE | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless, interface 0: miniLector AIR DI v3 CLESS, Multi interface reader | 1.4.34 | ||
| 624 | 0x00 | shouldwork | BIT4ID | mLector AIR DI V3 | | 0x25DD | 0x3503 | miniLector AIR DI v3 Contact | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 688172 bps | 252 | 0x00000007 | 0x00000000 | 0x000102B8 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless, interface 1: miniLector AIR DI v3 Contact, Multi interface reader | 1.4.34 | ||
| 625 | 0x00 | shouldwork | BIT4ID | mLector AIR DI V3 | | 0x25DD | 0x3503 | miniLector AIR DI v3 SAM1 | 2 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 688172 bps | 252 | 0x00000007 | 0x00000000 | 0x000102B8 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless, interface 2: miniLector AIR DI v3 SAM1, Multi interface reader | 1.4.34 | ||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 626 | 0x00 | shouldwork | BIT4ID | mLector AIR DI V3 | | 0x25DD | 0x3503 | miniLector AIR DI v3 SAM2 | 2 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 688172 bps | 252 | 0x00000007 | 0x00000000 | 0x000102B8 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless, interface 3: miniLector AIR DI v3 SAM2, Multi interface reader | 1.4.34 | ||
| 627 | 0x00 | shouldwork | SchlumbergerSema | SchlumbergerSema Cyberflex Access | | 0x0973 | 0x0003 | 0 | 0 | 0xFF | 1.10 | 0x01 | 0x0000 0x0001 | 3.580 MHz | 3.580 MHz | 9600 bps | 9600 bps | 0 | 0x00000000 | 0x00000000 | 0x00000840 | 256 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | ICCD | 1.3.0 | ||
| 628 | 0x00 | shouldwork | eID_R6 001 | X8 |  | 0x257B | 0xD205 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 4.800 MHz | 12903 bps | 412903 bps | 254 | 0x00000000 | 0x00000000 | 0x000200B2 | 522 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | No extended APDU | 1.4.18 | ||
| 629 | 0x00 | shouldwork | Generic | USB2.0-CRW |  | 0x0BDA | 0x0169 | Smart Card Reader Interface | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 3.750 MHz | 7.500 MHz | 10080 bps | 312500 bps | 254 | 0x00000000 | 0x00000000 | 0x00010030 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 1.3.10 | |||
| 630 | 0x00 | shouldwork | id3 Semiconductors | CL1356A_HID |  | 0x0B81 | 0x0220 | 0 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x01 | 0x0000 0x0002 | 4.000 MHz | 4.000 MHz | 106000 bps | 847000 bps | 254 | 0x00000000 | 0x00000000 | 0x00040042 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless | 1.3.7 | ||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 631 | 0x00 | shouldwork | id3 Semiconductors | CL1356T5 |  | 0x0B81 | 0x0200 | ? | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0002 | 4.000 MHz | 4.000 MHz | 106000 bps | 847000 bps | 254 | 0x00000000 | 0x00000000 | 0x00040042 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless | 1.3.12 | ||
| 632 | 0x00 | shouldwork | mCore | SCard-Reader |  | 0x1403 | 0x7502 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 10752 bps | 254 | 0x00000000 | 0x00000000 | 0x000207BA | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | No extended APDU | 1.4.28 | ||
| 633 | 0x00 | shouldwork | rf IDEAS | USB CCID |  | 0x0C27 | 0xCCDA | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 4.800 MHz | 12903 bps | 106000 bps | 254 | 0x00000000 | 0x00000000 | 0x000204BE | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless | No extended APDU | 1.5.5 | |
| 634 | 0x00 | shouldwork | Imprivata | USB CCID | | 0x0C27 | 0xCCDB | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 4.800 MHz | 12903 bps | 106000 bps | 254 | 0x00000000 | 0x00000000 | 0x000204BE | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless | No extended APDU | 1.5.5 | |
| 635 | 0x00 | shouldwork | udea | MILKO V1. |  | 0x2A17 | 0x0001 | MILKO V1. | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x02 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 250000 bps | 254 | 0x00000000 | 0x00000000 | 0x000200B6 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x03 | 1 | PIN Verification, PIN Modification | No extended APDU | 1.4.17 | |
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 636 | 0x00 | unsupported | ACS | ACR122U PICC Interface |  | 0x072F | 0x2200 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0002 | 4.000 MHz | 4.000 MHz | 10752 bps | 250000 bps | 256 | 0x00000000 | 0x00000000 | 0x00020040 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless | No extended APDU | Time extension requests are not supported. Firmwares version < 2.06 are bogus: APDU with 0x7B (123) bytes expected do not work with a 14443 card. The reader returns SW=63 00 instead. See <a href="http://www.average.org/pcsclite-ACR122U/">Patch for pcsclite for the ACR122U NFC reader</a> for a workaround to be used with my CCID driver The firmware 2.14 may report bStatus = 0x00 indicating No Error but with bError = 0xFE indicating ICC_MUTE, CCID timed out while talking to the ICC. See <a href="https://github.com/LudovicRousseau/pyscard/issues/18">empty response -> crash on empty sw1</a> | 1.3.9 |
| 637 | 0x00 | unsupported | ATMEL | VaultIC460 | | 0x03EB | 0x6016 | 4 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0001 | 3.580 MHz | 3.580 MHz | 9600 bps | 9600 bps | 0 | 0x00000000 | 0x00000000 | 0x00020840 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | ICCD | No extended APDU | The reader does not send time extension requests. The driver times out after DEFAULT_COM_READ_TIMEOUT (3 seconds by default). | 1.3.12 |
| 638 | 0x00 | unsupported | Alcor Micro | AU9540 | | 0x058F | 0x9540 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 3.700 MHz | 3.700 MHz | 9946 bps | 318280 bps | 254 | 0x00000007 | 0x00000000 | 0x000404BE | 272 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | the reader (or the BIOS?) decides to power off the card without intervention of the CCID driver <a href="https://bugs.launchpad.net/ubuntu/+source/pcsc-lite/+bug/1307109"> Alcor Micro AU9540 keeps powering down when card is present</a> | 1.4.5 | ||
| 639 | 0x00 | unsupported | ActivCard | ActivCard USB Reader V2 |  | 0x09C3 | 0x0008 | 4 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x01 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 9600 bps | 115200 bps | 252 | 0x00000000 | 0x00000000 | 0x000100BA | 263 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | The reader do timeout when a special USB frame is sent from the reader. If the frame size if a multiple of wMaxPacketSize the communication is stopped. Some users report that this reader is in fact a SCR-331 with a different firmware and that you can upgrade its firmware to transform it into a (supported) SCR-331 reader. | 1.0.0 | ||
| 640 | 0x00 | unsupported | Aladdin | eToken PRO USB 72K Java |  | 0x0529 | 0x0620 | Main Interface | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 10752 bps | 49 | 0x00000000 | 0x00000000 | 0x0001023C | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | The token does not work after a warm reset. See http://www.opensc-project.org/pipermail/opensc-devel/2009-April/012128.html | 1.3.9 | ||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 641 | 0x00 | unsupported | Alcor Micro | AU9560 | | 0x058F | 0x9540 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 3.700 MHz | 12.000 MHz | 9946 bps | 688172 bps | 254 | 0x00000007 | 0x00000000 | 0x000404BE | 272 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | Communication to the reader sometimes fails with LIBUSB_ERROR_TIMEOUT. Some smart cards require a different reader firmware. This reader is integrated in some HP laptops (ZBook, EliteBook, etc.) or Lenovo laptops (P15 Gen1, etc.). | 1.4.23 | ||
| 642 | 0x00 | unsupported | Athena | IDProtect Flash |  | 0x0DC3 | 0x100F | IDProtect Flash | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x02 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 344086 bps | 252 | 0x00000007 | 0x00000000 | 0x00010330 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | The reader does not work with a GnuPG card V2 card. All APDUs are rejected with "Card absent or mute". | 1.4.28 | ||
| 643 | 0x00 | unsupported | BHDC | Reader-HHD02 | | 0x155B | 0x8202 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 4.800 MHz | 12903 bps | 412903 bps | 522 | 0x00000000 | 0x00000000 | 0x000200B2 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | No extended APDU | Card events (insertion/removal) are not reported. | GIT | |
| 644 | 0x00 | unsupported | Broadcom Corp | 58200 | | 0x0A5C | 0x5844 | Contactless SmartCard | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.01 | 0x01 | 0x0000 0x0003 | 3.580 MHz | 3.580 MHz | 9600 bps | 9600 bps | 254 | 0x00000000 | 0x00000000 | 0x000204BA | 512 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless | No extended APDU | The contactless interface is not supported | 1.4.31 |
| 645 | 0x00 | unsupported | Broadcom Corp | 58200 | | 0x0A5C | 0x5845 | Contactless SmartCard | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.01 | 0x01 | 0x0000 0x0003 | 3.580 MHz | 3.580 MHz | 9600 bps | 9600 bps | 254 | 0x00000000 | 0x00000000 | 0x000204BA | 512 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless | No extended APDU | The contactless interface is not supported | 1.4.31 |
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 646 | 0x00 | unsupported | Broadcom Corp | 58200 | | 0x0A5C | 0x5866 | Contactless SmartCard | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.01 | 0x01 | 0x0000 0x0003 | 3.580 MHz | 3.580 MHz | 9600 bps | 9600 bps | 528 | 0x00000000 | 0x00000000 | 0x000404BA | 528 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless | The contactless interface is not supported | 1.5.5 | |
| 647 | 0x00 | unsupported | Broadcom Corp | 58200 | | 0x0A5C | 0x5867 | Contactless SmartCard | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.01 | 0x01 | 0x0000 0x0003 | 3.580 MHz | 3.580 MHz | 9600 bps | 9600 bps | 528 | 0x00000000 | 0x00000000 | 0x000404BA | 528 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless | The contactless interface is not supported | 1.5.5 | |
| 648 | 0x00 | unsupported | Broadcom Corp | 5880 | | 0x0A5C | 0x5800 | Contacted SmartCard | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 9600 bps | 250000 bps | 247 | 0x00000000 | 0x00000000 | 0x000102BA | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | Found in Dell E6500 laptop Try to Update the reader firmware. The previous firmware generated the following errors: No communication to the device ("Resource temporarily unavailable" error) The reader reports "Hardware error" to GetSlotStatus when no card is present. Frames bigger than 64 bytes (wMaxPacketSize) fails on the contact reader with: 00000002 commands.c:1740:CmdXfrBlockTPDU_T0() T=0: 5 bytes 00000003 -> 000000 6F 05 00 00 00 00 17 00 00 00 00 C0 00 00 BA 00014454 <- 000000 80 BC 00 00 00 00 17 00 00 00 A0 00 00 00 79 03 02 40 70 50 72 47 67 00 ED CB C7 00 ED CB C7 21 21 A0 00 00 00 79 01 02 00 01 00 00 00 00 00 00 00 A0 00 00 00 79 01 02 01 01 00 00 00 00 00 00 00000013 commands.c:1551:CCID_Receive() Can't read all data (54 out of 188 expected) See <a href="https://bugs.launchpad.net/ubuntu/+source/pcsc-lite/+bug/1596662">pcscd fails to read CAC card data, errors out</a> | 1.3.9 | ||
| 649 | 0x00 | unsupported | Broadcom Corp | 5880 | | 0x0A5C | 0x5805 | Contacted SmartCard | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 9600 bps | 250000 bps | 247 | 0x00000000 | 0x00000000 | 0x000102BA | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless, interface 0: Contacted SmartCard, Multi interface reader | Frames bigger than 64 bytes (wMaxPacketSize) fails on the contact reader with: 00000006 commands.c:1740:CmdXfrBlockTPDU_T0() T=0: 5 bytes 00000011 -> 000000 6F 05 00 00 00 00 5A 00 00 00 80 34 01 00 00 00345316 <- 000000 80 02 01 00 00 00 5A 00 00 00 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F 10 11 12 13 14 15 16 17 18 19 1A 1B 1C 1D 1E 1F 20 21 22 23 24 25 26 27 28 29 2A 2B 2C 2D 2E 2F 30 31 32 33 34 35 00000095 commands.c:1551:CCID_Receive() Can't read all data (54 out of 258 expected) The reader _MAY_ work with a T=1 card since it is in TPDU. | 1.4.25 | |
| 650 | 0x00 | unsupported | Broadcom Corp | 5880 | | 0x0A5C | 0x5805 | Contactless SmartCard | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.01 | 0x01 | 0x0000 0x0003 | 3.580 MHz | 3.580 MHz | 9600 bps | 9600 bps | 254 | 0x00000000 | 0x00000000 | 0x000204BA | 512 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless, interface 1: Contactless SmartCard, Multi interface reader | No extended APDU | Frames bigger than 64 bytes (wMaxPacketSize) fails on the contact reader with: 00000006 commands.c:1740:CmdXfrBlockTPDU_T0() T=0: 5 bytes 00000011 -> 000000 6F 05 00 00 00 00 5A 00 00 00 80 34 01 00 00 00345316 <- 000000 80 02 01 00 00 00 5A 00 00 00 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F 10 11 12 13 14 15 16 17 18 19 1A 1B 1C 1D 1E 1F 20 21 22 23 24 25 26 27 28 29 2A 2B 2C 2D 2E 2F 30 31 32 33 34 35 00000095 commands.c:1551:CCID_Receive() Can't read all data (54 out of 258 expected) The reader _MAY_ work with a T=1 card since it is in TPDU. | 1.4.25 |
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 651 | 0x00 | unsupported | Broadcom Corp | 5880 | | 0x0A5C | 0x5801 | Contacted SmartCard | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 9600 bps | 250000 bps | 247 | 0x00000000 | 0x00000000 | 0x000102BA | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless, interface 0: Contacted SmartCard, Multi interface reader | Found in Dell E6400 laptop The reader reports "Hardware error" to GetSlotStatus when no card is present. <a href="http://ridrix.wordpress.com/2009/10/13/how-to-enable-pcsc-support-for-dell-contactless-reader/">How to enable PC/SC support for Dell Contactless Reader</a> | 1.3.12 | |
| 652 | 0x00 | unsupported | Broadcom Corp | 5880 | | 0x0A5C | 0x5801 | Contactless SmartCard | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.01 | 0x01 | 0x0000 0x0003 | 3.580 MHz | 3.580 MHz | 9600 bps | 9600 bps | 254 | 0x00000000 | 0x00000000 | 0x000204BA | 512 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless, interface 1: Contactless SmartCard, Multi interface reader | No extended APDU | Found in Dell E6400 laptop The reader reports "Hardware error" to GetSlotStatus when no card is present. <a href="http://ridrix.wordpress.com/2009/10/13/how-to-enable-pcsc-support-for-dell-contactless-reader/">How to enable PC/SC support for Dell Contactless Reader</a> | 1.3.12 |
| 653 | 0x00 | unsupported | Generic | Smart Card Reader Interface |  | 0x0BDA | 0x0165 | Smart Card Reader Interface | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 3.750 MHz | 7.500 MHz | 10080 bps | 312500 bps | 254 | 0x00000000 | 0x00000000 | 0x00010030 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | Also known as Dectel CI692 or NEXOOS 610. The reader may not read all the smart card. See https://lists.infradead.org/pipermail/pcsclite-muscle/2015-October/000471.html | 1.4.0 | ||
| 654 | 0x00 | unsupported | Feitian | SCR301 | | 0x096E | 0x0503 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 12.000 MHz | 10752 bps | 500000 bps | 252 | 0x00000000 | 0x00000000 | 0x00010238 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | The reader fails with a CASE 2 APDU with Le=0 (256 bytes) Sent: 80 34 01 00 00 ifdhandler.c:1219:IFDHTransmitToICC() no name (lun: 0) commands.c:1542:CmdXfrBlockTPDU_T0() T=0: 5 bytes -> 000000 6F 05 00 00 00 00 07 00 00 00 80 34 01 00 00 <- 000000 80 00 00 00 00 00 07 40 FE 00 commands.c:1316:CCID_Receive Card absent or mute And time extension requests are not forwarded back to the host. A new version of the reader is available and may fix this issue. | 1.3.11 | ||
| 655 | 0x00 | unsupported | Hewlett-Packard Company | HP USB Smart Card Keyboard |  | 0x03F0 | 0x1024 | 4 | 2 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x01 | 0x0000 0x0003 | 4.000 MHz | 8.000 MHz | 10753 bps | 344105 bps | 252 | 0x00000000 | 0x00000000 | 0x000100BA | 263 bytes | 0xFF | 0xFF | 0x0000 | 0x03 | 1 | PIN Verification, PIN Modification | SECURITY ALERT: Martin P. reported that on Mac OS X the pinpad feature does not work correctly and the PIN code is sent to the host (instead of being kept secret by the pinpad). SPE disabled in version 1.4.3 of the driver. | 1.1.0 | |
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 656 | 0x00 | unsupported | Hewlett-Packard Company | HP USB CCID Smartcard Keyboard | | 0x03F0 | 0x0036 | HP USB CCID Keyboard Smartcard Reader | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x03 | 0x0000 0x0003 | 4.800 MHz | 8.000 MHz | 12903 bps | 307200 bps | 252 | 0x00000000 | 0x00000001 | 0x000100BA | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x03 | 1 | PIN Verification, PIN Modification | WARNING: Secure Pin Entry feature is bogus and has been disabled in version 1.4.6 of driver. firmware < 1.24 is bogus. SetParameters fails with a card of ATR 3B 16 96 41 73 74 72 69 64. The smart card reader part is from SCM. | 1.4.1 | |
| 657 | 0x00 | unsupported | KEBTechnology | KONA USB SmartCard | | 0x04CC | 0x5072 | 0 | 1 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0001 | 3.580 MHz | 3.580 MHz | 9600 bps | 9600 bps | 254 | 0x00000000 | 0x00000000 | 0x00000840 | 261 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | ICCD | The tokend fails to send the first APDU. Maybe the support of Character level is bogus in the CCID driver. | 1.3.6 | |
| 658 | 0x00 | unsupported | C3PO | LTC3x USB |  | 0x0783 | 0x0003 | 0 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x01 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 10752 bps | 254 | 0x00000000 | 0x00000000 | 0x00010002 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | The reader works fine with Linux kernel 2.4 but does not with Linux kernel 2.6. The ioctl() syscall returns EINVAL (Invalid argument). This reader is not more sold and replaced by the LTC31v2 model. | 0.1.0 | ||
| 659 | 0x00 | unsupported | O2 | Micro Oz776 | | 0x0B97 | 0x7762 | 0 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x03 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 9600 bps | 307200 bps | 254 | 0x00000000 | 0x00000000 | 0x00000030 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | This reader is common as an internal reader in laptops like the Dell D420 or D820. The ATR may be corrupted by a 90 00 at the end The reader is bogus and does not accept PPS | 0.9.3 | ||
| 660 | 0x00 | unsupported | O2 | Micro Oz776 | | 0x0B97 | 0x7772 | 0 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 9600 bps | 307200 bps | 254 | 0x00000000 | 0x00000000 | 0x00000030 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | This reader is common as an internal reader in laptops. The reader is bogus and does not accept PPS See also <a href="https://github.com/LudovicRousseau/CCID/pull/18">further issues with O2MICRO OZ776 (0b97:7772)</a> for a T=1 patch that may work for you | 1.3.1 | ||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 661 | 0x00 | unsupported | Precise Biometrics | Precise 200 MC |  | 0x08C3 | 0x0402 | ? | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x03 | 0x0000 0x0003 | 4.000 MHz | 7.500 MHz | 10753 bps | 241936 bps | 254 | 0x00000000 | 0x00000000 | 0x000404BA | 65550 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | biometric | Must be firmware version 50.00 or above: time extension requests are not sent back to the host in earlier versions of the firmware. The reader can't talk to card with TA1=96. See http://archives.neohapsis.com/archives/dev/muscle/2010-q3/0197.html | 1.3.10 | |
| 662 | 0x00 | unsupported | Precise Biometrics | Precise 250 MC |  | 0x08C3 | 0x0401 | ? | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x03 | 0x0000 0x0003 | 4.000 MHz | 7.500 MHz | 10753 bps | 241936 bps | 254 | 0x00000000 | 0x00000000 | 0x000404BA | 65550 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | biometric | Must be firmware version 50.00 or above: time extension requests are not sent back to the host in earlier versions of the firmware. The reader can't talk to card with TA1=96. See http://archives.neohapsis.com/archives/dev/muscle/2010-q3/0197.html | 1.3.6 | |
| 663 | 0x00 | unsupported | VMware | Virtual USB CCID | | 0x0E0F | 0x0004 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 4.800 MHz | 9600 bps | 9600 bps | 254 | 0x00000000 | 0x00000000 | 0x000200BE | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x03 | 1 | PIN Verification, PIN Modification | No extended APDU | The dwFeatures looks to be incorrect. IFSD negoctiation by the driver is rejected. After a change to add CCID_CLASS_AUTO_IFSD then PC_to_RDR_GetSlotStatus fails with LIBUSB_ERROR_TIMEOUT. This reader is found in VMware workstation player 12 64 bit on Windows 7. | 1.4.23 |
| 664 | 0x00 | unsupported | THRC | Smart Card Reader | | 0x062D | 0x0001 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x03 | 0x0000 0x0003 | 3.700 MHz | 3.700 MHz | 9946 bps | 318280 bps | 254 | 0x00000007 | 0x00000000 | 0x000204BE | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | No extended APDU | also known as ID-SMID01, SCT018 and maybe other commercial names With the old firmware, PPS fails with a Cryptoflex card Powerup fails with a Setcos card | 1.1.0 | |
| 665 | 0x00 | unsupported | KOBIL Systems | mIDentity M |  | 0x0D46 | 0x4000 | 0 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 250000 bps | 254 | 0x00000000 | 0x00000000 | 0x000206BA | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | No extended APDU | Time requests are not managed correctly and make the firmware fail. This is not a problem unless you use a time-consuming APDU like RSA key generation. A new firmware will correct the bug. | 0.9.3 | |
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 666 | 0x00 | unsupported | KOBIL Systems | mIDentity XL | | 0x0D46 | 0x4001 | 0 | 2 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 250000 bps | 254 | 0x00000000 | 0x00000000 | 0x000406BA | 512 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | Time requests are not managed correctly and make the firmware fail. This is not a problem unless you use a time-consuming APDU like RSA key generation. A new firmware will correct the bug. | 1.3.9 | ||
| 667 | 0x00 | unsupported | RSA | RSA SecurID (R) Authenticator |  | 0x15E1 | 0x2007 | MSD | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x02 | 0x0000 0x0001 | 4.000 MHz | 4.000 MHz | 10752 bps | 125000 bps | 254 | 0x00000000 | 0x00000000 | 0x000100BA | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | the new firmware (revision 6284) fails to respond to initial CmdGetSlotStatus() with "ccid_usb.c:687:ReadUSB() read failed (5/2): -8 Success" or with "<- 000000 81 FB FF FF FF" "commands.c:1046:CmdGetSlotStatus() Not enough data received: 5 bytes" | 0.9.4 | ||
| 668 | 0x00 | disabled | DUALi | DE-ABCM6 | | 0x1DB2 | 0x0600 | NO NAME | 3 | 0xFF | 1.10 | 0x03 | 0x0000 0x0003 | 3.600 MHz | 3.600 MHz | 9677 bps | 619354 bps | 254 | 0x00000000 | 0x00000000 | 0x000406BA | 1014 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | The first CmdGetSlotStatus() commands fail and init fail | 1.4.23 | ||
| 669 | 0x00 | disabled | HID OMNIKEY | 5021 CL |  | 0x076B | 0x5340 | NO NAME | 3 | 0xFF | 1.00 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 8.000 MHz | 10752 bps | 412903 bps | 254 | 0x00000007 | 0x00000000 | 0x000103B0 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless, interface 0: NO NAME, Multi interface reader | Contactless only reader and the contactless is not supported. It is NOT A CCID DEVICE. | 1.4.26 | |
| 670 | 0x00 | disabled | HID OMNIKEY | 5021 CL | | 0x076B | 0x5340 | NO NAME | 3 | 0xFF | 1.00 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 8.000 MHz | 10752 bps | 412903 bps | 254 | 0x00000007 | 0x00000000 | 0x000103B0 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless, interface 1: NO NAME, Multi interface reader | Contactless only reader and the contactless is not supported. It is NOT A CCID DEVICE. | 1.4.26 | |
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 671 | 0x00 | disabled | HID OMNIKEY | 5021 CL | | 0x076B | 0x5340 | NO NAME | 3 | 0xFF | 1.00 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 8.000 MHz | 10752 bps | 412903 bps | 254 | 0x00000007 | 0x00000000 | 0x000103B0 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless, interface 2: NO NAME, Multi interface reader | Contactless only reader and the contactless is not supported. It is NOT A CCID DEVICE. | 1.4.26 | |
| 672 | 0x00 | disabled | MX5 | MX5 SMART CCID DRIVER |  | 0x0980 | 0x902F | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x03 | 0x0000 0x0003 | 3.600 MHz | 3.600 MHz | 9677 bps | 116129 bps | 254 | 0x00000000 | 0x00000000 | 0x00010030 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | The reader is too slow to setup. The reader can't power up a card. | 1.4.8 | ||
| 673 | 0x00 | disabled | Morpho | ypsID Key E |  | 0x1A6F | 0x0104 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0001 | 3.580 MHz | 3.580 MHz | 9600 bps | 9600 bps | 0 | 0x00000000 | 0x00000000 | 0x00020840 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | ICCD | No extended APDU | This device is not a real CCID device. You can try the UNTESTED patch at <a href="http://ludovic.rousseau.free.fr/softwares/pcsc-lite/ccid-morpho-v7-2.patch">ccid-morpho-v7-2.patch</a>. See also <a href="https://blog.apdu.fr/posts/2017/02/mostly-ccid-driver-for-some-morpho/"> Mostly CCID driver for some Morpho devices </a> | 1.4.27 |
| 674 | 0x00 | disabled | OMNIKEY | 5321 CLi USB | | 0x076B | 0x532A | NO NAME | 3 | 0xFF | 1.00 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 8.000 MHz | 10752 bps | 412903 bps | 254 | 0x00000007 | 0x00000000 | 0x000207B2 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless | No extended APDU | bInterfaceClass: 0xFF: NOT A CCID DEVICE | 1.4.27 |
| 675 | 0x00 | disabled | OCS ID-One Cosmo Card | USB Smart Chip Device | | 0x1A74 | 0x6356 | 4 | 0 | 0xFF | 2.00 | 0x01 | 0x0000 0x0002 | 3.580 MHz | 3.580 MHz | 9600 bps | 9600 bps | 254 | 0x00000000 | 0x00000000 | 0x00020840 | 261 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | ICCD | No extended APDU | The reader responds with bResponseType not defined in ICCD v1.0 specification. See http://archives.neohapsis.com/archives/dev/muscle/2009-q4/0059.html | 1.3.12 |
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 676 | 0x00 | disabled | Precise Biometrics | Precise 200 MC Upgrade | | 0x08C3 | 0x0406 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x03 | 0x0000 0x0003 | 4.000 MHz | 7.500 MHz | 10753 bps | 241936 bps | 254 | 0x00000000 | 0x00000000 | 0x000200BA | 524288 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | No extended APDU | To the CCID command 0x65 PC_to_RDR_GetSlotStatus the reader returns a 0x80 RDR_to_PC_DataBlock instead of a 0x81 RDR_to_PC_SlotStatus and with bStatus=0x42 (error) and bError=0x00 (Command not supported) | 1.4.25 | |
| 677 | 0x00 | disabled | Reiner-SCT | cyberJack pinpad(a) |  | 0x0C4B | 0x0300 | 0 | 3 | 0xFF | 10.00 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 8.000 MHz | 10072 bps | 250000 bps | 254 | 0x00000007 | 0x00000000 | 0x00010030 | 270 bytes | 0xFF | 0xFF | 0x0000 | 0x03 | 1 | PIN Verification, PIN Modification | Time requests are not managed and the driver may time out without any response from the reader. This is not a problem unless you use a time-consuming APDU like RSA key generation. Reiner provides a free software driver for this reader: <a href="http://support.reiner-sct.de/">Reiner SCT support</a> | 1.3.1 | |
| 678 | 0x00 | disabled | REINER SCT | cyberJack RFID standard |  | 0x0C4B | 0x0500 | NO NAME | 3 | 0xFF | 10.00 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 8.000 MHz | 10072 bps | 250000 bps | 254 | 0x00000007 | 0x00000000 | 0x00010030 | 5130 bytes | 0xFF | 0xFF | 0x0000 | 0x03 | 1 | PIN Verification, PIN Modification | Not a CCID device. Support removed on request from Reiner SCT. | 1.4.28 | |
| 679 | 0x00 | disabled | SCM Microsystems Inc. | SCL010 Contactless Reader | | 0x04E6 | 0x5291 | 4 | 3 | 0xFF | 1.10 | 0x01 | 0x0000 0x0003 | 13.560 MHz | 13.560 MHz | 106000 bps | 848000 bps | 254 | 0x00000000 | 0x00000001 | 0x0001007E | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless | The contactless interface is not supported. A new firmware version 1.12 renders the reader usable. | 1.3.11 | |
| 680 | 0x00 | disabled | SCM Microsystems Inc. | SCL01x Contactless Reader | | 0x04E6 | 0x5292 | SCL01x Contactless Reader | 3 | 0xFF | 1.10 | 0x01 | 0x0000 0x0003 | 13.560 MHz | 13.560 MHz | 106000 bps | 848000 bps | 254 | 0x00000000 | 0x00000001 | 0x0001007E | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless | The contactless interface is not supported. | 1.3.12 | |
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 681 | 0x00 | disabled | SMART | SBV280 |  | 0x0B8C | 0x000E | CCID 1.1 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0001 | 3.580 MHz | 3.580 MHz | 9600 bps | 9600 bps | 0 | 0x00000000 | 0x00000000 | 0x00020840 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | ICCD | No extended APDU | Removed on manufacturer request. They use libusb directly in their own driver. | 1.3.12 |
| 682 | 0x00 | disabled | jNet Technology inc. | jToken s1 | | 0x0483 | 0x2010 | 0 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x01 | 0x0000 0x0001 | 3.580 MHz | 3.580 MHz | 9600 bps | 9600 bps | 0 | 0x00000000 | 0x00000000 | 0x00010840 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | ICCD | 1.3.9 | ||
| 683 | 0x01 | supported | Gemalto | GemCore SIM Pro Smart Card Reader |  | 0x08E6 | 0x3480 | 0 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 500000 bps | 254 | 0x00000000 | 0x00000000 | 0x00010230 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 2 slots | 1.0.0 | ||
| 684 | 0x01 | supported | SCM Microsystems Inc. | SCR 331-DI |  | 0x04E6 | 0x5111 | 4 | 3 | 0xFF | 1.00 | 0x01 | 0x0000 0x0003 | 4.000 MHz | 12.000 MHz | 10753 bps | 344105 bps | 252 | 0x00000000 | 0x00000000 | 0x000100BA | 263 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless, 2 slots | You have to upgrade the firmware using version 5.18 or later. The contactless interface is not supported. | 0.4.0 | |
| 685 | 0x01 | shouldwork | AF Care | One | | 0x1C34 | 0xAFC0 | CCID | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 200080 bps | 254 | 0x00000000 | 0x00000000 | 0x0004047E | 65554 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 0 | 2 slots | Card Vitale reader (1 slot), composite CCID+USB Direct | 1.4.32 | |
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 686 | 0x01 | shouldwork | AF Care | One | | 0x1C34 | 0xAFC1 | CCID | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 200080 bps | 254 | 0x00000000 | 0x00000000 | 0x0004047E | 65554 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 0 | 2 slots | Card Vitale reader (1 slot), CCID only | 1.4.32 | |
| 687 | 0x01 | shouldwork | AF Care | Two | | 0x1C34 | 0xAFC2 | CCID | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 200080 bps | 254 | 0x00000000 | 0x00000000 | 0x0004047E | 65554 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 2 slots | Card Vitale reader (2 slot), composite CCID+USB Direct | 1.4.32 | |
| 688 | 0x01 | shouldwork | AF Care | Two | | 0x1C34 | 0xAFC3 | CCID | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 200080 bps | 254 | 0x00000000 | 0x00000000 | 0x0004047E | 65554 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 2 slots | Card Vitale reader (2 slot), CCID only | 1.4.32 | |
| 689 | 0x01 | shouldwork | ATMEL | AT91SO CCID Smart Card Reader | | 0x03EB | 0x6004 | 0 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 3.580 MHz | 3.580 MHz | 9600 bps | 9600 bps | 256 | 0x00000000 | 0x00000000 | 0x0002005E | 271 bytes | 0xFF | 0xFF | 0x0210 | 0x00 | 1 | 2 slots | No extended APDU | 1.3.9 | |
| 690 | 0x01 | shouldwork | Alcor Micro | AU9522 |  | 0x058F | 0x9522 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x03 | 0x0000 0x0003 | 3.700 MHz | 3.700 MHz | 9946 bps | 318280 bps | 254 | 0x00000007 | 0x00000000 | 0x000204BE | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 2 slots | No extended APDU | Built in reader for the "Friio USB2.0 DTV Receiver" | 1.4.7 |
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 691 | 0x01 | shouldwork | Circle | CIR415 CL & 1S | | 0x31AA | 0x4000 | CIR415 CL & 1S | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 129032 bps | 254 | 0x00000000 | 0x00000000 | 0x000404BA | 522 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless, 2 slots | 1.4.35 | ||
| 692 | 0x01 | shouldwork | Circle | CIR615 CL | | 0x31AA | 0x6001 | CIR615 CL | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 129032 bps | 254 | 0x00000000 | 0x00000000 | 0x000404BA | 522 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless, 2 slots | 1.5.0 | ||
| 693 | 0x01 | shouldwork | Circle | CIR615 CL & 1S | | 0x31AA | 0x6000 | CIR615 CL & 1S | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 129032 bps | 254 | 0x00000000 | 0x00000000 | 0x000404BA | 522 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless, 2 slots | 1.5.0 | ||
| 694 | 0x01 | shouldwork | Doctolib | SR | | 0x1C34 | 0xAFD0 | CCID | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 200080 bps | 254 | 0x00000000 | 0x00000000 | 0x0004047E | 65554 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 0 | 2 slots | 1.4.32 | ||
| 695 | 0x01 | shouldwork | Doctolib | SR | | 0x1C34 | 0xAFD1 | CCID | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 200080 bps | 254 | 0x00000000 | 0x00000000 | 0x0004047E | 65554 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 0 | 2 slots | 1.4.32 | ||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 696 | 0x01 | shouldwork | Gemalto | Hybrid Smartcard Reader | | 0x08E6 | 0x5743 | ? | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x02 | 0x0000 0x0001 | 3.686 MHz | 3.686 MHz | 9910 bps | 9910 bps | 0 | 0x00000000 | 0x00000000 | 0x00010070 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 2 slots | 1.3.12 | ||
| 697 | 0x01 | shouldwork | SCM Microsystems Inc. | SDI011 Contactless Reader |  | 0x04E6 | 0x512B | Vendor Interface | 3 | 0xFF | 1.10 | 0x01 | 0x0000 0x0003 | 4.000 MHz | 8.000 MHz | 10753 bps | 344105 bps | 252 | 0x00000000 | 0x00000000 | 0x000100BA | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless, 2 slots | The contactless interface is not supported. | 1.4.6 | |
| 698 | 0x01 | shouldwork | SCM Microsystems Inc. | SDI011 Contactless Reader | | 0x04E6 | 0x512C | Vendor Interface | 3 | 0xFF | 1.10 | 0x01 | 0x0000 0x0003 | 4.000 MHz | 8.000 MHz | 10753 bps | 344105 bps | 252 | 0x00000000 | 0x00000000 | 0x000100BA | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless, 2 slots | The contactless interface is not supported. | 1.4.11 | |
| 699 | 0x01 | shouldwork | SCM Microsystems Inc. | SCR331-DI USB Smart Card Reader |  | 0x04E6 | 0x5120 | 4 | 3 | 0xFF | 1.00 | 0x01 | 0x0000 0x0003 | 4.000 MHz | 12.000 MHz | 10753 bps | 344105 bps | 252 | 0x00000000 | 0x00000000 | 0x000100BA | 263 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless, 2 slots | The contactless interface is not supported. | 0.9.4 | |
| 700 | 0x01 | shouldwork | SCM Microsystems Inc. | SDI010 Smart Card Reader |  | 0x04E6 | 0x5121 | 4 | 3 | 0xFF | 1.10 | 0x01 | 0x0000 0x0003 | 4.000 MHz | 8.000 MHz | 10753 bps | 344105 bps | 252 | 0x00000000 | 0x00000000 | 0x000100BA | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless, 2 slots | The contactless interface is not supported. | 1.0.1 | |
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 701 | 0x01 | shouldwork | SpringCard | E518 | | 0x1C34 | 0x6112 | CCID | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 200080 bps | 254 | 0x00000000 | 0x00000000 | 0x0004047E | 65554 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 5 | contactless, 2 slots | Module with Ethernet, composite CCID+USB Direct | 1.4.32 | |
| 702 | 0x01 | shouldwork | SpringCard | E518 | | 0x1C34 | 0x611A | CCID | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 200080 bps | 254 | 0x00000000 | 0x00000000 | 0x0004047E | 65554 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 5 | contactless, 2 slots | Module with Ethernet, CCID only | 1.4.32 | |
| 703 | 0x01 | shouldwork | SpringCard | EasyFinger Standard |  | 0x1C34 | 0x7136 | 0 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x03 | 0x0000 0x0003 | 3.686 MHz | 13.560 MHz | 9909 bps | 12643980 bps | 254 | 0x00000000 | 0x00000000 | 0x0002047E | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless, 2 slots | No extended APDU | 1.3.9 | |
| 704 | 0x01 | shouldwork | SpringCard | H512 Series |  | 0x1C34 | 0xA1A1 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 200080 bps | 254 | 0x00000000 | 0x00000000 | 0x0002047E | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless, 2 slots | No extended APDU | 1.4.10 | |
| 705 | 0x01 | shouldwork | SpringCard | H518 | | 0x1C34 | 0x6122 | CCID | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 200080 bps | 254 | 0x00000000 | 0x00000000 | 0x0004047E | 65554 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 5 | contactless, 2 slots | Module without Ethernet, composite CCID+USB Direct | 1.4.32 | |
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 706 | 0x01 | shouldwork | SpringCard | H518 | | 0x1C34 | 0x612A | CCID | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 200080 bps | 254 | 0x00000000 | 0x00000000 | 0x0004047E | 65554 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 5 | contactless, 2 slots | Module without Ethernet, CCID only | 1.4.32 | |
| 707 | 0x01 | shouldwork | SpringCard | H663 Series |  | 0x1C34 | 0x91B1 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 200080 bps | 254 | 0x00000000 | 0x00000000 | 0x0002047E | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless, 2 slots | No extended APDU | 1.4.10 | |
| 708 | 0x01 | shouldwork | SpringCard | Puck |  | 0x1C34 | 0x6132 | CCID | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 200080 bps | 254 | 0x00000000 | 0x00000000 | 0x0004047E | 65554 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless, 2 slots | table reader, composite CCID+USB Direct | 1.4.32 | |
| 709 | 0x01 | shouldwork | SpringCard | Puck | | 0x1C34 | 0x613A | CCID | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 200080 bps | 254 | 0x00000000 | 0x00000000 | 0x0004047E | 65554 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless, 2 slots | table reader, CCID only | 1.4.32 | |
| 710 | 0x01 | shouldwork | SpringCard | SpringCore | | 0x1C34 | 0x6012 | CCID | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 200080 bps | 254 | 0x00000000 | 0x00000000 | 0x0004047E | 65554 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 5 | contactless, 2 slots | OEM generic version, composite CCID+USB Direct | 1.4.32 | |
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 711 | 0x01 | shouldwork | SpringCard | SpringCore | | 0x1C34 | 0x601A | CCID | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 200080 bps | 254 | 0x00000000 | 0x00000000 | 0x0004047E | 65554 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 5 | contactless, 2 slots | OEM generic version, CCID only | 1.4.32 | |
| 712 | 0x01 | disabled | Jinmuyu Electronics Co., Ltd. | MR800 |  | 0x03EB | 0x6120 | CCID | 2 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x01 | 0x0000 0x0003 | 3.686 MHz | 3.686 MHz | 9600 bps | 9600 bps | 254 | 0x00000000 | 0x00000000 | 0x000401BE | 527 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 2 slots | declares 2 slots but is a 1 slot reader. PTS fails for T=1. See "[Pcsclite-muscle] Jinmuyu MR800 card reader problem" http://lists.alioth.debian.org/pipermail/pcsclite-muscle/2017-June/000913.html | 1.4.28 | |
| 713 | 0x02 | shouldwork | Circle | CIR315 Dual & 1S | | 0x31AA | 0x3000 | CIR315 Dual & 1S | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 4.800 MHz | 12903 bps | 412903 bps | 512 | 0x00000000 | 0x00000000 | 0x000404BA | 522 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless, 3 slots | 1.4.35 | ||
| 714 | 0x02 | shouldwork | COVADIS | Auriga |  | 0x0982 | 0x0040 | 0 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 10.01 | 0x07 | 0x0000 0x0003 | 2.000 MHz | 2.000 MHz | 5376 bps | 21504 bps | 254 | 0x00000000 | 0x00000000 | 0x00020472 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 2 | biometric, 3 slots | No extended APDU | 1.3.12 | |
| 715 | 0x02 | shouldwork | Doctolib | SR | | 0x1C34 | 0xAFD2 | CCID | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 200080 bps | 254 | 0x00000000 | 0x00000000 | 0x0004047E | 65554 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 3 slots | 1.4.32 | ||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 716 | 0x02 | shouldwork | Doctolib | SR | | 0x1C34 | 0xAFD3 | CCID | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 200080 bps | 254 | 0x00000000 | 0x00000000 | 0x0004047E | 65554 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 3 slots | 1.4.32 | ||
| 717 | 0x02 | shouldwork | ESMART | Reader ER773x Dual & 1S |  | 0x2CE4 | 0x5020 | Reader ER773x Dual & 1S | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 4.800 MHz | 12903 bps | 412903 bps | 512 | 0x00000000 | 0x00000000 | 0x000404BA | 522 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 3 slots | 1.5.1 | ||
| 718 | 0x02 | shouldwork | HID Global | veriCLASS Reader |  | 0x076B | 0x5400 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 4.800 MHz | 12903 bps | 825807 bps | 254 | 0x00000000 | 0x00000000 | 0x000404BA | 520 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 3 slots | 1.4.17 | ||
| 719 | 0x02 | shouldwork | SpringCard | CSB6 Secure | | 0x1C34 | 0x7123 | 0 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x03 | 0x0000 0x0003 | 3.686 MHz | 13.560 MHz | 9909 bps | 12643980 bps | 254 | 0x00000000 | 0x00000000 | 0x0002047E | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless, 3 slots | No extended APDU | 1.3.9 | |
| 720 | 0x02 | shouldwork | SpringCard | CrazyWriter |  | 0x1C34 | 0x7113 | 0 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x03 | 0x0000 0x0003 | 3.686 MHz | 13.560 MHz | 9909 bps | 12643980 bps | 254 | 0x00000000 | 0x00000000 | 0x0002047E | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless, 3 slots | No extended APDU | 1.3.9 | |
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 721 | 0x02 | unsupported | ACS | ACR1281U |  | 0x072F | 0x2224 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.800 MHz | 4.800 MHz | 12903 bps | 412903 bps | 512 | 0x00000000 | 0x00000000 | 0x000404BA | 522 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | contactless, 3 slots | The reader does not propagate time extension requests to the host. APDU commands needing more time will fail. | 1.5.0 | |
| 722 | 0x03 | shouldwork | SpringCard | EasyFinger Ultimate | | 0x1C34 | 0x7138 | 0 | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x03 | 0x0000 0x0003 | 3.686 MHz | 13.560 MHz | 9909 bps | 12643980 bps | 254 | 0x00000000 | 0x00000000 | 0x0002047E | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless, 4 slots | No extended APDU | 1.3.9 | |
| 723 | 0x04 | shouldwork | Gemplus | GemCore POS Pro Smart Card Reader | | 0x08E6 | 0x3479 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 500000 bps | 254 | 0x00000000 | 0x00000000 | 0x00010230 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 1 | 5 slots | 1.4.4 | ||
| 724 | 0x04 | shouldwork | SpringCard | CSB6 Ultimate | | 0x1C34 | 0x7124 | ? | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x03 | 0x0000 0x0003 | 3.686 MHz | 13.560 MHz | 9909 bps | 12643980 bps | 254 | 0x00000000 | 0x00000000 | 0x0002047E | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless, 5 slots | No extended APDU | 1.3.9 | |
| 725 | 0x04 | shouldwork | Teridian Semiconductors | TSC12xxFV.09 | | 0x1862 | 0x0000 | ? | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x03 | 0x0000 0x0003 | 3.600 MHz | 8.000 MHz | 9600 bps | 230400 bps | 254 | 0x00000000 | 0x00000000 | 0x000405F2 | 271 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 5 | 5 slots | 1.4.6 | ||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 726 | 0x04 | shouldwork | ACS | ACR33 ICC Reader |  | 0x072F | 0x8300 | NO NAME | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x01 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 344100 bps | 254 | 0x00000000 | 0x00000000 | 0x000204B0 | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x03 | 1 | PIN Verification, PIN Modification, 5 slots | No extended APDU | 1.4.30 | |
| 727 | 0x05 | shouldwork | Elatec | TWN4 SmartCard NFC |  | 0x09D8 | 0x0427 | ? | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 5.000 MHz | 15.000 MHz | 13441 bps | 625000 bps | 254 | 0x00000001 | 0x00000000 | 0x00010032 | 64 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | contactless, 6 slots | 1.4.19 | ||
| 728 | 0x05 | shouldwork | SpringCard | M519 |  | 0x1C34 | 0x6212 | CCID | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 250000 bps | 254 | 0x00000000 | 0x00000000 | 0x0004047E | 65554 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 6 slots | 1.5.3 | ||
| 729 | 0x05 | shouldwork | SpringCard | M519 | | 0x1C34 | 0x621A | CCID | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0003 | 4.000 MHz | 4.000 MHz | 10752 bps | 250000 bps | 254 | 0x00000000 | 0x00000000 | 0x0004047E | 65554 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 1 | 6 slots | 1.5.3 | ||
| 730 | 0x07 | shouldwork | jSolutions s.r.o. | Multi SIM card reader 4/8 |  | 0x04D8 | 0xEB61 | SIM card reader | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.00 | 0x06 | 0x0000 0x0001 | 3.573 MHz | 3.573 MHz | 9600 bps | 9600 bps | 247 | 0x00000000 | 0x00000000 | 0x000100BA | 271 bytes | 0x00 | 0x00 | 0x0000 | 0x00 | 8 | 8 slots | 1.4.36 | ||
| # | bMaxSlotIndex | section | iManufacturer | iProduct | image | idVendor | idProduct | iInterface | bNumEndpoints | bInterfaceClass | bcdCCID | bVoltageSupport | dwProtocols | dwDefaultClock | dwMaximumClock | dwDataRate | dwMaxDataRate | dwMaxIFSD | dwSynchProtocols | dwMechanical | dwFeatures | dwMaxCCIDMessageLength | bClassGetResponse | bClassEnvelope | wLcdLayout | bPINSupport | bMaxCCIDBusySlots | features | limitations | note | release |
| 731 | 0x07 | shouldwork | sysmocom - s.f.m.c. GmbH | sysmoOCTSIM |  | 0x1D50 | 0x6141 | CCID | 3 | 0x0B [Chip Card Interface Device Class (CCID)] | 1.10 | 0x07 | 0x0000 0x0001 | 2.500 MHz | 20.000 MHz | 6720 bps | 921600 bps | 0 | 0x00000000 | 0x00000000 | 0x000100B0 | 272 bytes | 0xFF | 0xFF | 0x0000 | 0x00 | 8 | 8 slots | 1.4.34 |
Generated: Fri Sep 6 21:10:38 2024
