Readers sorted by 'image' field

Click on the column header to sort by that column. Get some documentation about the columns at CCID descriptor statistics.

The background color indicates the section of the reader:

supported

should work

unsupported

disabled

#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
1		supported	Alcor Micro	AU9520	0x058F	0x9520	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x03	0x0000 0x0003	3.700 MHz	3.700 MHz	9946 bps	318280 bps	254	0x00000007	0x00000000	0x000204BE	271 bytes	0xFF	0xFF	0x0000	0x00	1		No extended APDU	Firmware 1.01 is bogus. The time request sent by the card is not forwarded by the reader to the host. Use CCID driver version 1.4.34 or more. The reader does not support USB suspend and will consume more power than needed.	1.1.0
2		supported	ActivIdentity	USB Reader V3	0x09C3	0x0013	CCID Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	12903 bps	412903 bps	252	0x00000000	0x00000000	0x000101BA	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.0.0
3		supported	Cherry GmbH	SmartBoard XX33	0x046A	0x0005	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x01	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344086 bps	254	0x00000000	0x00000000	0x00020472	271 bytes	0x00	0x00	0x0000	0x01	1	PIN Verification	No extended APDU		0.9.0
4		supported	Eutron	CryptoIdentity CCID	0x073D	0x0007	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344068 bps	254	0x00000000	0x00000000	0x00010330	271 bytes	0x00	0x00	0x0000	0x00	1				0.9.4
5		supported	Gemalto	PDT	0x08E6	0x1227	ICCD	0	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0002	3.580 MHz	3.580 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x00020840	261 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD	No extended APDU		1.3.9
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
6		supported	SCM Microsystems Inc.	HP USB Smartcard Reader	0x03F0	0x0824	4	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x01	0x0000 0x0003	4.000 MHz	12.000 MHz	9600 bps	307200 bps	252	0x00000000	0x00000000	0x000100BA	263 bytes	0xFF	0xFF	0x0000	0x00	1				1.2.0
7		supported	Lenovo	Integrated Smart Card Reader	0x17EF	0x1003	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	500000 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1				1.3.1
8		supported	SCM Microsystems Inc.	SCR 355	0x04E6	0x5410	4	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x01	0x0000 0x0003	4.000 MHz	8.000 MHz	10753 bps	344105 bps	252	0x00000000	0x00000000	0x000100BA	263 bytes	0xFF	0xFF	0x0000	0x00	1				1.0.0
9		supported	TianYu CCID Key	TianYu CCID SmartKey	0xA625	0x0801	0	2	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x01	0x0000 0x0001	3.580 MHz	3.580 MHz	9600 bps	115200 bps	0	0x00000000	0x00000000	0x00020840	512 bytes	0x00	0x00	0x0000	0x00	1	ICCD	No extended APDU		1.3.10
10		shouldwork	ACS	ACR122U	0x072F	0x90CC	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	250000 bps	247	0x00000000	0x00000000	0x00010030	271 bytes	0x00	0x00	0x0000	0x00	1				1.3.5
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
11		shouldwork	ACS	ACR100	0x072F	0x90CC	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344100 bps	247	0x00000000	0x00000000	0x00010030	271 bytes	0x00	0x00	0x0000	0x00	1				1.3.10
12		shouldwork	ACS	ACR1252IMP Reader	0x072F	0x2259	ACR1252IMP Reader PICC	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0002	4.000 MHz	4.000 MHz	10752 bps	250000 bps	254	0x00000000	0x00000000	0x000404BA	522 bytes	0x00	0x00	0x0000	0x00	1	Multi interface reader, interface 0: ACR1252IMP Reader PICC		known as the Imprivata Mifare 75 Reader (HDW-IMP-MFR75)	1.4.34
13		shouldwork	ACS	ACR1252IMP Reader	0x072F	0x2259	ACR1252IMP Reader SAM	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	3.420 MHz	3.420 MHz	9193 bps	213750 bps	254	0x00000000	0x00000000	0x000204BA	288 bytes	0x00	0x00	0x0000	0x00	1	Multi interface reader, interface 1: ACR1252IMP Reader SAM	No extended APDU	known as the Imprivata Mifare 75 Reader (HDW-IMP-MFR75)	1.4.34
14		shouldwork	ACS	ACR1252 Reader	0x072F	0x223E	ACR1252 Reader PICC	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0002	4.000 MHz	4.000 MHz	10752 bps	250000 bps	254	0x00000000	0x00000000	0x000404BA	522 bytes	0x00	0x00	0x0000	0x00	1	contactless			1.4.31
15		shouldwork	ACS	ACR39U ICC Reader	0x072F	0xB100	<F??	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	16.000 MHz	12903 bps	826000 bps	247	0x00000000	0x00000000	0x000100B2	271 bytes	0xFF	0xFF	0x0000	0x00	1			The PC/SC reader name will look weirdo in applications because of issues in reader firmware	1.4.19
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
16		shouldwork	ACS	ACR40U ICC Reader	0x072F	0xB506	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	826000 bps	247	0x00000000	0x00000000	0x000103BA	512 bytes	0xFF	0xFF	0x0000	0x00	1				1.5.3

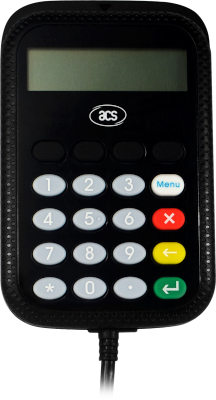

17		shouldwork	ACS	APG8201 USB Reader	0x072F	0x8202	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x01	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344100 bps	254	0x00000000	0x00000000	0x00020430	271 bytes	0x00	0x00	0x0000	0x03	1	PIN Verification, PIN Modification	No extended APDU		1.4.10
18		shouldwork	AF Care	One	0x1C34	0xAFC0	CCID	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x01	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	200080 bps	254	0x00000000	0x00000000	0x0004047E	65554 bytes	0xFF	0xFF	0x0000	0x00	0	2 slots		Card Vitale reader (1 slot), composite CCID+USB Direct	1.4.32
19		shouldwork	AF Care	One	0x1C34	0xAFC1	CCID	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x01	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	200080 bps	254	0x00000000	0x00000000	0x0004047E	65554 bytes	0xFF	0xFF	0x0000	0x00	0	2 slots		Card Vitale reader (1 slot), CCID only	1.4.32
20		shouldwork	AF Care	Two	0x1C34	0xAFC2	CCID	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x01	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	200080 bps	254	0x00000000	0x00000000	0x0004047E	65554 bytes	0xFF	0xFF	0x0000	0x00	1	2 slots		Card Vitale reader (2 slot), composite CCID+USB Direct	1.4.32
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
21		shouldwork	AF Care	Two	0x1C34	0xAFC3	CCID	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x01	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	200080 bps	254	0x00000000	0x00000000	0x0004047E	65554 bytes	0xFF	0xFF	0x0000	0x00	1	2 slots		Card Vitale reader (2 slot), CCID only	1.4.32
22		shouldwork	ATMEL	AT90SCR050	0x03EB	0x6011	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344064 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1				1.3.12
23		shouldwork	ATMEL	AT90SCR100	0x03EB	0x6010	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344064 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1				1.3.12
24		shouldwork	ATMEL	AT91SC192192CT-USB ICCD reader	0x03EB	0x600B	4	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0001	3.580 MHz	3.580 MHz	9600 bps	9600 bps	0	0x00000000	0x00000000	0x00020840	271 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD	No extended APDU		1.3.11
25		shouldwork	ATMEL	AT91SO CCID Smart Card Reader	0x03EB	0x6004	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x01	0x07	0x0000 0x0003	3.580 MHz	3.580 MHz	9600 bps	9600 bps	256	0x00000000	0x00000000	0x0002005E	271 bytes	0xFF	0xFF	0x0210	0x00	1	2 slots	No extended APDU		1.3.9
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
26		shouldwork	ATMEL	AT98SC032CT-USB	0x03EB	0x6009	4	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0001	3.580 MHz	3.580 MHz	9600 bps	9600 bps	0	0x00000000	0x00000000	0x00020840	271 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD	No extended APDU		1.3.10
27		shouldwork	ATMEL	VaultIC420 Smart Object	0x03EB	0x6012	4	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0001	3.580 MHz	3.580 MHz	9600 bps	9600 bps	0	0x00000000	0x00000000	0x00020840	271 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD	No extended APDU		1.3.12
28		shouldwork	ATMEL	VaultIC440	0x03EB	0x6014	4	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0001	3.580 MHz	3.580 MHz	9600 bps	9600 bps	0	0x00000000	0x00000000	0x00020840	271 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD	No extended APDU		1.3.12
29		shouldwork	Access IS	NFC Smart Module	0x0DB5	0x0160	NFC0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	10752 bps	2048	0x00000000	0x00000000	0x0004007A	2048 bytes	0xFF	0xFF	0x0000	0x00	1	contactless		Chip included in different Access IS products "LSR116 barcode reader", "LSR118 barcode & contactless NFC/RFID reader", "ATR110 Contactless NFC and 2D Barcode Reader"	1.4.20
30		shouldwork	Aktiv	Rutoken lite	0x0A89	0x0025	?	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0002	3.580 MHz	3.580 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x00020840	271 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD	No extended APDU		1.4.2
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
31		shouldwork	Aktiv Co., ProgramPark	Rutoken Magistra	0x0A89	0x0060	0	0	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x01	0x0000 0x0002	3.580 MHz	3.580 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x00020840	261 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD	No extended APDU		1.3.10
32		shouldwork	Alcor Link	AK9563	0x2CE3	0x9563	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.000 MHz	12.000 MHz	10753 bps	688172 bps	254	0x00000007	0x00000000	0x000404BE	272 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.31
33		shouldwork	Alcor Link	AK9567	0x2CE3	0x9567	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.000 MHz	12.000 MHz	10753 bps	688172 bps	254	0x00000007	0x00000000	0x000404BE	272 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 0: NO NAME, Multi interface reader			1.5.1
34		shouldwork	Alcor Link	AK9567	0x2CE3	0x9567	Contactless Card Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.700 MHz	12.000 MHz	9946 bps	688172 bps	254	0x00000007	0x00000000	0x000404BE	272 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 1: Contactless Card Reader, Multi interface reader			1.5.1
35		shouldwork	Alcor Link	AK9572	0x2CE3	0x9573	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.000 MHz	12.000 MHz	10753 bps	688172 bps	254	0x00000007	0x00000000	0x000404BE	272 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 0: NO NAME, Multi interface reader			1.5.1
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
36		shouldwork	Alcor Link	AK9572	0x2CE3	0x9573	Contactless Card Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.700 MHz	12.000 MHz	9946 bps	688172 bps	254	0x00000007	0x00000000	0x000404BE	272 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 1: Contactless Card Reader, Multi interface reader			1.5.1
37		shouldwork	BLUTRONICS	TAURUS NFC	0x1B0E	0x5A02	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.685 MHz	13.560 MHz	9909 bps	848000 bps	254	0x00000000	0x00000000	0x0004047E	273 bytes	0xFF	0xFF	0x0000	0x00	1	contactless			1.5.1
38		shouldwork	Bluink Ltd.	Bluink CCID	0x2ABE	0x1003	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	3.580 MHz	3.580 MHz	9600 bps	115200 bps	254	0x00000000	0x00000000	0x000200FE	240 bytes	0xFF	0xFF	0x0410	0x03	1	PIN Verification, PIN Modification	No extended APDU		1.4.29
39		shouldwork	Broadcom Corp	58200	0x0A5C	0x5842	Contacted SmartCard	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	9600 bps	250000 bps	247	0x00000000	0x00000000	0x000102BA	271 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 0: Contacted SmartCard, Multi interface reader		The contactless interface is not supported	1.4.30
40		shouldwork	Broadcom Corp	58200	0x0A5C	0x5842	Contactless SmartCard	3	0x0B [Chip Card Interface Device Class (CCID)]	1.01	0x00	0x01	0x0000 0x0003	3.580 MHz	3.580 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x000204BA	512 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 1: Contactless SmartCard, Multi interface reader	No extended APDU	The contactless interface is not supported	1.4.30
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
41		shouldwork	Broadcom Corp	58200	0x0A5C	0x5843	Contacted SmartCard	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	9600 bps	250000 bps	247	0x00000000	0x00000000	0x000102BA	271 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 0: Contacted SmartCard, Multi interface reader		The contactless interface is not supported	1.4.31
42		shouldwork	Broadcom Corp	58200	0x0A5C	0x5843	Contactless SmartCard	3	0x0B [Chip Card Interface Device Class (CCID)]	1.01	0x00	0x01	0x0000 0x0003	3.580 MHz	3.580 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x000204BA	512 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 1: Contactless SmartCard, Multi interface reader	No extended APDU	The contactless interface is not supported	1.4.31
43		shouldwork	Broadcom Corp	58200	0x0A5C	0x5864	Contacted SmartCard	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	9600 bps	250000 bps	247	0x00000000	0x00000000	0x000102BA	271 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 0: Contacted SmartCard, Multi interface reader		The contactless interface is not supported	1.5.5
44		shouldwork	Broadcom Corp	58200	0x0A5C	0x5864	Contactless SmartCard	3	0x0B [Chip Card Interface Device Class (CCID)]	1.01	0x00	0x01	0x0000 0x0003	3.580 MHz	3.580 MHz	9600 bps	9600 bps	528	0x00000000	0x00000000	0x000404BA	528 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 1: Contactless SmartCard, Multi interface reader		The contactless interface is not supported	1.5.5
45		shouldwork	Broadcom Corp	58200	0x0A5C	0x5865	Contacted SmartCard	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	9600 bps	250000 bps	247	0x00000000	0x00000000	0x000102BA	271 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 0: Contacted SmartCard, Multi interface reader		The contactless interface is not supported	1.5.5
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
46		shouldwork	Broadcom Corp	58200	0x0A5C	0x5865	Contactless SmartCard	3	0x0B [Chip Card Interface Device Class (CCID)]	1.01	0x00	0x01	0x0000 0x0003	3.580 MHz	3.580 MHz	9600 bps	9600 bps	528	0x00000000	0x00000000	0x000404BA	528 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 1: Contactless SmartCard, Multi interface reader		The contactless interface is not supported	1.5.5
47		shouldwork	Broadcom Corp	5880	0x0A5C	0x5832	Contacted SmartCard	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	9600 bps	250000 bps	247	0x00000000	0x00000000	0x000102BA	271 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 0: Contacted SmartCard, Multi interface reader		The contactless interface is not supported	1.4.25
48		shouldwork	Broadcom Corp	5880	0x0A5C	0x5832	Contactless SmartCard	3	0x0B [Chip Card Interface Device Class (CCID)]	1.01	0x00	0x01	0x0000 0x0003	3.580 MHz	3.580 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x000204BA	512 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 1: Contactless SmartCard, Multi interface reader	No extended APDU	The contactless interface is not supported	1.4.25
49		shouldwork	Broadcom Corp	5880	0x0A5C	0x5833	Contacted SmartCard	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	9600 bps	250000 bps	247	0x00000000	0x00000000	0x000102BA	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.25
50		shouldwork	Broadcom Corp	5880	0x0A5C	0x5834	Contacted SmartCard	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	9600 bps	250000 bps	247	0x00000000	0x00000000	0x000102BA	271 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 0: Contacted SmartCard, Multi interface reader		The contactless interface is not supported	1.4.25
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
51		shouldwork	Broadcom Corp	5880	0x0A5C	0x5834	Contactless SmartCard	3	0x0B [Chip Card Interface Device Class (CCID)]	1.01	0x00	0x01	0x0000 0x0003	3.580 MHz	3.580 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x000204BA	512 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 1: Contactless SmartCard, Multi interface reader	No extended APDU	The contactless interface is not supported	1.4.25
52		shouldwork	Broadcom Corp	5880	0x0A5C	0x5802	Contacted SmartCard	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	9600 bps	250000 bps	247	0x00000000	0x00000000	0x000102BA	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.0
53		shouldwork	Broadcom Corp	5880	0x0A5C	0x5802	Contacted SmartCard	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	9600 bps	250000 bps	247	0x00000000	0x00000000	0x000102BA	271 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 0: Contacted SmartCard, Multi interface reader		The contactless interface is not supported	1.4.2
54		shouldwork	Broadcom Corp	5880	0x0A5C	0x5802	Contactless SmartCard	3	0x0B [Chip Card Interface Device Class (CCID)]	1.01	0x00	0x01	0x0000 0x0003	3.580 MHz	3.580 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x000204BA	512 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 1: Contactless SmartCard, Multi interface reader	No extended APDU	The contactless interface is not supported	1.4.2
55		shouldwork	Broadcom Corp	5880	0x0A5C	0x5804	Contacted SmartCard	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	9600 bps	250000 bps	247	0x00000000	0x00000000	0x000102BA	271 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 0: Contacted SmartCard, Multi interface reader		The contactless interface is not supported	1.4.19
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
56		shouldwork	Broadcom Corp	5880	0x0A5C	0x5804	Contactless SmartCard	3	0x0B [Chip Card Interface Device Class (CCID)]	1.01	0x00	0x01	0x0000 0x0003	3.580 MHz	3.580 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x000204BA	512 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 1: Contactless SmartCard, Multi interface reader	No extended APDU	The contactless interface is not supported	1.4.19
57		shouldwork	C3PO	TLTC2USB	0x0783	0x0007	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x01	0x0000 0x0003	4.000 MHz	20.000 MHz	9600 bps	230400 bps	254	0x00000001	0x00000000	0x000100BA	271 bytes	0x00	0x00	0x0000	0x00	1				1.2.0
58		shouldwork	CREATOR	CRT-603(CZ1) CCR	0x23D8	0x0603	CRT-603 (CZ1) CCR SAM1	3	0x0B [Chip Card Interface Device Class (CCID)]	2.10	0x00	0x07	0x0000 0x0003	3.700 MHz	3.700 MHz	9946 bps	318280 bps	254	0x00000000	0x00000000	0x000204FE	271 bytes	0x00	0x00	0x0000	0x00	1	Multi interface reader, interface 0: CRT-603 (CZ1) CCR SAM1	No extended APDU		1.5.1
59		shouldwork	CREATOR	CRT-603(CZ1) CCR	0x23D8	0x0603	CRT-603 (CZ1) CCR SAM2	3	0x0B [Chip Card Interface Device Class (CCID)]	2.10	0x00	0x07	0x0000 0x0003	3.700 MHz	3.700 MHz	9946 bps	318280 bps	254	0x00000000	0x00000000	0x000204BE	271 bytes	0x00	0x00	0x0000	0x00	1	Multi interface reader, interface 1: CRT-603 (CZ1) CCR SAM2	No extended APDU		1.5.1
60		shouldwork	charismathics	plug'n'crypt CCID token	0x19E7	0x0002	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344086 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1				1.3.1
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
61		shouldwork	Cherry GmbH	SmartBoard XX1X	0x046A	0x005B	4	3	0x0B [Chip Card Interface Device Class (CCID)]	1.01	0x00	0x07	0x0000 0x0003	4.000 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000000	0x00000000	0x000207B2	271 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification	No extended APDU		1.3.5
62		shouldwork	Cherry	SmartTerminal XX44	0x046A	0x00A7	Cherry Smart Terminal XX44	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000207B8	271 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification	No extended APDU		1.4.23
63		shouldwork	Cherry	Smart Card Reader USB	0x046A	0x0090	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000207B2	271 bytes	0xFF	0xFF	0x0000	0x00	1		No extended APDU		1.4.18
64		shouldwork	Cherry	Smartcard Keyboard G87-1xx44	0x046A	0x00A3	SmartCard Reader USB	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000207B2	271 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification	No extended APDU		1.4.18
65		shouldwork	Chicony	HP USB Smartcard CCID Keyboard JP	0x03F0	0x124A	HP Smartcard Keyboard	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	12.000 MHz	12903 bps	412903 bps	254	0x00000000	0x00000000	0x000104BA	271 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification			1.4.21
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
66		shouldwork	Chicony	HP USB Smartcard CCID Keyboard KR	0x03F0	0x114A	HP Smartcard Keyboard	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	12.000 MHz	12903 bps	412903 bps	254	0x00000000	0x00000000	0x000104BA	271 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification			1.4.21
67		shouldwork	Circle	CCR7115 ICC	0x31AA	0x7001	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.000 MHz	12.000 MHz	10753 bps	688172 bps	254	0x00000007	0x00000000	0x000404BE	272 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.35
68		shouldwork	Circle	CCR7125 ICC	0x31AA	0x7005	CCR7125 ICC	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	826000 bps	254	0x00000000	0x00000000	0x000100B2	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless			1.5.0
69		shouldwork	Circle	CCR7315	0x31AA	0x7003	CCR7315 PICC	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	412903 bps	512	0x00000000	0x00000000	0x000404BA	522 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 0: CCR7315 PICC, Multi interface reader			1.4.35
70		shouldwork	Circle	CCR7315	0x31AA	0x7003	CCR7315 SAM	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	0.250 MHz	0.250 MHz	10752 bps	129032 bps	254	0x00000000	0x00000000	0x000200BA	271 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 1: CCR7315 SAM, Multi interface reader	No extended APDU		1.4.35
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
71		shouldwork	Circle	CIR115 ICC	0x31AA	0x1000	CIR115 ICC	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	16.000 MHz	12903 bps	826000 bps	247	0x00000000	0x00000000	0x000100B2	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.35
72		shouldwork	Circle	CIR125-DOT ICC	0x31AA	0x7006	CIR125-DOT ICC	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	826000 bps	254	0x00000000	0x00000000	0x000100B2	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless			1.5.0
73		shouldwork	Circle	CIR125 ICC	0x31AA	0x1100	CIR125 ICC	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	826000 bps	254	0x00000000	0x00000000	0x000100B2	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless			1.5.0
74		shouldwork	Circle	CIR215 CL	0x31AA	0x2001	CIR215 CL	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	16.000 MHz	12903 bps	826000 bps	247	0x00000000	0x00000000	0x000200BA	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless	No extended APDU		1.4.35
75		shouldwork	Circle	CIR215 CL	0x31AA	0x2100	CIR215 CL	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	412903 bps	512	0x00000000	0x00000000	0x000404BA	522 bytes	0x00	0x00	0x0000	0x00	1	contactless			1.5.0
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
76		shouldwork	Circle	CIR215 PICC	0x31AA	0x2000	CIR215 PICC	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	16.000 MHz	12903 bps	826000 bps	247	0x00000000	0x00000000	0x000200BA	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless	No extended APDU		1.4.35
77		shouldwork	Circle	CIR315	0x31AA	0x3001	CIR315 PICC	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	412903 bps	512	0x00000000	0x00000000	0x000404BA	522 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 0: CIR315 PICC, Multi interface reader			1.4.35
78		shouldwork	Circle	CIR315	0x31AA	0x3001	CIR315 SAM	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	0.250 MHz	0.250 MHz	10752 bps	129032 bps	254	0x00000000	0x00000000	0x000200BA	271 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 1: CIR315 SAM, Multi interface reader	No extended APDU		1.4.35
79		shouldwork	Circle	CIR315	0x31AA	0x0324	Idaxis SecureTouch PICC	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	412903 bps	512	0x00000000	0x00000000	0x000404BA	522 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 0: Idaxis SecureTouch PICC, Multi interface reader			1.5.0
80		shouldwork	Circle	CIR315	0x31AA	0x0324	Idaxis SecureTouch SAM	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	0.250 MHz	0.250 MHz	10752 bps	129032 bps	254	0x00000000	0x00000000	0x000200BA	271 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 1: Idaxis SecureTouch SAM, Multi interface reader	No extended APDU		1.5.0
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
81		shouldwork	Circle	CIR315	0x31AA	0x3100	CIR315A IMP PICC	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	412903 bps	512	0x00000000	0x00000000	0x000404BA	522 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 0: CIR315A IMP PICC, Multi interface reader			1.4.35
82		shouldwork	Circle	CIR315	0x31AA	0x3100	CIR315A IMP SAM	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	0.250 MHz	0.250 MHz	10752 bps	129032 bps	254	0x00000000	0x00000000	0x000200BA	271 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 1: CIR315A IMP SAM, Multi interface reader	No extended APDU		1.4.35
83		shouldwork	Circle	CIR315	0x31AA	0x7004	CIR315A-DOT PICC	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	412903 bps	512	0x00000000	0x00000000	0x000404BA	522 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 0: CIR315A-DOT PICC, Multi interface reader			1.5.0
84		shouldwork	Circle	CIR315	0x31AA	0x7004	CIR315A-DOT SAM	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	0.250 MHz	0.250 MHz	10752 bps	129032 bps	254	0x00000000	0x00000000	0x000200BA	271 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 1: CIR315A-DOT SAM, Multi interface reader	No extended APDU		1.5.0
85		shouldwork	Circle	CIR315 CL	0x31AA	0x3002	CIR315 CL	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	412903 bps	512	0x00000000	0x00000000	0x000404BA	522 bytes	0x00	0x00	0x0000	0x00	1	contactless			1.4.35
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
86		shouldwork	Circle	CIR315 DI	0x31AA	0x3003	CIR315 DI	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	412903 bps	512	0x00000000	0x00000000	0x000404BA	522 bytes	0x00	0x00	0x0000	0x00	1	contactless			1.5.0
87		shouldwork	Circle	CIR315 Dual & 1S	0x31AA	0x3000	CIR315 Dual & 1S	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x02	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	412903 bps	512	0x00000000	0x00000000	0x000404BA	522 bytes	0x00	0x00	0x0000	0x00	1	contactless, 3 slots			1.4.35
88		shouldwork	Circle	CIR415 CL	0x31AA	0x4001	CIR415 CL	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	129032 bps	254	0x00000000	0x00000000	0x000404BA	522 bytes	0x00	0x00	0x0000	0x00	1	contactless			1.5.0
89		shouldwork	Circle	CIR415 CL & 1S	0x31AA	0x4000	CIR415 CL & 1S	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x01	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	129032 bps	254	0x00000000	0x00000000	0x000404BA	522 bytes	0x00	0x00	0x0000	0x00	1	contactless, 2 slots			1.4.35
90		shouldwork	Circle	CIR515 ICC	0x31AA	0x5000	CIR515 ICC	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	129032 bps	254	0x00000000	0x00000000	0x000404BA	522 bytes	0x00	0x00	0x0000	0x00	1	contactless			1.5.0
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
91		shouldwork	Circle	CIR615 CL	0x31AA	0x6001	CIR615 CL	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x01	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	129032 bps	254	0x00000000	0x00000000	0x000404BA	522 bytes	0x00	0x00	0x0000	0x00	1	contactless, 2 slots			1.5.0
92		shouldwork	Circle	CIR615 CL & 1S	0x31AA	0x6000	CIR615 CL & 1S	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x01	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	129032 bps	254	0x00000000	0x00000000	0x000404BA	522 bytes	0x00	0x00	0x0000	0x00	1	contactless, 2 slots			1.5.0
93		shouldwork	Circle	Idaxis SecurePIV	0x31AA	0x0224	Idaxis SecurePIV	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	16.000 MHz	12903 bps	826000 bps	247	0x00000000	0x00000000	0x000100B2	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.35
94		shouldwork	DC.Ltd	DC4 5CCID READER	0x257B	0xC305	DC4 Smart_Card_Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	412903 bps	3266	0x00000000	0x00000000	0x000204B2	3266 bytes	0x00	0x00	0x0000	0x00	1	Multi interface reader, interface 0: DC4 Smart_Card_Reader	No extended APDU		1.4.30
95		shouldwork	DC.Ltd	DC4 5CCID READER	0x257B	0xC305	DC4 Contactless_Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0002	4.800 MHz	4.800 MHz	12903 bps	412903 bps	3266	0x00000000	0x00000000	0x000204B2	3266 bytes	0x00	0x00	0x0000	0x00	1	Multi interface reader, interface 1: DC4 Contactless_Reader	No extended APDU		1.4.30
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
96		shouldwork	DC.Ltd	DC4 5CCID READER	0x257B	0xC305	DC4 SAMX_Reader	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	412903 bps	3266	0x00000000	0x00000000	0x000204B2	3266 bytes	0x00	0x00	0x0000	0x00	1	Multi interface reader, interface 2: DC4 SAMX_Reader	No extended APDU		1.4.30
97		shouldwork	DC.Ltd	DC4 5CCID READER	0x257B	0xC305	DC4 NFC_Peer_T0_Peer_Device	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	412903 bps	3266	0x00000000	0x00000000	0x000204B2	3266 bytes	0x00	0x00	0x0000	0x00	1	Multi interface reader, interface 3: DC4 NFC_Peer_T0_Peer_Device	No extended APDU		1.4.30
98		shouldwork	Doctolib	SR	0x1C34	0xAFD0	CCID	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x01	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	200080 bps	254	0x00000000	0x00000000	0x0004047E	65554 bytes	0xFF	0xFF	0x0000	0x00	0	2 slots			1.4.32
99		shouldwork	Doctolib	SR	0x1C34	0xAFD1	CCID	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x01	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	200080 bps	254	0x00000000	0x00000000	0x0004047E	65554 bytes	0xFF	0xFF	0x0000	0x00	0	2 slots			1.4.32
100		shouldwork	Doctolib	SR	0x1C34	0xAFD2	CCID	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x02	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	200080 bps	254	0x00000000	0x00000000	0x0004047E	65554 bytes	0xFF	0xFF	0x0000	0x00	1	3 slots			1.4.32
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
101		shouldwork	Doctolib	SR	0x1C34	0xAFD3	CCID	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x02	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	200080 bps	254	0x00000000	0x00000000	0x0004047E	65554 bytes	0xFF	0xFF	0x0000	0x00	1	3 slots			1.4.32
102		shouldwork	Excelsecu	Card reader	0x1EA8	0x8013	SCSI	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.580 MHz	6.000 MHz	9600 bps	230400 bps	4098	0x00000000	0x00000000	0x000404BE	4108 bytes	0xFF	0xFF	0x0000	0x00	1				1.5.3
103		shouldwork	Feitian	eJAVA Token	0x096E	0x080F	NO NAME	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.000 MHz	4.000 MHz	9600 bps	600000 bps	240	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.19
104		shouldwork	Free Software Initiative of Japan	Gnuk	0x234B	0x0000	?	2	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x01	0x0000 0x0002	3.580 MHz	3.580 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x00040042	64 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.1
105		shouldwork	Gemplus	GemCore POS Pro Smart Card Reader	0x08E6	0x3479	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x04	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	500000 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1	5 slots			1.4.4
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
106		shouldwork	Gemalto	Gem e-Seal Pro USB Token	0x08E6	0x2202	0	2	0xFF	1.00	0x00	0x01	0x0000 0x0003	1.500 MHz	1.500 MHz	4032 bps	46875 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1				1.3.5
107		shouldwork	Gemalto	Ezio Shield Branch Reader	0x08E6	0x34C5	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	500000 bps	254	0x00000000	0x00000000	0x000204B2	271 bytes	0x00	0x00	0x0211	0x03	1	PIN Verification, PIN Modification	No extended APDU		1.4.7
108		shouldwork	Gemalto	Hybrid Smartcard Reader	0x08E6	0x5743	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x01	0x02	0x0000 0x0001	3.686 MHz	3.686 MHz	9910 bps	9910 bps	0	0x00000000	0x00000000	0x00010070	271 bytes	0x00	0x00	0x0000	0x00	1	2 slots			1.3.12
109		shouldwork	Genesys Logic	CCID Card Reader	0x05E3	0x0757	Smart Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	3.000 MHz	3.000 MHz	9946 bps	318280 bps	254	0x00000007	0x00000000	0x000204BE	271 bytes	0xFF	0xFF	0x0000	0x00	1		No extended APDU		1.4.30
110		shouldwork	Genesys Logic	CCID Card Reader	0x05E3	0x0771	Smart Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	3.000 MHz	3.000 MHz	9946 bps	318280 bps	254	0x00000007	0x00000000	0x000404BE	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.33
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
111		shouldwork	Genesys Logic	Combo Card Reader	0x05E3	0x0758	Smart Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	3.000 MHz	3.000 MHz	9946 bps	318280 bps	254	0x00000007	0x00000000	0x000204BE	271 bytes	0xFF	0xFF	0x0000	0x00	1		No extended APDU		1.4.30
112		shouldwork	Giesecke & Devrient GmbH	Star Sign Card Token 550 (ICCD)	0x1059	0x000D	0	1	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0002	3.580 MHz	3.580 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x00020840	261 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD	No extended APDU		1.3.1
113		shouldwork	HID	AVIATOR Generic	0x076B	0x3A21	Smart Card Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000207B8	271 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification	No extended APDU	No pinpad support	1.4.24
114		shouldwork	HID Global	OMNIKEY 5122 Dual	0x076B	0x5432	OMNIKEY 5122CL Dual	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	825807 bps	254	0x00000000	0x00000000	0x000404BA	520 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 0: OMNIKEY 5122CL Dual, Multi interface reader			1.4.28
115		shouldwork	HID Global	OMNIKEY 5122 Dual	0x076B	0x5432	OMNIKEY 5122 Dual	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000000	0x00000000	0x000407B8	520 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 1: OMNIKEY 5122 Dual, Multi interface reader			1.4.28
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
116		shouldwork	HID Global	OMNIKEY 5122 Smartcard Reader	0x076B	0x5412	OMNIKEY 5122CL Smartcard Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	825807 bps	254	0x00000000	0x00000000	0x000404BA	520 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 0: OMNIKEY 5122CL Smartcard Reader, Multi interface reader			1.4.28
117		shouldwork	HID Global	OMNIKEY 5122 Smartcard Reader	0x076B	0x5412	OMNIKEY 5122 Smartcard Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000000	0x00000000	0x000407B8	520 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 1: OMNIKEY 5122 Smartcard Reader, Multi interface reader			1.4.28
118		shouldwork	Hewlett-Packard	HP lt4112 Gobi 4G Module	0x03F0	0x581D	HP Mobile Connect - PCSC Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0001	3.580 MHz	3.580 MHz	9600 bps	9600 bps	0	0x00000000	0x00000000	0x0002007E	512 bytes	0x00	0x00	0x0000	0x00	1		No extended APDU		1.4.19
119		shouldwork	Hitachi, Ltd.	Hitachi Biometric Reader	0x04A4	0x00C7	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0001	5.000 MHz	5.000 MHz	13440 bps	161280 bps	0	0x00000000	0x00000000	0x00020082	271 bytes	0x00	0x00	0x0000	0x00	1		No extended APDU		1.4.22
120		shouldwork	Hitachi, Ltd.	Hitachi Portable Biometric Reader	0x04A4	0x00D4	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0001	5.000 MHz	5.000 MHz	13440 bps	161280 bps	0	0x00000000	0x00000000	0x00020082	271 bytes	0x00	0x00	0x0000	0x00	1		No extended APDU		1.4.22
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
121		shouldwork	IID	AT90S064 CCID READER	0x2406	0x6200	ICCD 1.0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0001	3.580 MHz	3.580 MHz	9600 bps	9600 bps	0	0x00000000	0x00000000	0x00020840	271 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD	No extended APDU		1.4.16
122		shouldwork	Identiv	CLOUD 2980 F Smart Card Reader	0x04E6	0x5713	CCID Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	12.000 MHz	12903 bps	412903 bps	254	0x00000000	0x00000000	0x000104BA	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.21
123		shouldwork	Identiv	SCR35xx USB Smart Card Reader	0x04E6	0x581C	CCID Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	16.000 MHz	12903 bps	600000 bps	252	0x00000000	0x00000000	0x000100BA	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.21
124		shouldwork	Identiv	uTrust 2910 R Smart Card Reader	0x04E6	0x5812	CCID Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	16.000 MHz	12903 bps	600000 bps	252	0x00000000	0x00000000	0x000100BA	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.21
125		shouldwork	Identiv	uTrust 2910 R Taglio SC Reader	0x04E6	0x581B	CCID Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	16.000 MHz	12903 bps	600000 bps	252	0x00000000	0x00000000	0x000100BA	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.21
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
126		shouldwork	Identive	Identive CLOUD 4500 F Dual Interface Reader	0x04E6	0x5720	CLOUD 4500 F Contact Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	12.000 MHz	12903 bps	412903 bps	254	0x00000000	0x00000000	0x000404BA	1034 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 0: CLOUD 4500 F Contact Reader, Multi interface reader			1.4.10
127		shouldwork	Identive	Identive CLOUD 4500 F Dual Interface Reader	0x04E6	0x5720	CLOUD 4500 F Contactless Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.800 MHz	12.000 MHz	12903 bps	412903 bps	1024	0x00000000	0x00000001	0x000404BE	1034 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 1: CLOUD 4500 F Contactless Reader, Multi interface reader			1.4.10
128		shouldwork	Identive	Identive CLOUD 4510 F Contactless + SAM Reader	0x04E6	0x5721	CLOUD 4510 F SAM Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	12.000 MHz	12903 bps	412903 bps	254	0x00000000	0x00000000	0x000404BA	1034 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 0: CLOUD 4510 F SAM Reader, Multi interface reader			1.4.10
129		shouldwork	Identive	Identive CLOUD 4510 F Contactless + SAM Reader	0x04E6	0x5721	CLOUD 4510 F Contactless Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.800 MHz	12.000 MHz	12903 bps	412903 bps	1024	0x00000000	0x00000001	0x000404BE	1034 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 1: CLOUD 4510 F Contactless Reader, Multi interface reader			1.4.10
130		shouldwork	Identive	Identive CLOUD 4000 F DTC	0x04E6	0x5723	CLOUD 4000 F DTC Contact Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	12.000 MHz	12903 bps	412903 bps	254	0x00000000	0x00000000	0x000404BA	1034 bytes	0xFF	0xFF	0x0000	0x00	1	Multi interface reader, interface 0: CLOUD 4000 F DTC Contact Reader			1.4.21
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
131		shouldwork	Identive	Identive CLOUD 4000 F DTC	0x04E6	0x5723	CLOUD 4000 F DTC CL Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.800 MHz	12.000 MHz	12903 bps	412903 bps	1024	0x00000000	0x00000001	0x000404BE	1034 bytes	0xFF	0xFF	0x0000	0x00	1	Multi interface reader, interface 1: CLOUD 4000 F DTC CL Reader			1.4.21
132		shouldwork	InfoCert	WirelessKey	0x2FD2	0x0100	CCID interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0002	4.000 MHz	4.000 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x0002047A	271 bytes	0xFF	0xFF	0x0000	0x00	1		No extended APDU		1.4.31
133		shouldwork	InfoThink	IT-102MU Reader	0x1FC9	0x0102	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.685 MHz	14.320 MHz	9909 bps	848000 bps	254	0x00000000	0x00000000	0x000204BE	271 bytes	0x00	0x00	0x0000	0x00	1		No extended APDU		1.4.27
134		shouldwork	Inside Secure	AT90SCR050	0x2406	0x6404	CCID Bulk Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12902 bps	412903 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.10
135		shouldwork	Inside Secure	AT90SCR100	0x2406	0x6403	CCID Bulk Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12902 bps	412903 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.10
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
136		shouldwork	Inside Secure	AT90SCR200	0x2406	0x6407	CCID Bulk Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12902 bps	412903 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.10
137		shouldwork	IonIDe	Smartcard Reader	0x076B	0x3B01	Smartcard Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000207B8	271 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification	No extended APDU		1.4.23
138		shouldwork	Philips Semiconductors	JCOP41V221	0x0471	0x040F	0	0	0x0B [Chip Card Interface Device Class (CCID)]	2.00	0x00	0x01	0x0000 0x0002	3.580 MHz	3.580 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x00020840	261 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD	No extended APDU		1.3.1
139		shouldwork	KRONEGGER	NFC blue Reader Platform	0x2D25	0x0000	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.685 MHz	14.320 MHz	9909 bps	848000 bps	254	0x00000000	0x00000000	0x000204BE	271 bytes	0x00	0x00	0x0000	0x00	1		No extended APDU		1.4.28
140		shouldwork	Kapsch TrafficCom	USB SAM reader	0x28B9	0x0002	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0002	3.580 MHz	14.320 MHz	9600 bps	1250000 bps	254	0x00000000	0x00000000	0x00020000	512 bytes	0x00	0x00	0x0000	0x00	1		No extended APDU		1.4.27
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
141		shouldwork	Kingtrust	Multi-Reader	0x0483	0x0007	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x03	0x0000 0x0001	4.000 MHz	4.000 MHz	10752 bps	344086 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.0
142		shouldwork	LDU	LANDI	0x0925	0x900A	NO NAME	2	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344086 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1				1.5.2
143		shouldwork	C3PO	LTC36	0x0783	0x0036	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x01	0x0000 0x0003	4.000 MHz	8.000 MHz	9600 bps	230400 bps	254	0x00000007	0x00000000	0x000100BA	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.0
144		shouldwork	Liteon	HP SC Keyboard - Apollo JP (Liteon)	0x03F0	0x184A	HP Keyboard Smartcard Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	12.000 MHz	12903 bps	412903 bps	254	0x00000000	0x00000000	0x000104BA	271 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification			1.4.21
145		shouldwork	Liteon	HP SC Keyboard - Apollo KR (Liteon)	0x03F0	0x174A	HP Keyboard Smartcard Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	12.000 MHz	12903 bps	412903 bps	254	0x00000000	0x00000000	0x000104BA	271 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification			1.4.21
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
146		shouldwork	Liteon	HP SC Keyboard - Apollo (Liteon)	0x03F0	0x164A	HP Keyboard Smartcard Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	12.000 MHz	12903 bps	412903 bps	254	0x00000000	0x00000000	0x000104BA	271 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification			1.4.21
147		shouldwork	MK Technology	KeyPass S1	0x0416	0xC136	SAM Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	62500 bps	254	0x00000000	0x00000000	0x000204BA	271 bytes	0xFF	0x00	0x0000	0x00	1		No extended APDU		1.4.27
148		shouldwork	NXP	PN7462AU CCID	0x1FC9	0x0117	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.685 MHz	14.320 MHz	9909 bps	848000 bps	254	0x00000000	0x00000000	0x000204BE	271 bytes	0x00	0x00	0x0000	0x00	1	contactless	No extended APDU		1.4.31
149		shouldwork	Neowave	Weneo	0x1E0D	0x8033	5	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0003	4.000 MHz	4.000 MHz	9600 bps	115200 bps	254	0x00000000	0x00000000	0x00010030	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.3.10
150		shouldwork	Neowave	Weneo	0x1E0D	0x0013	5	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0003	3.570 MHz	3.570 MHz	9600 bps	115200 bps	254	0x00000000	0x00000000	0x00010030	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.3.11
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
151		shouldwork	Neowave	Weneo	0x1E0D	0x0033	Weneo Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0003	3.570 MHz	3.570 MHz	9600 bps	115200 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.2
152		shouldwork	Neowave	Weneo	0x1E0D	0x1023	Weneo SIM Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.570 MHz	3.570 MHz	9600 bps	115200 bps	254	0x00000000	0x00000000	0x0001023A	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.3
153		shouldwork	Nitrokey	Nitrokey Start	0x20A0	0x4211	NO NAME	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0002	3.571 MHz	3.571 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x00020842	271 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD	No extended APDU		1.4.21
154		shouldwork	OCS ID-One Cosmo Card	USB Smart Chip Device	0x1A74	0x6354	4	0	0xFF	2.00	0x00	0x01	0x0000 0x0002	3.580 MHz	3.580 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x00020840	261 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD	No extended APDU		1.3.8
155		shouldwork	HID OMNIKEY	5127 CK	0x076B	0x5127	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	825807 bps	254	0x00000000	0x00000000	0x000404BA	520 bytes	0xFF	0xFF	0x0000	0x00	1	contactless			1.4.12
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
156		shouldwork	SCM Microsystems Inc.	SCR3310 USB Smart Card Reader	0x04E6	0x511F	CCID Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x01	0x0000 0x0003	4.000 MHz	8.000 MHz	10753 bps	344105 bps	252	0x00000000	0x00000000	0x000100BA	263 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.1
157		shouldwork	SONY	FeliCa RC-S300/S	0x054C	0x0DC8	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0002	4.000 MHz	4.000 MHz	115200 bps	921600 bps	254	0x00000000	0x00000000	0x0004007E	522 bytes	0x00	0x00	0x0000	0x00	1	contactless			1.4.35
158		shouldwork	SONY	FeliCa RC-S660/U	0x054C	0x0D8F	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0002	4.000 MHz	4.000 MHz	115200 bps	921600 bps	254	0x00000000	0x00000000	0x0004007E	522 bytes	0x00	0x00	0x0000	0x00	1	contactless			1.4.35
159		shouldwork	SPECINFOSYSTEMS	DIAMOND HSM	0x316E	0x0010	CCID Interface	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0002	4.000 MHz	4.000 MHz	307200 bps	307200 bps	3042	0x00000000	0x00000000	0x0004044E	3072 bytes	0x00	0x00	0x0000	0x03	1	PIN Verification, PIN Modification			1.4.32
160		shouldwork	SPECINFOSYSTEMS	DIAMOND PLUS token	0x316E	0x0003	CCID Interface	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0002	4.000 MHz	4.000 MHz	307200 bps	307200 bps	3042	0x00000000	0x00000000	0x0004044E	3072 bytes	0x00	0x00	0x0A14	0x03	1	PIN Verification, PIN Modification			1.4.32
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
161		shouldwork	SPECINFOSYSTEMS	DIAMOND PRO token	0x316E	0x0002	CCID Interface	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0002	4.000 MHz	4.000 MHz	307200 bps	307200 bps	3042	0x00000000	0x00000000	0x0004044E	3072 bytes	0x00	0x00	0x0000	0x00	1				1.4.32
162		shouldwork	SafeNet	eToken 5110+ FIPS	0x08E6	0x34CF	eToken 5110+ FIPS	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0002	4.800 MHz	4.800 MHz	12903 bps	825806 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.36
163		shouldwork	SafeNet	eToken 5300 C	0x08E6	0x34CE	eToken 5300 C	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0002	4.800 MHz	4.800 MHz	12903 bps	825806 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.36
164		shouldwork	SafeNet	eToken Fusion	0x08E6	0x34D2	eToken Fusion	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	825806 bps	254	0x00000000	0x00000000	0x00040472	275 bytes	0x00	0x00	0x0000	0x00	1				1.5.1
165		shouldwork	SpringCard	E518	0x1C34	0x6112	CCID	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x01	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	200080 bps	254	0x00000000	0x00000000	0x0004047E	65554 bytes	0xFF	0xFF	0x0000	0x00	5	contactless, 2 slots		Module with Ethernet, composite CCID+USB Direct	1.4.32
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
166		shouldwork	SpringCard	E518	0x1C34	0x611A	CCID	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x01	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	200080 bps	254	0x00000000	0x00000000	0x0004047E	65554 bytes	0xFF	0xFF	0x0000	0x00	5	contactless, 2 slots		Module with Ethernet, CCID only	1.4.32
167		shouldwork	SpringCard	H518	0x1C34	0x6122	CCID	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x01	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	200080 bps	254	0x00000000	0x00000000	0x0004047E	65554 bytes	0xFF	0xFF	0x0000	0x00	5	contactless, 2 slots		Module without Ethernet, composite CCID+USB Direct	1.4.32
168		shouldwork	SpringCard	H518	0x1C34	0x612A	CCID	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x01	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	200080 bps	254	0x00000000	0x00000000	0x0004047E	65554 bytes	0xFF	0xFF	0x0000	0x00	5	contactless, 2 slots		Module without Ethernet, CCID only	1.4.32
169		shouldwork	SpringCard	Puck	0x1C34	0x613A	CCID	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x01	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	200080 bps	254	0x00000000	0x00000000	0x0004047E	65554 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, 2 slots		table reader, CCID only	1.4.32
170		shouldwork	SpringCard	SpringCore	0x1C34	0x6012	CCID	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x01	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	200080 bps	254	0x00000000	0x00000000	0x0004047E	65554 bytes	0xFF	0xFF	0x0000	0x00	5	contactless, 2 slots		OEM generic version, composite CCID+USB Direct	1.4.32
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
171		shouldwork	SpringCard	SpringCore	0x1C34	0x601A	CCID	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x01	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	200080 bps	254	0x00000000	0x00000000	0x0004047E	65554 bytes	0xFF	0xFF	0x0000	0x00	5	contactless, 2 slots		OEM generic version, CCID only	1.4.32
172		shouldwork	Swissbit	Secure USB PU-50n SE/PE	0x1370	0x0901	NO NAME	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0002	5.000 MHz	5.000 MHz	161290 bps	161290 bps	254	0x00000000	0x00000000	0x0004047A	512 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.33
173		shouldwork	SYNNIX	STD200	0x1206	0x2105	4	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	129032 bps	254	0x00000000	0x00000000	0x00010138	271 bytes	0x00	0x00	0x0000	0x00	1				1.3.11
174		shouldwork	Teridian Semiconductors	TSC12xxFV.09	0x1862	0x0000	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x04	0x03	0x0000 0x0003	3.600 MHz	8.000 MHz	9600 bps	230400 bps	254	0x00000000	0x00000000	0x000405F2	271 bytes	0xFF	0xFF	0x0000	0x00	5	5 slots			1.4.6
175		shouldwork	Thales	RF Reader	0x17B9	0x400B	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.685 MHz	13.560 MHz	9909 bps	848000 bps	254	0x00000000	0x00000000	0x0004047E	2058 bytes	0xFF	0xFF	0x0000	0x00	1	contactless			1.5.2
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
176		shouldwork	Thales	Shield M4 Reader	0x08E6	0x34C7	CCID Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	3.600 MHz	3.600 MHz	9677 bps	9677 bps	254	0x00000000	0x00000000	0x000204B2	271 bytes	0x00	0x00	0x0811	0x03	1	PIN Verification, PIN Modification	No extended APDU		1.5.0
177		shouldwork	THURSBY SOFTWARE	TSS-PK1	0x1976	0x0001	Reader0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	3.700 MHz	3.700 MHz	9946 bps	318280 bps	254	0x00000007	0x00000000	0x000404BE	272 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.22
178		shouldwork	Tianyu	Smart Card Reader	0xA625	0x0810	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344086 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.0
179		shouldwork	VMware	Virtual USB CCID	0x0E0F	0x0004	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x0002004E	512 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification	No extended APDU		1.3.9
180		shouldwork	VASCO	DIGIPASS KEY 202	0x1A44	0x0120	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344086 bps	254	0x00000000	0x00000000	0x000404B2	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.6
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
181		shouldwork	VASCO	DIGIPASS KEY 202	0x1A44	0x0122	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344086 bps	254	0x00000000	0x00000000	0x000404B2	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.6
182		shouldwork	Watchdata	USB Key	0x163C	0x0407	USB CCID Key	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0001	3.580 MHz	3.580 MHz	9600 bps	9600 bps	0	0x00000000	0x00000000	0x00010030	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.19
183		shouldwork	Watchdata	USB Key	0x163C	0x0417	WDIND USB CCID Key	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0001	3.580 MHz	14.320 MHz	9600 bps	115200 bps	254	0x00000000	0x00000000	0x00010030	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.28
184		shouldwork	Watchdata	USB Key	0x163C	0x0418	WDIND USB CCID Key	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0001	3.580 MHz	14.320 MHz	9600 bps	115200 bps	254	0x00000000	0x00000000	0x00010030	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.29
185		shouldwork	Winbond	CCID SmartCard Controller	0x0416	0x3815	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x01	0x0000 0x0003	3.000 MHz	3.000 MHz	8065 bps	32258 bps	123	0x00000000	0x00000000	0x000004B2	138 bytes	0xFF	0xFF	0x0000	0x00	1				1.0.1
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
186		shouldwork	appidkey GmbH	ID60-USB	0x2406	0x5006	CCID Bulk Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12902 bps	412903 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.26
187		shouldwork	authenton	#1- CTAP2.1	0x3606	0x5A11	authenton#1- CTAP2.1	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0002	3.580 MHz	3.580 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x00010622	64 bytes	0xFF	0xFF	0x0000	0x00	1				1.6.0
188		shouldwork	SchlumbergerSema	SchlumbergerSema Cyberflex Access	0x0973	0x0003	0	0	0xFF	1.10	0x00	0x01	0x0000 0x0001	3.580 MHz	3.580 MHz	9600 bps	9600 bps	0	0x00000000	0x00000000	0x00000840	256 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD			1.3.0
189		shouldwork	Imprivata	USB CCID	0x0C27	0xCCDB	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	106000 bps	254	0x00000000	0x00000000	0x000204BE	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless	No extended APDU		1.5.5
190		unsupported	ATMEL	VaultIC460	0x03EB	0x6016	4	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0001	3.580 MHz	3.580 MHz	9600 bps	9600 bps	0	0x00000000	0x00000000	0x00020840	271 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD	No extended APDU	The reader does not send time extension requests. The driver times out after DEFAULT_COM_READ_TIMEOUT (3 seconds by default).	1.3.12
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
191		unsupported	Alcor Micro	AU9540	0x058F	0x9540	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.700 MHz	3.700 MHz	9946 bps	318280 bps	254	0x00000007	0x00000000	0x000404BE	272 bytes	0xFF	0xFF	0x0000	0x00	1			the reader (or the BIOS?) decides to power off the card without intervention of the CCID driver <a href="https://bugs.launchpad.net/ubuntu/+source/pcsc-lite/+bug/1307109"> Alcor Micro AU9540 keeps powering down when card is present</a>	1.4.5
192		unsupported	Alcor Micro	AU9560	0x058F	0x9540	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.700 MHz	12.000 MHz	9946 bps	688172 bps	254	0x00000007	0x00000000	0x000404BE	272 bytes	0xFF	0xFF	0x0000	0x00	1			Communication to the reader sometimes fails with LIBUSB_ERROR_TIMEOUT. Some smart cards require a different reader firmware. This reader is integrated in some HP laptops (ZBook, EliteBook, etc.) or Lenovo laptops (P15 Gen1, etc.).	1.4.23
193		unsupported	BHDC	Reader-HHD02	0x155B	0x8202	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	412903 bps	522	0x00000000	0x00000000	0x000200B2	271 bytes	0x00	0x00	0x0000	0x00	1		No extended APDU	Card events (insertion/removal) are not reported.	GIT
194		unsupported	Broadcom Corp	58200	0x0A5C	0x5844	Contactless SmartCard	3	0x0B [Chip Card Interface Device Class (CCID)]	1.01	0x00	0x01	0x0000 0x0003	3.580 MHz	3.580 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x000204BA	512 bytes	0x00	0x00	0x0000	0x00	1	contactless	No extended APDU	The contactless interface is not supported	1.4.31
195		unsupported	Broadcom Corp	58200	0x0A5C	0x5845	Contactless SmartCard	3	0x0B [Chip Card Interface Device Class (CCID)]	1.01	0x00	0x01	0x0000 0x0003	3.580 MHz	3.580 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x000204BA	512 bytes	0x00	0x00	0x0000	0x00	1	contactless	No extended APDU	The contactless interface is not supported	1.4.31
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
196		unsupported	Broadcom Corp	58200	0x0A5C	0x5866	Contactless SmartCard	3	0x0B [Chip Card Interface Device Class (CCID)]	1.01	0x00	0x01	0x0000 0x0003	3.580 MHz	3.580 MHz	9600 bps	9600 bps	528	0x00000000	0x00000000	0x000404BA	528 bytes	0x00	0x00	0x0000	0x00	1	contactless		The contactless interface is not supported	1.5.5
197		unsupported	Broadcom Corp	58200	0x0A5C	0x5867	Contactless SmartCard	3	0x0B [Chip Card Interface Device Class (CCID)]	1.01	0x00	0x01	0x0000 0x0003	3.580 MHz	3.580 MHz	9600 bps	9600 bps	528	0x00000000	0x00000000	0x000404BA	528 bytes	0x00	0x00	0x0000	0x00	1	contactless		The contactless interface is not supported	1.5.5
198		unsupported	Broadcom Corp	5880	0x0A5C	0x5800	Contacted SmartCard	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	9600 bps	250000 bps	247	0x00000000	0x00000000	0x000102BA	271 bytes	0x00	0x00	0x0000	0x00	1			Found in Dell E6500 laptop Try to Update the reader firmware. The previous firmware generated the following errors: No communication to the device ("Resource temporarily unavailable" error) The reader reports "Hardware error" to GetSlotStatus when no card is present. Frames bigger than 64 bytes (wMaxPacketSize) fails on the contact reader with: 00000002 commands.c:1740:CmdXfrBlockTPDU_T0() T=0: 5 bytes 00000003 -> 000000 6F 05 00 00 00 00 17 00 00 00 00 C0 00 00 BA 00014454 <- 000000 80 BC 00 00 00 00 17 00 00 00 A0 00 00 00 79 03 02 40 70 50 72 47 67 00 ED CB C7 00 ED CB C7 21 21 A0 00 00 00 79 01 02 00 01 00 00 00 00 00 00 00 A0 00 00 00 79 01 02 01 01 00 00 00 00 00 00 00000013 commands.c:1551:CCID_Receive() Can't read all data (54 out of 188 expected) See <a href="https://bugs.launchpad.net/ubuntu/+source/pcsc-lite/+bug/1596662">pcscd fails to read CAC card data, errors out</a>	1.3.9
199		unsupported	Broadcom Corp	5880	0x0A5C	0x5805	Contacted SmartCard	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	9600 bps	250000 bps	247	0x00000000	0x00000000	0x000102BA	271 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 0: Contacted SmartCard, Multi interface reader		Frames bigger than 64 bytes (wMaxPacketSize) fails on the contact reader with: 00000006 commands.c:1740:CmdXfrBlockTPDU_T0() T=0: 5 bytes 00000011 -> 000000 6F 05 00 00 00 00 5A 00 00 00 80 34 01 00 00 00345316 <- 000000 80 02 01 00 00 00 5A 00 00 00 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F 10 11 12 13 14 15 16 17 18 19 1A 1B 1C 1D 1E 1F 20 21 22 23 24 25 26 27 28 29 2A 2B 2C 2D 2E 2F 30 31 32 33 34 35 00000095 commands.c:1551:CCID_Receive() Can't read all data (54 out of 258 expected) The reader _MAY_ work with a T=1 card since it is in TPDU.	1.4.25
200		unsupported	Broadcom Corp	5880	0x0A5C	0x5805	Contactless SmartCard	3	0x0B [Chip Card Interface Device Class (CCID)]	1.01	0x00	0x01	0x0000 0x0003	3.580 MHz	3.580 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x000204BA	512 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 1: Contactless SmartCard, Multi interface reader	No extended APDU	Frames bigger than 64 bytes (wMaxPacketSize) fails on the contact reader with: 00000006 commands.c:1740:CmdXfrBlockTPDU_T0() T=0: 5 bytes 00000011 -> 000000 6F 05 00 00 00 00 5A 00 00 00 80 34 01 00 00 00345316 <- 000000 80 02 01 00 00 00 5A 00 00 00 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F 10 11 12 13 14 15 16 17 18 19 1A 1B 1C 1D 1E 1F 20 21 22 23 24 25 26 27 28 29 2A 2B 2C 2D 2E 2F 30 31 32 33 34 35 00000095 commands.c:1551:CCID_Receive() Can't read all data (54 out of 258 expected) The reader _MAY_ work with a T=1 card since it is in TPDU.	1.4.25
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
201		unsupported	Broadcom Corp	5880	0x0A5C	0x5801	Contacted SmartCard	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	9600 bps	250000 bps	247	0x00000000	0x00000000	0x000102BA	271 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 0: Contacted SmartCard, Multi interface reader		Found in Dell E6400 laptop The reader reports "Hardware error" to GetSlotStatus when no card is present. <a href="http://ridrix.wordpress.com/2009/10/13/how-to-enable-pcsc-support-for-dell-contactless-reader/">How to enable PC/SC support for Dell Contactless Reader</a>	1.3.12
202		unsupported	Broadcom Corp	5880	0x0A5C	0x5801	Contactless SmartCard	3	0x0B [Chip Card Interface Device Class (CCID)]	1.01	0x00	0x01	0x0000 0x0003	3.580 MHz	3.580 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x000204BA	512 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 1: Contactless SmartCard, Multi interface reader	No extended APDU	Found in Dell E6400 laptop The reader reports "Hardware error" to GetSlotStatus when no card is present. <a href="http://ridrix.wordpress.com/2009/10/13/how-to-enable-pcsc-support-for-dell-contactless-reader/">How to enable PC/SC support for Dell Contactless Reader</a>	1.3.12
203		unsupported	Hewlett-Packard Company	HP USB CCID Smartcard Keyboard	0x03F0	0x0036	HP USB CCID Keyboard Smartcard Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	4.800 MHz	8.000 MHz	12903 bps	307200 bps	252	0x00000000	0x00000001	0x000100BA	271 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification		WARNING: Secure Pin Entry feature is bogus and has been disabled in version 1.4.6 of driver. firmware < 1.24 is bogus. SetParameters fails with a card of ATR 3B 16 96 41 73 74 72 69 64. The smart card reader part is from SCM.	1.4.1
204		unsupported	KEBTechnology	KONA USB SmartCard	0x04CC	0x5072	0	1	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0001	3.580 MHz	3.580 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x00000840	261 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD		The tokend fails to send the first APDU. Maybe the support of Character level is bogus in the CCID driver.	1.3.6
205		unsupported	O2	Micro Oz776	0x0B97	0x7762	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x03	0x0000 0x0003	4.000 MHz	4.000 MHz	9600 bps	307200 bps	254	0x00000000	0x00000000	0x00000030	271 bytes	0x00	0x00	0x0000	0x00	1			This reader is common as an internal reader in laptops like the Dell D420 or D820. The ATR may be corrupted by a 90 00 at the end The reader is bogus and does not accept PPS	0.9.3
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
206		unsupported	O2	Micro Oz776	0x0B97	0x7772	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	9600 bps	307200 bps	254	0x00000000	0x00000000	0x00000030	271 bytes	0x00	0x00	0x0000	0x00	1			This reader is common as an internal reader in laptops. The reader is bogus and does not accept PPS See also <a href="https://github.com/LudovicRousseau/CCID/pull/18">further issues with O2MICRO OZ776 (0b97:7772)</a> for a T=1 patch that may work for you	1.3.1
207		unsupported	VMware	Virtual USB CCID	0x0E0F	0x0004	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x000200BE	271 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification	No extended APDU	The dwFeatures looks to be incorrect. IFSD negoctiation by the driver is rejected. After a change to add CCID_CLASS_AUTO_IFSD then PC_to_RDR_GetSlotStatus fails with LIBUSB_ERROR_TIMEOUT. This reader is found in VMware workstation player 12 64 bit on Windows 7.	1.4.23
208		unsupported	THRC	Smart Card Reader	0x062D	0x0001	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x03	0x0000 0x0003	3.700 MHz	3.700 MHz	9946 bps	318280 bps	254	0x00000007	0x00000000	0x000204BE	271 bytes	0xFF	0xFF	0x0000	0x00	1		No extended APDU	also known as ID-SMID01, SCT018 and maybe other commercial names With the old firmware, PPS fails with a Cryptoflex card Powerup fails with a Setcos card	1.1.0
209		disabled	DUALi	DE-ABCM6	0x1DB2	0x0600	NO NAME	3	0xFF	1.10	0x00	0x03	0x0000 0x0003	3.600 MHz	3.600 MHz	9677 bps	619354 bps	254	0x00000000	0x00000000	0x000406BA	1014 bytes	0x00	0x00	0x0000	0x00	1			The first CmdGetSlotStatus() commands fail and init fail	1.4.23
210		disabled	OMNIKEY	5321 CLi USB	0x076B	0x532A	NO NAME	3	0xFF	1.00	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000207B2	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless	No extended APDU	bInterfaceClass: 0xFF: NOT A CCID DEVICE	1.4.27
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
211		disabled	OCS ID-One Cosmo Card	USB Smart Chip Device	0x1A74	0x6356	4	0	0xFF	2.00	0x00	0x01	0x0000 0x0002	3.580 MHz	3.580 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x00020840	261 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD	No extended APDU	The reader responds with bResponseType not defined in ICCD v1.0 specification. See http://archives.neohapsis.com/archives/dev/muscle/2009-q4/0059.html	1.3.12
212		disabled	jNet Technology inc.	jToken s1	0x0483	0x2010	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x01	0x0000 0x0001	3.580 MHz	3.580 MHz	9600 bps	9600 bps	0	0x00000000	0x00000000	0x00010840	271 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD			1.3.9
213		supported	ACS	ACR 38U-CCID	0x072F	0x90CC	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x01	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	129032 bps	254	0x00000000	0x00000000	0x00010030	271 bytes	0x00	0x00	0x0000	0x00	1			Old versions of this reader are bogus: the reader do timeout when a special USB frame is sent from the reader. If the frame size is a multiple of wMaxPacketSize the communication is stopped.	1.0.0
214		shouldwork	ACS	ACR38 plugin	0x072F	0x90CC	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344100 bps	247	0x00000000	0x00000000	0x00010030	271 bytes	0x00	0x00	0x0000	0x00	1				1.3.10
215		shouldwork	ACS	ACR1251 Dual Reader	0x072F	0x221A	ACR1251 Dual Reader PICC	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0002	4.000 MHz	4.000 MHz	10752 bps	250000 bps	512	0x00000000	0x00000000	0x00040040	522 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 0: ACR1251 Dual Reader PICC, Multi interface reader			1.4.20
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
216		shouldwork	ACS	ACR1251 Dual Reader	0x072F	0x221A	ACR1251 Dual Reader SAM	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	344100 bps	254	0x00000000	0x00000000	0x000200BA	288 bytes	0x00	0x00	0x0000	0x03	1	contactless, interface 1: ACR1251 Dual Reader SAM, Multi interface reader, PIN Verification, PIN Modification	No extended APDU		1.4.20
217		shouldwork	ACS	ACR1252 Dual Reader	0x072F	0x223B	ACR1252 Dual Reader PICC	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0002	4.000 MHz	4.000 MHz	10752 bps	250000 bps	254	0x00000000	0x00000000	0x00040040	522 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 0: ACR1252 Dual Reader PICC, Multi interface reader			1.4.21
218		shouldwork	ACS	ACR1252 Dual Reader	0x072F	0x223B	ACR1252 Dual Reader SAM	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	3.420 MHz	3.420 MHz	9193 bps	213750 bps	254	0x00000000	0x00000000	0x000204BA	288 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 1: ACR1252 Dual Reader SAM, Multi interface reader	No extended APDU		1.4.21
219		shouldwork	ACS	ACR1255U-J1	0x072F	0x223F	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0002	4.000 MHz	4.000 MHz	10752 bps	129032 bps	512	0x00000000	0x00000000	0x00040040	522 bytes	0x00	0x00	0x0000	0x00	1	contactless		Bluetooth	1.4.27
220		unsupported	ACS	ACR1281U	0x072F	0x2224	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x02	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	412903 bps	512	0x00000000	0x00000000	0x000404BA	522 bytes	0x00	0x00	0x0000	0x00	1	contactless, 3 slots		The reader does not propagate time extension requests to the host. APDU commands needing more time will fail.	1.5.0
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
221		shouldwork	ACS	ACR1552 CL Reader	0x072F	0x2308	ACR1552 CL Reader PICC	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	5.000 MHz	13.560 MHz	105938 bps	847500 bps	506	0x00000000	0x00000000	0x000404BA	516 bytes	0xFF	0xFF	0x0000	0x00	1	contactless			1.5.3
222		shouldwork	ACS	ACR1552 1S CL Reader	0x072F	0x2303	ACR1552 1S CL Reader PICC	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	5.000 MHz	13.560 MHz	105938 bps	847500 bps	506	0x00000000	0x00000000	0x000404BA	516 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 0: ACR1552 1S CL Reader PICC, Multi interface reader			1.5.3
223		shouldwork	ACS	ACR1552 1S CL Reader	0x072F	0x2303	ACR1552 1S CL Reader SAM	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	5.000 MHz	5.000 MHz	13441 bps	625000 bps	506	0x00000000	0x00000000	0x000404BA	516 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 1: ACR1552 1S CL Reader SAM, Multi interface reader			1.5.3
224		shouldwork	ACS	ACR1581 1S Dual Reader	0x072F	0x2301	ACR1581 1S Dual Reader PICC	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	5.000 MHz	13.560 MHz	105938 bps	847500 bps	506	0x00000000	0x00000000	0x000404BA	516 bytes	0xFF	0xFF	0x0000	0x00	1	Multi interface reader, interface 0: ACR1581 1S Dual Reader PICC			1.5.3
225		shouldwork	ACS	ACR1581 1S Dual Reader	0x072F	0x2301	ACR1581 1S Dual Reader ICC	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	5.000 MHz	5.000 MHz	13441 bps	625000 bps	506	0x00000000	0x00000000	0x000404BA	516 bytes	0xFF	0xFF	0x0000	0x00	1	Multi interface reader, interface 1: ACR1581 1S Dual Reader ICC			1.5.3
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
226		shouldwork	ACS	ACR1581 1S Dual Reader	0x072F	0x2301	ACR1581 1S Dual Reader SAM	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	5.000 MHz	5.000 MHz	13441 bps	625000 bps	506	0x00000000	0x00000000	0x000404BA	516 bytes	0xFF	0xFF	0x0000	0x00	1	Multi interface reader, interface 2: ACR1581 1S Dual Reader SAM			1.5.3
227		shouldwork	ACS	ACR3901U ICC Reader	0x072F	0xB000	ACR3901U ICC Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	600000 bps	247	0x00000000	0x00000000	0x000200BA	271 bytes	0x00	0x00	0x0000	0x00	1		No extended APDU	Bluetooth	1.4.23
228		shouldwork	ACS	ACR40T ICC Reader	0x072F	0xB501	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	826000 bps	247	0x00000000	0x00000000	0x000107BA	512 bytes	0xFF	0xFF	0x0000	0x00	1				1.5.3
229		shouldwork	ACS	AET65	0x072F	0x90CC	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344100 bps	247	0x00000000	0x00000000	0x00010030	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.0
230		shouldwork	ACS	APG8201 PINhandy 1	0x072F	0x8201	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x01	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344100 bps	254	0x00000000	0x00000000	0x00010030	271 bytes	0x00	0x00	0x0000	0x03	1	PIN Verification, PIN Modification			1.4.2
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
231		shouldwork	ACS	CryptoMate64	0x072F	0x90DB	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344100 bps	247	0x00000000	0x00000000	0x00010030	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.7
232		shouldwork	ACS	CryptoMate (T2)	0x072F	0xB106	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	16.000 MHz	12903 bps	826000 bps	247	0x00000000	0x00000000	0x000100B2	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.27
233		shouldwork	ACS	CryptoMate EVO	0x072F	0xB112	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	16.000 MHz	12903 bps	826000 bps	247	0x00000000	0x00000000	0x000100B2	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.34
234		shouldwork	ACS	WalletMate 1S CL Reader	0x072F	0x226B	WalletMate 1S CL Reader PICC	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0002	4.000 MHz	4.000 MHz	10752 bps	250000 bps	512	0x00000000	0x00000000	0x000404BA	522 bytes	0x00	0x00	0x0000	0x00	1	Multi interface reader, interface 0: WalletMate 1S CL Reader PICC			1.5.3
235		shouldwork	ACS	WalletMate 1S CL Reader	0x072F	0x226B	WalletMate 1S CL Reader SAM	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	3.420 MHz	3.420 MHz	9193 bps	213750 bps	254	0x00000000	0x00000000	0x000204BA	288 bytes	0x00	0x00	0x0000	0x00	1	Multi interface reader, interface 1: WalletMate 1S CL Reader SAM	No extended APDU		1.5.3
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
236		shouldwork	Akasa	AK-CR-03	0x058F	0x9520	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x03	0x0000 0x0003	3.700 MHz	3.700 MHz	9946 bps	318280 bps	254	0x00000007	0x00000000	0x000204BE	271 bytes	0xFF	0xFF	0x0000	0x00	1		No extended APDU		1.4.1
237		shouldwork	AK910	CKey	0x2021	0x0001	akCCID	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	250000 bps	247	0x00000000	0x00000000	0x000100B6	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.19
238		shouldwork	AK910	CKey	0x2021	0x0011	akCCID	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	250000 bps	247	0x00000000	0x00000000	0x000100B6	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.19
239		shouldwork	AK910	IDONE	0x2021	0x0101	akCCID	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	250000 bps	247	0x00000000	0x00000000	0x000100B6	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.19
240		shouldwork	ANCUD	CCID USB Reader & RNG	0x0483	0xACD1	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0001	3.600 MHz	3.600 MHz	9677 bps	9677 bps	0	0x00000000	0x00000000	0x000104BA	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.27
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
241		supported	Athena	ASEDrive IIIe KB	0x0DC3	0x1102	4	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	333333 bps	252	0x00000000	0x00000000	0x00010330	271 bytes	0x00	0x00	0x0000	0x03	1	PIN Verification, PIN Modification		Firmware older than 6.07 is bogus	1.0.1
242		supported	Athena	ASE IIIe	0x0DC3	0x1004	4	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	333333 bps	252	0x00000000	0x00000000	0x00010330	271 bytes	0x00	0x00	0x0000	0x00	1				1.0.0
243		shouldwork	Access IS	ATR210	0x0DB5	0x0170	NFC0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.000 MHz	13.560 MHz	106000 bps	848000 bps	2048	0x00000000	0x00000000	0x0004007A	2048 bytes	0xFF	0xFF	0x0000	0x00	1	contactless			1.4.32
244		shouldwork	Access IS	ATR220	0x0DB5	0x0180	NFC0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.000 MHz	13.560 MHz	106000 bps	848000 bps	2048	0x00000000	0x00000000	0x0004007A	2048 bytes	0xFF	0xFF	0x0000	0x00	1	contactless			1.4.32
245		shouldwork	Access IS	ATR220	0x0DB5	0x0184	NFC0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.000 MHz	13.560 MHz	106000 bps	848000 bps	2048	0x00000000	0x00000000	0x0004007A	2048 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 0: NFC0, Multi interface reader			1.5.1
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
246		shouldwork	Access IS	ATR220	0x0DB5	0x0184	SMC0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	10752 bps	1024	0x00000000	0x00000000	0x0004067E	1024 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 1: SMC0, Multi interface reader			1.5.1
247		shouldwork	Access IS	ATR220	0x0DB5	0x0184	SMC1	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	10752 bps	1024	0x00000000	0x00000000	0x0004067E	1024 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 2: SMC1, Multi interface reader			1.5.1
248		shouldwork	Access IS	ATR220	0x0DB5	0x0184	SMC2	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	10752 bps	1024	0x00000000	0x00000000	0x0004067E	1024 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 3: SMC2, Multi interface reader			1.5.1
249		shouldwork	Access IS	ATR220	0x0DB5	0x0184	SMC3	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	10752 bps	1024	0x00000000	0x00000000	0x0004067E	1024 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 4: SMC3, Multi interface reader			1.5.1
250		shouldwork	Access IS	NFC Smart Module	0x0DB5	0x0164	NFC0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.000 MHz	13.560 MHz	106000 bps	848000 bps	2048	0x00000000	0x00000000	0x0004007A	2048 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 0: NFC0, Multi interface reader			1.4.29
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
251		shouldwork	Access IS	NFC Smart Module	0x0DB5	0x0164	SMC0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	10752 bps	1024	0x00000000	0x00000000	0x0004067E	1024 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 1: SMC0, Multi interface reader			1.4.29
252		shouldwork	Access IS	NFC Smart Module	0x0DB5	0x0164	SMC1	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	10752 bps	1024	0x00000000	0x00000000	0x0004067E	1024 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 2: SMC1, Multi interface reader			1.4.29
253		shouldwork	Access IS	NFC Smart Module	0x0DB5	0x0164	SMC2	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	10752 bps	1024	0x00000000	0x00000000	0x0004067E	1024 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 3: SMC2, Multi interface reader			1.4.29
254		shouldwork	Access IS	NFC Smart Module	0x0DB5	0x0164	SMC3	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	10752 bps	1024	0x00000000	0x00000000	0x0004067E	1024 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 4: SMC3, Multi interface reader			1.4.29
255		shouldwork	Access IS	ePassport Reader	0x0DB5	0x0138	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	10752 bps	254	0x00000000	0x00000000	0x0004007A	278 bytes	0xFF	0xFF	0x0000	0x00	1	contactless		Also known as OCR601 Half-Page MRZ Passport & ID Document Reader	1.4.13
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
256		unsupported	ActivCard	ActivCard USB Reader V2	0x09C3	0x0008	4	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x01	0x0000 0x0003	4.000 MHz	4.000 MHz	9600 bps	115200 bps	252	0x00000000	0x00000000	0x000100BA	263 bytes	0xFF	0xFF	0x0000	0x00	1			The reader do timeout when a special USB frame is sent from the reader. If the frame size if a multiple of wMaxPacketSize the communication is stopped. Some users report that this reader is in fact a SCR-331 with a different firmware and that you can upgrade its firmware to transform it into a (supported) SCR-331 reader.	1.0.0
257		supported	ActivIdentity	Activkey_Sim	0x09C3	0x0014	CCID Bulk Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	412903 bps	254	0x00000000	0x00000000	0x00010030	271 bytes	0x00	0x00	0x0000	0x00	1				1.1.0
258		shouldwork	Aktiv	Rutoken PINPad 2	0x0A89	0x0082	NO NAME	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0002	3.580 MHz	3.580 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x00020840	271 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD	No extended APDU		1.4.22
259		shouldwork	Aktiv	Rutoken SCR 3001 Reader	0x0A89	0x0069	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.580 MHz	5.000 MHz	9600 bps	625000 bps	254	0x00000000	0x00000000	0x000204B8	271 bytes	0xFF	0xFF	0x0000	0x00	1		No extended APDU		1.4.34
260		shouldwork	Aktiv	Rutoken SCR 3101 NFC Reader	0x0A89	0x006A	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x01	0x0000 0x0003	3.580 MHz	5.000 MHz	9600 bps	312500 bps	254	0x00000000	0x00000000	0x000204B8	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless	No extended APDU		1.5.3
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
261		shouldwork	Aladdin R.D.	JCR-770	0x24DC	0x0201	CCID	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344086 bps	254	0x00000000	0x00000000	0x000404B2	271 bytes	0x00	0x00	0x0511	0x03	1	PIN Verification, PIN Modification			1.4.22
262		shouldwork	Aladdin R.D.	JCR SecurBio	0x24DC	0x0420	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10753 bps	250000 bps	253	0x00000000	0x00000000	0x0002004A	271 bytes	0x00	0x00	0x0000	0x00	1		No extended APDU		1.6.0
263		shouldwork	Aladdin R.D.	JaCarta	0x24DC	0x0101	Main Interface	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	10752 bps	252	0x00000000	0x00000000	0x0001023C	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.22
264		shouldwork	Aladdin R.D.	JaCarta	0x24DC	0x0402	NO NAME	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0002	4.000 MHz	4.000 MHz	9600 bps	250000 bps	261	0x00000000	0x00000000	0x00040042	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.25
265		shouldwork	Aladdin R.D.	JaCartaReader	0x24DC	0x0428	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10753 bps	250000 bps	254	0x00000000	0x00000000	0x00010038	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.31
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
266		shouldwork	Aladdin R.D.	JaCarta Flash	0x24DC	0x100F	JaCarta	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344086 bps	252	0x00000007	0x00000000	0x00010330	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.22
267		shouldwork	Aladdin R.D.	JaCarta LT	0x24DC	0x0102	Main Interface	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	10752 bps	252	0x00000000	0x00000000	0x0001023C	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.22
268		shouldwork	Aladdin R.D.	JaCarta U2F (JC602)	0x24DC	0x0501	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	2.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	672 bps	250000 bps	261	0x00000000	0x00000000	0x00040042	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.22
269		shouldwork	Aladdin R.D.	JC-WebPass (JC600)	0x24DC	0x0401	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	2.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	672 bps	250000 bps	261	0x00000000	0x00000000	0x00040042	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.22
270		shouldwork	Alcor Micro	SCR001	0x058F	0x9520	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x03	0x0000 0x0003	3.700 MHz	3.700 MHz	9946 bps	318280 bps	254	0x00000007	0x00000000	0x000204BE	271 bytes	0xFF	0xFF	0x0000	0x00	1		No extended APDU		1.3.11
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
271		shouldwork	Alpha-Project	ANGARA Token	0x2A0C	0x0021	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	10.01	0x00	0x01	0x0000 0x0003	3.700 MHz	3.700 MHz	9600 bps	115200 bps	271	0x00000000	0x00000000	0x000104B4	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.5.5
272		shouldwork	ArkSigner	Connect2Sign	0x33B6	0x0001	Arksigner CCID Device	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x06	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	312500 bps	254	0x00000000	0x00000000	0x0002007E	510 bytes	0xFF	0xFF	0x0000	0x00	1		No extended APDU		1.4.35
273		shouldwork	Athena	ASEDrive IIIe Combo Bio PIV	0x0DC3	0x1008	ASEDrive IIIe Combo?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.000 MHz	18.000 MHz	10752 bps	999936 bps	253	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.22
274		shouldwork	Athena	ASEDrive IIIe KB Bio PIV	0x0DC3	0x1007	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.000 MHz	18.000 MHz	10752 bps	999936 bps	253	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.22
275		shouldwork	Athena	IDProtect Key v2	0x0DC3	0x0900	Main Interface	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	10752 bps	252	0x00000000	0x00000000	0x0001023C	271 bytes	0x00	0x00	0x0000	0x00	1			Be to have a v2 token (bcdDevice: 2.00). The V1 token is bogus: PPS to set the card in T=1 fails. See http://www.opensc-project.org/pipermail/opensc-user/2010-May/004023.html	1.3.12
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
276		unsupported	Athena	IDProtect Flash	0x0DC3	0x100F	IDProtect Flash	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344086 bps	252	0x00000007	0x00000000	0x00010330	271 bytes	0x00	0x00	0x0000	0x00	1			The reader does not work with a GnuPG card V2 card. All APDUs are rejected with "Card absent or mute".	1.4.28
277		shouldwork	AvestUA	AvestKey	0xC1A6	0x0131	NO NAME	2	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x01	0x0000 0x0002	3.580 MHz	3.580 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x00040840	271 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD			1.4.31
278		shouldwork	AvidCard	CAC Smart Card Reader	0x04E6	0x5824	CCID Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	16.000 MHz	12903 bps	600000 bps	252	0x00000000	0x00000000	0x000100BA	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.6.0
279		shouldwork	~Avtor	KP-375BLE	0x096E	0x0624	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.000 MHz	12.000 MHz	10752 bps	688172 bps	271	0x00000000	0x00000000	0x000404BA	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.34
280		shouldwork	~Avtor	SC Reader KP382	0x096E	0x0608	KP382 Contactless Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x01	0x0000 0x0002	4.000 MHz	4.000 MHz	10752 bps	688172 bps	252	0x00000007	0x00000000	0x000404BE	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless			1.4.34
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
281		shouldwork	Avtor	SecureToken	0x15CF	0x0020	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0002	3.571 MHz	3.571 MHz	9600 bps	115200 bps	254	0x00000007	0x00000000	0x000207B2	271 bytes	0xFF	0xFF	0x0000	0x00	1		No extended APDU		1.4.31
282		shouldwork	Avtor	SC Reader 371	0x15CF	0x001D	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	10.01	0x00	0x01	0x0000 0x0003	3.571 MHz	3.571 MHz	9600 bps	115200 bps	254	0x00000000	0x00000000	0x000204BA	271 bytes	0xFF	0xFF	0x0000	0x00	1		No extended APDU		1.4.6
283		shouldwork	Avtor	SecureToken	0x15CF	0x0019	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.580 MHz	3.580 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x000204BA	272 bytes	0xFF	0xFF	0x0000	0x00	1		No extended APDU		1.4.6
284		shouldwork	BIFIT	USB-Token iBank2key	0x23A0	0x0001	?	2	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0002	5.000 MHz	5.000 MHz	13440 bps	430107 bps	254	0x00000000	0x00000000	0x000205B8	272 bytes	0x00	0x00	0x0000	0x00	1		No extended APDU		1.4.5
285		shouldwork	BIFIT	ANGARA	0x23A0	0x0008	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0001	5.000 MHz	5.000 MHz	13440 bps	430107 bps	0	0x00000000	0x00000000	0x000100B8	270 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.30
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
286		shouldwork	BIFIT	iToken	0x23A0	0x0003	iToken	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0001	1.500 MHz	1.500 MHz	4032 bps	93750 bps	0	0x00000000	0x00000000	0x000100B8	270 bytes	0x00	0x00	0x0000	0x00	1				1.4.20
287		shouldwork	BIFIT	iBank2Key	0x23A0	0x0002	iBank2Key	0	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0001	3.580 MHz	3.580 MHz	9600 bps	9600 bps	64	0x00000000	0x00000000	0x00000840	271 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD			1.4.5
288		shouldwork	Bit4id	Digital-DNA Key BT	0x25DD	0x2361	CCID Digital DNA Key	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0002	4.000 MHz	4.000 MHz	10752 bps	129500 bps	247	0x00000000	0x00000000	0x00010030	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.29
289		shouldwork	Bit4id	Digital-DNA Key	0x25DD	0x2362	CCID Digital DNA Key	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0002	4.000 MHz	4.000 MHz	10752 bps	129500 bps	247	0x00000000	0x00000000	0x00010030	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.29
290		shouldwork	Bit4id	Digital-DNA Key	0x25DD	0x2354	CCID	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0002	4.000 MHz	4.000 MHz	10752 bps	129500 bps	254	0x00000000	0x00000000	0x00010030	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.34
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
291		shouldwork	Bit4id	Digital DNA Key	0x25DD	0x2351	?	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0002	3.580 MHz	3.580 MHz	9600 bps	115200 bps	1080	0x00000000	0x00000000	0x000404BE	1090 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.26
292		shouldwork	Bit4id	tokenME FIPS v3	0x25DD	0x2341	?	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0002	3.580 MHz	3.580 MHz	9600 bps	115200 bps	1080	0x00000000	0x00000000	0x000404BE	1090 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.26
293		supported	BLUTRONICS	BLUDRIVE II CCID	0x1B0E	0x1078	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x01	0x0000 0x0003	3.580 MHz	3.580 MHz	9600 bps	115200 bps	252	0x00000000	0x00000000	0x00010130	271 bytes	0x00	0x00	0x0000	0x00	1				1.3.3
294		shouldwork	BLUTRONICS	BLUDRIVE II CCID	0x1B0E	0x1079	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.700 MHz	3.700 MHz	9946 bps	318280 bps	254	0x00000007	0x00000000	0x000404BE	272 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.20
295		shouldwork	CASTLES	EZCCID Smart Card Reader	0x0CA6	0x00A0	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x01	0x0000 0x0003	3.580 MHz	3.580 MHz	9600 bps	115200 bps	252	0x00000000	0x00000000	0x00010130	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.19
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
296		shouldwork	CCB	eSafeLD	0x8829	0xCCB2	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x01	0x0000 0x0002	3.580 MHz	3.580 MHz	9600 bps	9600 bps	1041	0x00000000	0x00000000	0x00040672	1041 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.7
297		shouldwork	CIRIGHT	ONE PASS U2F	0x1FC9	0x0905	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	800000 bps	254	0x00000000	0x00000000	0x00010330	271 bytes	0x00		0x0000	0x00	1				1.5.3
298		shouldwork	id3 Semiconductors	CL1356A_HID	0x0B81	0x0220	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x01	0x0000 0x0002	4.000 MHz	4.000 MHz	106000 bps	847000 bps	254	0x00000000	0x00000000	0x00040042	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless			1.3.7
299		supported	id3 Semiconductors	CL1356T	0x0B81	0x0200	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0002	4.000 MHz	4.000 MHz	106000 bps	847000 bps	254	0x00000000	0x00000000	0x00040042	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless			1.3.12
300		shouldwork	id3 Semiconductors	CL1356T5	0x0B81	0x0200	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0002	4.000 MHz	4.000 MHz	106000 bps	847000 bps	254	0x00000000	0x00000000	0x00040042	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless			1.3.12
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
301		shouldwork	Canokeys	Canokey	0x20A0	0x42D4	OpenPGP PIV OATH	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0002	4.000 MHz	4.000 MHz	307200 bps	307200 bps	1342	0x00000000	0x00000000	0x000400FE	1352 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.34
302		shouldwork	Certgate GmbH	AirID 2 USB	0x2DFF	0xB601	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0003	3.580 MHz	3.580 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x00040040	8192 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.30
303		shouldwork	Certgate GmbH	ONEKEY ID 2 USB	0x2DFF	0xB602	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0003	3.580 MHz	3.580 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x00040040	8192 bytes	0xFF	0xFF	0x0000	0x00	1			NFC Bluetooth	1.4.31
304		supported	Cherry GmbH	CHERRY SECURE BOARD 1.0	0x046A	0x01A2	CHERRY SECURE BOARD 1.0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.685 MHz	14.320 MHz	9909 bps	848000 bps	254	0x00000000	0x00000000	0x000404BA	271 bytes	0x00	0x00	0x0000	0x03	1	contactless, PIN Verification, PIN Modification		Does not work on macOS. The reader firmware is bogus and does not support card status polling. macOS does not support card events by TAG_IFD_POLLING_THREAD_WITH_TIMEOUT.	1.4.32
305		shouldwork	Cherry	KC 1000 SC	0x046A	0x00A1	KC 1000 SC	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000407BA	271 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification		With older versions of the firmware (1.00) it is possible to enable extended APDU. See <a href="https://www.cherry.de/files/manual/PLT-02339_A.2_CHERRY_KC_1000_SC_SW_Dev_Guide_en.pdf">CHERRY KC 1000 SC Software Developer Guide</a>. The reader limits the maximum size in the dwLength field of the PC_to_RDR_Secure message to 128 bytes. A longer length makes the reader reject the message with "CCID_Receive error on byte 8". This limitation was seen in the current firmware (version 1.02) and makes it impossible to use secure PIN change commands where multiple, long, padded PINs are used, such as 64-byte PINs in IAS-ECC cards from Idemia".	1.4.19
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
306		shouldwork	Cherry	KC 1000 SC/DI	0x046A	0x00A2	KC 1000 SC/DI	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000207B8	271 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification	No extended APDU		1.4.19
307		shouldwork	Cherry	KC 1000 SC/DI Z	0x046A	0x00A5	KC 1000 SC/DI Z	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000207B8	271 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification	No extended APDU		1.4.19
308		shouldwork	Cherry	KC 1000 SC Z	0x046A	0x00A4	KC 1000 SC Z	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000407BA	271 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification			1.4.19
309		shouldwork	Cherry	Cherry TC 1100	0x046A	0x0090	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	492	0x00000007	0x00000000	0x000407B2	502 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.18
310		shouldwork	Cherry	TC 1300	0x046A	0x0092	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000103B0	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless		The contactless interface is not supported.	1.4.19
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
311		shouldwork	Chicony	HP Skylab USB Smartcard Keyboard	0x04F2	0x1469	HP Skylab Smartcard Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	12.000 MHz	12903 bps	412903 bps	254	0x00000000	0x00000000	0x000104BA	271 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification			1.4.29
312		shouldwork	Chicony	USB Smart Card Keyboard	0x04F2	0x0967	USB Keyboard Smart Card Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	12.000 MHz	12903 bps	412903 bps	254	0x00000000	0x00000000	0x000104BA	271 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification			1.4.19
313		shouldwork	COVADIS	Auriga	0x0982	0x0040	0	3	0x0B [Chip Card Interface Device Class (CCID)]	10.01	0x02	0x07	0x0000 0x0003	2.000 MHz	2.000 MHz	5376 bps	21504 bps	254	0x00000000	0x00000000	0x00020472	271 bytes	0x00	0x00	0x0000	0x00	2	biometric, 3 slots	No extended APDU		1.3.12
314		shouldwork	Raritan	D2CIM-DVUSB VM/CCID	0x14DD	0x1006	18	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344086 bps	254	0x00000000	0x00000000	0x00010238	271 bytes	0x00	0x00	0x0000	0x00	1				1.3.11
315		shouldwork	DESKO GmbH	PENTA Scanner	0x1AC2	0x0302	SmartCard Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.685 MHz	14.320 MHz	9909 bps	848000 bps	254	0x00000000	0x00000000	0x000404BE	271 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 0: SmartCard Reader, Multi interface reader			1.4.34
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
316		shouldwork	DESKO GmbH	PENTA Scanner	0x1AC2	0x0302	SmartCard Reader CT	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	9909 bps	848000 bps	254	0x00000000	0x00000000	0x000204BE	271 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 1: SmartCard Reader CT, Multi interface reader	No extended APDU		1.4.34
317		shouldwork	DESKO GmbH	IDenty chrom	0x1AC2	0x0300	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.685 MHz	14.320 MHz	9909 bps	848000 bps	254	0x00000000	0x00000000	0x000404BE	271 bytes	0x00	0x00	0x0000	0x00	1	contactless			1.4.34
318		shouldwork	Secure Device Solutions	DOMINO-Key TWIN	0x0B81	0x8007	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	4.800 MHz	12.000 MHz	12903 bps	825807 bps	252	0x00000000	0x00000000	0x00010200	270 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.5
319		shouldwork	VASCO	DIGIPASS KEY 860	0x1A44	0x0117	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344086 bps	254	0x00000000	0x00000000	0x000404B2	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.2
320		shouldwork	VASCO	DIGIPASS KEY 200	0x1A44	0x0119	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344086 bps	254	0x00000000	0x00000000	0x000404B2	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.2
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
321		shouldwork	DUALi	DE-620 Combi	0x1DB2	0x0801	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	3.600 MHz	3.600 MHz	9677 bps	619354 bps	254	0x00000000	0x00000000	0x000406BA	2038 bytes	0x00	0x00	0x0000	0x00	1	contactless			1.4.27
322		shouldwork	DUALi	DE-ABCM6 RFRW	0x1DB2	0x080C	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	3.600 MHz	3.600 MHz	9677 bps	619354 bps	254	0x00000000	0x00000000	0x000406BA	1014 bytes	0x00	0x00	0x0000	0x00	1	contactless			1.4.35
323		shouldwork	DUALi	DRAGON NFC READER	0x1DB2	0x088B	DRAGON NFC READER	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	3.600 MHz	3.600 MHz	9677 bps	619354 bps	254	0x00000000	0x00000000	0x000406BA	2048 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 0: DRAGON NFC READER, Multi interface reader			1.4.15
324		shouldwork	DUALi	DRAGON NFC READER	0x1DB2	0x088B	DRAGON SAM READER	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	3.600 MHz	3.600 MHz	9677 bps	619354 bps	254	0x00000000	0x00000000	0x000406BA	2048 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 1: DRAGON SAM READER, Multi interface reader			1.4.15
325		unsupported	Generic	Smart Card Reader Interface	0x0BDA	0x0165	Smart Card Reader Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.750 MHz	7.500 MHz	10080 bps	312500 bps	254	0x00000000	0x00000000	0x00010030	271 bytes	0x00	0x00	0x0000	0x00	1			Also known as Dectel CI692 or NEXOOS 610. The reader may not read all the smart card. See https://lists.infradead.org/pipermail/pcsclite-muscle/2015-October/000471.html	1.4.0
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
326		supported	Dell	Dell Smart Card Reader Keyboard	0x413C	0x2101	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.01	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	825806 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x03	1	PIN Verification, PIN Modification		Seems to support SPE only if the VERIFY command has a fixed length. See http://comments.gmane.org/gmane.comp.encryption.opensc.devel/12773	0.9.0
327		supported	Dell	keyboard SK-3106	0x413C	0x2100	?????	3	0xFF	1.00	0x00	0x03	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	129032 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x01	1	PIN Verification			0.9.0
328		shouldwork	Dexon Tecnologias Digitais LTDA	DXToken	0x0483	0xA389	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.580 MHz	3.580 MHz	9600 bps	9600 bps	252	0x00000000	0x00000000	0x0001023C	271 bytes	0x00	0x00	0x0000	0x00	1				1.5.1
329		shouldwork	Dexon Tecnologias Digitais LTDA	eSmartDX	0x0483	0xA40B	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	9600 bps	688172 bps	254	0x00000000	0x00000000	0x000404BE	272 bytes	0xFF	0xFF	0x0000	0x00	1				1.5.3
330		shouldwork	ELYCTIS	CL reader	0x1FFA	0x0002	CCID Interfa00	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0002 0x0003	3.686 MHz	3.686 MHz	10753 bps	344105 bps	1024	0x00000000	0x00000000	0x000404BE	1034 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 0: CCID Interfa00, Multi interface reader		the 2 contact readers are in fact 2 Identive CLOUD 2700 R Smart Card Reader	1.5.0
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
331		shouldwork	~ELYCTIS	CNT reader	0x04E6	0x5810	CCID Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	16.000 MHz	12903 bps	600000 bps	254	0x00000000	0x00000000	0x000100BA	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 1: CCID Interface, Multi interface reader		the 2 contact readers are in fact 2 Identive CLOUD 2700 R Smart Card Reader	1.5.0
332		shouldwork	~ELYCTIS	CNT reader	0x04E6	0x5810	CCID Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	16.000 MHz	12903 bps	600000 bps	254	0x00000000	0x00000000	0x000100BA	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 2: CCID Interface, Multi interface reader		the 2 contact readers are in fact 2 Identive CLOUD 2700 R Smart Card Reader	1.5.0
333		shouldwork	ESMART	Reader ER433x ICC	0x2CE4	0x5001	Reader ER433x ICC	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	826000 bps	254	0x00000000	0x00000000	0x000100B2	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.5.1
334		shouldwork	ESMART	Reader ER773x Dual & 1S	0x2CE4	0x5020	Reader ER773x Dual & 1S	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x02	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	412903 bps	512	0x00000000	0x00000000	0x000404BA	522 bytes	0x00	0x00	0x0000	0x00	1	3 slots			1.5.1
335		shouldwork	Elatec	TWN4/B1.06/CPF3.05/S1SC1.32/P (Beta 3)	0x09D8	0x0428	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	5.000 MHz	15.000 MHz	13441 bps	625000 bps	254	0x00000001	0x00000000	0x000404B2	64 bytes	0xFF	0xFF	0x0000	0x00	1			You may need to use the Windows tool AppBlaster to load a firmware with CCID support.	1.4.28
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
336		shouldwork	Elatec	TWN4 SmartCard NFC	0x09D8	0x0427	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x05	0x07	0x0000 0x0003	5.000 MHz	15.000 MHz	13441 bps	625000 bps	254	0x00000001	0x00000000	0x00010032	64 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, 6 slots			1.4.19
337		supported	Eutron	Smart Pocket	0x073D	0x0C01	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344086 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1				1.3.1
338		supported	Eutron	Digipass 860	0x073D	0x0B00	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344086 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1				1.3.1
339		shouldwork	Generic	EMV Smartcard Reader	0x058C	0x9590	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	10752 bps	254	0x00000000	0x00000000	0x000407BA	273 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.35
340		shouldwork	FT	Biopass CCID	0x096E	0x086C	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	3.700 MHz	3.700 MHz	9600 bps	115200 bps	271	0x00000000	0x00000000	0x000404B4	271 bytes	0x00	0x00	0x0000	0x00	1	biometric			1.4.34
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
341		shouldwork	FT	Biopass FIDO2	0x096E	0x0867	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	3.700 MHz	3.700 MHz	9600 bps	115200 bps	271	0x00000000	0x00000000	0x000404B4	271 bytes	0x00	0x00	0x0000	0x00	1	biometric			1.4.34
342		shouldwork	FT	Biopass KB CCID	0x096E	0x0869	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	3.700 MHz	3.700 MHz	9600 bps	115200 bps	271	0x00000000	0x00000000	0x000404B4	271 bytes	0x00	0x00	0x0000	0x00	1	biometric			1.4.34
343		shouldwork	FT	Biopass KB FIDO CCID	0x096E	0x0868	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	3.700 MHz	3.700 MHz	9600 bps	115200 bps	271	0x00000000	0x00000000	0x000404B4	271 bytes	0x00	0x00	0x0000	0x00	1	biometric			1.4.34
344		shouldwork	FT	CCID	0x096E	0x0859	CCID	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0002	4.000 MHz	4.000 MHz	307200 bps	307200 bps	1024	0x00000000	0x00000000	0x000400FE	1034 bytes	0xFF	0xFF	0x0000	0x00	1	NFC			1.4.27
345		shouldwork	FT	CCID KB	0x096E	0x0855	CCID	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0002	4.000 MHz	4.000 MHz	307200 bps	307200 bps	1024	0x00000000	0x00000000	0x000400FE	1034 bytes	0xFF	0xFF	0x0000	0x00	1	NFC			1.4.27
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
346		shouldwork	FT	U2F CCID	0x096E	0x0856	CCID	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0002	4.000 MHz	4.000 MHz	307200 bps	307200 bps	1024	0x00000000	0x00000000	0x000400FE	1034 bytes	0xFF	0xFF	0x0000	0x00	1	NFC			1.4.27
347		shouldwork	FT	U2F CCID KB	0x096E	0x0853	CCID	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0002	4.000 MHz	4.000 MHz	307200 bps	307200 bps	1024	0x00000000	0x00000000	0x000400FE	1034 bytes	0xFF	0xFF	0x0000	0x00	1	NFC			1.4.27
348		shouldwork	Feitian	BLE CCID Dongle	0x096E	0x0621	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.700 MHz	3.700 MHz	9946 bps	318280 bps	384	0x00000007	0x00000000	0x000404BE	516 bytes	0xFF	0xFF	0x0000	0x00	1			BLE dongle to work with the Feitian BLE readers	1.4.34
349		shouldwork	FT	ePass2003Auto	0x096E	0x080A	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0002	3.580 MHz	3.580 MHz	9600 bps	9600 bps	2080	0x00000000	0x00000000	0x00040840	2102 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD			1.4.21
350		shouldwork	Feitian Technologies	FT SCR310	0x096E	0x0505	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	8.000 MHz	10752 bps	600000 bps	248	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	0				1.4.2
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
351		unsupported	Feitian	SCR301	0x096E	0x0503	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.000 MHz	12.000 MHz	10752 bps	500000 bps	252	0x00000000	0x00000000	0x00010238	271 bytes	0xFF	0xFF	0x0000	0x00	1			The reader fails with a CASE 2 APDU with Le=0 (256 bytes) Sent: 80 34 01 00 00 ifdhandler.c:1219:IFDHTransmitToICC() no name (lun: 0) commands.c:1542:CmdXfrBlockTPDU_T0() T=0: 5 bytes -> 000000 6F 05 00 00 00 00 07 00 00 00 80 34 01 00 00 <- 000000 80 00 00 00 00 00 07 40 FE 00 commands.c:1316:CCID_Receive Card absent or mute And time extension requests are not forwarded back to the host. A new version of the reader is available and may fix this issue.	1.3.11
352		shouldwork	Feitian	502-CL	0x096E	0x0608	R502 Contactless Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x01	0x0000 0x0002	4.000 MHz	4.000 MHz	10752 bps	688172 bps	252	0x00000007	0x00000000	0x000404BE	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless			1.4.19
353		shouldwork	Feitian	R502	0x096E	0x060D	R502 Contactless Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x01	0x0000 0x0002	4.000 MHz	4.000 MHz	10752 bps	688172 bps	252	0x00000007	0x00000000	0x000404BE	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 0: R502 Contactless Reader, Multi interface reader			1.4.17
354		shouldwork	Feitian	R502	0x096E	0x060D	R502 Contact Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	688172 bps	252	0x00000007	0x00000000	0x000102B8	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 1: R502 Contact Reader, Multi interface reader			1.4.17
355		shouldwork	Feitian	R502	0x096E	0x060D	R502 SAM1 Reader	2	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	688172 bps	252	0x00000007	0x00000000	0x000102B8	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 2: R502 SAM1 Reader, Multi interface reader			1.4.17
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
356		shouldwork	Feitian	R502	0x096E	0x060D	R502 SAM2 Reader	2	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	688172 bps	252	0x00000007	0x00000000	0x000102B8	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 3: R502 SAM2 Reader, Multi interface reader			1.4.17
357		shouldwork	Feitian	R701	0x096E	0x062E	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.000 MHz	3.850 MHz	10752 bps	500000 bps	252	0x00000000	0x00000000	0x000404BA	271 bytes	0xFF	0xFF	0x0418	0x00	1				1.4.35
358		shouldwork	Feitian	R805	0x096E	0x0685	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.700 MHz	3.700 MHz	9946 bps	318280 bps	1024	0x00000007	0x00000000	0x000404BE	1024 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.34
359		shouldwork	FEITIAN	bR301	0x096E	0x061A	bR301 Bluetooth Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	3.700 MHz	3.700 MHz	9946 bps	318280 bps	272	0x00000007	0x00000000	0x000404BE	272 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.15
360		shouldwork	Feitian	bR500	0x096E	0x0623	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.700 MHz	3.700 MHz	9946 bps	318280 bps	516	0x00000007	0x00000000	0x000404BE	516 bytes	0xFF	0xFF	0x0000	0x00	1	contactless			1.4.25
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
361		shouldwork	Feitian	ePass2003	0x096E	0x0807	?	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0002	3.580 MHz	3.580 MHz	9600 bps	9600 bps	2048	0x00000000	0x00000000	0x00040840	2100 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD		The device may fail at generating keys onboard. See <a href="https://github.com/OpenSC/OpenSC/issues/301">epass2003 RSA/2048 Failed to Generate Key on OSX, VirtualBOX</a>	1.4.3
362		shouldwork	FEITIAN	iR301	0x096E	0x0619	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	3.700 MHz	3.700 MHz	9946 bps	318280 bps	272	0x00000007	0x00000000	0x000404BE	272 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.21
363		shouldwork	FEITIAN	iR301	0x096E	0x061C	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10753 bps	344086 bps	272	0x00000007	0x00000000	0x000404BE	272 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.21
364		shouldwork	Feitian	VR504 VHBR Contactless & Contact Card Reader	0x096E	0x0622	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.700 MHz	3.700 MHz	9600 bps	115200 bps	2296	0x00000007	0x00000000	0x000404BE	4106 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 0: NO NAME, Multi interface reader			1.4.25
365		shouldwork	Feitian	VR504 VHBR Contactless & Contact Card Reader	0x096E	0x0622	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10753 bps	344086 bps	272	0x00000007	0x00000000	0x000404BE	272 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 1: NO NAME, Multi interface reader			1.4.25
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
366		shouldwork	Feitian	vR504 Contactless Reader	0x096E	0x0622	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.700 MHz	3.700 MHz	9600 bps	115200 bps	4106	0x00000007	0x00000000	0x000404BE	4106 bytes	0xFF	0xFF	0x0000	0x00	1	contactless			1.4.34
367		shouldwork	Flight system consulting	Incredist	0x2925	0x700A	Incredist Contact	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	16.000 MHz	12903 bps	250000 bps	1024	0x00000000	0x00000000	0x000404BA	65535 bytes	0xFF	0xFF	0x0000	0x03	1	contactless, interface 0: Incredist Contact, Multi interface reader, PIN Verification, PIN Modification			1.5.1
368		shouldwork	Flight system consulting	Incredist	0x2925	0x700A	Incredist Contactless	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.000 MHz	4.000 MHz	9600 bps	250000 bps	1024	0x00000000	0x00000000	0x000404BE	65535 bytes	0xFF	0xFF	0x0000	0x03	1	contactless, interface 1: Incredist Contactless, Multi interface reader, PIN Verification, PIN Modification			1.5.1
369		shouldwork	FujitsuTechnologySolutions GmbH	Dual Smartcard Reader D321	0x0BF8	0x101B	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000103B0	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless		The contactless interface is not supported.	1.6.0
370		shouldwork	Fujitsu	Keyboard KB100 SCR	0x0BF8	0x1022	Keyboard KB100 SCR	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000407BA	271 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification			1.4.19
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
371		shouldwork	Fujitsu	Keyboard KB100 SCR eSIG	0x0BF8	0x1023	Keyboard KB100 SCR eSIG	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000407BA	271 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification			1.4.19
372		shouldwork	FujitsuTechnologySolutions GmbH	Keyboard KB SCR2	0x0BF8	0x1021	SmartCard Reader USB	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000207B2	271 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification	No extended APDU		1.4.18
373		shouldwork	FujitsuTechnologySolutions GmbH	SmartCase KB SCR eSIG	0x0BF8	0x1017	SmartCase Smartcard Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.800 MHz	8.000 MHz	12903 bps	307200 bps	252	0x00000000	0x00000001	0x000100BA	271 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification		Secure PIN Entry feature do not work (according to a user report). SPE disabled in version 1.4.15 of the driver.	1.4.6
374		shouldwork	Fujitsu	Smartcard Reader D323	0x0BF8	0x1024	Smartcard Reader D323	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000407B8	271 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification		The USB descriptor is bogus. The reader has NO pinpad.	1.4.23
375		shouldwork	Cherry GmbH	SmartTerminal XX1X	0x046A	0x0070	4	3	0x0B [Chip Card Interface Device Class (CCID)]	1.01	0x00	0x07	0x0000 0x0003	4.000 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000000	0x00000000	0x000207B2	271 bytes	0xFF	0xFF	0x0000	0x00	1		No extended APDU		1.3.9
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
376		supported	Cherry GmbH	SmartBoard XX44	0x046A	0x0010	4	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000207B2	271 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification	No extended APDU		0.9.3
377		shouldwork	GHI	NC001	0xAE68	0x8001	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0002	4.000 MHz	4.000 MHz	10752 bps	250000 bps	256	0x00000000	0x00000000	0x00020040	271 bytes	0x00	0x00	0x0000	0x00	1		No extended APDU		1.5.3
378		shouldwork	GIS Ltd	SmartMouse USB	0x0F1A	0x0002	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x03	0x0000 0x0003	3.700 MHz	3.700 MHz	9946 bps	318280 bps	254	0x00000007	0x00000000	0x000204BE	271 bytes	0xFF	0xFF	0x0000	0x00	1		No extended APDU		1.4.10
379		shouldwork	German Privacy Foundation	Crypto Stick v1.2	0x20A0	0x4107	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0002	3.600 MHz	3.600 MHz	9677 bps	116129 bps	254	0x00000000	0x00000000	0x000104BA	271 bytes	0x00	0x00	0x0000	0x00	1				1.3.12
380		supported	Gemalto	PC Twin Reader (serial)	0x08E6	0x3437	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344086 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1	serial			1.4.32
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
381		shouldwork	Gemalto	Smart Enterprise Guardian Secure USB Device	0x08E6	0x8108	Smart Card Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x01	0x0000 0x0001	2.000 MHz	4.000 MHz	5376 bps	250000 bps	252	0x00000000	0x00000000	0x0001007A	270 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.1
382		shouldwork	Gemalto	Ezio Shield Pro SC	0x08E6	0x34C0	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	500000 bps	254	0x00000000	0x00000000	0x000204B2	271 bytes	0x00	0x00	0x0411	0x03	1	PIN Verification, PIN Modification	No extended APDU		1.4.15
383		shouldwork	Gemalto	IDBridge CT30	0x08E6	0x3437	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.01	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	825806 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1			This reader is a new version of the GemPC Twin but with firmware F. Be sure to use a version F (or more) of the firmware (last letter of the P/N number written on the back of the reader). Version F also has bcdDevice: 2.01 (2.00 for version E) and firmware "GemCore USB 3.1" ("GemCore USB 3.0" for version E). Version E of the firmware may not work since it generates USB Zero Length Packets (ZLP). A fix was introduced in version 1.4.11 of the CCID driver but is problematic and was removed in version 1.4.19.	1.4.11
384		supported	Gemalto	IDBridge K3000	0x08E6	0x8141	IDBridge K3000 ?5300029B	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0003	4.714 MHz	4.714 MHz	12672 bps	589250 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0xFF	0xFF	0x0000	0x00	1			I have USB problems on a iMac on some USB ports. Just connect the token to another USB bus/port.	1.4.10
385		shouldwork	Gemalto	IDBridge K30	0x08E6	0x3438	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.01	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	825806 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1			See the note about the IDBridge CT30.	1.4.11
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
386		shouldwork	Gemalto	K50	0x08E6	0x3437	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.01	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	825806 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.25
387		shouldwork	Gemalto	RF CR5400	0x0898	0x0101	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.685 MHz	13.560 MHz	9909 bps	848000 bps	254	0x00000000	0x00000000	0x0004047E	273 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.32
388		supported	Gemalto	GemCore SIM Pro Smart Card Reader	0x08E6	0x3480	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x01	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	500000 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1	2 slots			1.0.0
389		shouldwork	Gemalto	SA .NET Dual	0x08E6	0x4042	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x03	0x0000 0x0001	1.500 MHz	1.500 MHz	4032 bps	23437 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.5
390		shouldwork	Generic	MultiCard Device	0x048D	0x1366	Smart Card Reader Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.750 MHz	7.500 MHz	10080 bps	312500 bps	254	0x00000000	0x00000000	0x00010030	271 bytes	0x00	0x00	0x0000	0x00	1			Also known as "Sunpak 72-in-1 high-speed card reader" <a href="http://www.tocad.com/products/72-in-1-card-reader/">Sunpak 72-in-1 card reader</a>	1.4.20
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
391		supported	Giesecke & Devrient GmbH	StarSign Crypto USB Token	0x1059	0x0017	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.700 MHz	3.700 MHz	9946 bps	318280 bps	254	0x00000007	0x00000000	0x000404BE	272 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.6
392		supported	Giesecke & Devrient GmbH	StarSign CUT S	0x1059	0x0019	.	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0002	3.580 MHz	3.580 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x0002047E	271 bytes	0xFF	0xFF	0x0000	0x00	1		No extended APDU		1.4.24
393		shouldwork	GoTrust	Idem Key	0x32A3	0x3201	FIDO2 DEVICE	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	800000 bps	254	0x00000000	0x00000000	0x00010330	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.34
394		shouldwork	GoldKey Security	PIV Token	0x19C8	0x0012	0	2	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x01	0x0000 0x0002	3.580 MHz	3.580 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x00020870	2048 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD	No extended APDU		1.3.12
395		shouldwork	HDZB	uKeyCI800-K18	0x1677	0x0025	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	250000 bps	254	0x00000000	0x00000000	0x00010030	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.1
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
396		disabled	HID OMNIKEY	5021 CL	0x076B	0x5340	NO NAME	3	0xFF	1.00	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000103B0	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 0: NO NAME, Multi interface reader		Contactless only reader and the contactless is not supported. It is NOT A CCID DEVICE.	1.4.26
397		disabled	HID OMNIKEY	5021 CL	0x076B	0x5340	NO NAME	3	0xFF	1.00	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000103B0	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 1: NO NAME, Multi interface reader		Contactless only reader and the contactless is not supported. It is NOT A CCID DEVICE.	1.4.26
398		disabled	HID OMNIKEY	5021 CL	0x076B	0x5340	NO NAME	3	0xFF	1.00	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000103B0	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 2: NO NAME, Multi interface reader		Contactless only reader and the contactless is not supported. It is NOT A CCID DEVICE.	1.4.26
399		shouldwork	HID Global	Crescendo Key	0x09C3	0x0028	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x02	0x0000 0x0002	4.000 MHz	4.000 MHz	10753 bps	250000 bps	254	0x00000000	0x00000000	0x000104F2	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.31
400		shouldwork	HID Global	Crescendo Key	0x09C3	0x0029	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x02	0x0000 0x0002	4.000 MHz	4.000 MHz	10753 bps	250000 bps	254	0x00000000	0x00000000	0x000104F2	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.31
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
401		shouldwork	HID Global	Crescendo Key	0x09C3	0x002B	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x02	0x0000 0x0002	4.000 MHz	4.000 MHz	10753 bps	250000 bps	254	0x00000000	0x00000000	0x000104F2	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.31
402		shouldwork	HID Global	Crescendo Key	0x09C3	0x002D	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x02	0x0000 0x0002	4.000 MHz	4.000 MHz	10753 bps	250000 bps	254	0x00000000	0x00000000	0x000104F2	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.31
403		shouldwork	HID Global	OMNIKEY 5022 Smart Card Reader	0x076B	0x5022	OMNIKEY 5022 Smart Card Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	825807 bps	254	0x00000000	0x00000000	0x000404BA	520 bytes	0xFF	0xFF	0x0000	0x00	1	contactless			1.4.23
404		shouldwork	HID Global	OMNIKEY 5023 Smart Card Reader	0x076B	0x5023	OMNIKEY 5023 Smart Card Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0002	4.800 MHz	4.800 MHz	12903 bps	825807 bps	254	0x00000000	0x00000000	0x000404BA	520 bytes	0xFF	0xFF	0x0000	0x00	1	contactless			1.4.29
405		shouldwork	HID Global	OMNIKEY 5027CK CCID CONFIG IF	0x076B	0x5A27	OMNIKEY 5027CK CCID CONFIG IF	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	10752 bps	412903 bps	254	0x00000000	0x00000000	0x000407BA	520 bytes	0xFF	0xFF	0x0000	0x00	1	contactless			1.4.29
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
406		shouldwork	HID OMNIKEY	5025-CL	0x076B	0x502A	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.580 MHz	3.580 MHz	9600 bps	9600 bps	352	0x00000000	0x00000000	0x000406B2	384 bytes	0xFF	0xFF	0x0000	0x00	1	contactless			1.4.17
407		shouldwork	HID OMNIKEY	5326 DFR	0x076B	0x5326	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.580 MHz	3.580 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x000406B2	1024 bytes	0xFF	0xFF	0x0000	0x00	1	contactless		Only the the Low Frequency (LF) contactless interface is available. The High Frequency (HF) contactless interface is not supported.	1.4.12
408		shouldwork	HID Global	OMNIKEY 5422 Smartcard Reader	0x076B	0x5422	OMNIKEY 5422CL Smartcard Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	825807 bps	254	0x00000000	0x00000000	0x000404BA	520 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 0: OMNIKEY 5422CL Smartcard Reader, Multi interface reader			1.4.27
409		shouldwork	HID Global	OMNIKEY 5422 Smartcard Reader	0x076B	0x5422	OMNIKEY 5422 Smartcard Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000000	0x00000000	0x000407B8	520 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 1: OMNIKEY 5422 Smartcard Reader, Multi interface reader			1.4.27
410		shouldwork	Hewlett Packard	HP USB Smartcard CCID Keyboard	0x03F0	0x104A	HP Smartcard Keyboard	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	12.000 MHz	12903 bps	412903 bps	254	0x00000000	0x00000000	0x000404BA	1034 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification			1.4.16
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
411		shouldwork	IIT	E.Key Almaz-1C	0x03EB	0x9324	NO NAME	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0002	5.000 MHz	5.000 MHz	161290 bps	161290 bps	254	0x00000000	0x00000000	0x0002044E	264 bytes	0x00	0x00	0x0000	0x00	1		No extended APDU		1.4.15
412		shouldwork	IIT	E.Key Crystal-1	0x03EB	0x9308	NO NAME	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0002	5.000 MHz	5.000 MHz	161290 bps	161290 bps	254	0x00000000	0x00000000	0x0002044E	264 bytes	0x00	0x00	0x0000	0x00	1		No extended APDU		1.4.28
413		shouldwork	INMAX	DWR18 HC	0x1403	0x750C	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	10752 bps	254	0x00000000	0x00000000	0x000207BA	271 bytes	0xFF	0xFF	0x0000	0x00	1		No extended APDU		1.4.35
414		shouldwork	INMAX	DWR18 HPC	0x1403	0x750D	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	10752 bps	254	0x00000000	0x00000000	0x000207BA	271 bytes	0xFF	0xFF	0x0000	0x00	1		No extended APDU		1.4.35
415		shouldwork	Identiv	Identiv uTrust 4711 F CL + SAM Reader	0x04E6	0x5725	uTrust 4711 F SAM Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	12.000 MHz	12903 bps	412903 bps	254	0x00000000	0x00000000	0x000104BA	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 0: uTrust 4711 F SAM Reader, Multi interface reader			1.4.35
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
416		shouldwork	Identiv	Identiv uTrust 4711 F CL + SAM Reader	0x04E6	0x5725	uTrust 4711 F CL Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.800 MHz	12.000 MHz	12903 bps	412903 bps	1024	0x00000000	0x00000001	0x000404BE	1034 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 1: uTrust 4711 F CL Reader, Multi interface reader			1.4.35
417		shouldwork	Identiv	SCR3500 A Contact Reader	0x04E6	0x5814	CCID Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	16.000 MHz	12903 bps	600000 bps	252	0x00000000	0x00000000	0x000100BA	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.21
418		shouldwork	Identiv	SCR3500 B Contact Reader	0x04E6	0x5815	CCID Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	16.000 MHz	12903 bps	600000 bps	252	0x00000000	0x00000000	0x000100BA	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.21
419		shouldwork	Identiv	SCR3500 C Contact Reader	0x04E6	0x581D	CCID Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	16.000 MHz	12903 bps	600000 bps	252	0x00000000	0x00000000	0x000100BA	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.31
420		shouldwork	Identiv	uTrust 3720 Contactless Reader	0x04E6	0x5612	uTrust 3720 Contactless Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	12.000 MHz	12903 bps	412903 bps	253	0x00000000	0x00000000	0x000204BE	263 bytes	0xFF	0xFF	0x0000	0x00	1	contactless	No extended APDU		1.4.34
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
421		shouldwork	Identiv	uTrust 3721 Contactless Reader	0x04E6	0x5613	uTrust 3721 Contactless Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	12.000 MHz	12903 bps	412903 bps	253	0x00000000	0x00000000	0x000204BE	263 bytes	0xFF	0xFF	0x0000	0x00	1	contactless	No extended APDU		1.4.35
422		shouldwork	Identiv	uTrust Token Flex	0x04E6	0x5826	CCID Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	16.000 MHz	12903 bps	600000 bps	252	0x00000000	0x00000000	0x000100BA	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.5.3
423		shouldwork	Identiv	Identiv uTrust 4701 F Dual Interface Reader	0x04E6	0x5724	uTrust 4701 F Contact Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	12.000 MHz	12903 bps	412903 bps	254	0x00000000	0x00000000	0x000104BA	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 0: uTrust 4701 F Contact Reader, Multi interface reader			1.4.21
424		shouldwork	Identiv	Identiv uTrust 4701 F Dual Interface Reader	0x04E6	0x5724	uTrust 4701 F CL Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.800 MHz	12.000 MHz	12903 bps	412903 bps	1024	0x00000000	0x00000001	0x000404BE	1034 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 1: uTrust 4701 F CL Reader, Multi interface reader			1.4.21
425		shouldwork	Identive	CLOUD 2700 F Smart Card Reader	0x04E6	0x5710	CCID Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	12.000 MHz	12903 bps	412903 bps	254	0x00000000	0x00000000	0x000404BA	1034 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.10
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
426		shouldwork	Identive	CLOUD 2700 R Smart Card Reader	0x04E6	0x5810	CCID Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	16.000 MHz	12903 bps	600000 bps	254	0x00000000	0x00000000	0x000404BA	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.10
427		shouldwork	Identive	Identive CLOUD 4700 F Dual Interface Reader	0x04E6	0x5720	CLOUD 4700 F Contact Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	12.000 MHz	12903 bps	412903 bps	254	0x00000000	0x00000000	0x000404BA	1034 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 0: CLOUD 4700 F Contact Reader, Multi interface reader			1.4.10
428		shouldwork	Identive	Identive CLOUD 4700 F Dual Interface Reader	0x04E6	0x5720	CLOUD 4700 F Contactless Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.800 MHz	12.000 MHz	12903 bps	412903 bps	1024	0x00000000	0x00000001	0x000404BE	1034 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 1: CLOUD 4700 F Contactless Reader, Multi interface reader			1.4.10
429		shouldwork	Identive	SCT3522CC token	0x04E6	0x5817	CCID Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	16.000 MHz	12903 bps	600000 bps	254	0x00000000	0x00000000	0x000404BA	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.19
430		shouldwork	Identive Technologies	Multi-ISO HF Reader - USB	0x1FFA	0x000C	CCID IFD	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0002 0x0003	3.686 MHz	3.686 MHz	10753 bps	344105 bps	1024	0x00000000	0x00000000	0x000404BE	1034 bytes	0xFF	0xFF	0x0000	0x00	1	contactless			1.4.17
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
431		shouldwork	Identive	Identive CLOUD 4710 F Contactless + SAM Reader	0x04E6	0x5721	CLOUD 4710 F SAM Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	12.000 MHz	12903 bps	412903 bps	254	0x00000000	0x00000000	0x000404BA	1034 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 0: CLOUD 4710 F SAM Reader, Multi interface reader			1.4.10
432		shouldwork	Identive	Identive CLOUD 4710 F Contactless + SAM Reader	0x04E6	0x5721	CLOUD 4710 F Contactless Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.800 MHz	12.000 MHz	12903 bps	412903 bps	1024	0x00000000	0x00000001	0x000404BE	1034 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 1: CLOUD 4710 F Contactless Reader, Multi interface reader			1.4.10
433		shouldwork	Identiv	uTrust 3700 F CL Reader	0x04E6	0x5790	uTrust 3700 F CL Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.800 MHz	12.000 MHz	12903 bps	412903 bps	1024	0x00000000	0x00000001	0x000404BE	1034 bytes	0xFF	0xFF	0x0000	0x00	1	contactless		The reader sometimes fails to power up a card. See <a href="https://github.com/LudovicRousseau/PCSC/issues/102">Identiv 3700F occasionally fails to power up card #102</a>. Update the firmware to v1.19 or more to fix this issue.	1.4.21
434		shouldwork	Identiv	uTrust 3701 F CL Reader	0x04E6	0x5791	uTrust 3701 F CL Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.800 MHz	12.000 MHz	12903 bps	412903 bps	1024	0x00000000	0x00000001	0x000404BE	1034 bytes	0xFF	0xFF	0x0000	0x00	1	contactless			1.4.21
435		shouldwork	InfoThink	IT-500U Reader	0x1403	0x7506	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	10752 bps	254	0x00000000	0x00000000	0x000207BA	271 bytes	0xFF	0xFF	0x0000	0x00	1		No extended APDU		1.4.30
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
436		shouldwork	Infocrypt	HWDSSL DEVICE	0x2022	0x016C	NO NAME	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0002	3.580 MHz	3.580 MHz	9600 bps	9600 bps	16665	0x00000000	0x00000000	0x0004007E	16672 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.35
437		shouldwork	Infocrypt	Token++ lite	0x2FB0	0x003A	NO NAME	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0002	3.580 MHz	3.580 MHz	9600 bps	9600 bps	281	0x00000000	0x00000000	0x0004007E	288 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.35
438		supported	INGENICO	Leo	0x0F14	0x003B	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	9600 bps	230400 bps	254	0x00000000	0x00000000	0x000204BA	356 bytes	0xFF	0xFF	0x0210	0x03	1	PIN Verification, PIN Modification	No extended APDU		1.4.26
439		supported	Ingenico	WITEO USB Smart Card Reader	0x0F14	0x003D	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	130000 bps	254	0x00000000	0x00000000	0x000204BA	271 bytes	0xFF	0xFF	0x0000	0x00	1		No extended APDU		1.4.12
440		supported	Ingenico	WITEO USB Smart Card Reader	0x0F14	0x003D	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	130000 bps	254	0x00000000	0x00000000	0x000204BA	271 bytes	0xFF	0xFF	0x0000	0x00	1		No extended APDU		1.4.12
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
441		shouldwork	Inside Secure	VaultIC 420 Smart Object	0x2406	0x6300	ICCD 1.00	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0001	3.580 MHz	3.580 MHz	9600 bps	9600 bps	0	0x00000000	0x00000000	0x00020840	271 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD	No extended APDU		1.4.8
442		shouldwork	Inside Secure	VaultIC 440 Smart Object	0x2406	0x6301	ICCD 1.00	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0001	3.580 MHz	3.580 MHz	9600 bps	9600 bps	0	0x00000000	0x00000000	0x00020840	271 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD	No extended APDU		1.4.8
443		shouldwork	Inside Secure	VaultIC 460 Smart Object	0x2406	0x6302	ICCD 1.00	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0001	3.580 MHz	3.580 MHz	9600 bps	9600 bps	0	0x00000000	0x00000000	0x00020840	271 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD	No extended APDU		1.4.6
444		shouldwork	INSIDE Secure	VaultIC 405 Smart Object	0x2406	0x6303	ICCD 1.00	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0001	3.580 MHz	3.580 MHz	9600 bps	9600 bps	0	0x00000000	0x00000000	0x00020840	271 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD	No extended APDU		1.4.16
445		shouldwork	INSIDE Secure	VaultIC 441 Smart Object	0x2406	0x6305	ICCD 1.00	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0001	3.580 MHz	3.580 MHz	9600 bps	9600 bps	0	0x00000000	0x00000000	0x00020840	271 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD	No extended APDU		1.4.16
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
446		disabled	Jinmuyu Electronics Co., Ltd.	MR800	0x03EB	0x6120	CCID	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x01	0x01	0x0000 0x0003	3.686 MHz	3.686 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x000401BE	527 bytes	0x00	0x00	0x0000	0x00	1	2 slots		declares 2 slots but is a 1 slot reader. PTS fails for T=1. See "[Pcsclite-muscle] Jinmuyu MR800 card reader problem" http://lists.alioth.debian.org/pipermail/pcsclite-muscle/2017-June/000913.html	1.4.28
447		shouldwork	KACST	HSID Reader	0x2A18	0x5000	HSID Reader	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	5.000 MHz	5.000 MHz	115200 bps	115200 bps	254	0x00000000	0x00000000	0x0004047E	65504 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.23
448		shouldwork	KACST	HSID Reader Dual Storage	0x2A18	0x5002	HSID Reader	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	5.000 MHz	5.000 MHz	115200 bps	115200 bps	254	0x00000000	0x00000000	0x0004047E	65504 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.23
449		shouldwork	KACST	HSID Reader Single Storage	0x2A18	0x5001	HSID Reader	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	5.000 MHz	5.000 MHz	115200 bps	115200 bps	254	0x00000000	0x00000000	0x0004047E	65504 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.23
450		shouldwork	KAPELSE	KAP-Care	0x2947	0x0102	00012587 KAP-Care 1	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344064 bps	254	0x00000000	0x00000000	0x000100BA	271 bytes	0x00	0x00	0x0000	0x00	1	Multi interface reader, interface 0: 00012587 KAP-Care 1			1.5.5
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
451		shouldwork	KAPELSE	KAP-Care	0x2947	0x0102	00012587 KAP-Care 2	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344064 bps	254	0x00000000	0x00000000	0x000100BA	271 bytes	0x00	0x00	0x0000	0x00	1	Multi interface reader, interface 1: 00012587 KAP-Care 2			1.5.5
452		shouldwork	KAPELSE	KAP-GO	0x2947	0x0103	00025637 TL KAP-GO 1	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344064 bps	254	0x00000000	0x00000000	0x000100BA	271 bytes	0x00	0x00	0x0000	0x00	1	Multi interface reader, interface 0: 00025637 TL KAP-GO 1			1.5.5
453		shouldwork	KAPELSE	KAP-GO	0x2947	0x0103	00025637 TL KAP-GO 2	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344064 bps	254	0x00000000	0x00000000	0x000100BA	271 bytes	0x00	0x00	0x0000	0x00	1	Multi interface reader, interface 1: 00025637 TL KAP-GO 2			1.5.5
454		shouldwork	KAPELSE	KAP-LINK	0x2947	0x0101	01810175 KAP-LINK 0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344064 bps	254	0x00000000	0x00000000	0x000100BA	271 bytes	0x00	0x00	0x0000	0x00	1	Multi interface reader, interface 0: 01810175 KAP-LINK 0			1.5.2
455		shouldwork	KAPELSE	KAP-LINK	0x2947	0x0101	01810175 KAP-LINK 1	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344064 bps	254	0x00000000	0x00000000	0x000100BA	271 bytes	0x00	0x00	0x0000	0x00	1	Multi interface reader, interface 1: 01810175 KAP-LINK 1			1.5.2
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
456		shouldwork	KAPELSE	KAP-LINK2	0x2947	0x0105	00478521 KAP-LINK2 0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344064 bps	254	0x00000000	0x00000000	0x000100BA	271 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 0: 00478521 KAP-LINK2 0, Multi interface reader			1.5.5
457		shouldwork	KAPELSE	KAP-LINK2	0x2947	0x0105	00478521 KAP-LINK2 1	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344064 bps	254	0x00000000	0x00000000	0x000100BA	271 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 1: 00478521 KAP-LINK2 1, Multi interface reader			1.5.5
458		shouldwork	KAPELSE	KAP-LINK2	0x2947	0x0105	00478521 KAP-LINK2 2	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0001	4.000 MHz	4.000 MHz	10752 bps	344064 bps	254	0x00000000	0x00000000	0x00010270	271 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 2: 00478521 KAP-LINK2 2, Multi interface reader			1.5.5
459		shouldwork	KAPELSE	KAP-eCV	0x2947	0x0112	00000034 KAP-eCV	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0001	4.800 MHz	4.800 MHz	10752 bps	344064 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1	contactless			1.5.5
460		shouldwork	KAPELSE	eS-KAP-Ad	0x2947	0x0104	00285432 TL eS-KAP-Ad 1	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344064 bps	254	0x00000000	0x00000000	0x000100BA	271 bytes	0x00	0x00	0x0000	0x00	1	Multi interface reader, interface 0: 00285432 TL eS-KAP-Ad 1			1.5.5
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
461		shouldwork	KAPELSE	eS-KAP-Ad	0x2947	0x0104	00285432 TL eS-KAP-Ad 2	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344064 bps	254	0x00000000	0x00000000	0x000100BA	271 bytes	0x00	0x00	0x0000	0x00	1	Multi interface reader, interface 1: 00285432 TL eS-KAP-Ad 2			1.5.5
462		shouldwork	C3PO	KBR36	0x0783	0x0009	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x01	0x0000 0x0003	4.000 MHz	20.000 MHz	9600 bps	230400 bps	254	0x00000007	0x00000000	0x000100BA	271 bytes	0x00	0x00	0x0000	0x03	1	PIN Verification, PIN Modification			1.2.0
463		shouldwork	KOBIL Systems	IDToken	0x0D46	0x301D	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.685 MHz	3.685 MHz	9600 bps	847500 bps	254	0x00000000	0x00000000	0x0004047E	273 bytes	0xFF	0xFF	0x0000	0x00	1	contactless			1.4.6
464		shouldwork	KRONEGGER	Micro Core Platform	0x2D25	0x0001	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.685 MHz	14.320 MHz	9909 bps	848000 bps	254	0x00000000	0x00000000	0x000204BE	271 bytes	0x00	0x00	0x0000	0x00	1		No extended APDU		1.4.28
465		shouldwork	Kapelse	KAP-Move	0x2947	0x0114	CCID Interface slot0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	4.800 MHz	4.800 MHz	10752 bps	344064 bps	254	0x00000000	0x00000000	0x000100BA	271 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 0: CCID Interface slot0, Multi interface reader			1.5.5
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
466		shouldwork	Kapelse	KAP-Move	0x2947	0x0114	CCID Interface slot1	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	4.800 MHz	4.800 MHz	10752 bps	344064 bps	254	0x00000000	0x00000000	0x000100BA	271 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 1: CCID Interface slot1, Multi interface reader			1.5.5
467		shouldwork	Kapelse	KAP-Move	0x2947	0x0114	CCID Interface CLESS slot2	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0001	4.800 MHz	4.800 MHz	10752 bps	344064 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 2: CCID Interface CLESS slot2, Multi interface reader			1.5.5
468		shouldwork	Kapelse	Ti-Kap	0x2947	0x0111	CCID Interface slot0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	4.800 MHz	4.800 MHz	10752 bps	344064 bps	254	0x00000000	0x00000000	0x000100BA	271 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 0: CCID Interface slot0, Multi interface reader			1.5.5
469		shouldwork	Kapelse	Ti-Kap	0x2947	0x0111	CCID Interface slot1	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	4.800 MHz	4.800 MHz	10752 bps	344064 bps	254	0x00000000	0x00000000	0x000100BA	271 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 1: CCID Interface slot1, Multi interface reader			1.5.5
470		shouldwork	Kapelse	Ti-Kap	0x2947	0x0111	CCID Interface CLESS slot2	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0001	4.800 MHz	4.800 MHz	10752 bps	344064 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 2: CCID Interface CLESS slot2, Multi interface reader			1.5.5
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
471		shouldwork	Kapelse	inSide	0x2947	0x0113	CCID Interface slot0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	4.800 MHz	4.800 MHz	10752 bps	344064 bps	254	0x00000000	0x00000000	0x000100BA	271 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 0: CCID Interface slot0, Multi interface reader			1.5.5
472		shouldwork	Kapelse	inSide	0x2947	0x0113	CCID Interface slot1	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	4.800 MHz	4.800 MHz	10752 bps	344064 bps	254	0x00000000	0x00000000	0x000100BA	271 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 1: CCID Interface slot1, Multi interface reader			1.5.5
473		shouldwork	Kapelse	inSide	0x2947	0x0113	CCID Interface CLESS slot2	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0001	4.800 MHz	4.800 MHz	10752 bps	344064 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 2: CCID Interface CLESS slot2, Multi interface reader			1.5.5
474		shouldwork	KeyXentic Inc.	KX906 Smart Card Reader	0x2F76	0x0906	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	10752 bps	254	0x00000000	0x00000000	0x000407BA	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.29
475		supported	KOBIL	KAAN Advanced	0x0D46	0x3002	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	412903 bps	254	0x00000007	0x00000000	0x000406BA	432 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification		Firmware older than 0.37 is bogus	0.9.3
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
476		supported	KOBIL	KAAN Base	0x0D46	0x3001	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	412903 bps	254	0x00000007	0x00000000	0x000406BA	432 bytes	0xFF	0xFF	0x0000	0x00	1			Firwmare older than 0.37 is bogus	0.9.3
477		shouldwork	KOBIL Systems	Smart Token	0x0D46	0x3014	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	412896 bps	254	0x00000000	0x00000000	0x000406BA	586 bytes	0xFF	0xFF	0x0000	0x00	1				1.3.12
478		shouldwork	KOBIL Systems	mIDentity fullsize	0x0D46	0x4389	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	4.615 MHz	4.615 MHz	12407 bps	397024 bps	254	0x00000000	0x00000000	0x000406BA	512 bytes	0xFF	0xFF	0x0000	0x00	1				1.3.12
479		shouldwork	KOBIL Systems	mIDentity fullsize AES	0x0D46	0x43A9	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	4.615 MHz	4.615 MHz	12407 bps	397024 bps	254	0x00000000	0x00000000	0x000406BA	512 bytes	0xFF	0xFF	0x0000	0x00	1				1.3.12
480		shouldwork	KOBIL Systems	mIDentity 4smart	0x0D46	0x4189	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	4.615 MHz	4.615 MHz	12407 bps	397024 bps	254	0x00000000	0x00000000	0x000406BA	512 bytes	0xFF	0xFF	0x0000	0x00	1				1.3.12
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
481		shouldwork	KOBIL Systems	mIDentity 4smart AES	0x0D46	0x41A9	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	4.615 MHz	4.615 MHz	12407 bps	397024 bps	254	0x00000000	0x00000000	0x000406BA	512 bytes	0xFF	0xFF	0x0000	0x00	1				1.3.12
482		shouldwork	KOBIL Systems	mIDentity visual	0x0D46	0x4289	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	4.615 MHz	4.615 MHz	12407 bps	397024 bps	254	0x00000000	0x00000000	0x000406BA	512 bytes	0xFF	0xFF	0x0210	0x03	1	PIN Verification, PIN Modification			1.3.12
483		unsupported	C3PO	LTC3x USB	0x0783	0x0003	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x01	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	10752 bps	254	0x00000000	0x00000000	0x00010002	271 bytes	0x00	0x00	0x0000	0x00	1			The reader works fine with Linux kernel 2.4 but does not with Linux kernel 2.6. The ioctl() syscall returns EINVAL (Invalid argument). This reader is not more sold and replaced by the LTC31v2 model.	0.1.0
484		supported	C3PO	LTC31 v2	0x0783	0x0006	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.01	0x00	0x01	0x0000 0x0003	4.000 MHz	8.000 MHz	9600 bps	230400 bps	254	0x00000007	0x00000000	0x000100BA	271 bytes	0x00	0x00	0x0000	0x03	1	PIN Verification, PIN Modification		New model with USB product ID 0x0006	1.1.0
485		shouldwork	Ledger	Flex	0x2C97	0x7009	Ledger Flex	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0001	3.600 MHz	3.600 MHz	9677 bps	9677 bps	0	0x00000000	0x00000000	0x000206BA	271 bytes	0x00	0x00	0x0000	0x03	1	PIN Verification, PIN Modification	No extended APDU		GIT
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
486		shouldwork	Ledger	Nano SP	0x2C97	0x0005	Nano SP	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0001	3.600 MHz	3.600 MHz	9677 bps	9677 bps	0	0x00000000	0x00000000	0x000206BA	271 bytes	0x00	0x00	0x0000	0x03	1	PIN Verification, PIN Modification	No extended APDU		1.5.1
487		shouldwork	Ledger	Nano S Plus	0x2C97	0x5009	Nano S Plus	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0001	3.600 MHz	3.600 MHz	9677 bps	9677 bps	0	0x00000000	0x00000000	0x000206BA	271 bytes	0x00	0x00	0x0000	0x03	1	PIN Verification, PIN Modification	No extended APDU		1.5.1
488		shouldwork	Ledger	Nano X	0x2C97	0x0004	Nano X	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0001	3.600 MHz	3.600 MHz	9677 bps	9677 bps	0	0x00000000	0x00000000	0x000206BA	271 bytes	0x00	0x00	0x0000	0x03	1	PIN Verification, PIN Modification	No extended APDU		1.4.32
489		shouldwork	Ledger	Nano X	0x2C97	0x4009	Nano X	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0001	3.600 MHz	3.600 MHz	9677 bps	9677 bps	0	0x00000000	0x00000000	0x000206BA	271 bytes	0x00	0x00	0x0000	0x03	1	PIN Verification, PIN Modification	No extended APDU		1.5.1
490		shouldwork	Ledger	Stax	0x2C97	0x6009	Ledger Stax	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0001	3.600 MHz	3.600 MHz	9677 bps	9677 bps	0	0x00000000	0x00000000	0x000206BA	271 bytes	0x00	0x00	0x0000	0x03	1	PIN Verification, PIN Modification	No extended APDU		1.6.0
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
491		shouldwork	Lenovo	Lenovo Smartcard Wired Keyboard II	0x17EF	0x6111	Smartcard Wired Keyboard II	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	12.000 MHz	12903 bps	412903 bps	254	0x00000000	0x00000000	0x000104BA	271 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification			1.4.36
492		shouldwork	MK Technology	KeyPass D1	0x0416	0xC137	SAM Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	62500 bps	254	0x00000000	0x00000000	0x000204BA	271 bytes	0xFF	0x00	0x0000	0x00	1	Multi interface reader, interface 0: SAM Reader	No extended APDU		1.4.35
493		shouldwork	MK Technology	KeyPass D1	0x0416	0xC137	SC Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	62500 bps	254	0x00000000	0x00000000	0x000204BA	271 bytes	0xFF	0x00	0x0000	0x00	1	Multi interface reader, interface 1: SC Reader	No extended APDU		1.4.35
494		shouldwork	MSI	StarReader SMART	0x0BDA	0x0161	Smart Card Reader Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.750 MHz	7.500 MHz	10080 bps	312500 bps	254	0x00000000	0x00000000	0x00010030	271 bytes	0x00	0x00	0x0000	0x00	1			You may need to unload/blacklist the mceusb Linux kernel driver to use the device. Also known as the APPROX USB 2.0 External DNI-e http://approx.es/APPCRDNI	1.3.10
495		disabled	MX5	MX5 SMART CCID DRIVER	0x0980	0x902F	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	3.600 MHz	3.600 MHz	9677 bps	116129 bps	254	0x00000000	0x00000000	0x00010030	271 bytes	0x00	0x00	0x0000	0x00	1			The reader is too slow to setup. The reader can't power up a card.	1.4.8
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
496		shouldwork	Macally	NFC CCID eNetPad	0x08AE	0x0BDF	Macally CCID READER	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0002	4.000 MHz	4.000 MHz	10752 bps	344100 bps	256	0x00000000	0x00000000	0x00020040	271 bytes	0x00	0x00	0x0000	0x00	1	contactless	No extended APDU		1.4.6
497		shouldwork	Microchip	SEC1110	0x0424	0x1104	CCID Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	16.000 MHz	12903 bps	826000 bps	254	0x00000000	0x00000000	0x000100B2	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.16
498		shouldwork	Microchip	SEC1210	0x0424	0x1202	CCID Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	16.000 MHz	12903 bps	826000 bps	254	0x00000000	0x00000000	0x000100B2	271 bytes	0xFF	0xFF	0x0000	0x00	1	Multi interface reader, interface 0: CCID Interface			1.4.16
499		shouldwork	Microchip	SEC1210	0x0424	0x1202	CCID Interface	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	16.000 MHz	12903 bps	826000 bps	254	0x00000000	0x00000000	0x000100B2	271 bytes	0xFF	0xFF	0x0000	0x00	1	Multi interface reader, interface 1: CCID Interface			1.4.16
500		shouldwork	jSolutions s.r.o.	Multi SIM card reader 4/8	0x04D8	0xEB61	SIM card reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x07	0x06	0x0000 0x0001	3.573 MHz	3.573 MHz	9600 bps	9600 bps	247	0x00000000	0x00000000	0x000100BA	271 bytes	0x00	0x00	0x0000	0x00	8	8 slots			1.4.36
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
501		shouldwork	Morpho	MSO1350 Fingerprint Sensor & SmartCard Reader	0x079B	0x0052	SAGEM SMARTCARD READER	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	129032 bps	247	0x00000000	0x00000000	0x00010030	271 bytes	0x00	0x00	0x0000	0x00	1	biometric			1.4.10
502		shouldwork	Morpho	MSO350/MSO351 Fingerprint Sensor & SmartCard Reader	0x079B	0x0026	SAGEM SMARTCARD READER	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344086 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1	biometric			1.4.10
503		disabled	Morpho	ypsID Key E	0x1A6F	0x0104	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0001	3.580 MHz	3.580 MHz	9600 bps	9600 bps	0	0x00000000	0x00000000	0x00020840	271 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD	No extended APDU	This device is not a real CCID device. You can try the UNTESTED patch at <a href="http://ludovic.rousseau.free.fr/softwares/pcsc-lite/ccid-morpho-v7-2.patch">ccid-morpho-v7-2.patch</a>. See also <a href="https://blog.apdu.fr/posts/2017/02/mostly-ccid-driver-for-some-morpho/"> Mostly CCID driver for some Morpho devices </a>	1.4.27
504		shouldwork	Mulann	PVT	0x4D55	0x0010	SmartCard Reader C	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	3.600 MHz	3.600 MHz	9677 bps	9677 bps	254	0x00000000	0x00000000	0x0002007A	271 bytes	0x00	0x00	0x0000	0x00	1	Multi interface reader, interface 0: SmartCard Reader C	No extended APDU		1.4.27
505		shouldwork	Mulann	PVT	0x4D55	0x0010	SmartCard Reader CL	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	3.600 MHz	3.600 MHz	9677 bps	9677 bps	254	0x00000000	0x00000000	0x0002007A	271 bytes	0x00	0x00	0x0000	0x00	1	Multi interface reader, interface 1: SmartCard Reader CL	No extended APDU		1.4.27
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
506		shouldwork	NXP	Pegoda 2 N	0x1FC9	0x0107	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	250000 bps	254	0x00000000	0x00000000	0x00020430	271 bytes	0x00	0x00	0x0000	0x00	1	contactless	No extended APDU	known as "Pegoda CLRD710" and "MFEV710 evaluation package"	1.4.20
507		shouldwork	NXP	PR533	0x1FC9	0x010B	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.685 MHz	13.560 MHz	9909 bps	848000 bps	254	0x00000000	0x00000000	0x0004047E	273 bytes	0xFF	0xFF	0x0000	0x00	1	contactless			1.4.7
508		shouldwork	NXP	Pegoda 3	0x1FC9	0x0157	NXP Pegoda 3 (CL)	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.685 MHz	14.320 MHz	9909 bps	848000 bps	254	0x00000000	0x00000000	0x000204BE	271 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 0: NXP Pegoda 3 (CL), Multi interface reader	No extended APDU		1.6.0
509		shouldwork	NXP	Pegoda 3	0x1FC9	0x0157	NXP Pegoda 3 (CT)	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.685 MHz	14.320 MHz	9909 bps	848000 bps	254	0x00000000	0x00000000	0x000204BE	271 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 1: NXP Pegoda 3 (CT), Multi interface reader	No extended APDU		1.6.0
510		shouldwork	Nitrokey	Nitrokey 3	0x20A0	0x42B2	CCID/ICCD Interface	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0002	3.580 MHz	3.580 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x00040840	3072 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD			1.5.0
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
511		shouldwork	Nitrokey	Nitrokey Storage	0x20A0	0x4109	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0002	3.600 MHz	3.600 MHz	9677 bps	116129 bps	48	0x00000000	0x00000000	0x000104BA	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.22
512		shouldwork	OMNIKEY	6321 CLi USB	0x076B	0x6321	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000207B2	271 bytes	0xFF	0xFF	0x0000	0x00	1		No extended APDU		1.4.6
513		shouldwork	OMNIKEY	5421	0x076B	0x5421	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000103B0	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless		The contactless interface is not supported.	1.4.17
514		shouldwork	HID Global	OMNIKEY 3x21 Smart Card Reader	0x076B	0x3031	OMNIKEY 3x21 Smart Card Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000407BA	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.23
515		shouldwork	OMNIKEY AG	3121 USB	0x076B	0x3022	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	492	0x00000007	0x00000000	0x000407B2	502 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.17
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
516		shouldwork	OMNIKEY	CardMan 1021	0x076B	0x1021	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	3.692 MHz	3.692 MHz	9924 bps	317591 bps	254	0x00000007	0x00000000	0x000103B1	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.2.0
517		shouldwork	OBERTHUR TECHNOLOGIES	ID-ONE TOKEN SLIM v2	0x1A74	0xB111	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	4.800 MHz	12.000 MHz	12903 bps	825807 bps	252	0x00000000	0x00000000	0x00010200	270 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.2
518		shouldwork	Generic USB	Smart Card Reader	0x076B	0x3A21	Smart Card Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000407B8	271 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification		No pinpad support	1.4.24
519		shouldwork	HID OMNIKEY	5427 CK	0x076B	0x5427	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	825807 bps	254	0x00000000	0x00000000	0x000404BA	520 bytes	0xFF	0xFF	0x0000	0x00	1	contactless			1.4.12
520		shouldwork	OMNIKEY AG	Smart Card Reader	0x076B	0xA021	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	3.692 MHz	3.692 MHz	9924 bps	119096 bps	254	0x00000007	0x00000000	0x000207B2	271 bytes	0xFF	0xFF	0x0000	0x00	1		No extended APDU		1.3.10
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
521		shouldwork	PIVKey	T800	0x096E	0x0603	NO NAME	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.000 MHz	4.000 MHz	9600 bps	600000 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.19
522		shouldwork	Panasonic	Panasonic USB Smart Card Reader 7A-Smart	0x04DA	0x117A	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344086 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1				1.3.11
523		shouldwork	Planeta	RC700-NFC CCID	0x21AB	0x0010	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x00	0x0000 0x0003	4.000 MHz	4.000 MHz	106000 bps	424000 bps	272	0x00000000	0x00000000	0x0002047E	280 bytes	0x00	0x01	0x0000	0x00	1	contactless	No extended APDU		1.4.13
524		unsupported	Precise Biometrics	Precise 200 MC	0x08C3	0x0402	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x03	0x0000 0x0003	4.000 MHz	7.500 MHz	10753 bps	241936 bps	254	0x00000000	0x00000000	0x000404BA	65550 bytes	0x00	0x00	0x0000	0x00	1	biometric		Must be firmware version 50.00 or above: time extension requests are not sent back to the host in earlier versions of the firmware. The reader can't talk to card with TA1=96. See http://archives.neohapsis.com/archives/dev/muscle/2010-q3/0197.html	1.3.10
525		disabled	Precise Biometrics	Precise 200 MC Upgrade	0x08C3	0x0406	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x03	0x0000 0x0003	4.000 MHz	7.500 MHz	10753 bps	241936 bps	254	0x00000000	0x00000000	0x000200BA	524288 bytes	0x00	0x00	0x0000	0x00	1		No extended APDU	To the CCID command 0x65 PC_to_RDR_GetSlotStatus the reader returns a 0x80 RDR_to_PC_DataBlock instead of a 0x81 RDR_to_PC_SlotStatus and with bStatus=0x42 (error) and bError=0x00 (Command not supported)	1.4.25
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
526		unsupported	Precise Biometrics	Precise 250 MC	0x08C3	0x0401	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x03	0x0000 0x0003	4.000 MHz	7.500 MHz	10753 bps	241936 bps	254	0x00000000	0x00000000	0x000404BA	65550 bytes	0x00	0x00	0x0000	0x00	1	biometric		Must be firmware version 50.00 or above: time extension requests are not sent back to the host in earlier versions of the firmware. The reader can't talk to card with TA1=96. See http://archives.neohapsis.com/archives/dev/muscle/2010-q3/0197.html	1.3.6
527		supported	Precise Biometrics	Sense MC	0x076B	0xA022	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000207B2	271 bytes	0xFF	0xFF	0x0000	0x00	1	biometric	No extended APDU		1.4.5
528		shouldwork	Purism, SPC	Librem Key	0x316D	0x4C4B	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0002	3.600 MHz	3.600 MHz	9677 bps	116129 bps	254	0x00000000	0x00000000	0x000104BA	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.32
529		disabled	REINER SCT	cyberJack RFID standard	0x0C4B	0x0500	NO NAME	3	0xFF	10.00	0x00	0x07	0x0000 0x0003	4.000 MHz	8.000 MHz	10072 bps	250000 bps	254	0x00000007	0x00000000	0x00010030	5130 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification		Not a CCID device. Support removed on request from Reiner SCT.	1.4.28
530		shouldwork	REINER SCT	cyberJack RFID basis	0x0C4B	0x9102	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0002	1.000 MHz	1.000 MHz	2688 bps	2688 bps	254	0x00000000	0x00000000	0x000404B0	266 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.1
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
531		shouldwork	Regula	RFID Reader	0x1C6A	0x7050	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.000 MHz	13.560 MHz	672 bps	250000 bps	1024	0x00000000	0x00000000	0x00020042	512 bytes	0x00	0x00	0x0000	0x00	1	contactless	No extended APDU		1.4.27
532		shouldwork	REINER SCT	cyberJack go	0x0C4B	0x0504	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	1.000 MHz	1.000 MHz	2688 bps	2688 bps	254	0x00000000	0x00000000	0x000404B0	1014 bytes	0xFF	0xFF	0x1002	0x03	1	PIN Verification, PIN Modification			1.4.9
533		shouldwork	REINER SCT	cyberJack one	0x0C4B	0x0580	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0003	1.000 MHz	1.000 MHz	2688 bps	2688 bps	254	0x00000000	0x00000000	0x000404B0	1014 bytes	0xFF	0xFF	0x0310	0x03	1	PIN Verification, PIN Modification			1.4.28
534		shouldwork	REINER SCT	tanJack Bluetooth	0x0C4B	0x0520	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0002	1.000 MHz	1.000 MHz	2688 bps	2688 bps	254	0x00000000	0x00000000	0x000404BA	384 bytes	0xFF	0xFF	0x0000	0x00	1			Bluetooth	1.4.19
535		shouldwork	Rocketek	RT-SCR1	0x14CD	0x8166	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.000 MHz	3.000 MHz	8065 bps	258065 bps	254	0x00000007	0x00000000	0x000404B2	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.21
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
536		shouldwork	Route1	MobiKEY Fusion3	0x13FE	0xC831	CCID	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x06	0x0000 0x0003	3.571 MHz	3.571 MHz	9600 bps	614400 bps	254	0x00000000	0x00000000	0x000100BE	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.31
537		shouldwork	Aktiv	Rutoken ECP	0x0A89	0x0030	0	2	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x01	0x0000 0x0002	3.580 MHz	3.580 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x00020840	271 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD	No extended APDU		1.3.11
538		shouldwork	Aktiv	PINPad Ex	0x0A89	0x0080	NO NAME	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0002	3.580 MHz	3.580 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x00020840	271 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD	No extended APDU		1.4.9
539		shouldwork	Aktiv	PINPad In	0x0A89	0x0081	NO NAME	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0002	3.580 MHz	3.580 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x00020840	271 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD	No extended APDU		1.4.9
540		shouldwork	SAFETRUST	SABRE SCR	0x2EE1	0x0001	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	500000 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.28
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
541		disabled	SMART	SBV280	0x0B8C	0x000E	CCID 1.1	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0001	3.580 MHz	3.580 MHz	9600 bps	9600 bps	0	0x00000000	0x00000000	0x00020840	271 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD	No extended APDU	Removed on manufacturer request. They use libusb directly in their own driver.	1.3.12
542		shouldwork	SCM Microsystems Inc.	SCL010 Contactless Reader	0x04E6	0x5291	SCL010 Contactless Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.000 MHz	12.000 MHz	10753 bps	344105 bps	252	0x00000000	0x00000001	0x000404BE	262 bytes	0xFF	0xFF	0x0000	0x00	1	contactless		Be sure to have firmware version 1.12 or above.	1.4.11
543		disabled	SCM Microsystems Inc.	SCL010 Contactless Reader	0x04E6	0x5291	4	3	0xFF	1.10	0x00	0x01	0x0000 0x0003	13.560 MHz	13.560 MHz	106000 bps	848000 bps	254	0x00000000	0x00000001	0x0001007E	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless		The contactless interface is not supported. A new firmware version 1.12 renders the reader usable.	1.3.11
544		disabled	SCM Microsystems Inc.	SCL01x Contactless Reader	0x04E6	0x5292	SCL01x Contactless Reader	3	0xFF	1.10	0x00	0x01	0x0000 0x0003	13.560 MHz	13.560 MHz	106000 bps	848000 bps	254	0x00000000	0x00000001	0x0001007E	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless		The contactless interface is not supported.	1.3.12
545		shouldwork	SCM Microsystems Inc.	SCL01x Contactless Reader	0x04E6	0x5293	SCL01x Contactless Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.000 MHz	12.000 MHz	10753 bps	344105 bps	252	0x00000000	0x00000001	0x000404BE	262 bytes	0xFF	0xFF	0x0000	0x00	1	contactless		You have to upgrade the firmware using version 1.12 or later	1.4.3
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
546		shouldwork	NTT Communications Corp.	SCR3310-NTTCom USB SmartCard Reader	0x04E6	0x511A	Vendor Interface	3	0xFF	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	12903 bps	412903 bps	252	0x00000000	0x00000000	0x000101BA	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.8
547		supported	SCM Microsystems Inc.	SCR 3311	0x04E6	0x511D	4	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.000 MHz	8.000 MHz	10753 bps	344105 bps	252	0x00000000	0x00000000	0x000100BA	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.0.0
548		supported	SCM Microsystems Inc.	SCR 331-DI	0x04E6	0x5111	4	3	0xFF	1.00	0x01	0x01	0x0000 0x0003	4.000 MHz	12.000 MHz	10753 bps	344105 bps	252	0x00000000	0x00000000	0x000100BA	263 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, 2 slots		You have to upgrade the firmware using version 5.18 or later. The contactless interface is not supported.	0.4.0
549		shouldwork	SCM Microsystems Inc.	SCR3320 - Smart Card Reader	0x04E6	0x5117	4	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.000 MHz	8.000 MHz	10753 bps	344105 bps	252	0x00000000	0x00000000	0x000100BA	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.0.0
550		shouldwork	SCM Microsystems Inc.	SCR33x USB Smart Card Reader	0x04E6	0x5113	4	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.000 MHz	8.000 MHz	10753 bps	344105 bps	252	0x00000000	0x00000000	0x000100BA	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.0.0
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
551		shouldwork	SCM Microsystems Inc.	SCR3340 - ExpressCard54 Smart Card Reader	0x04E6	0x5119	4	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.000 MHz	8.000 MHz	10753 bps	344105 bps	252	0x00000000	0x00000000	0x000100BA	271 bytes	0xFF	0xFF	0x0000	0x00	1	ExpressCard			1.0.0
552		shouldwork	SCM Microsystems Inc.	SCR 335	0x04E6	0x5115	CCID Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	12903 bps	412903 bps	252	0x00000000	0x00000000	0x000101BA	271 bytes	0xFF	0xFF	0x0000	0x00	1			You have to upgrade the firmware using version 5.18 or later. Or use a v2.0 model.	0.1.0
553		shouldwork	SCM Microsystems Inc.	SCR35xx v2.0 USB SC Reader	0x04E6	0x5410	CCID Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	12903 bps	412903 bps	252	0x00000000	0x00000000	0x000101BA	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.3.12
554		supported	SCM Microsystems Inc.	SCR 331	0x04E6	0xE001	4	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.000 MHz	8.000 MHz	10753 bps	344105 bps	252	0x00000000	0x00000000	0x000100BA	271 bytes	0xFF	0xFF	0x0000	0x00	1			You have to upgrade the firmware using version 5.18 or later.	0.1.0
555		shouldwork	SCM Microsystems Inc.	SDI010 Smart Card Reader	0x04E6	0x5121	4	3	0xFF	1.10	0x01	0x01	0x0000 0x0003	4.000 MHz	8.000 MHz	10753 bps	344105 bps	252	0x00000000	0x00000000	0x000100BA	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, 2 slots		The contactless interface is not supported.	1.0.1
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
556		unsupported	RSA	RSA SecurID (R) Authenticator	0x15E1	0x2007	MSD	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x02	0x0000 0x0001	4.000 MHz	4.000 MHz	10752 bps	125000 bps	254	0x00000000	0x00000000	0x000100BA	271 bytes	0x00	0x00	0x0000	0x00	1			the new firmware (revision 6284) fails to respond to initial CmdGetSlotStatus() with "ccid_usb.c:687:ReadUSB() read failed (5/2): -8 Success" or with "<- 000000 81 FB FF FF FF" "commands.c:1046:CmdGetSlotStatus() Not enough data received: 5 bytes"	0.9.4
557		shouldwork	SIMHUB	pcsc reader	0x1677	0x0341	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0001	3.580 MHz	3.580 MHz	9600 bps	9600 bps	0	0x00000000	0x00000000	0x00020840	271 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD	No extended APDU		1.5.5
558		shouldwork	SONY	FeliCa RC-S300/P	0x054C	0x0DC9	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0002	4.000 MHz	4.000 MHz	115200 bps	921600 bps	254	0x00000000	0x00000000	0x0004007E	522 bytes	0x00	0x00	0x0000	0x00	1	contactless			1.4.35
559		shouldwork	SPECINFOSYSTEMS	DIAMOND token	0x316E	0x0001	CCID Interface	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0002	4.000 MHz	4.000 MHz	307200 bps	307200 bps	254	0x00000000	0x00000000	0x0002044E	271 bytes	0x00	0x00	0x0000	0x00	1		No extended APDU		1.4.31
560		supported	SCM Microsystems Inc.	SPR 532	0x04E6	0xE003	4	3	0xFF	1.00	0x00	0x01	0x0000 0x0003	4.000 MHz	8.000 MHz	10753 bps	344105 bps	254	0x00000000	0x00000000	0x000100BA	270 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification		You have to upgrade the firmware using version 5.10 or later.	0.3.2
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
561		supported	Cherry GmbH	SmartTerminal XX44	0x046A	0x002D	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000207B2	271 bytes	0xFF	0xFF	0x0000	0x00	1		No extended APDU		0.9.4
562		shouldwork	CHERRY	SmartTerminal ST-1144	0x046A	0x00A7	Smart Terminal XX44	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000407B8	271 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification			1.5.1
563		supported	Cherry GmbH	SmartTerminal ST-2xxx	0x046A	0x003E	Vendor Interface	3	0xFF	1.00	0x00	0x01	0x0000 0x0003	4.000 MHz	8.000 MHz	10753 bps	344105 bps	254	0x00000000	0x00000000	0x000100BA	270 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification			0.9.4
564		shouldwork	SYC	USB CCID Reader	0x0483	0x2017	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	16.000 MHz	12903 bps	600000 bps	252	0x00000000	0x00000000	0x000100BA	271 bytes	0xFF	0xFF	0x0000	0x00	1				GIT
565		shouldwork	GEMALTO	CT1100	0x08E6	0x3440	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	500000 bps	254	0x00000000	0x00000000	0x000404B2	540 bytes	0x00	0x00	0x0000	0x00	1			Bluetooth	1.4.22
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
566		shouldwork	GEMALTO	K1100	0x08E6	0x3440	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	500000 bps	254	0x00000000	0x00000000	0x000404B2	540 bytes	0x00	0x00	0x0000	0x00	1			Bluetooth	1.4.22
567		shouldwork	SafeNet	eToken 5100	0x0529	0x0620	Main Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	10752 bps	252	0x00000000	0x00000000	0x0001023C	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.20
568		shouldwork	SafeNet	eToken 7300	0x0529	0x0602	eToken 7300 SC	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0002	4.000 MHz	4.000 MHz	10752 bps	10752 bps	252	0x00000000	0x00000000	0x000102FC	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.20
569		shouldwork	SafeTech	SafeTouch	0x24A2	0x0102	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0003	4.000 MHz	8.000 MHz	10752 bps	421052 bps	252	0x00000000	0x00000000	0x00010000	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.10
570		shouldwork	SecuTech	SecuTech Token	0x0403	0xC587	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0001	3.580 MHz	3.580 MHz	9600 bps	9600 bps	0	0x00000000	0x00000000	0x00010000	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.12
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
571		shouldwork	Sensyl	SSC-HV Reader	0x356F	0x23FE	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.000 MHz	12.000 MHz	10752 bps	500000 bps	252	0x00000000	0x00000000	0x00010238	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.5.2
572		shouldwork	Sensyl	SSC-NFC Reader	0x356F	0x22FC	SSC-NFC Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0002	4.000 MHz	4.000 MHz	10752 bps	688172 bps	271	0x00000000	0x00000000	0x000404BE	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless			1.5.1
573		shouldwork	Sitecom	Sitecom USB simcard reader MD-010	0x0DF6	0x800A	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x03	0x0000 0x0003	3.700 MHz	3.700 MHz	9946 bps	318280 bps	254	0x00000007	0x00000000	0x000204BE	271 bytes	0xFF	0xFF	0x0000	0x00	1		No extended APDU		1.3.0
574		shouldwork	Cherry GmbH	SmartTerminal ST-1275	0x046A	0x0072	Smart Card Reader CCID	3	0x0B [Chip Card Interface Device Class (CCID)]	1.01	0x00	0x07	0x0000 0x0003	4.000 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000207B2	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless	No extended APDU	The contactless interface is not supported.	1.3.12
575		shouldwork	SoloKeys	Solo 2	0x1209	0xBEEE	CCID/ICCD Interface	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0002	3.580 MHz	3.580 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x00040840	3072 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD			1.4.35
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
576		shouldwork	SpringCard	H512 Series	0x1C34	0xA1A1	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x01	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	200080 bps	254	0x00000000	0x00000000	0x0002047E	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, 2 slots	No extended APDU		1.4.10
577		shouldwork	SpringCard	H663 Series	0x1C34	0x91B1	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x01	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	200080 bps	254	0x00000000	0x00000000	0x0002047E	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, 2 slots	No extended APDU		1.4.10
578		shouldwork	SpringCard	M519	0x1C34	0x6212	CCID	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x05	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	250000 bps	254	0x00000000	0x00000000	0x0004047E	65554 bytes	0xFF	0xFF	0x0000	0x00	1	6 slots			1.5.3
579		shouldwork	SpringCard	M519	0x1C34	0x621A	CCID	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x05	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	250000 bps	254	0x00000000	0x00000000	0x0004047E	65554 bytes	0xFF	0xFF	0x0000	0x00	1	6 slots			1.5.3
580		shouldwork	SpringCard	Puck	0x1C34	0x6132	CCID	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x01	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	200080 bps	254	0x00000000	0x00000000	0x0004047E	65554 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, 2 slots		table reader, composite CCID+USB Direct	1.4.32
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
581		shouldwork	SpringCard	NFC'Roll	0x1C34	0x8141	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	3.850 MHz	3.850 MHz	10752 bps	200080 bps	254	0x00000000	0x00000000	0x0002047E	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless	No extended APDU		1.4.10
582		shouldwork	Spyrus Inc	PocketVault P-3X	0x08DF	0x3201	NO NAME	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0001	3.580 MHz	3.580 MHz	9600 bps	9600 bps	256	0x00000000	0x00000000	0x00040840	271 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD			1.4.27
583		shouldwork	Spyrus Inc	PocketVault P-3X	0x08DF	0x3203	NO NAME	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0001	3.580 MHz	3.580 MHz	9600 bps	9600 bps	256	0x00000000	0x00000000	0x00040840	271 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD			1.4.35
584		shouldwork	Spyrus Inc	Rosetta USB	0x08DF	0x0004	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0001	3.580 MHz	3.580 MHz	9600 bps	9600 bps	256	0x00000000	0x00000000	0x00010840	271 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD			1.4.29
585		shouldwork	Spyrus Inc	WorkSafe Pro	0x08DF	0x3115	NO NAME	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0001	3.580 MHz	3.580 MHz	9600 bps	9600 bps	256	0x00000000	0x00000000	0x00040840	271 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD			1.4.29
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
586		shouldwork	Spyrus Inc	WorkSafe Pro	0x08DF	0x3117	NO NAME	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0001	3.580 MHz	3.580 MHz	9600 bps	9600 bps	256	0x00000000	0x00000000	0x00040840	271 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD			1.4.30
587		shouldwork	Giesecke & Devrient GmbH	Star Sign Card Token 350 (ICCD)	0x1059	0x000C	0	1	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0002	3.580 MHz	3.580 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x00020840	280 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD	No extended APDU		1.3.1
588		shouldwork	Sunrex	HP USB Business Slim Smartcard CCID Keyboard	0x05AF	0x605A	HP Skylab Smartcard Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	12.000 MHz	12903 bps	412903 bps	254	0x00000000	0x00000000	0x000104BA	271 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification			1.4.34
589		shouldwork	SYNNIX	CL-2100R	0x1206	0x2107	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.685 MHz	13.560 MHz	9909 bps	847500 bps	254	0x00000000	0x00000000	0x0004047E	273 bytes	0xFF	0xFF	0x0000	0x00	1	contactless			1.4.35
590		shouldwork	Sysking	MII136C	0x0E6A	0x5083	Smart Card Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	129032 bps	254	0x00000000	0x00000000	0x00010030	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.32
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
591		shouldwork	TOKEN2	FIDO2 Security Key(0026)	0x349E	0x0026	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	3.580 MHz	3.580 MHz	9600 bps	9600 bps	2344	0x00000000	0x00000000	0x00040480	2344 bytes	0xFF	0xFF	0x0000	0x00	1				GIT
592		shouldwork	TOKEN2 MFA	NFC Reader	0x349E	0x0430	R502 Contactless Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x01	0x0000 0x0002	4.000 MHz	4.000 MHz	10752 bps	688172 bps	252	0x00000007	0x00000000	0x000404BE	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless			1.5.2
593		shouldwork	TOKEN2	Molto2	0x349E	0x0300	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	3.580 MHz	3.580 MHz	9600 bps	9600 bps	2088	0x00000000	0x00000000	0x00040480	2088 bytes	0xFF	0xFF	0x0000	0x00	1				1.5.2
594		shouldwork	TOPPAN FORMS CO.,LTD	TC63CUT021	0x23EB	0x0003	TC63CUT021	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	106000 bps	106000 bps	254	0x00000000	0x00000000	0x0002067E	271 bytes	0xFF	0xFF	0x0000	0x00	0	contactless	No extended APDU		1.4.33
595		shouldwork	Thursby Software Systems, Inc.	TSS-PK8	0x096E	0x0619	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	3.700 MHz	3.700 MHz	9946 bps	318280 bps	254	0x00000007	0x00000000	0x000404BE	272 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.22
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
596		shouldwork	Thursby Software Systems, Inc.	TSS-PK7	0x096E	0x061C	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	3.700 MHz	3.700 MHz	9946 bps	318280 bps	272	0x00000007	0x00000000	0x000404BE	272 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.22
597		shouldwork	Todos	Argos Mini II	0x0B0C	0x0050	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344086 bps	254	0x00000000	0x00000000	0x000204BA	271 bytes	0x00	0x00	0x0000	0x00	1		No extended APDU	Use at least firmware 1.01. The previous one is bogus.	1.3.12
598		shouldwork	Todos	CX00	0x0B0C	0x0052	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344086 bps	254	0x00000000	0x00000000	0x000204BA	271 bytes	0x00	0x00	0x0211	0x00	1		No extended APDU		1.4.0
599		shouldwork	ubisys	13.56MHz RFID (CCID)	0x19A6	0x0009	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0002	3.580 MHz	3.580 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x00020042	288 bytes	0xFF	0xFF	0x0000	0x00	1	contactless	No extended APDU		1.4.5
600		shouldwork	Unicept GmbH	AirID USB	0x2DFF	0x1540	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.686 MHz	3.686 MHz	9909 bps	230400 bps	254	0x00000000	0x00000000	0x00040040	300 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.27
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
601		shouldwork	Unicept GmbH	AirID USB Dongle	0x2DFF	0x1543	AirID CCID 6000011	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.686 MHz	3.686 MHz	9909 bps	230400 bps	254	0x00000000	0x00000000	0x00040040	300 bytes	0xFF	0xFF	0x0000	0x00	1			When connected using the USB/Bluetooth dongle	1.4.28
602		shouldwork	VASCO	DP855	0x1A44	0x0855	3	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344086 bps	254	0x00000000	0x00000000	0x000404B2	271 bytes	0x00	0x00	0x020C	0x03	1	PIN Verification, PIN Modification			1.3.12
603		shouldwork	VASCO	DP865	0x1A44	0x0865	3	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344086 bps	254	0x00000000	0x00000000	0x000404B2	271 bytes	0x00	0x00	0x0818	0x03	1	PIN Verification, PIN Modification			1.3.12
604		shouldwork	VASCO	DIGIPASS KEY 200	0x1A44	0x0115	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344086 bps	254	0x00000000	0x00000000	0x000404B2	271 bytes	0x00	0x00	0x0000	0x03	1	PIN Verification, PIN Modification			1.3.12
605		shouldwork	VASCO	DIGIPASS KEY 860	0x1A44	0x0112	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344086 bps	254	0x00000000	0x00000000	0x000404B2	271 bytes	0x00	0x00	0x0000	0x03	1	PIN Verification, PIN Modification			1.3.12
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
606		shouldwork	VASCO	DIGIPASS 875	0x1A44	0x0875	CCID	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344086 bps	254	0x00000000	0x00000000	0x000404B2	271 bytes	0x00	0x00	0x0511	0x03	1	PIN Verification, PIN Modification			1.4.21
607		shouldwork	VASCO	DIGIPASS 920	0x1A44	0x0920	CCID	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344086 bps	254	0x00000000	0x00000000	0x000404B2	271 bytes	0x00	0x00	0x0000	0x03	1	PIN Verification, PIN Modification			1.4.3
608		shouldwork	VASCO	DIGIPASS 870	0x1A44	0x0870	CCID	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344086 bps	254	0x00000000	0x00000000	0x000404B2	271 bytes	0x00	0x00	0x0511	0x03	1	PIN Verification, PIN Modification			1.4.15
609		shouldwork	VASCO	DP905v1.1	0x1A44	0x0001	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x03	0x0000 0x0003	3.700 MHz	3.700 MHz	9946 bps	318280 bps	254	0x00000007	0x00000000	0x000404BE	272 bytes	0xFF	0xFF	0x0000	0x00	1				1.3.6
610		shouldwork	VASCO	DIGIPASS KEY 101	0x1A44	0x0101	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x03	0x0000 0x0003	3.700 MHz	3.700 MHz	9946 bps	318280 bps	254	0x00000007	0x00000000	0x000404BE	272 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.6
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
611		shouldwork	WatchCNPC	USB CCID Key	0x163C	0x0406	NO NAME	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0001	3.580 MHz	3.580 MHz	9600 bps	9600 bps	0	0x00000000	0x00000000	0x00010030	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.21
612		shouldwork	Watchdata W5181	Watchdata W5181	0x163C	0x0A03	Contact Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000207B2	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 0: Contact Reader, Multi interface reader	No extended APDU	The contactless interface is not supported	1.4.16
613		shouldwork	Watchdata W5181	Watchdata W5181	0x163C	0x0A03	Contactless Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0002	4.000 MHz	4.000 MHz	10752 bps	250000 bps	256	0x00000000	0x00000000	0x00020040	271 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 1: Contactless Reader, Multi interface reader	No extended APDU	The contactless interface is not supported	1.4.16
614		shouldwork	Watchdata W5181	Watchdata W5181	0x163C	0x0A03	SAM Reader	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	3.580 MHz	14.320 MHz	9600 bps	2703401 bps	252	0x00000000	0x00000000	0x000100BA	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 2: SAM Reader, Multi interface reader		The contactless interface is not supported	1.4.16
615		shouldwork	WCMi	SD5931	0x34EB	0x1506	PCSC QR Code Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	13.560 MHz	106000 bps	424000 bps	512	0x00000000	0x00000001	0x000404BE	528 bytes	0x00	0x00	0x0000	0x00	1				1.5.3
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
616		shouldwork	Softforum Co., Ltd	XecureHSM	0x04E8	0x0007	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x03	0x0000 0x0001	4.000 MHz	4.000 MHz	10752 bps	344086 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1				1.3.11
617		supported	XIRING	Leo v2	0x0F14	0x0038	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	9600 bps	230400 bps	254	0x00000000	0x00000000	0x000204BA	271 bytes	0xFF	0xFF	0x0210	0x03	1	firewall, PIN Verification, PIN Modification	No extended APDU		1.4.1
618		supported	XIRING	MyLeo	0x0F14	0x0037	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	9600 bps	230400 bps	254	0x00000000	0x00000000	0x000204BA	522 bytes	0xFF	0xFF	0x020C	0x03	1	PIN Verification, PIN Modification	No extended APDU		1.4.2
619		supported	XIRING	XI-SIGN USB V2	0x0F14	0x0011	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.600 MHz	3.600 MHz	9600 bps	115200 bps	254	0x00000000	0x00000000	0x000204BA	271 bytes	0xFF	0xFF	0x020C	0x03	1	PIN Verification, PIN Modification	No extended APDU		1.3.9
620		shouldwork	XIRING	XI-SIGN USB V2	0x0F14	0x0011	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.600 MHz	3.600 MHz	9600 bps	115200 bps	254	0x00000000	0x00000000	0x000204BA	271 bytes	0xFF	0xFF	0x020C	0x00	1		No extended APDU		1.3.9
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
621		shouldwork	Yubico	YubiKey CCID	0x1050	0x0404	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0002	4.000 MHz	4.000 MHz	307200 bps	307200 bps	3062	0x00000000	0x00000000	0x000400FE	3072 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.20
622		shouldwork	Yubico	YubiKey OTP+CCID	0x1050	0x0405	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0002	4.000 MHz	4.000 MHz	307200 bps	307200 bps	3062	0x00000000	0x00000000	0x000400FE	3072 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.20
623		shouldwork	Yubico	YubiKey OTP+FIDO+CCID	0x1050	0x0407	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0002	4.000 MHz	4.000 MHz	307200 bps	307200 bps	3062	0x00000000	0x00000000	0x000400FE	3072 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.20
624		shouldwork	Yubico	YubiKey FIDO+CCID	0x1050	0x0406	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0002	4.000 MHz	4.000 MHz	307200 bps	307200 bps	3062	0x00000000	0x00000000	0x000400FE	3072 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.20
625		unsupported	ACS	ACR122U PICC Interface	0x072F	0x2200	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0002	4.000 MHz	4.000 MHz	10752 bps	250000 bps	256	0x00000000	0x00000000	0x00020040	271 bytes	0x00	0x00	0x0000	0x00	1	contactless	No extended APDU	Time extension requests are not supported. Firmwares version < 2.06 are bogus: APDU with 0x7B (123) bytes expected do not work with a 14443 card. The reader returns SW=63 00 instead. See <a href="http://www.average.org/pcsclite-ACR122U/">Patch for pcsclite for the ACR122U NFC reader</a> for a workaround to be used with my CCID driver The firmware 2.14 may report bStatus = 0x00 indicating No Error but with bError = 0xFE indicating ICC_MUTE, CCID timed out while talking to the ICC. See <a href="https://github.com/LudovicRousseau/pyscard/issues/18">empty response -> crash on empty sw1</a>	1.3.9
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
626		shouldwork	ACS	ACR101 ICC Reader	0x072F	0x1204	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344100 bps	247	0x00000000	0x00000000	0x00010030	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.7
627		shouldwork	ACS	ACR33 ICC Reader	0x072F	0x8300	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x04	0x01	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344100 bps	254	0x00000000	0x00000000	0x000204B0	271 bytes	0x00	0x00	0x0000	0x03	1	PIN Verification, PIN Modification, 5 slots	No extended APDU		1.4.30
628		unsupported	Aladdin	eToken PRO USB 72K Java	0x0529	0x0620	Main Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	10752 bps	49	0x00000000	0x00000000	0x0001023C	271 bytes	0x00	0x00	0x0000	0x00	1			The token does not work after a warm reset. See http://www.opensc-project.org/pipermail/opensc-devel/2009-April/012128.html	1.3.9
629		supported	COVADIS	ALYA	0x0982	0x0007	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344086 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1	biometric			1.3.6
630		shouldwork	appidkey GmbH	ID100L-USB-SC-Reader	0x2406	0x5004	CCID Bulk Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12902 bps	412903 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.25
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
631		shouldwork	appidkey GmbH	ID50 -USB	0x2406	0x5003	CCID Bulk Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12902 bps	412903 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.25
632		shouldwork	ASK-RFID	CPL108	0x1FD3	0xCC1D	Contactless	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0002	3.580 MHz	3.580 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x000400FE	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless			1.3.12
633		shouldwork	Feitian	bR301	0x096E	0x0624	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.000 MHz	12.000 MHz	10752 bps	688172 bps	271	0x00000000	0x00000000	0x000404BA	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.21
634		shouldwork	Bit4id	CKey4	0x25DD	0x2321	bit4CCID	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	250000 bps	247	0x00000000	0x00000000	0x000100B6	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.7
635		shouldwork	Bit4id	TokenME EVO v2	0x25DD	0x2371	bit4CCID	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	129032 bps	247	0x00000000	0x00000000	0x00010030	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.31
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
636		shouldwork	Bit4id	cryptokey	0x25DD	0x1201	bit4CCID	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	250000 bps	247	0x00000000	0x00000000	0x000100B6	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.7
637		shouldwork	Bit4id	iAM	0x25DD	0x2221	bit4CCID	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	250000 bps	247	0x00000000	0x00000000	0x000100B6	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.7
638		shouldwork	BIT4ID	miniLector AIR NFC v3	0x25DD	0x3403	miniLector AIR DI v3 CLESS	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x01	0x0000 0x0002	4.000 MHz	4.000 MHz	10752 bps	688172 bps	252	0x00000007	0x00000000	0x000404BE	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless			1.4.34
639		shouldwork	Bit4id	miniLector AIR EVO	0x25DD	0x3211	CCID mLectorAir	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0002	4.000 MHz	4.000 MHz	10752 bps	250000 bps	254	0x00000000	0x00000000	0x00010040	250 bytes	0x00	0x00	0x0000	0x00	1	contactless		NFC	1.4.31
640		shouldwork	Bit4id	miniLector Blue	0x25DD	0xB001	miniLector Blue ICC Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	600000 bps	254	0x00000000	0x00000000	0x000404BA	271 bytes	0x00	0x00	0x0000	0x00	1			Bluetooth	1.4.31
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
641		shouldwork	bit4id	miniLector-EVO	0x25DD	0x3111	miniLector-EVO	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	250000 bps	247	0x00000000	0x00000000	0x000100B6	271 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification		The firmware announces pinpad support but it is a wrong and bogus. You need to use libccid version 1.4.35 or later to "fix" that.	1.4.7
642		shouldwork	Bit4id	miniLector-s	0x25DD	0x1101	bit4CCID	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	129032 bps	247	0x00000000	0x00000000	0x00010030	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.7
643		shouldwork	BIT4ID	mLector AIR DI V3	0x25DD	0x3503	miniLector AIR DI v3 CLESS	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x01	0x0000 0x0002	4.000 MHz	4.000 MHz	10752 bps	688172 bps	252	0x00000007	0x00000000	0x000404BE	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 0: miniLector AIR DI v3 CLESS, Multi interface reader			1.4.34
644		shouldwork	BIT4ID	mLector AIR DI V3	0x25DD	0x3503	miniLector AIR DI v3 Contact	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	688172 bps	252	0x00000007	0x00000000	0x000102B8	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 1: miniLector AIR DI v3 Contact, Multi interface reader			1.4.34
645		shouldwork	BIT4ID	mLector AIR DI V3	0x25DD	0x3503	miniLector AIR DI v3 SAM1	2	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	688172 bps	252	0x00000007	0x00000000	0x000102B8	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 2: miniLector AIR DI v3 SAM1, Multi interface reader			1.4.34
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
646		shouldwork	BIT4ID	mLector AIR DI V3	0x25DD	0x3503	miniLector AIR DI v3 SAM2	2	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	688172 bps	252	0x00000007	0x00000000	0x000102B8	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 3: miniLector AIR DI v3 SAM2, Multi interface reader			1.4.34
647		shouldwork	OMNIKEY AG	CardMan 3021	0x076B	0x3021	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000207B2	271 bytes	0xFF	0xFF	0x0000	0x00	1		No extended APDU		1.1.0
648		supported	OMNIKEY AG	CardMan 3121	0x076B	0x3021	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	3.000 MHz	12.000 MHz	8065 bps	96774 bps	254	0x00000007	0x00000000	0x000205B2	271 bytes	0x00	0x00	0x0000	0x00	1		No extended APDU		0.1.0
649		shouldwork	OMNIKEY AG	CardMan 3621	0x076B	0x3621	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000207B2	271 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification	No extended APDU	Does not support minimum PIN length (wPINMaxExtraDigit) lower than 5	1.0.1
650		shouldwork	OMNIKEY AG	CardMan 3821	0x076B	0x3821	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000207B2	271 bytes	0xFF	0xFF	0x0210	0x03	1	PIN Verification, PIN Modification	No extended APDU	Did not support minimum PIN length (wPINMaxExtraDigit) lower than 5. Seems to be fixed in recent firmware with a min size of 1.	1.0.0
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
651		shouldwork	OMNIKEY	CardMan 4321	0x076B	0x4321	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000207B2	271 bytes	0xFF	0xFF	0x0000	0x00	1	ExpressCard	No extended APDU	The reader may report a card present if no card is inserted. See <a href="https://bugzilla.redhat.com/show_bug.cgi?id=531998">pcscd spams the log with "SCardConnect() Card Not Powered"</a>	1.3.0
652		shouldwork	OMNIKEY AG	CardMan 5121	0x076B	0x5121	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000207B2	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless	No extended APDU	The RFID interface is not supported.	1.2.0
653		shouldwork	OMNIKEY AG	CardMan 5125	0x076B	0x5125	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000207B2	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless	No extended APDU	The HID PROX interface is not supported.	1.0.0
654		shouldwork	OMNIKEY AG	CardMan 6121	0x076B	0x6622	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000207B2	271 bytes	0xFF	0xFF	0x0000	0x00	1		No extended APDU		1.0.0
655		shouldwork	SpringCard	CrazyWriter	0x1C34	0x7113	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x02	0x03	0x0000 0x0003	3.686 MHz	13.560 MHz	9909 bps	12643980 bps	254	0x00000000	0x00000000	0x0002047E	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, 3 slots	No extended APDU		1.3.9
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
656		supported	Eutron	CryptoIdentity CCID	0x073D	0x0008	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344086 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1				1.3.1
657		shouldwork	SpringCard	CSB6 Basic	0x1C34	0x7121	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	3.686 MHz	13.560 MHz	9909 bps	12643980 bps	254	0x00000000	0x00000000	0x0002047E	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless	No extended APDU		1.3.9
658		shouldwork	SpringCard	CSB6 Secure	0x1C34	0x7123	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x02	0x03	0x0000 0x0003	3.686 MHz	13.560 MHz	9909 bps	12643980 bps	254	0x00000000	0x00000000	0x0002047E	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, 3 slots	No extended APDU		1.3.9
659		shouldwork	SpringCard	CSB6 Ultimate	0x1C34	0x7124	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x04	0x03	0x0000 0x0003	3.686 MHz	13.560 MHz	9909 bps	12643980 bps	254	0x00000000	0x00000000	0x0002047E	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, 5 slots	No extended APDU		1.3.9
660		shouldwork	eID_R6 001	X8	0x257B	0xD205	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	412903 bps	254	0x00000000	0x00000000	0x000200B2	522 bytes	0x00	0x00	0x0000	0x00	1		No extended APDU		1.4.18
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
661		shouldwork	SafeNet	eToken 5300	0x08E6	0x34CC	eToken 5300	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0002	4.800 MHz	4.800 MHz	12903 bps	825806 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.28
662		shouldwork	SpringCard	EasyFinger Standard	0x1C34	0x7136	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x01	0x03	0x0000 0x0003	3.686 MHz	13.560 MHz	9909 bps	12643980 bps	254	0x00000000	0x00000000	0x0002047E	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, 2 slots	No extended APDU		1.3.9
663		shouldwork	SpringCard	EasyFinger Ultimate	0x1C34	0x7138	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x03	0x03	0x0000 0x0003	3.686 MHz	13.560 MHz	9909 bps	12643980 bps	254	0x00000000	0x00000000	0x0002047E	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, 4 slots	No extended APDU		1.3.9
664		shouldwork	ESMART	Token GOST	0x2CE4	0x7479	ESMART Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0003	4.800 MHz	12.000 MHz	9600 bps	150000 bps	254	0x00000000	0x00000000	0x000107BE	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.25
665		shouldwork	Alcor Micro	AU9522	0x058F	0x9522	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x01	0x03	0x0000 0x0003	3.700 MHz	3.700 MHz	9946 bps	318280 bps	254	0x00000007	0x00000000	0x000204BE	271 bytes	0xFF	0xFF	0x0000	0x00	1	2 slots	No extended APDU	Built in reader for the "Friio USB2.0 DTV Receiver"	1.4.7
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
666		shouldwork	Fujitsu Siemens Computers	SmartCard Keyboard USB 2A	0x0BF8	0x1005	4	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000207B2	271 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification	No extended APDU		1.3.0
667		shouldwork	Fujitsu Siemens Computers	SmartCard USB 2A	0x0BF8	0x1006	4	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000207B2	271 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification	No extended APDU		1.3.0
668		supported	Gemalto	EZIO CB+	0x08E6	0x34C3	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344086 bps	254	0x00000000	0x00000000	0x000204BA	271 bytes	0x00	0x00	0x0211	0x03	1	PIN Verification, PIN Modification	No extended APDU		1.4.4
669		supported	Gemalto	Ezio Shield	0x08E6	0x34C0	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344086 bps	254	0x00000000	0x00000000	0x000204BA	271 bytes	0x00	0x00	0x0211	0x03	1	PIN Verification, PIN Modification	No extended APDU		1.4.4
670		shouldwork	Gemalto	Ezio Shield	0x08E6	0x34C2	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	500000 bps	254	0x00000000	0x00000000	0x000404B2	271 bytes	0x00	0x00	0x0211	0x03	1	firewall, PIN Verification, PIN Modification		Also known as IDBridge CT700 or CT710	1.4.5
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
671		shouldwork	Gemalto	Ezio Shield Secure Channel	0x08E6	0x34C1	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	500000 bps	254	0x00000000	0x00000000	0x000204B2	271 bytes	0x00	0x00	0x0411	0x03	1	firewall?, PIN Verification, PIN Modification	No extended APDU		1.4.14
672		supported	Gemalto	Prox Dual USB PC Link Reader	0x08E6	0x5503	Prox-DU Contactless_10500231	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	10752 bps	254	0x00000000	0x00000000	0x00040672	512 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 0: Prox-DU Contactless_10500231, Multi interface reader			1.4.2
673		supported	Gemalto	Prox Dual USB PC Link Reader	0x08E6	0x5503	Prox-DU Contact_10500231	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	500000 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 1: Prox-DU Contact_10500231, Multi interface reader			1.4.2
674		supported	Gemalto	Prox SU USB PC LinkReader	0x08E6	0x5504	Prox-SU Contact interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	500000 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 0: Prox-SU Contact interface, Multi interface reader			1.4.2
675		supported	Gemalto	Prox SU USB PC LinkReader	0x08E6	0x5504	Prox-SU Contactless interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	10752 bps	254	0x00000000	0x00000000	0x00020672	278 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 1: Prox-SU Contactless interface, Multi interface reader	No extended APDU		1.4.2
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
676		shouldwork	Gemalto	GemPC Express	0x08E6	0x34EC	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	500000 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1	ExpressCard			1.0.0
677		supported	Gemalto	USB Shell Token V2	0x08E6	0x3438	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344086 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1				0.1.0
678		supported	Gemalto	USB GemPCPinpad SmartCard Reader	0x08E6	0x3478	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	500000 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x03	1	firewall, PIN Verification, PIN Modification		Known problems/limitations: - Does not support minimum PIN length (wPINMaxExtraDigit) lower than 4 - Does not support maximum PIN length (wPINMaxExtraDigit) greater than 8 - Does send a VERIFY PIN command with an empty PIN to get the number of remaining trials. This may be problematic with some smart cards like the Belgian eID card that does not support this and will decrement the counter	1.0.0
679		shouldwork	Gemalto	USB GemPCPinpad SmartCard Reader	0x08E6	0x3478	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	500000 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0210	0x03	1	PIN Verification, PIN Modification			1.3.13
680		supported	Gemalto	PC Twin Reader	0x08E6	0x3437	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344086 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1				0.1.0
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
681		supported	Gemalto	Gemplus USB SmartCard Reader 433-Swap	0x08E6	0x4433	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x01	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344086 bps	254	0x00000000	0x00000000	0x00020472	271 bytes	0x00	0x00	0x0000	0x00	1		No extended APDU		0.1.0
682		unsupported	Hewlett-Packard Company	HP USB Smart Card Keyboard	0x03F0	0x1024	4	2	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x01	0x0000 0x0003	4.000 MHz	8.000 MHz	10753 bps	344105 bps	252	0x00000000	0x00000000	0x000100BA	263 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification		SECURITY ALERT: Martin P. reported that on Mac OS X the pinpad feature does not work correctly and the PIN code is sent to the host (instead of being kept secret by the pinpad). SPE disabled in version 1.4.3 of the driver.	1.1.0
683		shouldwork	Hewlett Packard	MFP Smart Card Reader	0x03F0	0x2924	4	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x01	0x0000 0x0003	4.000 MHz	8.000 MHz	10753 bps	344105 bps	252	0x00000000	0x00000000	0x000100BA	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.3.9
684		shouldwork	Generic	USB2.0-CRW	0x0BDA	0x0169	Smart Card Reader Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.750 MHz	7.500 MHz	10080 bps	312500 bps	254	0x00000000	0x00000000	0x00010030	271 bytes	0x00	0x00	0x0000	0x00	1				1.3.10
685		shouldwork	Identiv	@MAXX ID-1 Smart Card Reader	0x04E6	0x5819	CCID Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	16.000 MHz	12903 bps	600000 bps	252	0x00000000	0x00000000	0x000100BA	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.21
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
686		shouldwork	Identiv	@MAXX Light2 token	0x04E6	0x5818	CCID Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	16.000 MHz	12903 bps	600000 bps	252	0x00000000	0x00000000	0x000100BA	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.21
687		shouldwork	Identiv	uTrust 3512 SAM slot Token	0x04E6	0x5816	CCID Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	16.000 MHz	12903 bps	600000 bps	252	0x00000000	0x00000000	0x000100BA	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.21
688		shouldwork	Identiv	uTrust 3522 embd SE RFID Token	0x04E6	0x581A	CCID Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	16.000 MHz	12903 bps	600000 bps	252	0x00000000	0x00000000	0x000100BA	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.21
689		shouldwork	Identiv	uTrust 2900 R Smart Card Reader	0x04E6	0x5811	CCID Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	16.000 MHz	12903 bps	600000 bps	252	0x00000000	0x00000000	0x000100BA	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.21
690		supported	KOBIL	KAAN SIM III	0x0D46	0x3003	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	412903 bps	254	0x00000000	0x00000000	0x000206BA	271 bytes	0xFF	0xFF	0x0000	0x00	1		No extended APDU		0.9.3
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
691		supported	KOBIL	EMV CAP - SecOVID Reader III	0x0D46	0x3010	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x01	0x0000 0x0003	2.000 MHz	4.000 MHz	10573 bps	344086 bps	254	0x00000000	0x00000000	0x000406BA	536 bytes	0xFF	0xFF	0x0210	0x03	1	PIN Verification, PIN Modification		The reader declares support of Extended APDU but it does not work. The CCID driver disables extended APDU in version 1.4.35.	1.3.1
692		unsupported	KOBIL Systems	mIDentity M	0x0D46	0x4000	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	250000 bps	254	0x00000000	0x00000000	0x000206BA	271 bytes	0xFF	0xFF	0x0000	0x00	1		No extended APDU	Time requests are not managed correctly and make the firmware fail. This is not a problem unless you use a time-consuming APDU like RSA key generation. A new firmware will correct the bug.	0.9.3
693		unsupported	KOBIL Systems	mIDentity XL	0x0D46	0x4001	0	2	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	250000 bps	254	0x00000000	0x00000000	0x000406BA	512 bytes	0xFF	0xFF	0x0000	0x00	1			Time requests are not managed correctly and make the firmware fail. This is not a problem unless you use a time-consuming APDU like RSA key generation. A new firmware will correct the bug.	1.3.9
694		shouldwork	Ledger	Nano S	0x2C97	0x0001	Nano S	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0001	3.600 MHz	3.600 MHz	9677 bps	9677 bps	0	0x00000000	0x00000000	0x00020038	271 bytes	0x00	0x00	0x0000	0x03	1	PIN Verification, PIN Modification	No extended APDU		1.4.28
695		shouldwork	Ledger	Nano S	0x2C97	0x1009	Nano S	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0001	3.600 MHz	3.600 MHz	9677 bps	9677 bps	0	0x00000000	0x00000000	0x000206BA	271 bytes	0x00	0x00	0x0000	0x03	1	PIN Verification, PIN Modification	No extended APDU		1.5.1
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
696		shouldwork	Lenovo	Lenovo USB Smartcard Keyboard	0x17EF	0x6007	Lenovo Keyboard Smartcard Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.800 MHz	8.000 MHz	12903 bps	307200 bps	252	0x00000000	0x00000001	0x000100BA	271 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification			1.4.12
697		shouldwork	Lenovo	Lenovo USB Smartcard Keyboard	0x17EF	0x6055	Lenovo USB Smartcard Keyboard	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	12.000 MHz	12903 bps	412903 bps	254	0x00000000	0x00000000	0x000404BA	1034 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification			1.4.18
698		shouldwork	C3PO	LTC32	0x0783	0x0010	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x01	0x0000 0x0003	4.000 MHz	20.000 MHz	9600 bps	230400 bps	254	0x00000007	0x00000000	0x000100BA	271 bytes	0x00	0x00	0x0000	0x03	1	PIN Verification, PIN Modification			1.2.0
699		shouldwork	mCore	SCard-Reader	0x1403	0x7502	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	10752 bps	254	0x00000000	0x00000000	0x000207BA	271 bytes	0xFF	0xFF	0x0000	0x00	1		No extended APDU		1.4.28
700		shouldwork	Nitrokey	Nitrokey HSM	0x20A0	0x4230	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0002	3.600 MHz	3.600 MHz	9677 bps	116129 bps	254	0x00000000	0x00000000	0x000104BA	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.21
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
701		shouldwork	Nitrokey	Nitrokey Pro	0x20A0	0x4108	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0002	3.600 MHz	3.600 MHz	9677 bps	116129 bps	254	0x00000000	0x00000000	0x000104BA	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.21
702		shouldwork	OMNIKEY	CardMan 5321	0x076B	0x5321	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000103B0	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless		The RFID interface is not supported.	1.3.1
703		shouldwork	HID Global	OMNIKEY 6121 Smart Card Reader	0x076B	0x6632	OMNIKEY 6121 Smart Card Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000407B8	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.23
704		shouldwork	OMNIKEY AG	6121 USB mobile	0x076B	0x6623	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	492	0x00000007	0x00000000	0x000407B2	502 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.19
705		shouldwork	SpringCard	Prox'N'Roll	0x1C34	0x7141	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	3.686 MHz	13.560 MHz	9909 bps	12643980 bps	254	0x00000000	0x00000000	0x0002047E	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless	No extended APDU		1.3.9
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
706		shouldwork	Axalto	Reflex USB v3	0x04E6	0x511C	CCID Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x01	0x0000 0x0003	4.000 MHz	12.000 MHz	9600 bps	307200 bps	252	0x00000000	0x00000000	0x000100BA	263 bytes	0xFF	0xFF	0x0000	0x00	1				1.0.1
707		disabled	Reiner-SCT	cyberJack pinpad(a)	0x0C4B	0x0300	0	3	0xFF	10.00	0x00	0x07	0x0000 0x0003	4.000 MHz	8.000 MHz	10072 bps	250000 bps	254	0x00000007	0x00000000	0x00010030	270 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification		Time requests are not managed and the driver may time out without any response from the reader. This is not a problem unless you use a time-consuming APDU like RSA key generation. Reiner provides a free software driver for this reader: <a href="http://support.reiner-sct.de/">Reiner SCT support</a>	1.3.1
708		shouldwork	REINER SCT	tanJack USB	0x0C4B	0x0551	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0002	1.000 MHz	1.000 MHz	2688 bps	2688 bps	254	0x00000000	0x00000000	0x000404BA	512 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.36
709		shouldwork	rf IDEAS	USB CCID	0x0C27	0xCCDA	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	106000 bps	254	0x00000000	0x00000000	0x000204BE	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless	No extended APDU		1.5.5
710		shouldwork	Philips Semiconductors	SmartMX Sample	0x04B9	0x1400	0	1	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0002	3.580 MHz	3.580 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x00020840	261 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD	No extended APDU	used in some SafeNet iKey 4000	1.3.10
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
711		supported	SCM Microsystems Inc.	SCR 3310	0x04E6	0x5116	4	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.000 MHz	8.000 MHz	10753 bps	344105 bps	252	0x00000000	0x00000000	0x000100BA	271 bytes	0xFF	0xFF	0x0000	0x00	1				0.9.3
712		shouldwork	SCM Microsystems Inc.	SCR331-DI USB Smart Card Reader	0x04E6	0x5120	4	3	0xFF	1.00	0x01	0x01	0x0000 0x0003	4.000 MHz	12.000 MHz	10753 bps	344105 bps	252	0x00000000	0x00000000	0x000100BA	263 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, 2 slots		The contactless interface is not supported.	0.9.4
713		shouldwork	SCM Microsystems Inc.	SDI011 Contactless Reader	0x04E6	0x512B	Vendor Interface	3	0xFF	1.10	0x01	0x01	0x0000 0x0003	4.000 MHz	8.000 MHz	10753 bps	344105 bps	252	0x00000000	0x00000000	0x000100BA	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, 2 slots		The contactless interface is not supported.	1.4.6
714		shouldwork	SCM Microsystems Inc.	SDI011 Contactless Reader	0x04E6	0x512C	Vendor Interface	3	0xFF	1.10	0x01	0x01	0x0000 0x0003	4.000 MHz	8.000 MHz	10753 bps	344105 bps	252	0x00000000	0x00000000	0x000100BA	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, 2 slots		The contactless interface is not supported.	1.4.11
715		supported	Gemalto	Smart Enterprise Guardian Secure USB Device	0x08E6	0x8000	4	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x01	0x0000 0x0001	3.580 MHz	7.500 MHz	20112 bps	223200 bps	252	0x00000000	0x00000000	0x0001007A	270 bytes	0xFF	0xFF	0x0000	0x00	1				1.3.2
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
716		supported	Eutron	Card Reader	0x073D	0x0C00	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344068 bps	254	0x00000000	0x00000000	0x00010330	271 bytes	0x00	0x00	0x0000	0x00	1			The device contains a hub with 3 devices: 2 CCID card readers and a USB Mass storage	1.4.2
717		supported	Eutron	SIM Reader	0x073D	0x0C00	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344068 bps	254	0x00000000	0x00000000	0x00010330	271 bytes	0x00	0x00	0x0000	0x00	1			The device contains a hub with 3 devices: 2 CCID card readers and a USB Mass storage	1.4.2
718		supported	MYSMART	MySMART PAD V2.0	0x09BE	0x0002	0	3	0xFF	1.00	0x00	0x00	0x0000 0x0300	1024.000 MHz	1024.000 MHz	10752 bps	129032 bps	0	0x00000000	0x03000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1				0.9.4
719		shouldwork	sysmocom - s.f.m.c. GmbH	sysmoOCTSIM	0x1D50	0x6141	CCID	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x07	0x07	0x0000 0x0001	2.500 MHz	20.000 MHz	6720 bps	921600 bps	0	0x00000000	0x00000000	0x000100B0	272 bytes	0xFF	0xFF	0x0000	0x00	8	8 slots			1.4.34
720		supported	XIRING	Teo	0x076B	0xA022	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000207B2	271 bytes	0xFF	0xFF	0x0000	0x00	1		No extended APDU		1.2.0
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
721		shouldwork	udea	MILKO V1.	0x2A17	0x0001	MILKO V1.	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	250000 bps	254	0x00000000	0x00000000	0x000200B6	271 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification	No extended APDU		1.4.17
722		shouldwork	F-Secure Foundry	USB Armory Mk II	0x1209	0x2702	Smart Card Control	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0002	16.384 MHz	16.384 MHz	307200 bps	307200 bps	254	0x00000000	0x00000000	0x000400FE	20480 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.32
723		shouldwork	Validy	TokenA sl vt	0x1CF0	0x0001	0	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	3.580 MHz	3.580 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x00040042	1024 bytes	0xFF	0xFF	0x0000	0x00	1				1.3.6
724		shouldwork	COVADIS	VEGA-ALPHA	0x0982	0x0008	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	500000 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x03	1	PIN Verification, PIN Modification			1.3.6
725		shouldwork	HID Global	veriCLASS Reader	0x076B	0x5400	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x02	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	825807 bps	254	0x00000000	0x00000000	0x000404BA	520 bytes	0xFF	0xFF	0x0000	0x00	1	3 slots			1.4.17
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
726		supported	Verisign	Secure Storage Token	0x08E6	0x1359	0	2	0xFF	1.00	0x00	0x01	0x0000 0x0003	1.500 MHz	1.500 MHz	4032 bps	46875 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1				0.9.4
727		supported	Verisign	Secure Token	0x08E6	0xACE0	0	2	0xFF	1.00	0x00	0x01	0x0000 0x0003	1.500 MHz	1.500 MHz	4032 bps	46875 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1				0.9.4
728		shouldwork	Yubico	Yubikey NEO OTP+U2F+CCID	0x1050	0x0116	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0002	4.000 MHz	4.000 MHz	307200 bps	307200 bps	1400	0x00000000	0x00000000	0x000400FE	1400 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.18
729		shouldwork	Yubico	Yubikey NEO U2F+CCID	0x1050	0x0115	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0002	4.000 MHz	4.000 MHz	307200 bps	307200 bps	1400	0x00000000	0x00000000	0x000400FE	1400 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.18
730		shouldwork	Yubico	Yubikey NEO CCID	0x1050	0x0112	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0002	4.000 MHz	4.000 MHz	9600 bps	9600 bps	1400	0x00000000	0x00000000	0x000400FE	1400 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.10
#	image	section	iManufacturer	iProduct	idVendor	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
731		shouldwork	Yubico	Yubikey NEO OTP+CCID	0x1050	0x0111	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0002	4.000 MHz	4.000 MHz	9600 bps	307200 bps	1400	0x00000000	0x00000000	0x000400FE	1400 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.10

Generated: Fri Sep 6 21:10:38 2024
