Readers sorted by 'idVendor' field

Click on the column header to sort by that column. Get some documentation about the columns at CCID descriptor statistics.

The background color indicates the section of the reader:

supported

should work

unsupported

disabled

#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
1	0x03EB	shouldwork	ATMEL	AT90SCR050		0x6011	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344064 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1				1.3.12
2	0x03EB	shouldwork	ATMEL	AT90SCR100		0x6010	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344064 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1				1.3.12
3	0x03EB	shouldwork	ATMEL	AT91SC192192CT-USB ICCD reader		0x600B	4	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0001	3.580 MHz	3.580 MHz	9600 bps	9600 bps	0	0x00000000	0x00000000	0x00020840	271 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD	No extended APDU		1.3.11
4	0x03EB	shouldwork	ATMEL	AT91SO CCID Smart Card Reader		0x6004	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x01	0x07	0x0000 0x0003	3.580 MHz	3.580 MHz	9600 bps	9600 bps	256	0x00000000	0x00000000	0x0002005E	271 bytes	0xFF	0xFF	0x0210	0x00	1	2 slots	No extended APDU		1.3.9
5	0x03EB	shouldwork	ATMEL	AT98SC032CT-USB		0x6009	4	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0001	3.580 MHz	3.580 MHz	9600 bps	9600 bps	0	0x00000000	0x00000000	0x00020840	271 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD	No extended APDU		1.3.10
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release

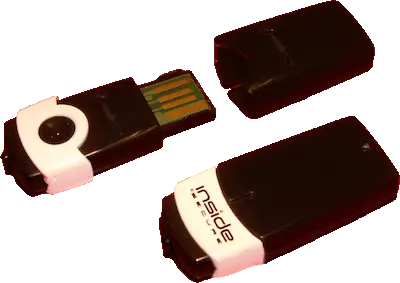

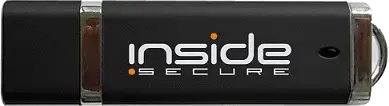

6	0x03EB	shouldwork	ATMEL	VaultIC420 Smart Object		0x6012	4	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0001	3.580 MHz	3.580 MHz	9600 bps	9600 bps	0	0x00000000	0x00000000	0x00020840	271 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD	No extended APDU		1.3.12
7	0x03EB	shouldwork	ATMEL	VaultIC440		0x6014	4	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0001	3.580 MHz	3.580 MHz	9600 bps	9600 bps	0	0x00000000	0x00000000	0x00020840	271 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD	No extended APDU		1.3.12
8	0x03EB	shouldwork	IIT	E.Key Almaz-1C		0x9324	NO NAME	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0002	5.000 MHz	5.000 MHz	161290 bps	161290 bps	254	0x00000000	0x00000000	0x0002044E	264 bytes	0x00	0x00	0x0000	0x00	1		No extended APDU		1.4.15
9	0x03EB	shouldwork	IIT	E.Key Crystal-1		0x9308	NO NAME	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0002	5.000 MHz	5.000 MHz	161290 bps	161290 bps	254	0x00000000	0x00000000	0x0002044E	264 bytes	0x00	0x00	0x0000	0x00	1		No extended APDU		1.4.28
10	0x03EB	unsupported	ATMEL	VaultIC460		0x6016	4	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0001	3.580 MHz	3.580 MHz	9600 bps	9600 bps	0	0x00000000	0x00000000	0x00020840	271 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD	No extended APDU	The reader does not send time extension requests. The driver times out after DEFAULT_COM_READ_TIMEOUT (3 seconds by default).	1.3.12
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
11	0x03EB	disabled	Jinmuyu Electronics Co., Ltd.	MR800		0x6120	CCID	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x01	0x01	0x0000 0x0003	3.686 MHz	3.686 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x000401BE	527 bytes	0x00	0x00	0x0000	0x00	1	2 slots		declares 2 slots but is a 1 slot reader. PTS fails for T=1. See "[Pcsclite-muscle] Jinmuyu MR800 card reader problem" http://lists.alioth.debian.org/pipermail/pcsclite-muscle/2017-June/000913.html	1.4.28

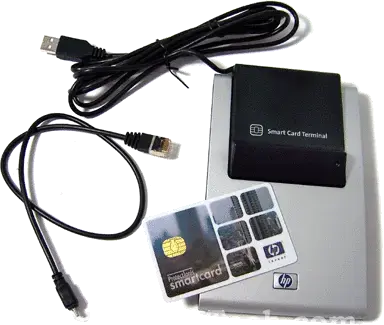

12	0x03F0	supported	SCM Microsystems Inc.	HP USB Smartcard Reader		0x0824	4	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x01	0x0000 0x0003	4.000 MHz	12.000 MHz	9600 bps	307200 bps	252	0x00000000	0x00000000	0x000100BA	263 bytes	0xFF	0xFF	0x0000	0x00	1				1.2.0
13	0x03F0	shouldwork	Hewlett Packard	HP USB Smartcard CCID Keyboard		0x104A	HP Smartcard Keyboard	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	12.000 MHz	12903 bps	412903 bps	254	0x00000000	0x00000000	0x000404BA	1034 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification			1.4.16
14	0x03F0	shouldwork	Chicony	HP USB Smartcard CCID Keyboard JP		0x124A	HP Smartcard Keyboard	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	12.000 MHz	12903 bps	412903 bps	254	0x00000000	0x00000000	0x000104BA	271 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification			1.4.21
15	0x03F0	shouldwork	Chicony	HP USB Smartcard CCID Keyboard KR		0x114A	HP Smartcard Keyboard	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	12.000 MHz	12903 bps	412903 bps	254	0x00000000	0x00000000	0x000104BA	271 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification			1.4.21
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
16	0x03F0	shouldwork	Hewlett Packard	MFP Smart Card Reader		0x2924	4	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x01	0x0000 0x0003	4.000 MHz	8.000 MHz	10753 bps	344105 bps	252	0x00000000	0x00000000	0x000100BA	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.3.9
17	0x03F0	shouldwork	Hewlett-Packard	HP lt4112 Gobi 4G Module		0x581D	HP Mobile Connect - PCSC Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0001	3.580 MHz	3.580 MHz	9600 bps	9600 bps	0	0x00000000	0x00000000	0x0002007E	512 bytes	0x00	0x00	0x0000	0x00	1		No extended APDU		1.4.19
18	0x03F0	shouldwork	Liteon	HP SC Keyboard - Apollo JP (Liteon)		0x184A	HP Keyboard Smartcard Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	12.000 MHz	12903 bps	412903 bps	254	0x00000000	0x00000000	0x000104BA	271 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification			1.4.21
19	0x03F0	shouldwork	Liteon	HP SC Keyboard - Apollo KR (Liteon)		0x174A	HP Keyboard Smartcard Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	12.000 MHz	12903 bps	412903 bps	254	0x00000000	0x00000000	0x000104BA	271 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification			1.4.21
20	0x03F0	shouldwork	Liteon	HP SC Keyboard - Apollo (Liteon)		0x164A	HP Keyboard Smartcard Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	12.000 MHz	12903 bps	412903 bps	254	0x00000000	0x00000000	0x000104BA	271 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification			1.4.21
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
21	0x03F0	unsupported	Hewlett-Packard Company	HP USB Smart Card Keyboard		0x1024	4	2	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x01	0x0000 0x0003	4.000 MHz	8.000 MHz	10753 bps	344105 bps	252	0x00000000	0x00000000	0x000100BA	263 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification		SECURITY ALERT: Martin P. reported that on Mac OS X the pinpad feature does not work correctly and the PIN code is sent to the host (instead of being kept secret by the pinpad). SPE disabled in version 1.4.3 of the driver.	1.1.0
22	0x03F0	unsupported	Hewlett-Packard Company	HP USB CCID Smartcard Keyboard		0x0036	HP USB CCID Keyboard Smartcard Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	4.800 MHz	8.000 MHz	12903 bps	307200 bps	252	0x00000000	0x00000001	0x000100BA	271 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification		WARNING: Secure Pin Entry feature is bogus and has been disabled in version 1.4.6 of driver. firmware < 1.24 is bogus. SetParameters fails with a card of ATR 3B 16 96 41 73 74 72 69 64. The smart card reader part is from SCM.	1.4.1
23	0x0403	shouldwork	SecuTech	SecuTech Token		0xC587	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0001	3.580 MHz	3.580 MHz	9600 bps	9600 bps	0	0x00000000	0x00000000	0x00010000	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.12

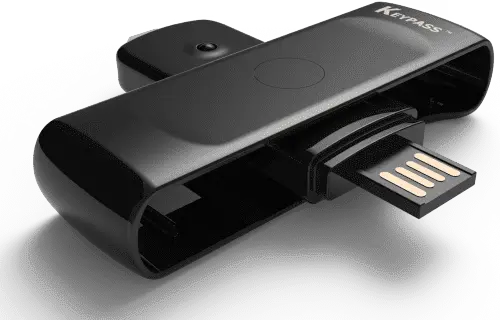

24	0x0416	shouldwork	MK Technology	KeyPass D1		0xC137	SAM Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	62500 bps	254	0x00000000	0x00000000	0x000204BA	271 bytes	0xFF	0x00	0x0000	0x00	1	Multi interface reader, interface 0: SAM Reader	No extended APDU		1.4.35
25	0x0416	shouldwork	MK Technology	KeyPass D1		0xC137	SC Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	62500 bps	254	0x00000000	0x00000000	0x000204BA	271 bytes	0xFF	0x00	0x0000	0x00	1	Multi interface reader, interface 1: SC Reader	No extended APDU		1.4.35
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
26	0x0416	shouldwork	MK Technology	KeyPass S1		0xC136	SAM Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	62500 bps	254	0x00000000	0x00000000	0x000204BA	271 bytes	0xFF	0x00	0x0000	0x00	1		No extended APDU		1.4.27
27	0x0416	shouldwork	Winbond	CCID SmartCard Controller		0x3815	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x01	0x0000 0x0003	3.000 MHz	3.000 MHz	8065 bps	32258 bps	123	0x00000000	0x00000000	0x000004B2	138 bytes	0xFF	0xFF	0x0000	0x00	1				1.0.1
28	0x0424	shouldwork	Microchip	SEC1110		0x1104	CCID Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	16.000 MHz	12903 bps	826000 bps	254	0x00000000	0x00000000	0x000100B2	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.16
29	0x0424	shouldwork	Microchip	SEC1210		0x1202	CCID Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	16.000 MHz	12903 bps	826000 bps	254	0x00000000	0x00000000	0x000100B2	271 bytes	0xFF	0xFF	0x0000	0x00	1	Multi interface reader, interface 0: CCID Interface			1.4.16
30	0x0424	shouldwork	Microchip	SEC1210		0x1202	CCID Interface	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	16.000 MHz	12903 bps	826000 bps	254	0x00000000	0x00000000	0x000100B2	271 bytes	0xFF	0xFF	0x0000	0x00	1	Multi interface reader, interface 1: CCID Interface			1.4.16
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
31	0x046A	supported	Cherry GmbH	SmartTerminal XX44		0x002D	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000207B2	271 bytes	0xFF	0xFF	0x0000	0x00	1		No extended APDU		0.9.4
32	0x046A	supported	Cherry GmbH	SmartTerminal ST-2xxx		0x003E	Vendor Interface	3	0xFF	1.00	0x00	0x01	0x0000 0x0003	4.000 MHz	8.000 MHz	10753 bps	344105 bps	254	0x00000000	0x00000000	0x000100BA	270 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification			0.9.4
33	0x046A	supported	Cherry GmbH	SmartBoard XX33		0x0005	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x01	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344086 bps	254	0x00000000	0x00000000	0x00020472	271 bytes	0x00	0x00	0x0000	0x01	1	PIN Verification	No extended APDU		0.9.0
34	0x046A	supported	Cherry GmbH	SmartBoard XX44		0x0010	4	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000207B2	271 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification	No extended APDU		0.9.3

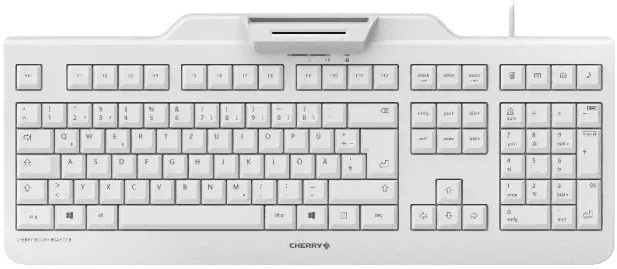

35	0x046A	supported	Cherry GmbH	CHERRY SECURE BOARD 1.0		0x01A2	CHERRY SECURE BOARD 1.0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.685 MHz	14.320 MHz	9909 bps	848000 bps	254	0x00000000	0x00000000	0x000404BA	271 bytes	0x00	0x00	0x0000	0x03	1	contactless, PIN Verification, PIN Modification		Does not work on macOS. The reader firmware is bogus and does not support card status polling. macOS does not support card events by TAG_IFD_POLLING_THREAD_WITH_TIMEOUT.	1.4.32
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
36	0x046A	shouldwork	Cherry GmbH	SmartBoard XX1X		0x005B	4	3	0x0B [Chip Card Interface Device Class (CCID)]	1.01	0x00	0x07	0x0000 0x0003	4.000 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000000	0x00000000	0x000207B2	271 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification	No extended APDU		1.3.5
37	0x046A	shouldwork	Cherry GmbH	SmartTerminal XX1X		0x0070	4	3	0x0B [Chip Card Interface Device Class (CCID)]	1.01	0x00	0x07	0x0000 0x0003	4.000 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000000	0x00000000	0x000207B2	271 bytes	0xFF	0xFF	0x0000	0x00	1		No extended APDU		1.3.9
38	0x046A	shouldwork	Cherry GmbH	SmartTerminal ST-1275		0x0072	Smart Card Reader CCID	3	0x0B [Chip Card Interface Device Class (CCID)]	1.01	0x00	0x07	0x0000 0x0003	4.000 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000207B2	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless	No extended APDU	The contactless interface is not supported.	1.3.12

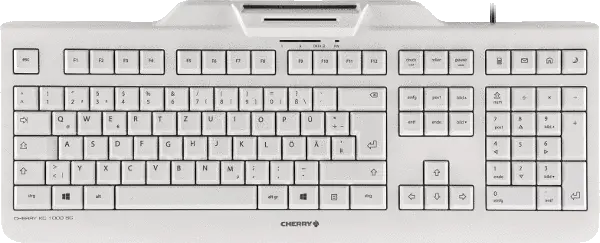

39	0x046A	shouldwork	Cherry	KC 1000 SC		0x00A1	KC 1000 SC	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000407BA	271 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification		With older versions of the firmware (1.00) it is possible to enable extended APDU. See <a href="https://www.cherry.de/files/manual/PLT-02339_A.2_CHERRY_KC_1000_SC_SW_Dev_Guide_en.pdf">CHERRY KC 1000 SC Software Developer Guide</a>. The reader limits the maximum size in the dwLength field of the PC_to_RDR_Secure message to 128 bytes. A longer length makes the reader reject the message with "CCID_Receive error on byte 8". This limitation was seen in the current firmware (version 1.02) and makes it impossible to use secure PIN change commands where multiple, long, padded PINs are used, such as 64-byte PINs in IAS-ECC cards from Idemia".	1.4.19
40	0x046A	shouldwork	Cherry	KC 1000 SC/DI		0x00A2	KC 1000 SC/DI	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000207B8	271 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification	No extended APDU		1.4.19
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
41	0x046A	shouldwork	Cherry	KC 1000 SC/DI Z		0x00A5	KC 1000 SC/DI Z	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000207B8	271 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification	No extended APDU		1.4.19
42	0x046A	shouldwork	Cherry	KC 1000 SC Z		0x00A4	KC 1000 SC Z	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000407BA	271 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification			1.4.19
43	0x046A	shouldwork	CHERRY	SmartTerminal ST-1144		0x00A7	Smart Terminal XX44	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000407B8	271 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification			1.5.1
44	0x046A	shouldwork	Cherry	SmartTerminal XX44		0x00A7	Cherry Smart Terminal XX44	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000207B8	271 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification	No extended APDU		1.4.23
45	0x046A	shouldwork	Cherry	Smart Card Reader USB		0x0090	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000207B2	271 bytes	0xFF	0xFF	0x0000	0x00	1		No extended APDU		1.4.18
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release

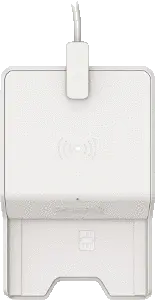

46	0x046A	shouldwork	Cherry	TC 1300		0x0092	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000103B0	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless		The contactless interface is not supported.	1.4.19

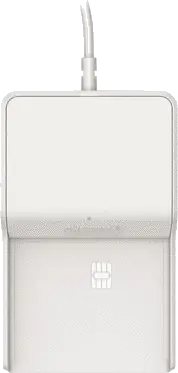

47	0x046A	shouldwork	Cherry	Cherry TC 1100		0x0090	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	492	0x00000007	0x00000000	0x000407B2	502 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.18

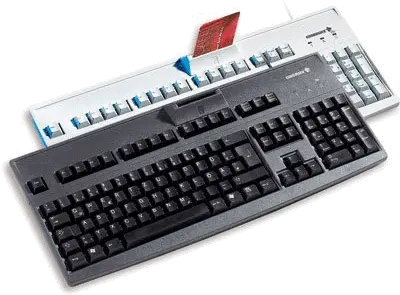

48	0x046A	shouldwork	Cherry	Smartcard Keyboard G87-1xx44		0x00A3	SmartCard Reader USB	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000207B2	271 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification	No extended APDU		1.4.18
49	0x0471	shouldwork	Philips Semiconductors	JCOP41V221		0x040F	0	0	0x0B [Chip Card Interface Device Class (CCID)]	2.00	0x00	0x01	0x0000 0x0002	3.580 MHz	3.580 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x00020840	261 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD	No extended APDU		1.3.1

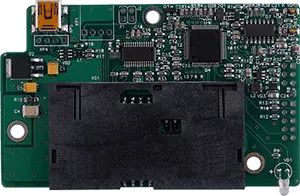

50	0x0483	shouldwork	ANCUD	CCID USB Reader & RNG		0xACD1	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0001	3.600 MHz	3.600 MHz	9677 bps	9677 bps	0	0x00000000	0x00000000	0x000104BA	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.27
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release

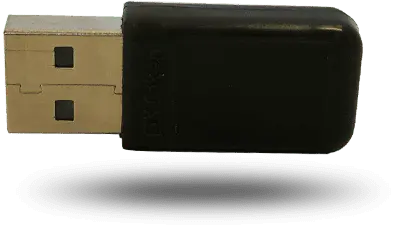

51	0x0483	shouldwork	Dexon Tecnologias Digitais LTDA	DXToken		0xA389	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.580 MHz	3.580 MHz	9600 bps	9600 bps	252	0x00000000	0x00000000	0x0001023C	271 bytes	0x00	0x00	0x0000	0x00	1				1.5.1

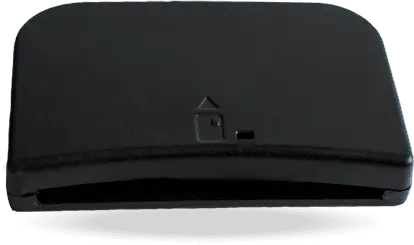

52	0x0483	shouldwork	Dexon Tecnologias Digitais LTDA	eSmartDX		0xA40B	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	9600 bps	688172 bps	254	0x00000000	0x00000000	0x000404BE	272 bytes	0xFF	0xFF	0x0000	0x00	1				1.5.3
53	0x0483	shouldwork	Kingtrust	Multi-Reader		0x0007	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x03	0x0000 0x0001	4.000 MHz	4.000 MHz	10752 bps	344086 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.0

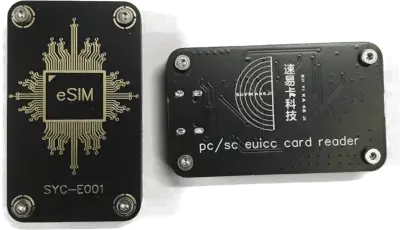

54	0x0483	shouldwork	SYC	USB CCID Reader		0x2017	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	16.000 MHz	12903 bps	600000 bps	252	0x00000000	0x00000000	0x000100BA	271 bytes	0xFF	0xFF	0x0000	0x00	1				GIT
55	0x0483	disabled	jNet Technology inc.	jToken s1		0x2010	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x01	0x0000 0x0001	3.580 MHz	3.580 MHz	9600 bps	9600 bps	0	0x00000000	0x00000000	0x00010840	271 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD			1.3.9
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release

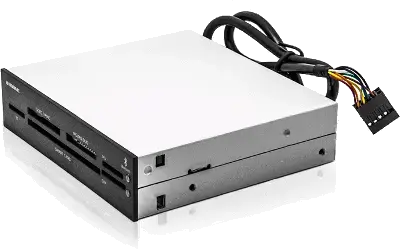

56	0x048D	shouldwork	Generic	MultiCard Device		0x1366	Smart Card Reader Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.750 MHz	7.500 MHz	10080 bps	312500 bps	254	0x00000000	0x00000000	0x00010030	271 bytes	0x00	0x00	0x0000	0x00	1			Also known as "Sunpak 72-in-1 high-speed card reader" <a href="http://www.tocad.com/products/72-in-1-card-reader/">Sunpak 72-in-1 card reader</a>	1.4.20
57	0x04A4	shouldwork	Hitachi, Ltd.	Hitachi Biometric Reader		0x00C7	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0001	5.000 MHz	5.000 MHz	13440 bps	161280 bps	0	0x00000000	0x00000000	0x00020082	271 bytes	0x00	0x00	0x0000	0x00	1		No extended APDU		1.4.22
58	0x04A4	shouldwork	Hitachi, Ltd.	Hitachi Portable Biometric Reader		0x00D4	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0001	5.000 MHz	5.000 MHz	13440 bps	161280 bps	0	0x00000000	0x00000000	0x00020082	271 bytes	0x00	0x00	0x0000	0x00	1		No extended APDU		1.4.22
59	0x04B9	shouldwork	Philips Semiconductors	SmartMX Sample		0x1400	0	1	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0002	3.580 MHz	3.580 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x00020840	261 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD	No extended APDU	used in some SafeNet iKey 4000	1.3.10
60	0x04CC	unsupported	KEBTechnology	KONA USB SmartCard		0x5072	0	1	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0001	3.580 MHz	3.580 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x00000840	261 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD		The tokend fails to send the first APDU. Maybe the support of Character level is bogus in the CCID driver.	1.3.6
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release

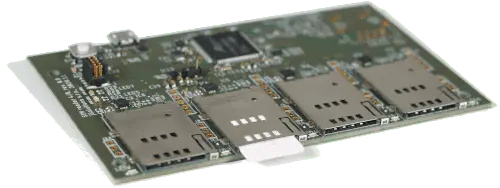

61	0x04D8	shouldwork	jSolutions s.r.o.	Multi SIM card reader 4/8		0xEB61	SIM card reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x07	0x06	0x0000 0x0001	3.573 MHz	3.573 MHz	9600 bps	9600 bps	247	0x00000000	0x00000000	0x000100BA	271 bytes	0x00	0x00	0x0000	0x00	8	8 slots			1.4.36
62	0x04DA	shouldwork	Panasonic	Panasonic USB Smart Card Reader 7A-Smart		0x117A	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344086 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1				1.3.11
63	0x04E6	supported	SCM Microsystems Inc.	SCR 331-DI		0x5111	4	3	0xFF	1.00	0x01	0x01	0x0000 0x0003	4.000 MHz	12.000 MHz	10753 bps	344105 bps	252	0x00000000	0x00000000	0x000100BA	263 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, 2 slots		You have to upgrade the firmware using version 5.18 or later. The contactless interface is not supported.	0.4.0
64	0x04E6	supported	SCM Microsystems Inc.	SCR 331		0xE001	4	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.000 MHz	8.000 MHz	10753 bps	344105 bps	252	0x00000000	0x00000000	0x000100BA	271 bytes	0xFF	0xFF	0x0000	0x00	1			You have to upgrade the firmware using version 5.18 or later.	0.1.0
65	0x04E6	supported	SCM Microsystems Inc.	SCR 3310		0x5116	4	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.000 MHz	8.000 MHz	10753 bps	344105 bps	252	0x00000000	0x00000000	0x000100BA	271 bytes	0xFF	0xFF	0x0000	0x00	1				0.9.3
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
66	0x04E6	supported	SCM Microsystems Inc.	SCR 3311		0x511D	4	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.000 MHz	8.000 MHz	10753 bps	344105 bps	252	0x00000000	0x00000000	0x000100BA	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.0.0
67	0x04E6	supported	SCM Microsystems Inc.	SCR 355		0x5410	4	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x01	0x0000 0x0003	4.000 MHz	8.000 MHz	10753 bps	344105 bps	252	0x00000000	0x00000000	0x000100BA	263 bytes	0xFF	0xFF	0x0000	0x00	1				1.0.0
68	0x04E6	supported	SCM Microsystems Inc.	SPR 532		0xE003	4	3	0xFF	1.00	0x00	0x01	0x0000 0x0003	4.000 MHz	8.000 MHz	10753 bps	344105 bps	254	0x00000000	0x00000000	0x000100BA	270 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification		You have to upgrade the firmware using version 5.10 or later.	0.3.2

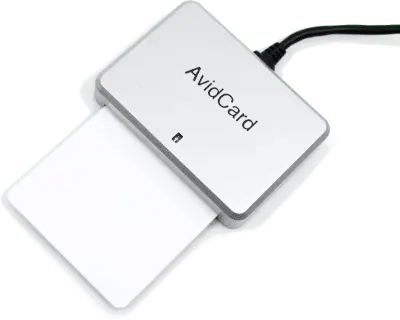

69	0x04E6	shouldwork	AvidCard	CAC Smart Card Reader		0x5824	CCID Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	16.000 MHz	12903 bps	600000 bps	252	0x00000000	0x00000000	0x000100BA	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.6.0
70	0x04E6	shouldwork	Axalto	Reflex USB v3		0x511C	CCID Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x01	0x0000 0x0003	4.000 MHz	12.000 MHz	9600 bps	307200 bps	252	0x00000000	0x00000000	0x000100BA	263 bytes	0xFF	0xFF	0x0000	0x00	1				1.0.1
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
71	0x04E6	shouldwork	~ELYCTIS	CNT reader		0x5810	CCID Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	16.000 MHz	12903 bps	600000 bps	254	0x00000000	0x00000000	0x000100BA	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 1: CCID Interface, Multi interface reader		the 2 contact readers are in fact 2 Identive CLOUD 2700 R Smart Card Reader	1.5.0
72	0x04E6	shouldwork	~ELYCTIS	CNT reader		0x5810	CCID Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	16.000 MHz	12903 bps	600000 bps	254	0x00000000	0x00000000	0x000100BA	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 2: CCID Interface, Multi interface reader		the 2 contact readers are in fact 2 Identive CLOUD 2700 R Smart Card Reader	1.5.0
73	0x04E6	shouldwork	Identiv	@MAXX ID-1 Smart Card Reader		0x5819	CCID Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	16.000 MHz	12903 bps	600000 bps	252	0x00000000	0x00000000	0x000100BA	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.21
74	0x04E6	shouldwork	Identiv	@MAXX Light2 token		0x5818	CCID Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	16.000 MHz	12903 bps	600000 bps	252	0x00000000	0x00000000	0x000100BA	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.21
75	0x04E6	shouldwork	Identiv	CLOUD 2980 F Smart Card Reader		0x5713	CCID Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	12.000 MHz	12903 bps	412903 bps	254	0x00000000	0x00000000	0x000104BA	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.21
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
76	0x04E6	shouldwork	Identiv	Identiv uTrust 4701 F Dual Interface Reader		0x5724	uTrust 4701 F Contact Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	12.000 MHz	12903 bps	412903 bps	254	0x00000000	0x00000000	0x000104BA	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 0: uTrust 4701 F Contact Reader, Multi interface reader			1.4.21
77	0x04E6	shouldwork	Identiv	Identiv uTrust 4701 F Dual Interface Reader		0x5724	uTrust 4701 F CL Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.800 MHz	12.000 MHz	12903 bps	412903 bps	1024	0x00000000	0x00000001	0x000404BE	1034 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 1: uTrust 4701 F CL Reader, Multi interface reader			1.4.21

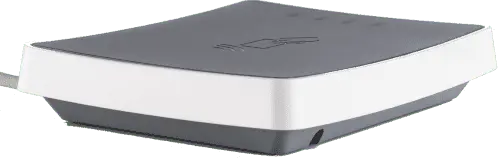

78	0x04E6	shouldwork	Identiv	Identiv uTrust 4711 F CL + SAM Reader		0x5725	uTrust 4711 F SAM Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	12.000 MHz	12903 bps	412903 bps	254	0x00000000	0x00000000	0x000104BA	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 0: uTrust 4711 F SAM Reader, Multi interface reader			1.4.35
79	0x04E6	shouldwork	Identiv	Identiv uTrust 4711 F CL + SAM Reader		0x5725	uTrust 4711 F CL Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.800 MHz	12.000 MHz	12903 bps	412903 bps	1024	0x00000000	0x00000001	0x000404BE	1034 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 1: uTrust 4711 F CL Reader, Multi interface reader			1.4.35
80	0x04E6	shouldwork	Identiv	SCR3500 A Contact Reader		0x5814	CCID Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	16.000 MHz	12903 bps	600000 bps	252	0x00000000	0x00000000	0x000100BA	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.21
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
81	0x04E6	shouldwork	Identiv	SCR3500 B Contact Reader		0x5815	CCID Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	16.000 MHz	12903 bps	600000 bps	252	0x00000000	0x00000000	0x000100BA	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.21
82	0x04E6	shouldwork	Identiv	SCR3500 C Contact Reader		0x581D	CCID Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	16.000 MHz	12903 bps	600000 bps	252	0x00000000	0x00000000	0x000100BA	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.31
83	0x04E6	shouldwork	Identiv	SCR35xx USB Smart Card Reader		0x581C	CCID Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	16.000 MHz	12903 bps	600000 bps	252	0x00000000	0x00000000	0x000100BA	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.21
84	0x04E6	shouldwork	Identiv	uTrust 2900 R Smart Card Reader		0x5811	CCID Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	16.000 MHz	12903 bps	600000 bps	252	0x00000000	0x00000000	0x000100BA	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.21
85	0x04E6	shouldwork	Identiv	uTrust 2910 R Smart Card Reader		0x5812	CCID Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	16.000 MHz	12903 bps	600000 bps	252	0x00000000	0x00000000	0x000100BA	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.21
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
86	0x04E6	shouldwork	Identiv	uTrust 2910 R Taglio SC Reader		0x581B	CCID Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	16.000 MHz	12903 bps	600000 bps	252	0x00000000	0x00000000	0x000100BA	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.21
87	0x04E6	shouldwork	Identiv	uTrust 3512 SAM slot Token		0x5816	CCID Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	16.000 MHz	12903 bps	600000 bps	252	0x00000000	0x00000000	0x000100BA	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.21
88	0x04E6	shouldwork	Identiv	uTrust 3522 embd SE RFID Token		0x581A	CCID Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	16.000 MHz	12903 bps	600000 bps	252	0x00000000	0x00000000	0x000100BA	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.21
89	0x04E6	shouldwork	Identiv	uTrust 3700 F CL Reader		0x5790	uTrust 3700 F CL Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.800 MHz	12.000 MHz	12903 bps	412903 bps	1024	0x00000000	0x00000001	0x000404BE	1034 bytes	0xFF	0xFF	0x0000	0x00	1	contactless		The reader sometimes fails to power up a card. See <a href="https://github.com/LudovicRousseau/PCSC/issues/102">Identiv 3700F occasionally fails to power up card #102</a>. Update the firmware to v1.19 or more to fix this issue.	1.4.21
90	0x04E6	shouldwork	Identiv	uTrust 3701 F CL Reader		0x5791	uTrust 3701 F CL Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.800 MHz	12.000 MHz	12903 bps	412903 bps	1024	0x00000000	0x00000001	0x000404BE	1034 bytes	0xFF	0xFF	0x0000	0x00	1	contactless			1.4.21
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
91	0x04E6	shouldwork	Identiv	uTrust 3720 Contactless Reader		0x5612	uTrust 3720 Contactless Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	12.000 MHz	12903 bps	412903 bps	253	0x00000000	0x00000000	0x000204BE	263 bytes	0xFF	0xFF	0x0000	0x00	1	contactless	No extended APDU		1.4.34
92	0x04E6	shouldwork	Identiv	uTrust 3721 Contactless Reader		0x5613	uTrust 3721 Contactless Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	12.000 MHz	12903 bps	412903 bps	253	0x00000000	0x00000000	0x000204BE	263 bytes	0xFF	0xFF	0x0000	0x00	1	contactless	No extended APDU		1.4.35
93	0x04E6	shouldwork	Identiv	uTrust Token Flex		0x5826	CCID Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	16.000 MHz	12903 bps	600000 bps	252	0x00000000	0x00000000	0x000100BA	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.5.3

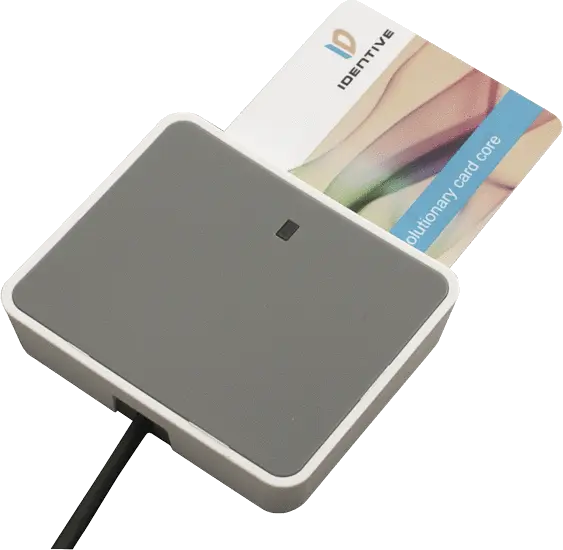

94	0x04E6	shouldwork	Identive	CLOUD 2700 F Smart Card Reader		0x5710	CCID Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	12.000 MHz	12903 bps	412903 bps	254	0x00000000	0x00000000	0x000404BA	1034 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.10
95	0x04E6	shouldwork	Identive	CLOUD 2700 R Smart Card Reader		0x5810	CCID Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	16.000 MHz	12903 bps	600000 bps	254	0x00000000	0x00000000	0x000404BA	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.10
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
96	0x04E6	shouldwork	Identive	Identive CLOUD 4500 F Dual Interface Reader		0x5720	CLOUD 4500 F Contact Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	12.000 MHz	12903 bps	412903 bps	254	0x00000000	0x00000000	0x000404BA	1034 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 0: CLOUD 4500 F Contact Reader, Multi interface reader			1.4.10
97	0x04E6	shouldwork	Identive	Identive CLOUD 4500 F Dual Interface Reader		0x5720	CLOUD 4500 F Contactless Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.800 MHz	12.000 MHz	12903 bps	412903 bps	1024	0x00000000	0x00000001	0x000404BE	1034 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 1: CLOUD 4500 F Contactless Reader, Multi interface reader			1.4.10
98	0x04E6	shouldwork	Identive	Identive CLOUD 4510 F Contactless + SAM Reader		0x5721	CLOUD 4510 F SAM Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	12.000 MHz	12903 bps	412903 bps	254	0x00000000	0x00000000	0x000404BA	1034 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 0: CLOUD 4510 F SAM Reader, Multi interface reader			1.4.10
99	0x04E6	shouldwork	Identive	Identive CLOUD 4510 F Contactless + SAM Reader		0x5721	CLOUD 4510 F Contactless Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.800 MHz	12.000 MHz	12903 bps	412903 bps	1024	0x00000000	0x00000001	0x000404BE	1034 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 1: CLOUD 4510 F Contactless Reader, Multi interface reader			1.4.10
100	0x04E6	shouldwork	Identive	Identive CLOUD 4700 F Dual Interface Reader		0x5720	CLOUD 4700 F Contact Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	12.000 MHz	12903 bps	412903 bps	254	0x00000000	0x00000000	0x000404BA	1034 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 0: CLOUD 4700 F Contact Reader, Multi interface reader			1.4.10
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
101	0x04E6	shouldwork	Identive	Identive CLOUD 4700 F Dual Interface Reader		0x5720	CLOUD 4700 F Contactless Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.800 MHz	12.000 MHz	12903 bps	412903 bps	1024	0x00000000	0x00000001	0x000404BE	1034 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 1: CLOUD 4700 F Contactless Reader, Multi interface reader			1.4.10
102	0x04E6	shouldwork	Identive	Identive CLOUD 4710 F Contactless + SAM Reader		0x5721	CLOUD 4710 F SAM Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	12.000 MHz	12903 bps	412903 bps	254	0x00000000	0x00000000	0x000404BA	1034 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 0: CLOUD 4710 F SAM Reader, Multi interface reader			1.4.10
103	0x04E6	shouldwork	Identive	Identive CLOUD 4710 F Contactless + SAM Reader		0x5721	CLOUD 4710 F Contactless Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.800 MHz	12.000 MHz	12903 bps	412903 bps	1024	0x00000000	0x00000001	0x000404BE	1034 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 1: CLOUD 4710 F Contactless Reader, Multi interface reader			1.4.10
104	0x04E6	shouldwork	Identive	Identive CLOUD 4000 F DTC		0x5723	CLOUD 4000 F DTC Contact Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	12.000 MHz	12903 bps	412903 bps	254	0x00000000	0x00000000	0x000404BA	1034 bytes	0xFF	0xFF	0x0000	0x00	1	Multi interface reader, interface 0: CLOUD 4000 F DTC Contact Reader			1.4.21
105	0x04E6	shouldwork	Identive	Identive CLOUD 4000 F DTC		0x5723	CLOUD 4000 F DTC CL Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.800 MHz	12.000 MHz	12903 bps	412903 bps	1024	0x00000000	0x00000001	0x000404BE	1034 bytes	0xFF	0xFF	0x0000	0x00	1	Multi interface reader, interface 1: CLOUD 4000 F DTC CL Reader			1.4.21
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release

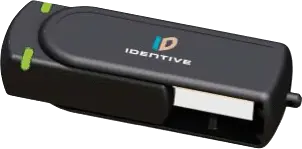

106	0x04E6	shouldwork	Identive	SCT3522CC token		0x5817	CCID Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	16.000 MHz	12903 bps	600000 bps	254	0x00000000	0x00000000	0x000404BA	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.19
107	0x04E6	shouldwork	SCM Microsystems Inc.	SCL010 Contactless Reader		0x5291	SCL010 Contactless Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.000 MHz	12.000 MHz	10753 bps	344105 bps	252	0x00000000	0x00000001	0x000404BE	262 bytes	0xFF	0xFF	0x0000	0x00	1	contactless		Be sure to have firmware version 1.12 or above.	1.4.11
108	0x04E6	shouldwork	SCM Microsystems Inc.	SCL01x Contactless Reader		0x5293	SCL01x Contactless Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.000 MHz	12.000 MHz	10753 bps	344105 bps	252	0x00000000	0x00000001	0x000404BE	262 bytes	0xFF	0xFF	0x0000	0x00	1	contactless		You have to upgrade the firmware using version 1.12 or later	1.4.3
109	0x04E6	shouldwork	SCM Microsystems Inc.	SDI011 Contactless Reader		0x512B	Vendor Interface	3	0xFF	1.10	0x01	0x01	0x0000 0x0003	4.000 MHz	8.000 MHz	10753 bps	344105 bps	252	0x00000000	0x00000000	0x000100BA	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, 2 slots		The contactless interface is not supported.	1.4.6
110	0x04E6	shouldwork	SCM Microsystems Inc.	SDI011 Contactless Reader		0x512C	Vendor Interface	3	0xFF	1.10	0x01	0x01	0x0000 0x0003	4.000 MHz	8.000 MHz	10753 bps	344105 bps	252	0x00000000	0x00000000	0x000100BA	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, 2 slots		The contactless interface is not supported.	1.4.11
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
111	0x04E6	shouldwork	SCM Microsystems Inc.	SCR331-DI USB Smart Card Reader		0x5120	4	3	0xFF	1.00	0x01	0x01	0x0000 0x0003	4.000 MHz	12.000 MHz	10753 bps	344105 bps	252	0x00000000	0x00000000	0x000100BA	263 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, 2 slots		The contactless interface is not supported.	0.9.4

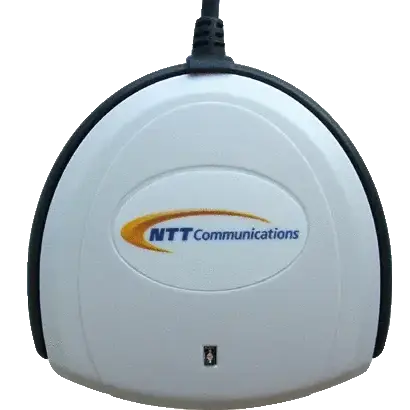

112	0x04E6	shouldwork	NTT Communications Corp.	SCR3310-NTTCom USB SmartCard Reader		0x511A	Vendor Interface	3	0xFF	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	12903 bps	412903 bps	252	0x00000000	0x00000000	0x000101BA	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.8
113	0x04E6	shouldwork	SCM Microsystems Inc.	SCR3310 USB Smart Card Reader		0x511F	CCID Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x01	0x0000 0x0003	4.000 MHz	8.000 MHz	10753 bps	344105 bps	252	0x00000000	0x00000000	0x000100BA	263 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.1
114	0x04E6	shouldwork	SCM Microsystems Inc.	SCR3320 - Smart Card Reader		0x5117	4	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.000 MHz	8.000 MHz	10753 bps	344105 bps	252	0x00000000	0x00000000	0x000100BA	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.0.0
115	0x04E6	shouldwork	SCM Microsystems Inc.	SCR33x USB Smart Card Reader		0x5113	4	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.000 MHz	8.000 MHz	10753 bps	344105 bps	252	0x00000000	0x00000000	0x000100BA	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.0.0
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
116	0x04E6	shouldwork	SCM Microsystems Inc.	SCR3340 - ExpressCard54 Smart Card Reader		0x5119	4	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.000 MHz	8.000 MHz	10753 bps	344105 bps	252	0x00000000	0x00000000	0x000100BA	271 bytes	0xFF	0xFF	0x0000	0x00	1	ExpressCard			1.0.0
117	0x04E6	shouldwork	SCM Microsystems Inc.	SCR 335		0x5115	CCID Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	12903 bps	412903 bps	252	0x00000000	0x00000000	0x000101BA	271 bytes	0xFF	0xFF	0x0000	0x00	1			You have to upgrade the firmware using version 5.18 or later. Or use a v2.0 model.	0.1.0
118	0x04E6	shouldwork	SCM Microsystems Inc.	SCR35xx v2.0 USB SC Reader		0x5410	CCID Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	12903 bps	412903 bps	252	0x00000000	0x00000000	0x000101BA	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.3.12
119	0x04E6	shouldwork	SCM Microsystems Inc.	SDI010 Smart Card Reader		0x5121	4	3	0xFF	1.10	0x01	0x01	0x0000 0x0003	4.000 MHz	8.000 MHz	10753 bps	344105 bps	252	0x00000000	0x00000000	0x000100BA	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, 2 slots		The contactless interface is not supported.	1.0.1
120	0x04E6	disabled	SCM Microsystems Inc.	SCL010 Contactless Reader		0x5291	4	3	0xFF	1.10	0x00	0x01	0x0000 0x0003	13.560 MHz	13.560 MHz	106000 bps	848000 bps	254	0x00000000	0x00000001	0x0001007E	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless		The contactless interface is not supported. A new firmware version 1.12 renders the reader usable.	1.3.11
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
121	0x04E6	disabled	SCM Microsystems Inc.	SCL01x Contactless Reader		0x5292	SCL01x Contactless Reader	3	0xFF	1.10	0x00	0x01	0x0000 0x0003	13.560 MHz	13.560 MHz	106000 bps	848000 bps	254	0x00000000	0x00000001	0x0001007E	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless		The contactless interface is not supported.	1.3.12
122	0x04E8	shouldwork	Softforum Co., Ltd	XecureHSM		0x0007	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x03	0x0000 0x0001	4.000 MHz	4.000 MHz	10752 bps	344086 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1				1.3.11
123	0x04F2	shouldwork	Chicony	HP Skylab USB Smartcard Keyboard		0x1469	HP Skylab Smartcard Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	12.000 MHz	12903 bps	412903 bps	254	0x00000000	0x00000000	0x000104BA	271 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification			1.4.29
124	0x04F2	shouldwork	Chicony	USB Smart Card Keyboard		0x0967	USB Keyboard Smart Card Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	12.000 MHz	12903 bps	412903 bps	254	0x00000000	0x00000000	0x000104BA	271 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification			1.4.19
125	0x0529	shouldwork	SafeNet	eToken 5100		0x0620	Main Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	10752 bps	252	0x00000000	0x00000000	0x0001023C	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.20
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
126	0x0529	shouldwork	SafeNet	eToken 7300		0x0602	eToken 7300 SC	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0002	4.000 MHz	4.000 MHz	10752 bps	10752 bps	252	0x00000000	0x00000000	0x000102FC	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.20
127	0x0529	unsupported	Aladdin	eToken PRO USB 72K Java		0x0620	Main Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	10752 bps	49	0x00000000	0x00000000	0x0001023C	271 bytes	0x00	0x00	0x0000	0x00	1			The token does not work after a warm reset. See http://www.opensc-project.org/pipermail/opensc-devel/2009-April/012128.html	1.3.9
128	0x054C	shouldwork	SONY	FeliCa RC-S300/P		0x0DC9	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0002	4.000 MHz	4.000 MHz	115200 bps	921600 bps	254	0x00000000	0x00000000	0x0004007E	522 bytes	0x00	0x00	0x0000	0x00	1	contactless			1.4.35
129	0x054C	shouldwork	SONY	FeliCa RC-S300/S		0x0DC8	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0002	4.000 MHz	4.000 MHz	115200 bps	921600 bps	254	0x00000000	0x00000000	0x0004007E	522 bytes	0x00	0x00	0x0000	0x00	1	contactless			1.4.35
130	0x054C	shouldwork	SONY	FeliCa RC-S660/U		0x0D8F	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0002	4.000 MHz	4.000 MHz	115200 bps	921600 bps	254	0x00000000	0x00000000	0x0004007E	522 bytes	0x00	0x00	0x0000	0x00	1	contactless			1.4.35
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
131	0x058C	shouldwork	Generic	EMV Smartcard Reader		0x9590	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	10752 bps	254	0x00000000	0x00000000	0x000407BA	273 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.35
132	0x058F	supported	Alcor Micro	AU9520		0x9520	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x03	0x0000 0x0003	3.700 MHz	3.700 MHz	9946 bps	318280 bps	254	0x00000007	0x00000000	0x000204BE	271 bytes	0xFF	0xFF	0x0000	0x00	1		No extended APDU	Firmware 1.01 is bogus. The time request sent by the card is not forwarded by the reader to the host. Use CCID driver version 1.4.34 or more. The reader does not support USB suspend and will consume more power than needed.	1.1.0
133	0x058F	shouldwork	Akasa	AK-CR-03		0x9520	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x03	0x0000 0x0003	3.700 MHz	3.700 MHz	9946 bps	318280 bps	254	0x00000007	0x00000000	0x000204BE	271 bytes	0xFF	0xFF	0x0000	0x00	1		No extended APDU		1.4.1
134	0x058F	shouldwork	Alcor Micro	AU9522		0x9522	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x01	0x03	0x0000 0x0003	3.700 MHz	3.700 MHz	9946 bps	318280 bps	254	0x00000007	0x00000000	0x000204BE	271 bytes	0xFF	0xFF	0x0000	0x00	1	2 slots	No extended APDU	Built in reader for the "Friio USB2.0 DTV Receiver"	1.4.7
135	0x058F	shouldwork	Alcor Micro	SCR001		0x9520	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x03	0x0000 0x0003	3.700 MHz	3.700 MHz	9946 bps	318280 bps	254	0x00000007	0x00000000	0x000204BE	271 bytes	0xFF	0xFF	0x0000	0x00	1		No extended APDU		1.3.11
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
136	0x058F	unsupported	Alcor Micro	AU9540		0x9540	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.700 MHz	3.700 MHz	9946 bps	318280 bps	254	0x00000007	0x00000000	0x000404BE	272 bytes	0xFF	0xFF	0x0000	0x00	1			the reader (or the BIOS?) decides to power off the card without intervention of the CCID driver <a href="https://bugs.launchpad.net/ubuntu/+source/pcsc-lite/+bug/1307109"> Alcor Micro AU9540 keeps powering down when card is present</a>	1.4.5
137	0x058F	unsupported	Alcor Micro	AU9560		0x9540	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.700 MHz	12.000 MHz	9946 bps	688172 bps	254	0x00000007	0x00000000	0x000404BE	272 bytes	0xFF	0xFF	0x0000	0x00	1			Communication to the reader sometimes fails with LIBUSB_ERROR_TIMEOUT. Some smart cards require a different reader firmware. This reader is integrated in some HP laptops (ZBook, EliteBook, etc.) or Lenovo laptops (P15 Gen1, etc.).	1.4.23

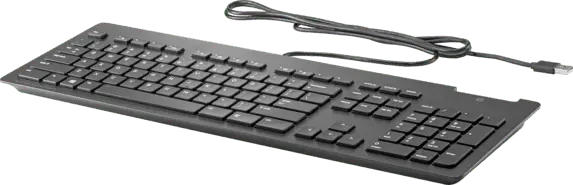

138	0x05AF	shouldwork	Sunrex	HP USB Business Slim Smartcard CCID Keyboard		0x605A	HP Skylab Smartcard Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	12.000 MHz	12903 bps	412903 bps	254	0x00000000	0x00000000	0x000104BA	271 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification			1.4.34
139	0x05E3	shouldwork	Genesys Logic	CCID Card Reader		0x0757	Smart Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	3.000 MHz	3.000 MHz	9946 bps	318280 bps	254	0x00000007	0x00000000	0x000204BE	271 bytes	0xFF	0xFF	0x0000	0x00	1		No extended APDU		1.4.30
140	0x05E3	shouldwork	Genesys Logic	CCID Card Reader		0x0771	Smart Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	3.000 MHz	3.000 MHz	9946 bps	318280 bps	254	0x00000007	0x00000000	0x000404BE	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.33
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
141	0x05E3	shouldwork	Genesys Logic	Combo Card Reader		0x0758	Smart Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	3.000 MHz	3.000 MHz	9946 bps	318280 bps	254	0x00000007	0x00000000	0x000204BE	271 bytes	0xFF	0xFF	0x0000	0x00	1		No extended APDU		1.4.30
142	0x062D	unsupported	THRC	Smart Card Reader		0x0001	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x03	0x0000 0x0003	3.700 MHz	3.700 MHz	9946 bps	318280 bps	254	0x00000007	0x00000000	0x000204BE	271 bytes	0xFF	0xFF	0x0000	0x00	1		No extended APDU	also known as ID-SMID01, SCT018 and maybe other commercial names With the old firmware, PPS fails with a Cryptoflex card Powerup fails with a Setcos card	1.1.0

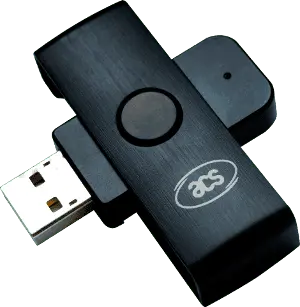

143	0x072F	supported	ACS	ACR 38U-CCID		0x90CC	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x01	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	129032 bps	254	0x00000000	0x00000000	0x00010030	271 bytes	0x00	0x00	0x0000	0x00	1			Old versions of this reader are bogus: the reader do timeout when a special USB frame is sent from the reader. If the frame size is a multiple of wMaxPacketSize the communication is stopped.	1.0.0
144	0x072F	shouldwork	ACS	ACR122U		0x90CC	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	250000 bps	247	0x00000000	0x00000000	0x00010030	271 bytes	0x00	0x00	0x0000	0x00	1				1.3.5
145	0x072F	shouldwork	ACS	ACR100		0x90CC	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344100 bps	247	0x00000000	0x00000000	0x00010030	271 bytes	0x00	0x00	0x0000	0x00	1				1.3.10
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
146	0x072F	shouldwork	ACS	ACR101 ICC Reader		0x1204	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344100 bps	247	0x00000000	0x00000000	0x00010030	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.7
147	0x072F	shouldwork	ACS	ACR1251 Dual Reader		0x221A	ACR1251 Dual Reader PICC	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0002	4.000 MHz	4.000 MHz	10752 bps	250000 bps	512	0x00000000	0x00000000	0x00040040	522 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 0: ACR1251 Dual Reader PICC, Multi interface reader			1.4.20
148	0x072F	shouldwork	ACS	ACR1251 Dual Reader		0x221A	ACR1251 Dual Reader SAM	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	344100 bps	254	0x00000000	0x00000000	0x000200BA	288 bytes	0x00	0x00	0x0000	0x03	1	contactless, interface 1: ACR1251 Dual Reader SAM, Multi interface reader, PIN Verification, PIN Modification	No extended APDU		1.4.20
149	0x072F	shouldwork	ACS	ACR1252IMP Reader		0x2259	ACR1252IMP Reader PICC	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0002	4.000 MHz	4.000 MHz	10752 bps	250000 bps	254	0x00000000	0x00000000	0x000404BA	522 bytes	0x00	0x00	0x0000	0x00	1	Multi interface reader, interface 0: ACR1252IMP Reader PICC		known as the Imprivata Mifare 75 Reader (HDW-IMP-MFR75)	1.4.34
150	0x072F	shouldwork	ACS	ACR1252IMP Reader		0x2259	ACR1252IMP Reader SAM	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	3.420 MHz	3.420 MHz	9193 bps	213750 bps	254	0x00000000	0x00000000	0x000204BA	288 bytes	0x00	0x00	0x0000	0x00	1	Multi interface reader, interface 1: ACR1252IMP Reader SAM	No extended APDU	known as the Imprivata Mifare 75 Reader (HDW-IMP-MFR75)	1.4.34
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
151	0x072F	shouldwork	ACS	ACR1252 Dual Reader		0x223B	ACR1252 Dual Reader PICC	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0002	4.000 MHz	4.000 MHz	10752 bps	250000 bps	254	0x00000000	0x00000000	0x00040040	522 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 0: ACR1252 Dual Reader PICC, Multi interface reader			1.4.21
152	0x072F	shouldwork	ACS	ACR1252 Dual Reader		0x223B	ACR1252 Dual Reader SAM	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	3.420 MHz	3.420 MHz	9193 bps	213750 bps	254	0x00000000	0x00000000	0x000204BA	288 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 1: ACR1252 Dual Reader SAM, Multi interface reader	No extended APDU		1.4.21
153	0x072F	shouldwork	ACS	ACR1252 Reader		0x223E	ACR1252 Reader PICC	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0002	4.000 MHz	4.000 MHz	10752 bps	250000 bps	254	0x00000000	0x00000000	0x000404BA	522 bytes	0x00	0x00	0x0000	0x00	1	contactless			1.4.31

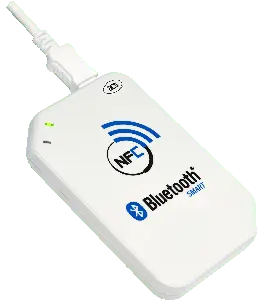

154	0x072F	shouldwork	ACS	ACR1255U-J1		0x223F	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0002	4.000 MHz	4.000 MHz	10752 bps	129032 bps	512	0x00000000	0x00000000	0x00040040	522 bytes	0x00	0x00	0x0000	0x00	1	contactless		Bluetooth	1.4.27
155	0x072F	shouldwork	ACS	ACR1552 CL Reader		0x2308	ACR1552 CL Reader PICC	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	5.000 MHz	13.560 MHz	105938 bps	847500 bps	506	0x00000000	0x00000000	0x000404BA	516 bytes	0xFF	0xFF	0x0000	0x00	1	contactless			1.5.3
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
156	0x072F	shouldwork	ACS	ACR1552 1S CL Reader		0x2303	ACR1552 1S CL Reader PICC	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	5.000 MHz	13.560 MHz	105938 bps	847500 bps	506	0x00000000	0x00000000	0x000404BA	516 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 0: ACR1552 1S CL Reader PICC, Multi interface reader			1.5.3
157	0x072F	shouldwork	ACS	ACR1552 1S CL Reader		0x2303	ACR1552 1S CL Reader SAM	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	5.000 MHz	5.000 MHz	13441 bps	625000 bps	506	0x00000000	0x00000000	0x000404BA	516 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 1: ACR1552 1S CL Reader SAM, Multi interface reader			1.5.3
158	0x072F	shouldwork	ACS	ACR1581 1S Dual Reader		0x2301	ACR1581 1S Dual Reader PICC	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	5.000 MHz	13.560 MHz	105938 bps	847500 bps	506	0x00000000	0x00000000	0x000404BA	516 bytes	0xFF	0xFF	0x0000	0x00	1	Multi interface reader, interface 0: ACR1581 1S Dual Reader PICC			1.5.3
159	0x072F	shouldwork	ACS	ACR1581 1S Dual Reader		0x2301	ACR1581 1S Dual Reader ICC	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	5.000 MHz	5.000 MHz	13441 bps	625000 bps	506	0x00000000	0x00000000	0x000404BA	516 bytes	0xFF	0xFF	0x0000	0x00	1	Multi interface reader, interface 1: ACR1581 1S Dual Reader ICC			1.5.3
160	0x072F	shouldwork	ACS	ACR1581 1S Dual Reader		0x2301	ACR1581 1S Dual Reader SAM	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	5.000 MHz	5.000 MHz	13441 bps	625000 bps	506	0x00000000	0x00000000	0x000404BA	516 bytes	0xFF	0xFF	0x0000	0x00	1	Multi interface reader, interface 2: ACR1581 1S Dual Reader SAM			1.5.3
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
161	0x072F	shouldwork	ACS	ACR38 plugin		0x90CC	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344100 bps	247	0x00000000	0x00000000	0x00010030	271 bytes	0x00	0x00	0x0000	0x00	1				1.3.10

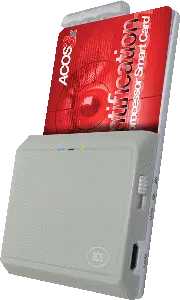

162	0x072F	shouldwork	ACS	ACR3901U ICC Reader		0xB000	ACR3901U ICC Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	600000 bps	247	0x00000000	0x00000000	0x000200BA	271 bytes	0x00	0x00	0x0000	0x00	1		No extended APDU	Bluetooth	1.4.23
163	0x072F	shouldwork	ACS	ACR39U ICC Reader		0xB100	<F??	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	16.000 MHz	12903 bps	826000 bps	247	0x00000000	0x00000000	0x000100B2	271 bytes	0xFF	0xFF	0x0000	0x00	1			The PC/SC reader name will look weirdo in applications because of issues in reader firmware	1.4.19
164	0x072F	shouldwork	ACS	ACR40T ICC Reader		0xB501	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	826000 bps	247	0x00000000	0x00000000	0x000107BA	512 bytes	0xFF	0xFF	0x0000	0x00	1				1.5.3
165	0x072F	shouldwork	ACS	ACR40U ICC Reader		0xB506	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	826000 bps	247	0x00000000	0x00000000	0x000103BA	512 bytes	0xFF	0xFF	0x0000	0x00	1				1.5.3
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
166	0x072F	shouldwork	ACS	AET65		0x90CC	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344100 bps	247	0x00000000	0x00000000	0x00010030	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.0

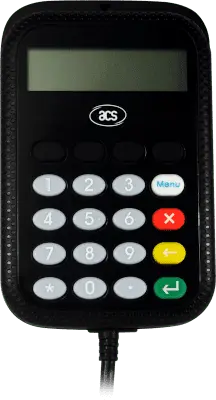

167	0x072F	shouldwork	ACS	APG8201 PINhandy 1		0x8201	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x01	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344100 bps	254	0x00000000	0x00000000	0x00010030	271 bytes	0x00	0x00	0x0000	0x03	1	PIN Verification, PIN Modification			1.4.2
168	0x072F	shouldwork	ACS	APG8201 USB Reader		0x8202	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x01	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344100 bps	254	0x00000000	0x00000000	0x00020430	271 bytes	0x00	0x00	0x0000	0x03	1	PIN Verification, PIN Modification	No extended APDU		1.4.10

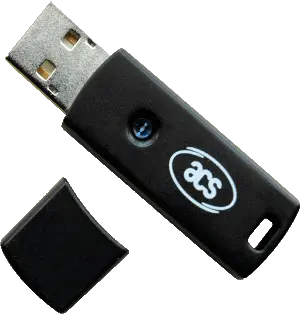

169	0x072F	shouldwork	ACS	CryptoMate64		0x90DB	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344100 bps	247	0x00000000	0x00000000	0x00010030	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.7

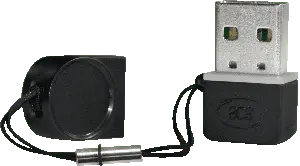

170	0x072F	shouldwork	ACS	CryptoMate (T2)		0xB106	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	16.000 MHz	12903 bps	826000 bps	247	0x00000000	0x00000000	0x000100B2	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.27
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release

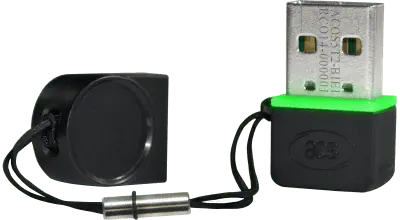

171	0x072F	shouldwork	ACS	CryptoMate EVO		0xB112	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	16.000 MHz	12903 bps	826000 bps	247	0x00000000	0x00000000	0x000100B2	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.34
172	0x072F	shouldwork	ACS	WalletMate 1S CL Reader		0x226B	WalletMate 1S CL Reader PICC	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0002	4.000 MHz	4.000 MHz	10752 bps	250000 bps	512	0x00000000	0x00000000	0x000404BA	522 bytes	0x00	0x00	0x0000	0x00	1	Multi interface reader, interface 0: WalletMate 1S CL Reader PICC			1.5.3
173	0x072F	shouldwork	ACS	WalletMate 1S CL Reader		0x226B	WalletMate 1S CL Reader SAM	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	3.420 MHz	3.420 MHz	9193 bps	213750 bps	254	0x00000000	0x00000000	0x000204BA	288 bytes	0x00	0x00	0x0000	0x00	1	Multi interface reader, interface 1: WalletMate 1S CL Reader SAM	No extended APDU		1.5.3
174	0x072F	shouldwork	ACS	ACR33 ICC Reader		0x8300	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x04	0x01	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344100 bps	254	0x00000000	0x00000000	0x000204B0	271 bytes	0x00	0x00	0x0000	0x03	1	PIN Verification, PIN Modification, 5 slots	No extended APDU		1.4.30
175	0x072F	unsupported	ACS	ACR122U PICC Interface		0x2200	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0002	4.000 MHz	4.000 MHz	10752 bps	250000 bps	256	0x00000000	0x00000000	0x00020040	271 bytes	0x00	0x00	0x0000	0x00	1	contactless	No extended APDU	Time extension requests are not supported. Firmwares version < 2.06 are bogus: APDU with 0x7B (123) bytes expected do not work with a 14443 card. The reader returns SW=63 00 instead. See <a href="http://www.average.org/pcsclite-ACR122U/">Patch for pcsclite for the ACR122U NFC reader</a> for a workaround to be used with my CCID driver The firmware 2.14 may report bStatus = 0x00 indicating No Error but with bError = 0xFE indicating ICC_MUTE, CCID timed out while talking to the ICC. See <a href="https://github.com/LudovicRousseau/pyscard/issues/18">empty response -> crash on empty sw1</a>	1.3.9
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
176	0x072F	unsupported	ACS	ACR1281U		0x2224	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x02	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	412903 bps	512	0x00000000	0x00000000	0x000404BA	522 bytes	0x00	0x00	0x0000	0x00	1	contactless, 3 slots		The reader does not propagate time extension requests to the host. APDU commands needing more time will fail.	1.5.0
177	0x073D	supported	Eutron	CryptoIdentity CCID		0x0007	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344068 bps	254	0x00000000	0x00000000	0x00010330	271 bytes	0x00	0x00	0x0000	0x00	1				0.9.4
178	0x073D	supported	Eutron	CryptoIdentity CCID		0x0008	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344086 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1				1.3.1

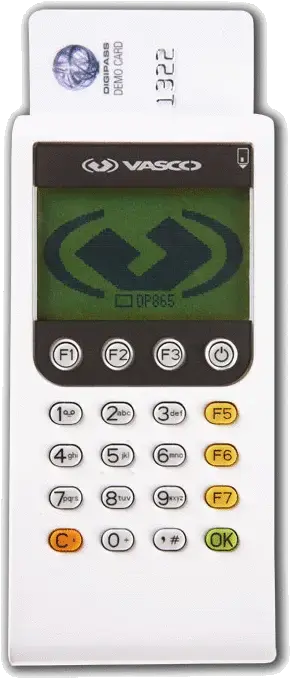

179	0x073D	supported	Eutron	Digipass 860		0x0B00	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344086 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1				1.3.1
180	0x073D	supported	Eutron	Card Reader		0x0C00	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344068 bps	254	0x00000000	0x00000000	0x00010330	271 bytes	0x00	0x00	0x0000	0x00	1			The device contains a hub with 3 devices: 2 CCID card readers and a USB Mass storage	1.4.2
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
181	0x073D	supported	Eutron	SIM Reader		0x0C00	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344068 bps	254	0x00000000	0x00000000	0x00010330	271 bytes	0x00	0x00	0x0000	0x00	1			The device contains a hub with 3 devices: 2 CCID card readers and a USB Mass storage	1.4.2
182	0x073D	supported	Eutron	Smart Pocket		0x0C01	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344086 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1				1.3.1

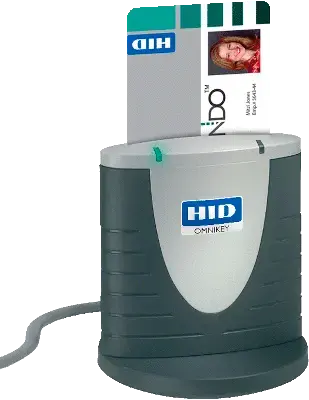

183	0x076B	supported	OMNIKEY AG	CardMan 3121		0x3021	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	3.000 MHz	12.000 MHz	8065 bps	96774 bps	254	0x00000007	0x00000000	0x000205B2	271 bytes	0x00	0x00	0x0000	0x00	1		No extended APDU		0.1.0

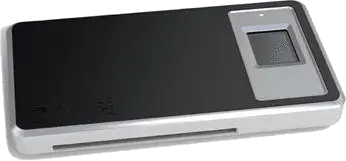

184	0x076B	supported	Precise Biometrics	Sense MC		0xA022	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000207B2	271 bytes	0xFF	0xFF	0x0000	0x00	1	biometric	No extended APDU		1.4.5
185	0x076B	supported	XIRING	Teo		0xA022	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000207B2	271 bytes	0xFF	0xFF	0x0000	0x00	1		No extended APDU		1.2.0
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
186	0x076B	shouldwork	OMNIKEY	CardMan 1021		0x1021	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	3.692 MHz	3.692 MHz	9924 bps	317591 bps	254	0x00000007	0x00000000	0x000103B1	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.2.0
187	0x076B	shouldwork	OMNIKEY AG	CardMan 3021		0x3021	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000207B2	271 bytes	0xFF	0xFF	0x0000	0x00	1		No extended APDU		1.1.0
188	0x076B	shouldwork	OMNIKEY AG	CardMan 3621		0x3621	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000207B2	271 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification	No extended APDU	Does not support minimum PIN length (wPINMaxExtraDigit) lower than 5	1.0.1
189	0x076B	shouldwork	OMNIKEY AG	CardMan 3821		0x3821	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000207B2	271 bytes	0xFF	0xFF	0x0210	0x03	1	PIN Verification, PIN Modification	No extended APDU	Did not support minimum PIN length (wPINMaxExtraDigit) lower than 5. Seems to be fixed in recent firmware with a min size of 1.	1.0.0
190	0x076B	shouldwork	OMNIKEY	CardMan 4321		0x4321	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000207B2	271 bytes	0xFF	0xFF	0x0000	0x00	1	ExpressCard	No extended APDU	The reader may report a card present if no card is inserted. See <a href="https://bugzilla.redhat.com/show_bug.cgi?id=531998">pcscd spams the log with "SCardConnect() Card Not Powered"</a>	1.3.0
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
191	0x076B	shouldwork	OMNIKEY AG	CardMan 5121		0x5121	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000207B2	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless	No extended APDU	The RFID interface is not supported.	1.2.0
192	0x076B	shouldwork	OMNIKEY AG	CardMan 5125		0x5125	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000207B2	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless	No extended APDU	The HID PROX interface is not supported.	1.0.0

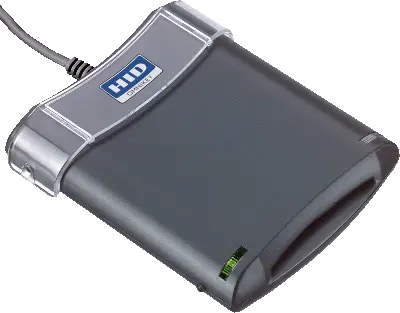

193	0x076B	shouldwork	OMNIKEY	CardMan 5321		0x5321	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000103B0	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless		The RFID interface is not supported.	1.3.1
194	0x076B	shouldwork	OMNIKEY AG	CardMan 6121		0x6622	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000207B2	271 bytes	0xFF	0xFF	0x0000	0x00	1		No extended APDU		1.0.0
195	0x076B	shouldwork	Generic USB	Smart Card Reader		0x3A21	Smart Card Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000407B8	271 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification		No pinpad support	1.4.24
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
196	0x076B	shouldwork	HID	AVIATOR Generic		0x3A21	Smart Card Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000207B8	271 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification	No extended APDU	No pinpad support	1.4.24
197	0x076B	shouldwork	HID Global	OMNIKEY 3x21 Smart Card Reader		0x3031	OMNIKEY 3x21 Smart Card Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000407BA	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.23
198	0x076B	shouldwork	HID Global	OMNIKEY 5022 Smart Card Reader		0x5022	OMNIKEY 5022 Smart Card Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	825807 bps	254	0x00000000	0x00000000	0x000404BA	520 bytes	0xFF	0xFF	0x0000	0x00	1	contactless			1.4.23
199	0x076B	shouldwork	HID Global	OMNIKEY 5023 Smart Card Reader		0x5023	OMNIKEY 5023 Smart Card Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0002	4.800 MHz	4.800 MHz	12903 bps	825807 bps	254	0x00000000	0x00000000	0x000404BA	520 bytes	0xFF	0xFF	0x0000	0x00	1	contactless			1.4.29
200	0x076B	shouldwork	HID Global	OMNIKEY 5027CK CCID CONFIG IF		0x5A27	OMNIKEY 5027CK CCID CONFIG IF	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	10752 bps	412903 bps	254	0x00000000	0x00000000	0x000407BA	520 bytes	0xFF	0xFF	0x0000	0x00	1	contactless			1.4.29
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
201	0x076B	shouldwork	HID Global	OMNIKEY 5122 Dual		0x5432	OMNIKEY 5122CL Dual	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	825807 bps	254	0x00000000	0x00000000	0x000404BA	520 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 0: OMNIKEY 5122CL Dual, Multi interface reader			1.4.28
202	0x076B	shouldwork	HID Global	OMNIKEY 5122 Dual		0x5432	OMNIKEY 5122 Dual	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000000	0x00000000	0x000407B8	520 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 1: OMNIKEY 5122 Dual, Multi interface reader			1.4.28
203	0x076B	shouldwork	HID Global	OMNIKEY 5122 Smartcard Reader		0x5412	OMNIKEY 5122CL Smartcard Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	825807 bps	254	0x00000000	0x00000000	0x000404BA	520 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 0: OMNIKEY 5122CL Smartcard Reader, Multi interface reader			1.4.28
204	0x076B	shouldwork	HID Global	OMNIKEY 5122 Smartcard Reader		0x5412	OMNIKEY 5122 Smartcard Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000000	0x00000000	0x000407B8	520 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 1: OMNIKEY 5122 Smartcard Reader, Multi interface reader			1.4.28
205	0x076B	shouldwork	HID Global	OMNIKEY 6121 Smart Card Reader		0x6632	OMNIKEY 6121 Smart Card Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000407B8	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.23
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
206	0x076B	shouldwork	HID Global	veriCLASS Reader		0x5400	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x02	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	825807 bps	254	0x00000000	0x00000000	0x000404BA	520 bytes	0xFF	0xFF	0x0000	0x00	1	3 slots			1.4.17

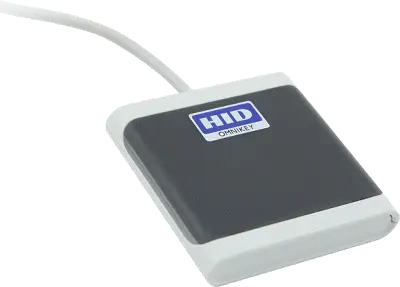

207	0x076B	shouldwork	HID OMNIKEY	5025-CL		0x502A	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.580 MHz	3.580 MHz	9600 bps	9600 bps	352	0x00000000	0x00000000	0x000406B2	384 bytes	0xFF	0xFF	0x0000	0x00	1	contactless			1.4.17

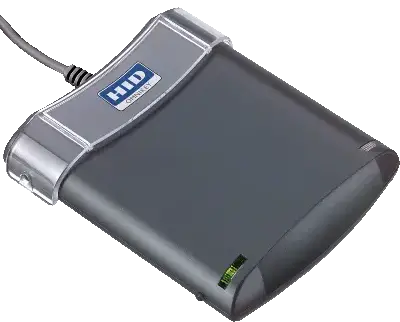

208	0x076B	shouldwork	HID OMNIKEY	5326 DFR		0x5326	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.580 MHz	3.580 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x000406B2	1024 bytes	0xFF	0xFF	0x0000	0x00	1	contactless		Only the the Low Frequency (LF) contactless interface is available. The High Frequency (HF) contactless interface is not supported.	1.4.12
209	0x076B	shouldwork	HID Global	OMNIKEY 5422 Smartcard Reader		0x5422	OMNIKEY 5422CL Smartcard Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	825807 bps	254	0x00000000	0x00000000	0x000404BA	520 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 0: OMNIKEY 5422CL Smartcard Reader, Multi interface reader			1.4.27
210	0x076B	shouldwork	HID Global	OMNIKEY 5422 Smartcard Reader		0x5422	OMNIKEY 5422 Smartcard Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000000	0x00000000	0x000407B8	520 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 1: OMNIKEY 5422 Smartcard Reader, Multi interface reader			1.4.27
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release

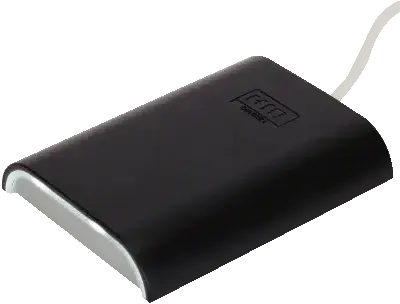

211	0x076B	shouldwork	HID OMNIKEY	5427 CK		0x5427	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	825807 bps	254	0x00000000	0x00000000	0x000404BA	520 bytes	0xFF	0xFF	0x0000	0x00	1	contactless			1.4.12
212	0x076B	shouldwork	IonIDe	Smartcard Reader		0x3B01	Smartcard Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000207B8	271 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification	No extended APDU		1.4.23

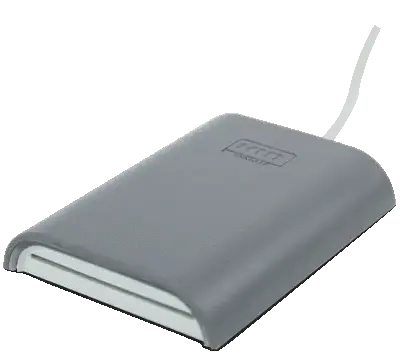

213	0x076B	shouldwork	OMNIKEY	5421		0x5421	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000103B0	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless		The contactless interface is not supported.	1.4.17
214	0x076B	shouldwork	OMNIKEY AG	3121 USB		0x3022	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	492	0x00000007	0x00000000	0x000407B2	502 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.17
215	0x076B	shouldwork	HID OMNIKEY	5127 CK		0x5127	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	825807 bps	254	0x00000000	0x00000000	0x000404BA	520 bytes	0xFF	0xFF	0x0000	0x00	1	contactless			1.4.12
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
216	0x076B	shouldwork	OMNIKEY AG	6121 USB mobile		0x6623	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	492	0x00000007	0x00000000	0x000407B2	502 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.19
217	0x076B	shouldwork	OMNIKEY	6321 CLi USB		0x6321	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000207B2	271 bytes	0xFF	0xFF	0x0000	0x00	1		No extended APDU		1.4.6
218	0x076B	shouldwork	OMNIKEY AG	Smart Card Reader		0xA021	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	3.692 MHz	3.692 MHz	9924 bps	119096 bps	254	0x00000007	0x00000000	0x000207B2	271 bytes	0xFF	0xFF	0x0000	0x00	1		No extended APDU		1.3.10

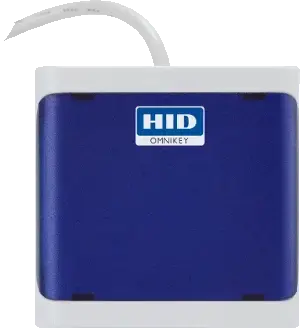

219	0x076B	disabled	HID OMNIKEY	5021 CL		0x5340	NO NAME	3	0xFF	1.00	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000103B0	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 0: NO NAME, Multi interface reader		Contactless only reader and the contactless is not supported. It is NOT A CCID DEVICE.	1.4.26
220	0x076B	disabled	HID OMNIKEY	5021 CL		0x5340	NO NAME	3	0xFF	1.00	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000103B0	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 1: NO NAME, Multi interface reader		Contactless only reader and the contactless is not supported. It is NOT A CCID DEVICE.	1.4.26
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
221	0x076B	disabled	HID OMNIKEY	5021 CL		0x5340	NO NAME	3	0xFF	1.00	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000103B0	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 2: NO NAME, Multi interface reader		Contactless only reader and the contactless is not supported. It is NOT A CCID DEVICE.	1.4.26
222	0x076B	disabled	OMNIKEY	5321 CLi USB		0x532A	NO NAME	3	0xFF	1.00	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000207B2	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless	No extended APDU	bInterfaceClass: 0xFF: NOT A CCID DEVICE	1.4.27

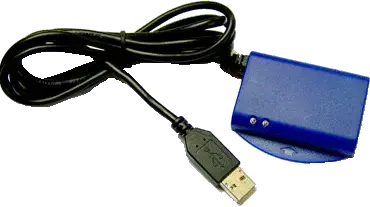

223	0x0783	supported	C3PO	LTC31 v2		0x0006	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.01	0x00	0x01	0x0000 0x0003	4.000 MHz	8.000 MHz	9600 bps	230400 bps	254	0x00000007	0x00000000	0x000100BA	271 bytes	0x00	0x00	0x0000	0x03	1	PIN Verification, PIN Modification		New model with USB product ID 0x0006	1.1.0

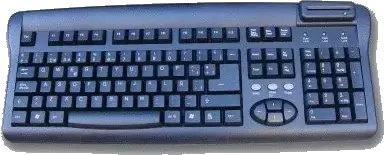

224	0x0783	shouldwork	C3PO	KBR36		0x0009	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x01	0x0000 0x0003	4.000 MHz	20.000 MHz	9600 bps	230400 bps	254	0x00000007	0x00000000	0x000100BA	271 bytes	0x00	0x00	0x0000	0x03	1	PIN Verification, PIN Modification			1.2.0
225	0x0783	shouldwork	C3PO	LTC32		0x0010	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x01	0x0000 0x0003	4.000 MHz	20.000 MHz	9600 bps	230400 bps	254	0x00000007	0x00000000	0x000100BA	271 bytes	0x00	0x00	0x0000	0x03	1	PIN Verification, PIN Modification			1.2.0
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
226	0x0783	shouldwork	C3PO	TLTC2USB		0x0007	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x01	0x0000 0x0003	4.000 MHz	20.000 MHz	9600 bps	230400 bps	254	0x00000001	0x00000000	0x000100BA	271 bytes	0x00	0x00	0x0000	0x00	1				1.2.0
227	0x0783	shouldwork	C3PO	LTC36		0x0036	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x01	0x0000 0x0003	4.000 MHz	8.000 MHz	9600 bps	230400 bps	254	0x00000007	0x00000000	0x000100BA	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.0
228	0x0783	unsupported	C3PO	LTC3x USB		0x0003	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x01	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	10752 bps	254	0x00000000	0x00000000	0x00010002	271 bytes	0x00	0x00	0x0000	0x00	1			The reader works fine with Linux kernel 2.4 but does not with Linux kernel 2.6. The ioctl() syscall returns EINVAL (Invalid argument). This reader is not more sold and replaced by the LTC31v2 model.	0.1.0

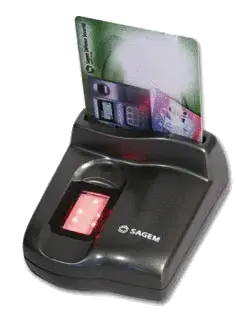

229	0x079B	shouldwork	Morpho	MSO1350 Fingerprint Sensor & SmartCard Reader		0x0052	SAGEM SMARTCARD READER	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	129032 bps	247	0x00000000	0x00000000	0x00010030	271 bytes	0x00	0x00	0x0000	0x00	1	biometric			1.4.10

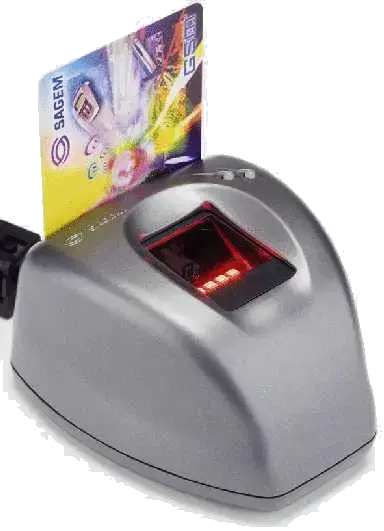

230	0x079B	shouldwork	Morpho	MSO350/MSO351 Fingerprint Sensor & SmartCard Reader		0x0026	SAGEM SMARTCARD READER	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344086 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1	biometric			1.4.10
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
231	0x0898	shouldwork	Gemalto	RF CR5400		0x0101	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.685 MHz	13.560 MHz	9909 bps	848000 bps	254	0x00000000	0x00000000	0x0004047E	273 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.32
232	0x08AE	shouldwork	Macally	NFC CCID eNetPad		0x0BDF	Macally CCID READER	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0002	4.000 MHz	4.000 MHz	10752 bps	344100 bps	256	0x00000000	0x00000000	0x00020040	271 bytes	0x00	0x00	0x0000	0x00	1	contactless	No extended APDU		1.4.6
233	0x08C3	unsupported	Precise Biometrics	Precise 200 MC		0x0402	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x03	0x0000 0x0003	4.000 MHz	7.500 MHz	10753 bps	241936 bps	254	0x00000000	0x00000000	0x000404BA	65550 bytes	0x00	0x00	0x0000	0x00	1	biometric		Must be firmware version 50.00 or above: time extension requests are not sent back to the host in earlier versions of the firmware. The reader can't talk to card with TA1=96. See http://archives.neohapsis.com/archives/dev/muscle/2010-q3/0197.html	1.3.10
234	0x08C3	unsupported	Precise Biometrics	Precise 250 MC		0x0401	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x03	0x0000 0x0003	4.000 MHz	7.500 MHz	10753 bps	241936 bps	254	0x00000000	0x00000000	0x000404BA	65550 bytes	0x00	0x00	0x0000	0x00	1	biometric		Must be firmware version 50.00 or above: time extension requests are not sent back to the host in earlier versions of the firmware. The reader can't talk to card with TA1=96. See http://archives.neohapsis.com/archives/dev/muscle/2010-q3/0197.html	1.3.6
235	0x08C3	disabled	Precise Biometrics	Precise 200 MC Upgrade		0x0406	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x03	0x0000 0x0003	4.000 MHz	7.500 MHz	10753 bps	241936 bps	254	0x00000000	0x00000000	0x000200BA	524288 bytes	0x00	0x00	0x0000	0x00	1		No extended APDU	To the CCID command 0x65 PC_to_RDR_GetSlotStatus the reader returns a 0x80 RDR_to_PC_DataBlock instead of a 0x81 RDR_to_PC_SlotStatus and with bStatus=0x42 (error) and bError=0x00 (Command not supported)	1.4.25
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
236	0x08DF	shouldwork	Spyrus Inc	PocketVault P-3X		0x3201	NO NAME	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0001	3.580 MHz	3.580 MHz	9600 bps	9600 bps	256	0x00000000	0x00000000	0x00040840	271 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD			1.4.27
237	0x08DF	shouldwork	Spyrus Inc	PocketVault P-3X		0x3203	NO NAME	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0001	3.580 MHz	3.580 MHz	9600 bps	9600 bps	256	0x00000000	0x00000000	0x00040840	271 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD			1.4.35
238	0x08DF	shouldwork	Spyrus Inc	Rosetta USB		0x0004	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0001	3.580 MHz	3.580 MHz	9600 bps	9600 bps	256	0x00000000	0x00000000	0x00010840	271 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD			1.4.29
239	0x08DF	shouldwork	Spyrus Inc	WorkSafe Pro		0x3115	NO NAME	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0001	3.580 MHz	3.580 MHz	9600 bps	9600 bps	256	0x00000000	0x00000000	0x00040840	271 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD			1.4.29
240	0x08DF	shouldwork	Spyrus Inc	WorkSafe Pro		0x3117	NO NAME	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0001	3.580 MHz	3.580 MHz	9600 bps	9600 bps	256	0x00000000	0x00000000	0x00040840	271 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD			1.4.30
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
241	0x08E6	supported	Gemalto	GemCore SIM Pro Smart Card Reader		0x3480	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x01	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	500000 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1	2 slots			1.0.0
242	0x08E6	supported	Gemalto	Gemplus USB SmartCard Reader 433-Swap		0x4433	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x01	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344086 bps	254	0x00000000	0x00000000	0x00020472	271 bytes	0x00	0x00	0x0000	0x00	1		No extended APDU		0.1.0
243	0x08E6	supported	Gemalto	USB Shell Token V2		0x3438	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344086 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1				0.1.0
244	0x08E6	supported	Gemalto	USB GemPCPinpad SmartCard Reader		0x3478	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	500000 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x03	1	firewall, PIN Verification, PIN Modification		Known problems/limitations: - Does not support minimum PIN length (wPINMaxExtraDigit) lower than 4 - Does not support maximum PIN length (wPINMaxExtraDigit) greater than 8 - Does send a VERIFY PIN command with an empty PIN to get the number of remaining trials. This may be problematic with some smart cards like the Belgian eID card that does not support this and will decrement the counter	1.0.0

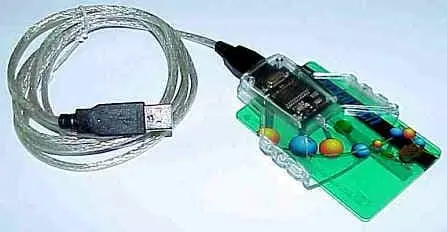

245	0x08E6	supported	Gemalto	PC Twin Reader		0x3437	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344086 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1				0.1.0
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
246	0x08E6	supported	Gemalto	PC Twin Reader (serial)		0x3437	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344086 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1	serial			1.4.32
247	0x08E6	supported	Gemalto	Prox Dual USB PC Link Reader		0x5503	Prox-DU Contactless_10500231	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	10752 bps	254	0x00000000	0x00000000	0x00040672	512 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 0: Prox-DU Contactless_10500231, Multi interface reader			1.4.2
248	0x08E6	supported	Gemalto	Prox Dual USB PC Link Reader		0x5503	Prox-DU Contact_10500231	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	500000 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 1: Prox-DU Contact_10500231, Multi interface reader			1.4.2

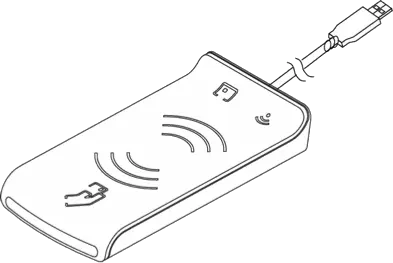

249	0x08E6	supported	Gemalto	Prox SU USB PC LinkReader		0x5504	Prox-SU Contact interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	500000 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 0: Prox-SU Contact interface, Multi interface reader			1.4.2
250	0x08E6	supported	Gemalto	Prox SU USB PC LinkReader		0x5504	Prox-SU Contactless interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	10752 bps	254	0x00000000	0x00000000	0x00020672	278 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 1: Prox-SU Contactless interface, Multi interface reader	No extended APDU		1.4.2
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
251	0x08E6	supported	Gemalto	Smart Enterprise Guardian Secure USB Device		0x8000	4	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x01	0x0000 0x0001	3.580 MHz	7.500 MHz	20112 bps	223200 bps	252	0x00000000	0x00000000	0x0001007A	270 bytes	0xFF	0xFF	0x0000	0x00	1				1.3.2
252	0x08E6	supported	Gemalto	EZIO CB+		0x34C3	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344086 bps	254	0x00000000	0x00000000	0x000204BA	271 bytes	0x00	0x00	0x0211	0x03	1	PIN Verification, PIN Modification	No extended APDU		1.4.4

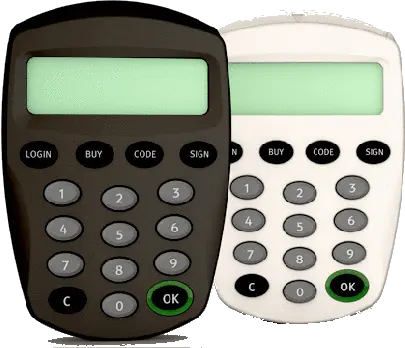

253	0x08E6	supported	Gemalto	Ezio Shield		0x34C0	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344086 bps	254	0x00000000	0x00000000	0x000204BA	271 bytes	0x00	0x00	0x0211	0x03	1	PIN Verification, PIN Modification	No extended APDU		1.4.4
254	0x08E6	supported	Gemalto	IDBridge K3000		0x8141	IDBridge K3000 ?5300029B	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0003	4.714 MHz	4.714 MHz	12672 bps	589250 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0xFF	0xFF	0x0000	0x00	1			I have USB problems on a iMac on some USB ports. Just connect the token to another USB bus/port.	1.4.10
255	0x08E6	supported	Gemalto	PDT		0x1227	ICCD	0	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0002	3.580 MHz	3.580 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x00020840	261 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD	No extended APDU		1.3.9
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
256	0x08E6	supported	Verisign	Secure Storage Token		0x1359	0	2	0xFF	1.00	0x00	0x01	0x0000 0x0003	1.500 MHz	1.500 MHz	4032 bps	46875 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1				0.9.4
257	0x08E6	supported	Verisign	Secure Token		0xACE0	0	2	0xFF	1.00	0x00	0x01	0x0000 0x0003	1.500 MHz	1.500 MHz	4032 bps	46875 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1				0.9.4
258	0x08E6	shouldwork	Gemplus	GemCore POS Pro Smart Card Reader		0x3479	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x04	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	500000 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1	5 slots			1.4.4
259	0x08E6	shouldwork	Gemalto	USB GemPCPinpad SmartCard Reader		0x3478	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	500000 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0210	0x03	1	PIN Verification, PIN Modification			1.3.13

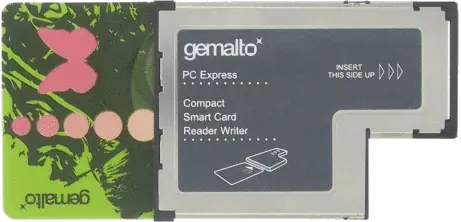

260	0x08E6	shouldwork	Gemalto	GemPC Express		0x34EC	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	500000 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1	ExpressCard			1.0.0
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
261	0x08E6	shouldwork	Gemalto	Gem e-Seal Pro USB Token		0x2202	0	2	0xFF	1.00	0x00	0x01	0x0000 0x0003	1.500 MHz	1.500 MHz	4032 bps	46875 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1				1.3.5

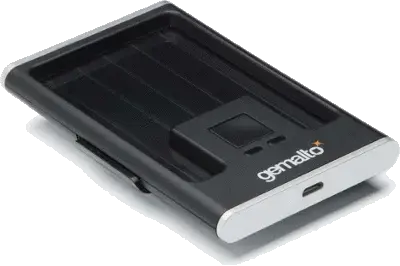

262	0x08E6	shouldwork	GEMALTO	CT1100		0x3440	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	500000 bps	254	0x00000000	0x00000000	0x000404B2	540 bytes	0x00	0x00	0x0000	0x00	1			Bluetooth	1.4.22
263	0x08E6	shouldwork	Gemalto	Ezio Shield Branch Reader		0x34C5	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	500000 bps	254	0x00000000	0x00000000	0x000204B2	271 bytes	0x00	0x00	0x0211	0x03	1	PIN Verification, PIN Modification	No extended APDU		1.4.7
264	0x08E6	shouldwork	Gemalto	Ezio Shield		0x34C2	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	500000 bps	254	0x00000000	0x00000000	0x000404B2	271 bytes	0x00	0x00	0x0211	0x03	1	firewall, PIN Verification, PIN Modification		Also known as IDBridge CT700 or CT710	1.4.5

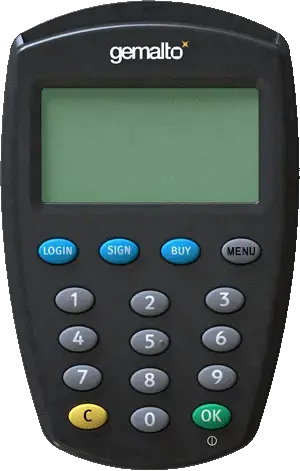

265	0x08E6	shouldwork	Gemalto	Ezio Shield Pro SC		0x34C0	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	500000 bps	254	0x00000000	0x00000000	0x000204B2	271 bytes	0x00	0x00	0x0411	0x03	1	PIN Verification, PIN Modification	No extended APDU		1.4.15
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
266	0x08E6	shouldwork	Gemalto	Ezio Shield Secure Channel		0x34C1	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	500000 bps	254	0x00000000	0x00000000	0x000204B2	271 bytes	0x00	0x00	0x0411	0x03	1	firewall?, PIN Verification, PIN Modification	No extended APDU		1.4.14
267	0x08E6	shouldwork	Gemalto	Hybrid Smartcard Reader		0x5743	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x01	0x02	0x0000 0x0001	3.686 MHz	3.686 MHz	9910 bps	9910 bps	0	0x00000000	0x00000000	0x00010070	271 bytes	0x00	0x00	0x0000	0x00	1	2 slots			1.3.12
268	0x08E6	shouldwork	Gemalto	IDBridge CT30		0x3437	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.01	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	825806 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1			This reader is a new version of the GemPC Twin but with firmware F. Be sure to use a version F (or more) of the firmware (last letter of the P/N number written on the back of the reader). Version F also has bcdDevice: 2.01 (2.00 for version E) and firmware "GemCore USB 3.1" ("GemCore USB 3.0" for version E). Version E of the firmware may not work since it generates USB Zero Length Packets (ZLP). A fix was introduced in version 1.4.11 of the CCID driver but is problematic and was removed in version 1.4.19.	1.4.11
269	0x08E6	shouldwork	Gemalto	IDBridge K30		0x3438	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.01	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	825806 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1			See the note about the IDBridge CT30.	1.4.11

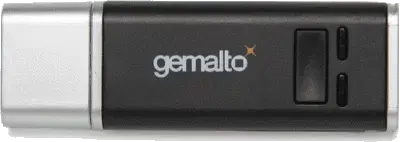

270	0x08E6	shouldwork	GEMALTO	K1100		0x3440	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	500000 bps	254	0x00000000	0x00000000	0x000404B2	540 bytes	0x00	0x00	0x0000	0x00	1			Bluetooth	1.4.22
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
271	0x08E6	shouldwork	Gemalto	K50		0x3437	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.01	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	825806 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.25
272	0x08E6	shouldwork	Gemalto	SA .NET Dual		0x4042	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x03	0x0000 0x0001	1.500 MHz	1.500 MHz	4032 bps	23437 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.5
273	0x08E6	shouldwork	Gemalto	Smart Enterprise Guardian Secure USB Device		0x8108	Smart Card Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x01	0x0000 0x0001	2.000 MHz	4.000 MHz	5376 bps	250000 bps	252	0x00000000	0x00000000	0x0001007A	270 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.1
274	0x08E6	shouldwork	SafeNet	eToken 5110+ FIPS		0x34CF	eToken 5110+ FIPS	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0002	4.800 MHz	4.800 MHz	12903 bps	825806 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.36
275	0x08E6	shouldwork	SafeNet	eToken 5300		0x34CC	eToken 5300	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0002	4.800 MHz	4.800 MHz	12903 bps	825806 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.28
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
276	0x08E6	shouldwork	SafeNet	eToken 5300 C		0x34CE	eToken 5300 C	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0002	4.800 MHz	4.800 MHz	12903 bps	825806 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.36
277	0x08E6	shouldwork	SafeNet	eToken Fusion		0x34D2	eToken Fusion	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	825806 bps	254	0x00000000	0x00000000	0x00040472	275 bytes	0x00	0x00	0x0000	0x00	1				1.5.1
278	0x08E6	shouldwork	Thales	Shield M4 Reader		0x34C7	CCID Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	3.600 MHz	3.600 MHz	9677 bps	9677 bps	254	0x00000000	0x00000000	0x000204B2	271 bytes	0x00	0x00	0x0811	0x03	1	PIN Verification, PIN Modification	No extended APDU		1.5.0
279	0x0925	shouldwork	LDU	LANDI		0x900A	NO NAME	2	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344086 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1				1.5.2
280	0x096E	shouldwork	~Avtor	KP-375BLE		0x0624	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.000 MHz	12.000 MHz	10752 bps	688172 bps	271	0x00000000	0x00000000	0x000404BA	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.34
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
281	0x096E	shouldwork	~Avtor	SC Reader KP382		0x0608	KP382 Contactless Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x01	0x0000 0x0002	4.000 MHz	4.000 MHz	10752 bps	688172 bps	252	0x00000007	0x00000000	0x000404BE	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless			1.4.34
282	0x096E	shouldwork	FT	Biopass CCID		0x086C	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	3.700 MHz	3.700 MHz	9600 bps	115200 bps	271	0x00000000	0x00000000	0x000404B4	271 bytes	0x00	0x00	0x0000	0x00	1	biometric			1.4.34
283	0x096E	shouldwork	FT	Biopass FIDO2		0x0867	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	3.700 MHz	3.700 MHz	9600 bps	115200 bps	271	0x00000000	0x00000000	0x000404B4	271 bytes	0x00	0x00	0x0000	0x00	1	biometric			1.4.34
284	0x096E	shouldwork	FT	Biopass KB CCID		0x0869	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	3.700 MHz	3.700 MHz	9600 bps	115200 bps	271	0x00000000	0x00000000	0x000404B4	271 bytes	0x00	0x00	0x0000	0x00	1	biometric			1.4.34
285	0x096E	shouldwork	FT	Biopass KB FIDO CCID		0x0868	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	3.700 MHz	3.700 MHz	9600 bps	115200 bps	271	0x00000000	0x00000000	0x000404B4	271 bytes	0x00	0x00	0x0000	0x00	1	biometric			1.4.34
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
286	0x096E	shouldwork	FT	CCID		0x0859	CCID	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0002	4.000 MHz	4.000 MHz	307200 bps	307200 bps	1024	0x00000000	0x00000000	0x000400FE	1034 bytes	0xFF	0xFF	0x0000	0x00	1	NFC			1.4.27
287	0x096E	shouldwork	FT	CCID KB		0x0855	CCID	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0002	4.000 MHz	4.000 MHz	307200 bps	307200 bps	1024	0x00000000	0x00000000	0x000400FE	1034 bytes	0xFF	0xFF	0x0000	0x00	1	NFC			1.4.27
288	0x096E	shouldwork	FT	U2F CCID		0x0856	CCID	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0002	4.000 MHz	4.000 MHz	307200 bps	307200 bps	1024	0x00000000	0x00000000	0x000400FE	1034 bytes	0xFF	0xFF	0x0000	0x00	1	NFC			1.4.27

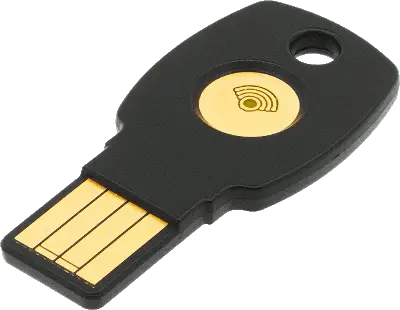

289	0x096E	shouldwork	FT	U2F CCID KB		0x0853	CCID	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0002	4.000 MHz	4.000 MHz	307200 bps	307200 bps	1024	0x00000000	0x00000000	0x000400FE	1034 bytes	0xFF	0xFF	0x0000	0x00	1	NFC			1.4.27
290	0x096E	shouldwork	FT	ePass2003Auto		0x080A	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0002	3.580 MHz	3.580 MHz	9600 bps	9600 bps	2080	0x00000000	0x00000000	0x00040840	2102 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD			1.4.21
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
291	0x096E	shouldwork	Feitian	BLE CCID Dongle		0x0621	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.700 MHz	3.700 MHz	9946 bps	318280 bps	384	0x00000007	0x00000000	0x000404BE	516 bytes	0xFF	0xFF	0x0000	0x00	1			BLE dongle to work with the Feitian BLE readers	1.4.34
292	0x096E	shouldwork	Feitian	502-CL		0x0608	R502 Contactless Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x01	0x0000 0x0002	4.000 MHz	4.000 MHz	10752 bps	688172 bps	252	0x00000007	0x00000000	0x000404BE	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless			1.4.19
293	0x096E	shouldwork	Feitian	R502		0x060D	R502 Contactless Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x01	0x0000 0x0002	4.000 MHz	4.000 MHz	10752 bps	688172 bps	252	0x00000007	0x00000000	0x000404BE	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 0: R502 Contactless Reader, Multi interface reader			1.4.17
294	0x096E	shouldwork	Feitian	R502		0x060D	R502 Contact Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	688172 bps	252	0x00000007	0x00000000	0x000102B8	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 1: R502 Contact Reader, Multi interface reader			1.4.17
295	0x096E	shouldwork	Feitian	R502		0x060D	R502 SAM1 Reader	2	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	688172 bps	252	0x00000007	0x00000000	0x000102B8	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 2: R502 SAM1 Reader, Multi interface reader			1.4.17
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
296	0x096E	shouldwork	Feitian	R502		0x060D	R502 SAM2 Reader	2	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	688172 bps	252	0x00000007	0x00000000	0x000102B8	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 3: R502 SAM2 Reader, Multi interface reader			1.4.17
297	0x096E	shouldwork	Feitian	R701		0x062E	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.000 MHz	3.850 MHz	10752 bps	500000 bps	252	0x00000000	0x00000000	0x000404BA	271 bytes	0xFF	0xFF	0x0418	0x00	1				1.4.35

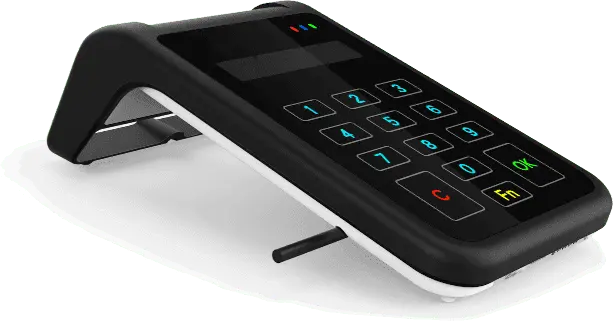

298	0x096E	shouldwork	Feitian	R805		0x0685	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.700 MHz	3.700 MHz	9946 bps	318280 bps	1024	0x00000007	0x00000000	0x000404BE	1024 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.34
299	0x096E	shouldwork	Feitian Technologies	FT SCR310		0x0505	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	8.000 MHz	10752 bps	600000 bps	248	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	0				1.4.2
300	0x096E	shouldwork	FEITIAN	bR301		0x061A	bR301 Bluetooth Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	3.700 MHz	3.700 MHz	9946 bps	318280 bps	272	0x00000007	0x00000000	0x000404BE	272 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.15
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
301	0x096E	shouldwork	Feitian	bR301		0x0624	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.000 MHz	12.000 MHz	10752 bps	688172 bps	271	0x00000000	0x00000000	0x000404BA	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.21

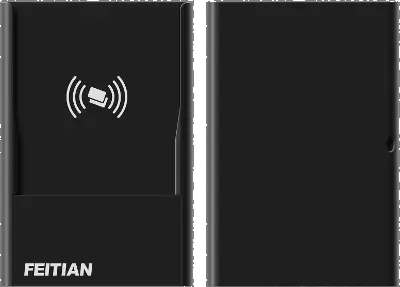

302	0x096E	shouldwork	Feitian	bR500		0x0623	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.700 MHz	3.700 MHz	9946 bps	318280 bps	516	0x00000007	0x00000000	0x000404BE	516 bytes	0xFF	0xFF	0x0000	0x00	1	contactless			1.4.25
303	0x096E	shouldwork	Feitian	eJAVA Token		0x080F	NO NAME	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.000 MHz	4.000 MHz	9600 bps	600000 bps	240	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.19
304	0x096E	shouldwork	Feitian	ePass2003		0x0807	?	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0002	3.580 MHz	3.580 MHz	9600 bps	9600 bps	2048	0x00000000	0x00000000	0x00040840	2100 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD		The device may fail at generating keys onboard. See <a href="https://github.com/OpenSC/OpenSC/issues/301">epass2003 RSA/2048 Failed to Generate Key on OSX, VirtualBOX</a>	1.4.3

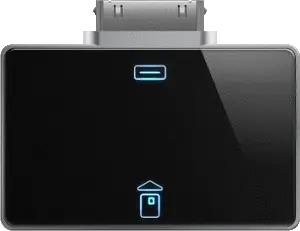

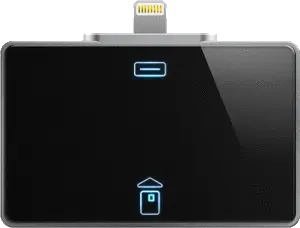

305	0x096E	shouldwork	FEITIAN	iR301		0x0619	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	3.700 MHz	3.700 MHz	9946 bps	318280 bps	272	0x00000007	0x00000000	0x000404BE	272 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.21
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
306	0x096E	shouldwork	FEITIAN	iR301		0x061C	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10753 bps	344086 bps	272	0x00000007	0x00000000	0x000404BE	272 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.21
307	0x096E	shouldwork	Feitian	VR504 VHBR Contactless & Contact Card Reader		0x0622	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.700 MHz	3.700 MHz	9600 bps	115200 bps	2296	0x00000007	0x00000000	0x000404BE	4106 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 0: NO NAME, Multi interface reader			1.4.25
308	0x096E	shouldwork	Feitian	VR504 VHBR Contactless & Contact Card Reader		0x0622	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10753 bps	344086 bps	272	0x00000007	0x00000000	0x000404BE	272 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 1: NO NAME, Multi interface reader			1.4.25
309	0x096E	shouldwork	Feitian	vR504 Contactless Reader		0x0622	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.700 MHz	3.700 MHz	9600 bps	115200 bps	4106	0x00000007	0x00000000	0x000404BE	4106 bytes	0xFF	0xFF	0x0000	0x00	1	contactless			1.4.34

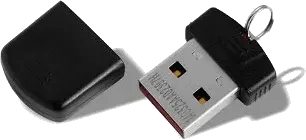

310	0x096E	shouldwork	PIVKey	T800		0x0603	NO NAME	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.000 MHz	4.000 MHz	9600 bps	600000 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.19
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release

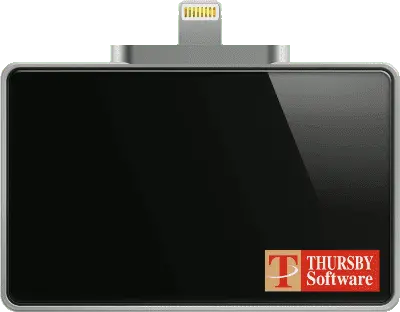

311	0x096E	shouldwork	Thursby Software Systems, Inc.	TSS-PK7		0x061C	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	3.700 MHz	3.700 MHz	9946 bps	318280 bps	272	0x00000007	0x00000000	0x000404BE	272 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.22
312	0x096E	shouldwork	Thursby Software Systems, Inc.	TSS-PK8		0x0619	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	3.700 MHz	3.700 MHz	9946 bps	318280 bps	254	0x00000007	0x00000000	0x000404BE	272 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.22
313	0x096E	unsupported	Feitian	SCR301		0x0503	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.000 MHz	12.000 MHz	10752 bps	500000 bps	252	0x00000000	0x00000000	0x00010238	271 bytes	0xFF	0xFF	0x0000	0x00	1			The reader fails with a CASE 2 APDU with Le=0 (256 bytes) Sent: 80 34 01 00 00 ifdhandler.c:1219:IFDHTransmitToICC() no name (lun: 0) commands.c:1542:CmdXfrBlockTPDU_T0() T=0: 5 bytes -> 000000 6F 05 00 00 00 00 07 00 00 00 80 34 01 00 00 <- 000000 80 00 00 00 00 00 07 40 FE 00 commands.c:1316:CCID_Receive Card absent or mute And time extension requests are not forwarded back to the host. A new version of the reader is available and may fix this issue.	1.3.11
314	0x0973	shouldwork	SchlumbergerSema	SchlumbergerSema Cyberflex Access		0x0003	0	0	0xFF	1.10	0x00	0x01	0x0000 0x0001	3.580 MHz	3.580 MHz	9600 bps	9600 bps	0	0x00000000	0x00000000	0x00000840	256 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD			1.3.0
315	0x0980	disabled	MX5	MX5 SMART CCID DRIVER		0x902F	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	3.600 MHz	3.600 MHz	9677 bps	116129 bps	254	0x00000000	0x00000000	0x00010030	271 bytes	0x00	0x00	0x0000	0x00	1			The reader is too slow to setup. The reader can't power up a card.	1.4.8
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release

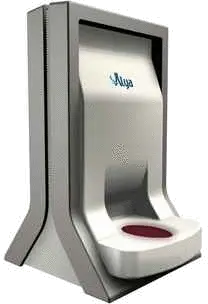

316	0x0982	supported	COVADIS	ALYA		0x0007	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344086 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1	biometric			1.3.6
317	0x0982	shouldwork	COVADIS	Auriga		0x0040	0	3	0x0B [Chip Card Interface Device Class (CCID)]	10.01	0x02	0x07	0x0000 0x0003	2.000 MHz	2.000 MHz	5376 bps	21504 bps	254	0x00000000	0x00000000	0x00020472	271 bytes	0x00	0x00	0x0000	0x00	2	biometric, 3 slots	No extended APDU		1.3.12
318	0x0982	shouldwork	COVADIS	VEGA-ALPHA		0x0008	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	500000 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x03	1	PIN Verification, PIN Modification			1.3.6
319	0x09BE	supported	MYSMART	MySMART PAD V2.0		0x0002	0	3	0xFF	1.00	0x00	0x00	0x0000 0x0300	1024.000 MHz	1024.000 MHz	10752 bps	129032 bps	0	0x00000000	0x03000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1				0.9.4
320	0x09C3	supported	ActivIdentity	USB Reader V3		0x0013	CCID Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	12903 bps	412903 bps	252	0x00000000	0x00000000	0x000101BA	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.0.0
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
321	0x09C3	supported	ActivIdentity	Activkey_Sim		0x0014	CCID Bulk Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	412903 bps	254	0x00000000	0x00000000	0x00010030	271 bytes	0x00	0x00	0x0000	0x00	1				1.1.0
322	0x09C3	shouldwork	HID Global	Crescendo Key		0x0028	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x02	0x0000 0x0002	4.000 MHz	4.000 MHz	10753 bps	250000 bps	254	0x00000000	0x00000000	0x000104F2	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.31
323	0x09C3	shouldwork	HID Global	Crescendo Key		0x0029	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x02	0x0000 0x0002	4.000 MHz	4.000 MHz	10753 bps	250000 bps	254	0x00000000	0x00000000	0x000104F2	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.31
324	0x09C3	shouldwork	HID Global	Crescendo Key		0x002B	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x02	0x0000 0x0002	4.000 MHz	4.000 MHz	10753 bps	250000 bps	254	0x00000000	0x00000000	0x000104F2	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.31
325	0x09C3	shouldwork	HID Global	Crescendo Key		0x002D	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x02	0x0000 0x0002	4.000 MHz	4.000 MHz	10753 bps	250000 bps	254	0x00000000	0x00000000	0x000104F2	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.31
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
326	0x09C3	unsupported	ActivCard	ActivCard USB Reader V2		0x0008	4	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x01	0x0000 0x0003	4.000 MHz	4.000 MHz	9600 bps	115200 bps	252	0x00000000	0x00000000	0x000100BA	263 bytes	0xFF	0xFF	0x0000	0x00	1			The reader do timeout when a special USB frame is sent from the reader. If the frame size if a multiple of wMaxPacketSize the communication is stopped. Some users report that this reader is in fact a SCR-331 with a different firmware and that you can upgrade its firmware to transform it into a (supported) SCR-331 reader.	1.0.0
327	0x09D8	shouldwork	Elatec	TWN4/B1.06/CPF3.05/S1SC1.32/P (Beta 3)		0x0428	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	5.000 MHz	15.000 MHz	13441 bps	625000 bps	254	0x00000001	0x00000000	0x000404B2	64 bytes	0xFF	0xFF	0x0000	0x00	1			You may need to use the Windows tool AppBlaster to load a firmware with CCID support.	1.4.28
328	0x09D8	shouldwork	Elatec	TWN4 SmartCard NFC		0x0427	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x05	0x07	0x0000 0x0003	5.000 MHz	15.000 MHz	13441 bps	625000 bps	254	0x00000001	0x00000000	0x00010032	64 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, 6 slots			1.4.19
329	0x0A5C	shouldwork	Broadcom Corp	58200		0x5842	Contacted SmartCard	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	9600 bps	250000 bps	247	0x00000000	0x00000000	0x000102BA	271 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 0: Contacted SmartCard, Multi interface reader		The contactless interface is not supported	1.4.30
330	0x0A5C	shouldwork	Broadcom Corp	58200		0x5842	Contactless SmartCard	3	0x0B [Chip Card Interface Device Class (CCID)]	1.01	0x00	0x01	0x0000 0x0003	3.580 MHz	3.580 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x000204BA	512 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 1: Contactless SmartCard, Multi interface reader	No extended APDU	The contactless interface is not supported	1.4.30
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
331	0x0A5C	shouldwork	Broadcom Corp	58200		0x5843	Contacted SmartCard	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	9600 bps	250000 bps	247	0x00000000	0x00000000	0x000102BA	271 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 0: Contacted SmartCard, Multi interface reader		The contactless interface is not supported	1.4.31
332	0x0A5C	shouldwork	Broadcom Corp	58200		0x5843	Contactless SmartCard	3	0x0B [Chip Card Interface Device Class (CCID)]	1.01	0x00	0x01	0x0000 0x0003	3.580 MHz	3.580 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x000204BA	512 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 1: Contactless SmartCard, Multi interface reader	No extended APDU	The contactless interface is not supported	1.4.31
333	0x0A5C	shouldwork	Broadcom Corp	58200		0x5864	Contacted SmartCard	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	9600 bps	250000 bps	247	0x00000000	0x00000000	0x000102BA	271 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 0: Contacted SmartCard, Multi interface reader		The contactless interface is not supported	1.5.5
334	0x0A5C	shouldwork	Broadcom Corp	58200		0x5864	Contactless SmartCard	3	0x0B [Chip Card Interface Device Class (CCID)]	1.01	0x00	0x01	0x0000 0x0003	3.580 MHz	3.580 MHz	9600 bps	9600 bps	528	0x00000000	0x00000000	0x000404BA	528 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 1: Contactless SmartCard, Multi interface reader		The contactless interface is not supported	1.5.5
335	0x0A5C	shouldwork	Broadcom Corp	58200		0x5865	Contacted SmartCard	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	9600 bps	250000 bps	247	0x00000000	0x00000000	0x000102BA	271 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 0: Contacted SmartCard, Multi interface reader		The contactless interface is not supported	1.5.5
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
336	0x0A5C	shouldwork	Broadcom Corp	58200		0x5865	Contactless SmartCard	3	0x0B [Chip Card Interface Device Class (CCID)]	1.01	0x00	0x01	0x0000 0x0003	3.580 MHz	3.580 MHz	9600 bps	9600 bps	528	0x00000000	0x00000000	0x000404BA	528 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 1: Contactless SmartCard, Multi interface reader		The contactless interface is not supported	1.5.5
337	0x0A5C	shouldwork	Broadcom Corp	5880		0x5832	Contacted SmartCard	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	9600 bps	250000 bps	247	0x00000000	0x00000000	0x000102BA	271 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 0: Contacted SmartCard, Multi interface reader		The contactless interface is not supported	1.4.25
338	0x0A5C	shouldwork	Broadcom Corp	5880		0x5832	Contactless SmartCard	3	0x0B [Chip Card Interface Device Class (CCID)]	1.01	0x00	0x01	0x0000 0x0003	3.580 MHz	3.580 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x000204BA	512 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 1: Contactless SmartCard, Multi interface reader	No extended APDU	The contactless interface is not supported	1.4.25
339	0x0A5C	shouldwork	Broadcom Corp	5880		0x5833	Contacted SmartCard	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	9600 bps	250000 bps	247	0x00000000	0x00000000	0x000102BA	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.25
340	0x0A5C	shouldwork	Broadcom Corp	5880		0x5834	Contacted SmartCard	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	9600 bps	250000 bps	247	0x00000000	0x00000000	0x000102BA	271 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 0: Contacted SmartCard, Multi interface reader		The contactless interface is not supported	1.4.25
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
341	0x0A5C	shouldwork	Broadcom Corp	5880		0x5834	Contactless SmartCard	3	0x0B [Chip Card Interface Device Class (CCID)]	1.01	0x00	0x01	0x0000 0x0003	3.580 MHz	3.580 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x000204BA	512 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 1: Contactless SmartCard, Multi interface reader	No extended APDU	The contactless interface is not supported	1.4.25
342	0x0A5C	shouldwork	Broadcom Corp	5880		0x5802	Contacted SmartCard	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	9600 bps	250000 bps	247	0x00000000	0x00000000	0x000102BA	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.0
343	0x0A5C	shouldwork	Broadcom Corp	5880		0x5802	Contacted SmartCard	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	9600 bps	250000 bps	247	0x00000000	0x00000000	0x000102BA	271 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 0: Contacted SmartCard, Multi interface reader		The contactless interface is not supported	1.4.2
344	0x0A5C	shouldwork	Broadcom Corp	5880		0x5802	Contactless SmartCard	3	0x0B [Chip Card Interface Device Class (CCID)]	1.01	0x00	0x01	0x0000 0x0003	3.580 MHz	3.580 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x000204BA	512 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 1: Contactless SmartCard, Multi interface reader	No extended APDU	The contactless interface is not supported	1.4.2
345	0x0A5C	shouldwork	Broadcom Corp	5880		0x5804	Contacted SmartCard	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	9600 bps	250000 bps	247	0x00000000	0x00000000	0x000102BA	271 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 0: Contacted SmartCard, Multi interface reader		The contactless interface is not supported	1.4.19
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
346	0x0A5C	shouldwork	Broadcom Corp	5880		0x5804	Contactless SmartCard	3	0x0B [Chip Card Interface Device Class (CCID)]	1.01	0x00	0x01	0x0000 0x0003	3.580 MHz	3.580 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x000204BA	512 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 1: Contactless SmartCard, Multi interface reader	No extended APDU	The contactless interface is not supported	1.4.19
347	0x0A5C	unsupported	Broadcom Corp	58200		0x5844	Contactless SmartCard	3	0x0B [Chip Card Interface Device Class (CCID)]	1.01	0x00	0x01	0x0000 0x0003	3.580 MHz	3.580 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x000204BA	512 bytes	0x00	0x00	0x0000	0x00	1	contactless	No extended APDU	The contactless interface is not supported	1.4.31
348	0x0A5C	unsupported	Broadcom Corp	58200		0x5845	Contactless SmartCard	3	0x0B [Chip Card Interface Device Class (CCID)]	1.01	0x00	0x01	0x0000 0x0003	3.580 MHz	3.580 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x000204BA	512 bytes	0x00	0x00	0x0000	0x00	1	contactless	No extended APDU	The contactless interface is not supported	1.4.31
349	0x0A5C	unsupported	Broadcom Corp	58200		0x5866	Contactless SmartCard	3	0x0B [Chip Card Interface Device Class (CCID)]	1.01	0x00	0x01	0x0000 0x0003	3.580 MHz	3.580 MHz	9600 bps	9600 bps	528	0x00000000	0x00000000	0x000404BA	528 bytes	0x00	0x00	0x0000	0x00	1	contactless		The contactless interface is not supported	1.5.5
350	0x0A5C	unsupported	Broadcom Corp	58200		0x5867	Contactless SmartCard	3	0x0B [Chip Card Interface Device Class (CCID)]	1.01	0x00	0x01	0x0000 0x0003	3.580 MHz	3.580 MHz	9600 bps	9600 bps	528	0x00000000	0x00000000	0x000404BA	528 bytes	0x00	0x00	0x0000	0x00	1	contactless		The contactless interface is not supported	1.5.5
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
351	0x0A5C	unsupported	Broadcom Corp	5880		0x5800	Contacted SmartCard	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	9600 bps	250000 bps	247	0x00000000	0x00000000	0x000102BA	271 bytes	0x00	0x00	0x0000	0x00	1			Found in Dell E6500 laptop Try to Update the reader firmware. The previous firmware generated the following errors: No communication to the device ("Resource temporarily unavailable" error) The reader reports "Hardware error" to GetSlotStatus when no card is present. Frames bigger than 64 bytes (wMaxPacketSize) fails on the contact reader with: 00000002 commands.c:1740:CmdXfrBlockTPDU_T0() T=0: 5 bytes 00000003 -> 000000 6F 05 00 00 00 00 17 00 00 00 00 C0 00 00 BA 00014454 <- 000000 80 BC 00 00 00 00 17 00 00 00 A0 00 00 00 79 03 02 40 70 50 72 47 67 00 ED CB C7 00 ED CB C7 21 21 A0 00 00 00 79 01 02 00 01 00 00 00 00 00 00 00 A0 00 00 00 79 01 02 01 01 00 00 00 00 00 00 00000013 commands.c:1551:CCID_Receive() Can't read all data (54 out of 188 expected) See <a href="https://bugs.launchpad.net/ubuntu/+source/pcsc-lite/+bug/1596662">pcscd fails to read CAC card data, errors out</a>	1.3.9
352	0x0A5C	unsupported	Broadcom Corp	5880		0x5805	Contacted SmartCard	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	9600 bps	250000 bps	247	0x00000000	0x00000000	0x000102BA	271 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 0: Contacted SmartCard, Multi interface reader		Frames bigger than 64 bytes (wMaxPacketSize) fails on the contact reader with: 00000006 commands.c:1740:CmdXfrBlockTPDU_T0() T=0: 5 bytes 00000011 -> 000000 6F 05 00 00 00 00 5A 00 00 00 80 34 01 00 00 00345316 <- 000000 80 02 01 00 00 00 5A 00 00 00 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F 10 11 12 13 14 15 16 17 18 19 1A 1B 1C 1D 1E 1F 20 21 22 23 24 25 26 27 28 29 2A 2B 2C 2D 2E 2F 30 31 32 33 34 35 00000095 commands.c:1551:CCID_Receive() Can't read all data (54 out of 258 expected) The reader _MAY_ work with a T=1 card since it is in TPDU.	1.4.25
353	0x0A5C	unsupported	Broadcom Corp	5880		0x5805	Contactless SmartCard	3	0x0B [Chip Card Interface Device Class (CCID)]	1.01	0x00	0x01	0x0000 0x0003	3.580 MHz	3.580 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x000204BA	512 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 1: Contactless SmartCard, Multi interface reader	No extended APDU	Frames bigger than 64 bytes (wMaxPacketSize) fails on the contact reader with: 00000006 commands.c:1740:CmdXfrBlockTPDU_T0() T=0: 5 bytes 00000011 -> 000000 6F 05 00 00 00 00 5A 00 00 00 80 34 01 00 00 00345316 <- 000000 80 02 01 00 00 00 5A 00 00 00 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F 10 11 12 13 14 15 16 17 18 19 1A 1B 1C 1D 1E 1F 20 21 22 23 24 25 26 27 28 29 2A 2B 2C 2D 2E 2F 30 31 32 33 34 35 00000095 commands.c:1551:CCID_Receive() Can't read all data (54 out of 258 expected) The reader _MAY_ work with a T=1 card since it is in TPDU.	1.4.25
354	0x0A5C	unsupported	Broadcom Corp	5880		0x5801	Contacted SmartCard	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	9600 bps	250000 bps	247	0x00000000	0x00000000	0x000102BA	271 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 0: Contacted SmartCard, Multi interface reader		Found in Dell E6400 laptop The reader reports "Hardware error" to GetSlotStatus when no card is present. <a href="http://ridrix.wordpress.com/2009/10/13/how-to-enable-pcsc-support-for-dell-contactless-reader/">How to enable PC/SC support for Dell Contactless Reader</a>	1.3.12
355	0x0A5C	unsupported	Broadcom Corp	5880		0x5801	Contactless SmartCard	3	0x0B [Chip Card Interface Device Class (CCID)]	1.01	0x00	0x01	0x0000 0x0003	3.580 MHz	3.580 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x000204BA	512 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 1: Contactless SmartCard, Multi interface reader	No extended APDU	Found in Dell E6400 laptop The reader reports "Hardware error" to GetSlotStatus when no card is present. <a href="http://ridrix.wordpress.com/2009/10/13/how-to-enable-pcsc-support-for-dell-contactless-reader/">How to enable PC/SC support for Dell Contactless Reader</a>	1.3.12
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release

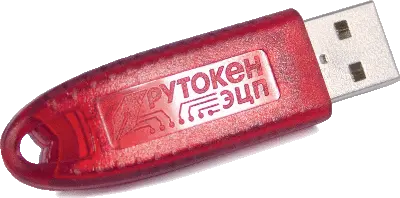

356	0x0A89	shouldwork	Aktiv	Rutoken ECP		0x0030	0	2	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x01	0x0000 0x0002	3.580 MHz	3.580 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x00020840	271 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD	No extended APDU		1.3.11
357	0x0A89	shouldwork	Aktiv	Rutoken lite		0x0025	?	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0002	3.580 MHz	3.580 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x00020840	271 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD	No extended APDU		1.4.2
358	0x0A89	shouldwork	Aktiv Co., ProgramPark	Rutoken Magistra		0x0060	0	0	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x01	0x0000 0x0002	3.580 MHz	3.580 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x00020840	261 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD	No extended APDU		1.3.10
359	0x0A89	shouldwork	Aktiv	Rutoken PINPad 2		0x0082	NO NAME	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0002	3.580 MHz	3.580 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x00020840	271 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD	No extended APDU		1.4.22
360	0x0A89	shouldwork	Aktiv	Rutoken SCR 3001 Reader		0x0069	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.580 MHz	5.000 MHz	9600 bps	625000 bps	254	0x00000000	0x00000000	0x000204B8	271 bytes	0xFF	0xFF	0x0000	0x00	1		No extended APDU		1.4.34
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release

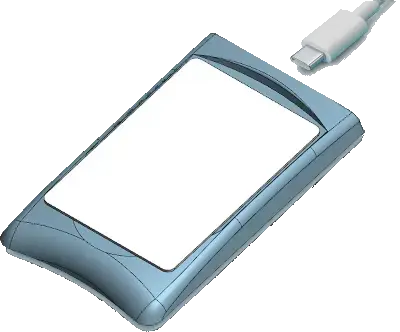

361	0x0A89	shouldwork	Aktiv	Rutoken SCR 3101 NFC Reader		0x006A	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x01	0x0000 0x0003	3.580 MHz	5.000 MHz	9600 bps	312500 bps	254	0x00000000	0x00000000	0x000204B8	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless	No extended APDU		1.5.3

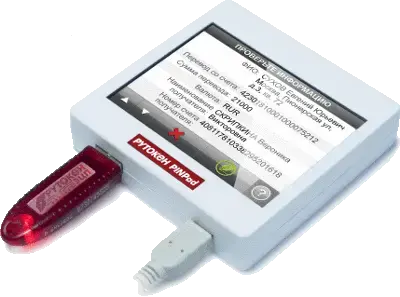

362	0x0A89	shouldwork	Aktiv	PINPad Ex		0x0080	NO NAME	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0002	3.580 MHz	3.580 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x00020840	271 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD	No extended APDU		1.4.9
363	0x0A89	shouldwork	Aktiv	PINPad In		0x0081	NO NAME	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0002	3.580 MHz	3.580 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x00020840	271 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD	No extended APDU		1.4.9
364	0x0B0C	shouldwork	Todos	Argos Mini II		0x0050	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344086 bps	254	0x00000000	0x00000000	0x000204BA	271 bytes	0x00	0x00	0x0000	0x00	1		No extended APDU	Use at least firmware 1.01. The previous one is bogus.	1.3.12
365	0x0B0C	shouldwork	Todos	CX00		0x0052	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344086 bps	254	0x00000000	0x00000000	0x000204BA	271 bytes	0x00	0x00	0x0211	0x00	1		No extended APDU		1.4.0
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
366	0x0B81	supported	id3 Semiconductors	CL1356T		0x0200	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0002	4.000 MHz	4.000 MHz	106000 bps	847000 bps	254	0x00000000	0x00000000	0x00040042	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless			1.3.12
367	0x0B81	shouldwork	Secure Device Solutions	DOMINO-Key TWIN		0x8007	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	4.800 MHz	12.000 MHz	12903 bps	825807 bps	252	0x00000000	0x00000000	0x00010200	270 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.5
368	0x0B81	shouldwork	id3 Semiconductors	CL1356A_HID		0x0220	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x01	0x0000 0x0002	4.000 MHz	4.000 MHz	106000 bps	847000 bps	254	0x00000000	0x00000000	0x00040042	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless			1.3.7
369	0x0B81	shouldwork	id3 Semiconductors	CL1356T5		0x0200	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0002	4.000 MHz	4.000 MHz	106000 bps	847000 bps	254	0x00000000	0x00000000	0x00040042	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless			1.3.12
370	0x0B8C	disabled	SMART	SBV280		0x000E	CCID 1.1	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0001	3.580 MHz	3.580 MHz	9600 bps	9600 bps	0	0x00000000	0x00000000	0x00020840	271 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD	No extended APDU	Removed on manufacturer request. They use libusb directly in their own driver.	1.3.12
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
371	0x0B97	unsupported	O2	Micro Oz776		0x7762	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x03	0x0000 0x0003	4.000 MHz	4.000 MHz	9600 bps	307200 bps	254	0x00000000	0x00000000	0x00000030	271 bytes	0x00	0x00	0x0000	0x00	1			This reader is common as an internal reader in laptops like the Dell D420 or D820. The ATR may be corrupted by a 90 00 at the end The reader is bogus and does not accept PPS	0.9.3
372	0x0B97	unsupported	O2	Micro Oz776		0x7772	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	9600 bps	307200 bps	254	0x00000000	0x00000000	0x00000030	271 bytes	0x00	0x00	0x0000	0x00	1			This reader is common as an internal reader in laptops. The reader is bogus and does not accept PPS See also <a href="https://github.com/LudovicRousseau/CCID/pull/18">further issues with O2MICRO OZ776 (0b97:7772)</a> for a T=1 patch that may work for you	1.3.1
373	0x0BDA	shouldwork	MSI	StarReader SMART		0x0161	Smart Card Reader Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.750 MHz	7.500 MHz	10080 bps	312500 bps	254	0x00000000	0x00000000	0x00010030	271 bytes	0x00	0x00	0x0000	0x00	1			You may need to unload/blacklist the mceusb Linux kernel driver to use the device. Also known as the APPROX USB 2.0 External DNI-e http://approx.es/APPCRDNI	1.3.10
374	0x0BDA	shouldwork	Generic	USB2.0-CRW		0x0169	Smart Card Reader Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.750 MHz	7.500 MHz	10080 bps	312500 bps	254	0x00000000	0x00000000	0x00010030	271 bytes	0x00	0x00	0x0000	0x00	1				1.3.10
375	0x0BDA	unsupported	Generic	Smart Card Reader Interface		0x0165	Smart Card Reader Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.750 MHz	7.500 MHz	10080 bps	312500 bps	254	0x00000000	0x00000000	0x00010030	271 bytes	0x00	0x00	0x0000	0x00	1			Also known as Dectel CI692 or NEXOOS 610. The reader may not read all the smart card. See https://lists.infradead.org/pipermail/pcsclite-muscle/2015-October/000471.html	1.4.0
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
376	0x0BF8	shouldwork	Fujitsu Siemens Computers	SmartCard Keyboard USB 2A		0x1005	4	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000207B2	271 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification	No extended APDU		1.3.0
377	0x0BF8	shouldwork	Fujitsu Siemens Computers	SmartCard USB 2A		0x1006	4	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000207B2	271 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification	No extended APDU		1.3.0

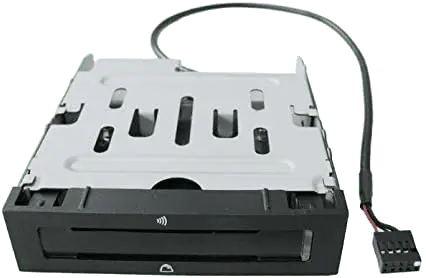

378	0x0BF8	shouldwork	FujitsuTechnologySolutions GmbH	Dual Smartcard Reader D321		0x101B	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000103B0	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless		The contactless interface is not supported.	1.6.0

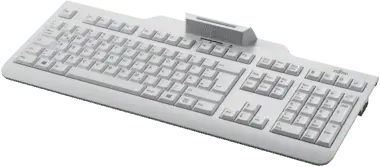

379	0x0BF8	shouldwork	Fujitsu	Keyboard KB100 SCR		0x1022	Keyboard KB100 SCR	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000407BA	271 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification			1.4.19
380	0x0BF8	shouldwork	Fujitsu	Keyboard KB100 SCR eSIG		0x1023	Keyboard KB100 SCR eSIG	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000407BA	271 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification			1.4.19
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
381	0x0BF8	shouldwork	FujitsuTechnologySolutions GmbH	Keyboard KB SCR2		0x1021	SmartCard Reader USB	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000207B2	271 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification	No extended APDU		1.4.18

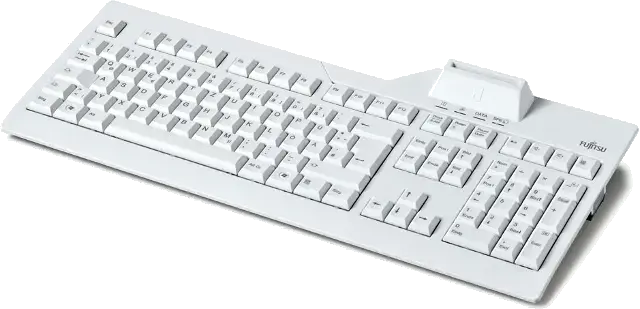

382	0x0BF8	shouldwork	FujitsuTechnologySolutions GmbH	SmartCase KB SCR eSIG		0x1017	SmartCase Smartcard Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.800 MHz	8.000 MHz	12903 bps	307200 bps	252	0x00000000	0x00000001	0x000100BA	271 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification		Secure PIN Entry feature do not work (according to a user report). SPE disabled in version 1.4.15 of the driver.	1.4.6
383	0x0BF8	shouldwork	Fujitsu	Smartcard Reader D323		0x1024	Smartcard Reader D323	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000407B8	271 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification		The USB descriptor is bogus. The reader has NO pinpad.	1.4.23
384	0x0C27	shouldwork	rf IDEAS	USB CCID		0xCCDA	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	106000 bps	254	0x00000000	0x00000000	0x000204BE	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless	No extended APDU		1.5.5
385	0x0C27	shouldwork	Imprivata	USB CCID		0xCCDB	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	106000 bps	254	0x00000000	0x00000000	0x000204BE	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless	No extended APDU		1.5.5
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release

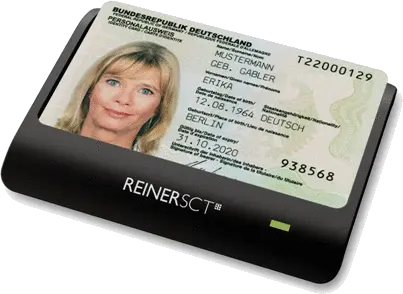

386	0x0C4B	shouldwork	REINER SCT	cyberJack RFID basis		0x9102	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0002	1.000 MHz	1.000 MHz	2688 bps	2688 bps	254	0x00000000	0x00000000	0x000404B0	266 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.1
387	0x0C4B	shouldwork	REINER SCT	cyberJack go		0x0504	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	1.000 MHz	1.000 MHz	2688 bps	2688 bps	254	0x00000000	0x00000000	0x000404B0	1014 bytes	0xFF	0xFF	0x1002	0x03	1	PIN Verification, PIN Modification			1.4.9

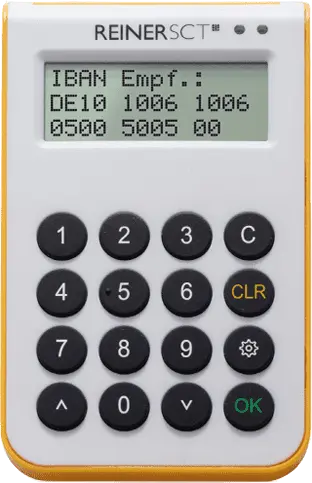

388	0x0C4B	shouldwork	REINER SCT	cyberJack one		0x0580	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0003	1.000 MHz	1.000 MHz	2688 bps	2688 bps	254	0x00000000	0x00000000	0x000404B0	1014 bytes	0xFF	0xFF	0x0310	0x03	1	PIN Verification, PIN Modification			1.4.28
389	0x0C4B	shouldwork	REINER SCT	tanJack Bluetooth		0x0520	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0002	1.000 MHz	1.000 MHz	2688 bps	2688 bps	254	0x00000000	0x00000000	0x000404BA	384 bytes	0xFF	0xFF	0x0000	0x00	1			Bluetooth	1.4.19
390	0x0C4B	shouldwork	REINER SCT	tanJack USB		0x0551	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0002	1.000 MHz	1.000 MHz	2688 bps	2688 bps	254	0x00000000	0x00000000	0x000404BA	512 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.36
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
391	0x0C4B	disabled	Reiner-SCT	cyberJack pinpad(a)		0x0300	0	3	0xFF	10.00	0x00	0x07	0x0000 0x0003	4.000 MHz	8.000 MHz	10072 bps	250000 bps	254	0x00000007	0x00000000	0x00010030	270 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification		Time requests are not managed and the driver may time out without any response from the reader. This is not a problem unless you use a time-consuming APDU like RSA key generation. Reiner provides a free software driver for this reader: <a href="http://support.reiner-sct.de/">Reiner SCT support</a>	1.3.1

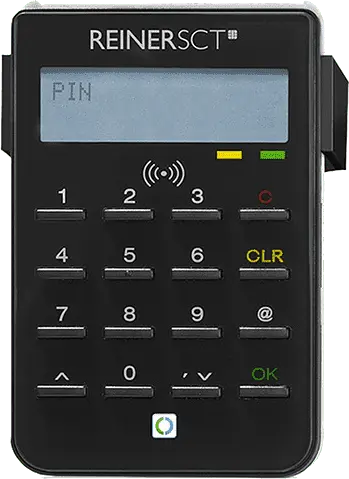

392	0x0C4B	disabled	REINER SCT	cyberJack RFID standard		0x0500	NO NAME	3	0xFF	10.00	0x00	0x07	0x0000 0x0003	4.000 MHz	8.000 MHz	10072 bps	250000 bps	254	0x00000007	0x00000000	0x00010030	5130 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification		Not a CCID device. Support removed on request from Reiner SCT.	1.4.28
393	0x0CA6	shouldwork	CASTLES	EZCCID Smart Card Reader		0x00A0	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x01	0x0000 0x0003	3.580 MHz	3.580 MHz	9600 bps	115200 bps	252	0x00000000	0x00000000	0x00010130	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.19
394	0x0D46	supported	KOBIL	KAAN Advanced		0x3002	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	412903 bps	254	0x00000007	0x00000000	0x000406BA	432 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification		Firmware older than 0.37 is bogus	0.9.3
395	0x0D46	supported	KOBIL	KAAN Base		0x3001	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	412903 bps	254	0x00000007	0x00000000	0x000406BA	432 bytes	0xFF	0xFF	0x0000	0x00	1			Firwmare older than 0.37 is bogus	0.9.3
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
396	0x0D46	supported	KOBIL	KAAN SIM III		0x3003	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	412903 bps	254	0x00000000	0x00000000	0x000206BA	271 bytes	0xFF	0xFF	0x0000	0x00	1		No extended APDU		0.9.3
397	0x0D46	supported	KOBIL	EMV CAP - SecOVID Reader III		0x3010	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x01	0x0000 0x0003	2.000 MHz	4.000 MHz	10573 bps	344086 bps	254	0x00000000	0x00000000	0x000406BA	536 bytes	0xFF	0xFF	0x0210	0x03	1	PIN Verification, PIN Modification		The reader declares support of Extended APDU but it does not work. The CCID driver disables extended APDU in version 1.4.35.	1.3.1
398	0x0D46	shouldwork	KOBIL Systems	IDToken		0x301D	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.685 MHz	3.685 MHz	9600 bps	847500 bps	254	0x00000000	0x00000000	0x0004047E	273 bytes	0xFF	0xFF	0x0000	0x00	1	contactless			1.4.6

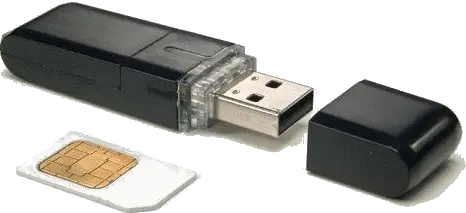

399	0x0D46	shouldwork	KOBIL Systems	Smart Token		0x3014	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	412896 bps	254	0x00000000	0x00000000	0x000406BA	586 bytes	0xFF	0xFF	0x0000	0x00	1				1.3.12

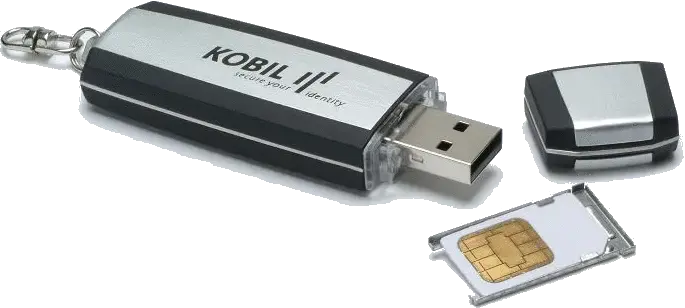

400	0x0D46	shouldwork	KOBIL Systems	mIDentity 4smart		0x4189	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	4.615 MHz	4.615 MHz	12407 bps	397024 bps	254	0x00000000	0x00000000	0x000406BA	512 bytes	0xFF	0xFF	0x0000	0x00	1				1.3.12
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
401	0x0D46	shouldwork	KOBIL Systems	mIDentity 4smart AES		0x41A9	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	4.615 MHz	4.615 MHz	12407 bps	397024 bps	254	0x00000000	0x00000000	0x000406BA	512 bytes	0xFF	0xFF	0x0000	0x00	1				1.3.12

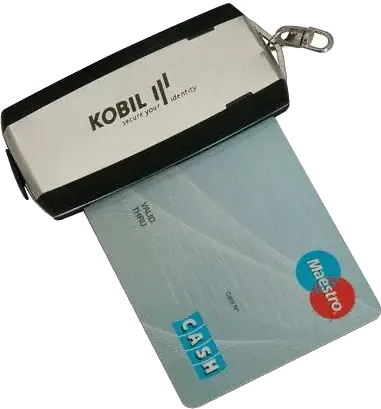

402	0x0D46	shouldwork	KOBIL Systems	mIDentity fullsize		0x4389	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	4.615 MHz	4.615 MHz	12407 bps	397024 bps	254	0x00000000	0x00000000	0x000406BA	512 bytes	0xFF	0xFF	0x0000	0x00	1				1.3.12
403	0x0D46	shouldwork	KOBIL Systems	mIDentity fullsize AES		0x43A9	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	4.615 MHz	4.615 MHz	12407 bps	397024 bps	254	0x00000000	0x00000000	0x000406BA	512 bytes	0xFF	0xFF	0x0000	0x00	1				1.3.12

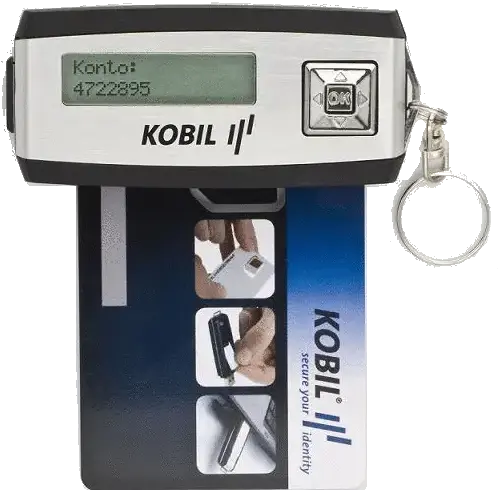

404	0x0D46	shouldwork	KOBIL Systems	mIDentity visual		0x4289	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	4.615 MHz	4.615 MHz	12407 bps	397024 bps	254	0x00000000	0x00000000	0x000406BA	512 bytes	0xFF	0xFF	0x0210	0x03	1	PIN Verification, PIN Modification			1.3.12
405	0x0D46	unsupported	KOBIL Systems	mIDentity M		0x4000	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	250000 bps	254	0x00000000	0x00000000	0x000206BA	271 bytes	0xFF	0xFF	0x0000	0x00	1		No extended APDU	Time requests are not managed correctly and make the firmware fail. This is not a problem unless you use a time-consuming APDU like RSA key generation. A new firmware will correct the bug.	0.9.3
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
406	0x0D46	unsupported	KOBIL Systems	mIDentity XL		0x4001	0	2	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	250000 bps	254	0x00000000	0x00000000	0x000406BA	512 bytes	0xFF	0xFF	0x0000	0x00	1			Time requests are not managed correctly and make the firmware fail. This is not a problem unless you use a time-consuming APDU like RSA key generation. A new firmware will correct the bug.	1.3.9
407	0x0DB5	shouldwork	Access IS	ATR210		0x0170	NFC0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.000 MHz	13.560 MHz	106000 bps	848000 bps	2048	0x00000000	0x00000000	0x0004007A	2048 bytes	0xFF	0xFF	0x0000	0x00	1	contactless			1.4.32
408	0x0DB5	shouldwork	Access IS	ATR220		0x0180	NFC0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.000 MHz	13.560 MHz	106000 bps	848000 bps	2048	0x00000000	0x00000000	0x0004007A	2048 bytes	0xFF	0xFF	0x0000	0x00	1	contactless			1.4.32
409	0x0DB5	shouldwork	Access IS	ATR220		0x0184	NFC0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.000 MHz	13.560 MHz	106000 bps	848000 bps	2048	0x00000000	0x00000000	0x0004007A	2048 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 0: NFC0, Multi interface reader			1.5.1
410	0x0DB5	shouldwork	Access IS	ATR220		0x0184	SMC0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	10752 bps	1024	0x00000000	0x00000000	0x0004067E	1024 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 1: SMC0, Multi interface reader			1.5.1
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
411	0x0DB5	shouldwork	Access IS	ATR220		0x0184	SMC1	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	10752 bps	1024	0x00000000	0x00000000	0x0004067E	1024 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 2: SMC1, Multi interface reader			1.5.1
412	0x0DB5	shouldwork	Access IS	ATR220		0x0184	SMC2	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	10752 bps	1024	0x00000000	0x00000000	0x0004067E	1024 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 3: SMC2, Multi interface reader			1.5.1
413	0x0DB5	shouldwork	Access IS	ATR220		0x0184	SMC3	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	10752 bps	1024	0x00000000	0x00000000	0x0004067E	1024 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 4: SMC3, Multi interface reader			1.5.1
414	0x0DB5	shouldwork	Access IS	NFC Smart Module		0x0160	NFC0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	10752 bps	2048	0x00000000	0x00000000	0x0004007A	2048 bytes	0xFF	0xFF	0x0000	0x00	1	contactless		Chip included in different Access IS products "LSR116 barcode reader", "LSR118 barcode & contactless NFC/RFID reader", "ATR110 Contactless NFC and 2D Barcode Reader"	1.4.20
415	0x0DB5	shouldwork	Access IS	NFC Smart Module		0x0164	NFC0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.000 MHz	13.560 MHz	106000 bps	848000 bps	2048	0x00000000	0x00000000	0x0004007A	2048 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 0: NFC0, Multi interface reader			1.4.29
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
416	0x0DB5	shouldwork	Access IS	NFC Smart Module		0x0164	SMC0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	10752 bps	1024	0x00000000	0x00000000	0x0004067E	1024 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 1: SMC0, Multi interface reader			1.4.29
417	0x0DB5	shouldwork	Access IS	NFC Smart Module		0x0164	SMC1	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	10752 bps	1024	0x00000000	0x00000000	0x0004067E	1024 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 2: SMC1, Multi interface reader			1.4.29
418	0x0DB5	shouldwork	Access IS	NFC Smart Module		0x0164	SMC2	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	10752 bps	1024	0x00000000	0x00000000	0x0004067E	1024 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 3: SMC2, Multi interface reader			1.4.29
419	0x0DB5	shouldwork	Access IS	NFC Smart Module		0x0164	SMC3	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	10752 bps	1024	0x00000000	0x00000000	0x0004067E	1024 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 4: SMC3, Multi interface reader			1.4.29
420	0x0DB5	shouldwork	Access IS	ePassport Reader		0x0138	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	10752 bps	254	0x00000000	0x00000000	0x0004007A	278 bytes	0xFF	0xFF	0x0000	0x00	1	contactless		Also known as OCR601 Half-Page MRZ Passport & ID Document Reader	1.4.13
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
421	0x0DC3	supported	Athena	ASEDrive IIIe KB		0x1102	4	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	333333 bps	252	0x00000000	0x00000000	0x00010330	271 bytes	0x00	0x00	0x0000	0x03	1	PIN Verification, PIN Modification		Firmware older than 6.07 is bogus	1.0.1
422	0x0DC3	supported	Athena	ASE IIIe		0x1004	4	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	333333 bps	252	0x00000000	0x00000000	0x00010330	271 bytes	0x00	0x00	0x0000	0x00	1				1.0.0
423	0x0DC3	shouldwork	Athena	ASEDrive IIIe Combo Bio PIV		0x1008	ASEDrive IIIe Combo?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.000 MHz	18.000 MHz	10752 bps	999936 bps	253	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.22
424	0x0DC3	shouldwork	Athena	ASEDrive IIIe KB Bio PIV		0x1007	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.000 MHz	18.000 MHz	10752 bps	999936 bps	253	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.22
425	0x0DC3	shouldwork	Athena	IDProtect Key v2		0x0900	Main Interface	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	10752 bps	252	0x00000000	0x00000000	0x0001023C	271 bytes	0x00	0x00	0x0000	0x00	1			Be to have a v2 token (bcdDevice: 2.00). The V1 token is bogus: PPS to set the card in T=1 fails. See http://www.opensc-project.org/pipermail/opensc-user/2010-May/004023.html	1.3.12
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
426	0x0DC3	unsupported	Athena	IDProtect Flash		0x100F	IDProtect Flash	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344086 bps	252	0x00000007	0x00000000	0x00010330	271 bytes	0x00	0x00	0x0000	0x00	1			The reader does not work with a GnuPG card V2 card. All APDUs are rejected with "Card absent or mute".	1.4.28
427	0x0DF6	shouldwork	Sitecom	Sitecom USB simcard reader MD-010		0x800A	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x03	0x0000 0x0003	3.700 MHz	3.700 MHz	9946 bps	318280 bps	254	0x00000007	0x00000000	0x000204BE	271 bytes	0xFF	0xFF	0x0000	0x00	1		No extended APDU		1.3.0
428	0x0E0F	shouldwork	VMware	Virtual USB CCID		0x0004	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x0002004E	512 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification	No extended APDU		1.3.9
429	0x0E0F	unsupported	VMware	Virtual USB CCID		0x0004	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x000200BE	271 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification	No extended APDU	The dwFeatures looks to be incorrect. IFSD negoctiation by the driver is rejected. After a change to add CCID_CLASS_AUTO_IFSD then PC_to_RDR_GetSlotStatus fails with LIBUSB_ERROR_TIMEOUT. This reader is found in VMware workstation player 12 64 bit on Windows 7.	1.4.23

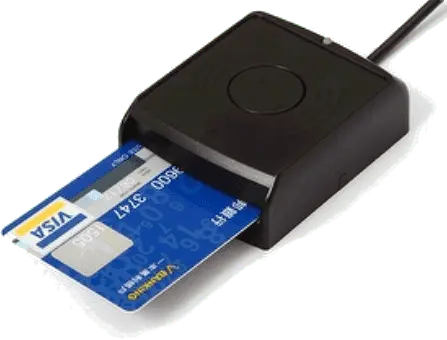

430	0x0E6A	shouldwork	Sysking	MII136C		0x5083	Smart Card Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	129032 bps	254	0x00000000	0x00000000	0x00010030	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.32
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
431	0x0F14	supported	INGENICO	Leo		0x003B	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	9600 bps	230400 bps	254	0x00000000	0x00000000	0x000204BA	356 bytes	0xFF	0xFF	0x0210	0x03	1	PIN Verification, PIN Modification	No extended APDU		1.4.26
432	0x0F14	supported	Ingenico	WITEO USB Smart Card Reader		0x003D	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	130000 bps	254	0x00000000	0x00000000	0x000204BA	271 bytes	0xFF	0xFF	0x0000	0x00	1		No extended APDU		1.4.12
433	0x0F14	supported	Ingenico	WITEO USB Smart Card Reader		0x003D	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	130000 bps	254	0x00000000	0x00000000	0x000204BA	271 bytes	0xFF	0xFF	0x0000	0x00	1		No extended APDU		1.4.12
434	0x0F14	supported	XIRING	Leo v2		0x0038	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	9600 bps	230400 bps	254	0x00000000	0x00000000	0x000204BA	271 bytes	0xFF	0xFF	0x0210	0x03	1	firewall, PIN Verification, PIN Modification	No extended APDU		1.4.1
435	0x0F14	supported	XIRING	MyLeo		0x0037	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	9600 bps	230400 bps	254	0x00000000	0x00000000	0x000204BA	522 bytes	0xFF	0xFF	0x020C	0x03	1	PIN Verification, PIN Modification	No extended APDU		1.4.2
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
436	0x0F14	supported	XIRING	XI-SIGN USB V2		0x0011	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.600 MHz	3.600 MHz	9600 bps	115200 bps	254	0x00000000	0x00000000	0x000204BA	271 bytes	0xFF	0xFF	0x020C	0x03	1	PIN Verification, PIN Modification	No extended APDU		1.3.9
437	0x0F14	shouldwork	XIRING	XI-SIGN USB V2		0x0011	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.600 MHz	3.600 MHz	9600 bps	115200 bps	254	0x00000000	0x00000000	0x000204BA	271 bytes	0xFF	0xFF	0x020C	0x00	1		No extended APDU		1.3.9
438	0x0F1A	shouldwork	GIS Ltd	SmartMouse USB		0x0002	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x03	0x0000 0x0003	3.700 MHz	3.700 MHz	9946 bps	318280 bps	254	0x00000007	0x00000000	0x000204BE	271 bytes	0xFF	0xFF	0x0000	0x00	1		No extended APDU		1.4.10
439	0x1050	shouldwork	Yubico	YubiKey CCID		0x0404	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0002	4.000 MHz	4.000 MHz	307200 bps	307200 bps	3062	0x00000000	0x00000000	0x000400FE	3072 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.20
440	0x1050	shouldwork	Yubico	YubiKey OTP+CCID		0x0405	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0002	4.000 MHz	4.000 MHz	307200 bps	307200 bps	3062	0x00000000	0x00000000	0x000400FE	3072 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.20
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
441	0x1050	shouldwork	Yubico	YubiKey OTP+FIDO+CCID		0x0407	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0002	4.000 MHz	4.000 MHz	307200 bps	307200 bps	3062	0x00000000	0x00000000	0x000400FE	3072 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.20
442	0x1050	shouldwork	Yubico	YubiKey FIDO+CCID		0x0406	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0002	4.000 MHz	4.000 MHz	307200 bps	307200 bps	3062	0x00000000	0x00000000	0x000400FE	3072 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.20
443	0x1050	shouldwork	Yubico	Yubikey NEO OTP+U2F+CCID		0x0116	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0002	4.000 MHz	4.000 MHz	307200 bps	307200 bps	1400	0x00000000	0x00000000	0x000400FE	1400 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.18
444	0x1050	shouldwork	Yubico	Yubikey NEO U2F+CCID		0x0115	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0002	4.000 MHz	4.000 MHz	307200 bps	307200 bps	1400	0x00000000	0x00000000	0x000400FE	1400 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.18
445	0x1050	shouldwork	Yubico	Yubikey NEO CCID		0x0112	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0002	4.000 MHz	4.000 MHz	9600 bps	9600 bps	1400	0x00000000	0x00000000	0x000400FE	1400 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.10
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
446	0x1050	shouldwork	Yubico	Yubikey NEO OTP+CCID		0x0111	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0002	4.000 MHz	4.000 MHz	9600 bps	307200 bps	1400	0x00000000	0x00000000	0x000400FE	1400 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.10
447	0x1059	supported	Giesecke & Devrient GmbH	StarSign Crypto USB Token		0x0017	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.700 MHz	3.700 MHz	9946 bps	318280 bps	254	0x00000007	0x00000000	0x000404BE	272 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.6
448	0x1059	supported	Giesecke & Devrient GmbH	StarSign CUT S		0x0019	.	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0002	3.580 MHz	3.580 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x0002047E	271 bytes	0xFF	0xFF	0x0000	0x00	1		No extended APDU		1.4.24
449	0x1059	shouldwork	Giesecke & Devrient GmbH	Star Sign Card Token 350 (ICCD)		0x000C	0	1	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0002	3.580 MHz	3.580 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x00020840	280 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD	No extended APDU		1.3.1
450	0x1059	shouldwork	Giesecke & Devrient GmbH	Star Sign Card Token 550 (ICCD)		0x000D	0	1	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0002	3.580 MHz	3.580 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x00020840	261 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD	No extended APDU		1.3.1
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
451	0x1206	shouldwork	SYNNIX	CL-2100R		0x2107	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.685 MHz	13.560 MHz	9909 bps	847500 bps	254	0x00000000	0x00000000	0x0004047E	273 bytes	0xFF	0xFF	0x0000	0x00	1	contactless			1.4.35
452	0x1206	shouldwork	SYNNIX	STD200		0x2105	4	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	129032 bps	254	0x00000000	0x00000000	0x00010138	271 bytes	0x00	0x00	0x0000	0x00	1				1.3.11

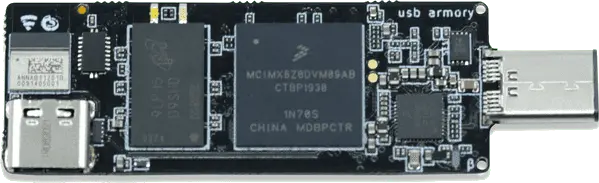

453	0x1209	shouldwork	F-Secure Foundry	USB Armory Mk II		0x2702	Smart Card Control	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0002	16.384 MHz	16.384 MHz	307200 bps	307200 bps	254	0x00000000	0x00000000	0x000400FE	20480 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.32

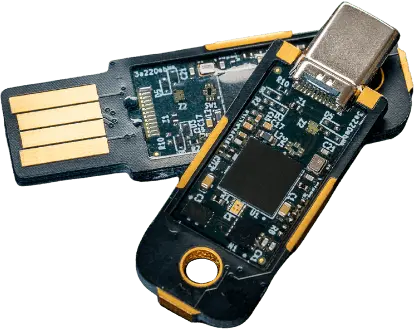

454	0x1209	shouldwork	SoloKeys	Solo 2		0xBEEE	CCID/ICCD Interface	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0002	3.580 MHz	3.580 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x00040840	3072 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD			1.4.35
455	0x1370	shouldwork	Swissbit	Secure USB PU-50n SE/PE		0x0901	NO NAME	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0002	5.000 MHz	5.000 MHz	161290 bps	161290 bps	254	0x00000000	0x00000000	0x0004047A	512 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.33
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
456	0x13FE	shouldwork	Route1	MobiKEY Fusion3		0xC831	CCID	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x06	0x0000 0x0003	3.571 MHz	3.571 MHz	9600 bps	614400 bps	254	0x00000000	0x00000000	0x000100BE	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.31
457	0x1403	shouldwork	INMAX	DWR18 HC		0x750C	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	10752 bps	254	0x00000000	0x00000000	0x000207BA	271 bytes	0xFF	0xFF	0x0000	0x00	1		No extended APDU		1.4.35

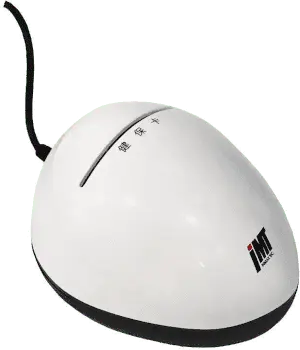

458	0x1403	shouldwork	INMAX	DWR18 HPC		0x750D	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	10752 bps	254	0x00000000	0x00000000	0x000207BA	271 bytes	0xFF	0xFF	0x0000	0x00	1		No extended APDU		1.4.35
459	0x1403	shouldwork	InfoThink	IT-500U Reader		0x7506	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	10752 bps	254	0x00000000	0x00000000	0x000207BA	271 bytes	0xFF	0xFF	0x0000	0x00	1		No extended APDU		1.4.30

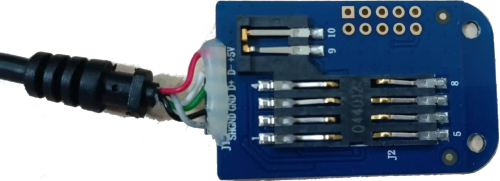

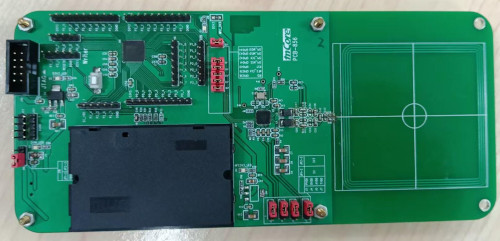

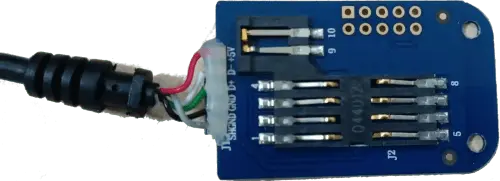

460	0x1403	shouldwork	mCore	SCard-Reader		0x7502	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	10752 bps	254	0x00000000	0x00000000	0x000207BA	271 bytes	0xFF	0xFF	0x0000	0x00	1		No extended APDU		1.4.28

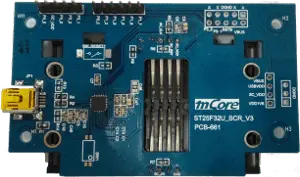

#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release

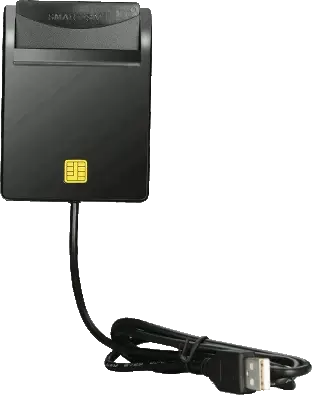

461	0x14CD	shouldwork	Rocketek	RT-SCR1		0x8166	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.000 MHz	3.000 MHz	8065 bps	258065 bps	254	0x00000007	0x00000000	0x000404B2	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.21

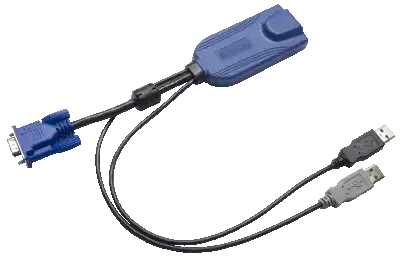

462	0x14DD	shouldwork	Raritan	D2CIM-DVUSB VM/CCID		0x1006	18	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344086 bps	254	0x00000000	0x00000000	0x00010238	271 bytes	0x00	0x00	0x0000	0x00	1				1.3.11
463	0x155B	unsupported	BHDC	Reader-HHD02		0x8202	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	412903 bps	522	0x00000000	0x00000000	0x000200B2	271 bytes	0x00	0x00	0x0000	0x00	1		No extended APDU	Card events (insertion/removal) are not reported.	GIT
464	0x15CF	shouldwork	Avtor	SC Reader 371		0x001D	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	10.01	0x00	0x01	0x0000 0x0003	3.571 MHz	3.571 MHz	9600 bps	115200 bps	254	0x00000000	0x00000000	0x000204BA	271 bytes	0xFF	0xFF	0x0000	0x00	1		No extended APDU		1.4.6
465	0x15CF	shouldwork	Avtor	SecureToken		0x0019	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.580 MHz	3.580 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x000204BA	272 bytes	0xFF	0xFF	0x0000	0x00	1		No extended APDU		1.4.6
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
466	0x15CF	shouldwork	Avtor	SecureToken		0x0020	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0002	3.571 MHz	3.571 MHz	9600 bps	115200 bps	254	0x00000007	0x00000000	0x000207B2	271 bytes	0xFF	0xFF	0x0000	0x00	1		No extended APDU		1.4.31

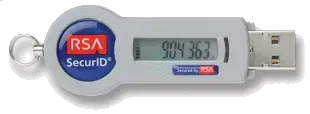

467	0x15E1	unsupported	RSA	RSA SecurID (R) Authenticator		0x2007	MSD	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x02	0x0000 0x0001	4.000 MHz	4.000 MHz	10752 bps	125000 bps	254	0x00000000	0x00000000	0x000100BA	271 bytes	0x00	0x00	0x0000	0x00	1			the new firmware (revision 6284) fails to respond to initial CmdGetSlotStatus() with "ccid_usb.c:687:ReadUSB() read failed (5/2): -8 Success" or with "<- 000000 81 FB FF FF FF" "commands.c:1046:CmdGetSlotStatus() Not enough data received: 5 bytes"	0.9.4
468	0x163C	shouldwork	WatchCNPC	USB CCID Key		0x0406	NO NAME	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0001	3.580 MHz	3.580 MHz	9600 bps	9600 bps	0	0x00000000	0x00000000	0x00010030	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.21
469	0x163C	shouldwork	Watchdata	USB Key		0x0407	USB CCID Key	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0001	3.580 MHz	3.580 MHz	9600 bps	9600 bps	0	0x00000000	0x00000000	0x00010030	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.19
470	0x163C	shouldwork	Watchdata	USB Key		0x0417	WDIND USB CCID Key	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0001	3.580 MHz	14.320 MHz	9600 bps	115200 bps	254	0x00000000	0x00000000	0x00010030	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.28
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
471	0x163C	shouldwork	Watchdata	USB Key		0x0418	WDIND USB CCID Key	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0001	3.580 MHz	14.320 MHz	9600 bps	115200 bps	254	0x00000000	0x00000000	0x00010030	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.29
472	0x163C	shouldwork	Watchdata W5181	Watchdata W5181		0x0A03	Contact Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	412903 bps	254	0x00000007	0x00000000	0x000207B2	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 0: Contact Reader, Multi interface reader	No extended APDU	The contactless interface is not supported	1.4.16
473	0x163C	shouldwork	Watchdata W5181	Watchdata W5181		0x0A03	Contactless Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0002	4.000 MHz	4.000 MHz	10752 bps	250000 bps	256	0x00000000	0x00000000	0x00020040	271 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 1: Contactless Reader, Multi interface reader	No extended APDU	The contactless interface is not supported	1.4.16
474	0x163C	shouldwork	Watchdata W5181	Watchdata W5181		0x0A03	SAM Reader	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	3.580 MHz	14.320 MHz	9600 bps	2703401 bps	252	0x00000000	0x00000000	0x000100BA	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 2: SAM Reader, Multi interface reader		The contactless interface is not supported	1.4.16
475	0x1677	shouldwork	HDZB	uKeyCI800-K18		0x0025	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	250000 bps	254	0x00000000	0x00000000	0x00010030	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.1
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release

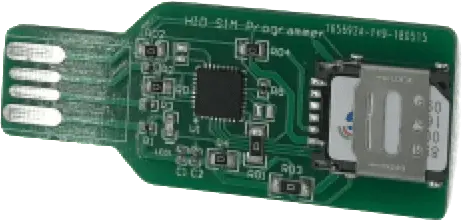

476	0x1677	shouldwork	SIMHUB	pcsc reader		0x0341	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0001	3.580 MHz	3.580 MHz	9600 bps	9600 bps	0	0x00000000	0x00000000	0x00020840	271 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD	No extended APDU		1.5.5

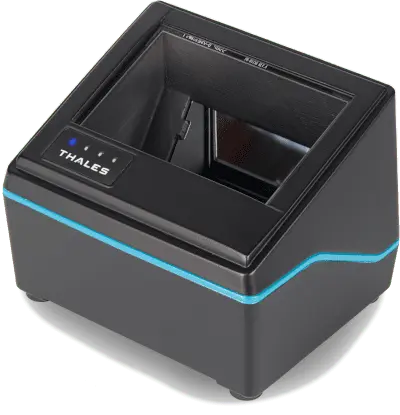

477	0x17B9	shouldwork	Thales	RF Reader		0x400B	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.685 MHz	13.560 MHz	9909 bps	848000 bps	254	0x00000000	0x00000000	0x0004047E	2058 bytes	0xFF	0xFF	0x0000	0x00	1	contactless			1.5.2
478	0x17EF	supported	Lenovo	Integrated Smart Card Reader		0x1003	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	500000 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1				1.3.1
479	0x17EF	shouldwork	Lenovo	Lenovo USB Smartcard Keyboard		0x6007	Lenovo Keyboard Smartcard Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.800 MHz	8.000 MHz	12903 bps	307200 bps	252	0x00000000	0x00000001	0x000100BA	271 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification			1.4.12

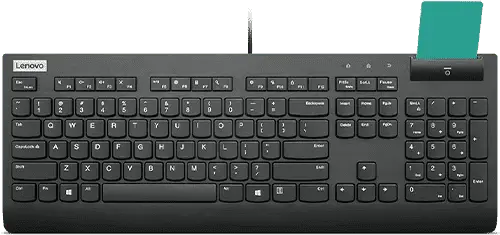

480	0x17EF	shouldwork	Lenovo	Lenovo Smartcard Wired Keyboard II		0x6111	Smartcard Wired Keyboard II	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	12.000 MHz	12903 bps	412903 bps	254	0x00000000	0x00000000	0x000104BA	271 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification			1.4.36
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
481	0x17EF	shouldwork	Lenovo	Lenovo USB Smartcard Keyboard		0x6055	Lenovo USB Smartcard Keyboard	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	12.000 MHz	12903 bps	412903 bps	254	0x00000000	0x00000000	0x000404BA	1034 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification			1.4.18
482	0x1862	shouldwork	Teridian Semiconductors	TSC12xxFV.09		0x0000	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x04	0x03	0x0000 0x0003	3.600 MHz	8.000 MHz	9600 bps	230400 bps	254	0x00000000	0x00000000	0x000405F2	271 bytes	0xFF	0xFF	0x0000	0x00	5	5 slots			1.4.6
483	0x1976	shouldwork	THURSBY SOFTWARE	TSS-PK1		0x0001	Reader0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	3.700 MHz	3.700 MHz	9946 bps	318280 bps	254	0x00000007	0x00000000	0x000404BE	272 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.22
484	0x19A6	shouldwork	ubisys	13.56MHz RFID (CCID)		0x0009	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0002	3.580 MHz	3.580 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x00020042	288 bytes	0xFF	0xFF	0x0000	0x00	1	contactless	No extended APDU		1.4.5
485	0x19C8	shouldwork	GoldKey Security	PIV Token		0x0012	0	2	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x01	0x0000 0x0002	3.580 MHz	3.580 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x00020870	2048 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD	No extended APDU		1.3.12
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
486	0x19E7	shouldwork	charismathics	plug'n'crypt CCID token		0x0002	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344086 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1				1.3.1
487	0x1A44	shouldwork	VASCO	DIGIPASS 870		0x0870	CCID	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344086 bps	254	0x00000000	0x00000000	0x000404B2	271 bytes	0x00	0x00	0x0511	0x03	1	PIN Verification, PIN Modification			1.4.15

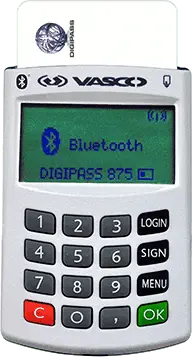

488	0x1A44	shouldwork	VASCO	DIGIPASS 875		0x0875	CCID	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344086 bps	254	0x00000000	0x00000000	0x000404B2	271 bytes	0x00	0x00	0x0511	0x03	1	PIN Verification, PIN Modification			1.4.21
489	0x1A44	shouldwork	VASCO	DIGIPASS KEY 202		0x0120	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344086 bps	254	0x00000000	0x00000000	0x000404B2	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.6
490	0x1A44	shouldwork	VASCO	DIGIPASS KEY 202		0x0122	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344086 bps	254	0x00000000	0x00000000	0x000404B2	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.6
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release

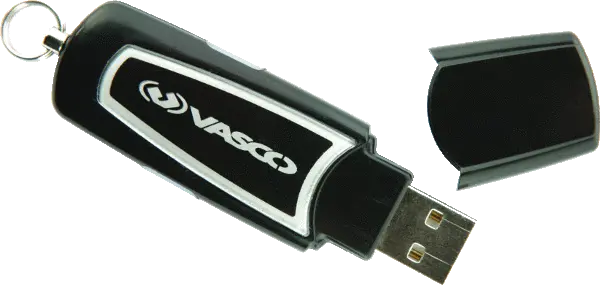

491	0x1A44	shouldwork	VASCO	DIGIPASS KEY 200		0x0119	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344086 bps	254	0x00000000	0x00000000	0x000404B2	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.2
492	0x1A44	shouldwork	VASCO	DP855		0x0855	3	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344086 bps	254	0x00000000	0x00000000	0x000404B2	271 bytes	0x00	0x00	0x020C	0x03	1	PIN Verification, PIN Modification			1.3.12
493	0x1A44	shouldwork	VASCO	DIGIPASS KEY 860		0x0117	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344086 bps	254	0x00000000	0x00000000	0x000404B2	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.2
494	0x1A44	shouldwork	VASCO	DP865		0x0865	3	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344086 bps	254	0x00000000	0x00000000	0x000404B2	271 bytes	0x00	0x00	0x0818	0x03	1	PIN Verification, PIN Modification			1.3.12
495	0x1A44	shouldwork	VASCO	DP905v1.1		0x0001	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x03	0x0000 0x0003	3.700 MHz	3.700 MHz	9946 bps	318280 bps	254	0x00000007	0x00000000	0x000404BE	272 bytes	0xFF	0xFF	0x0000	0x00	1				1.3.6
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release

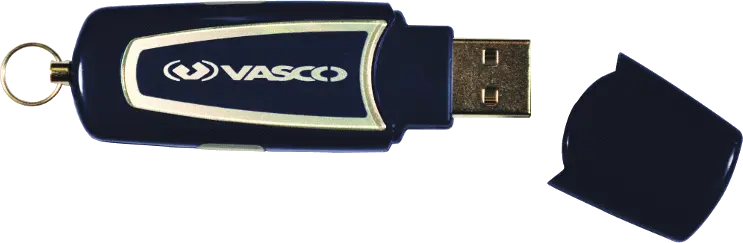

496	0x1A44	shouldwork	VASCO	DIGIPASS KEY 101		0x0101	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x03	0x0000 0x0003	3.700 MHz	3.700 MHz	9946 bps	318280 bps	254	0x00000007	0x00000000	0x000404BE	272 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.6
497	0x1A44	shouldwork	VASCO	DIGIPASS KEY 200		0x0115	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344086 bps	254	0x00000000	0x00000000	0x000404B2	271 bytes	0x00	0x00	0x0000	0x03	1	PIN Verification, PIN Modification			1.3.12
498	0x1A44	shouldwork	VASCO	DIGIPASS KEY 860		0x0112	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344086 bps	254	0x00000000	0x00000000	0x000404B2	271 bytes	0x00	0x00	0x0000	0x03	1	PIN Verification, PIN Modification			1.3.12
499	0x1A44	shouldwork	VASCO	DIGIPASS 920		0x0920	CCID	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344086 bps	254	0x00000000	0x00000000	0x000404B2	271 bytes	0x00	0x00	0x0000	0x03	1	PIN Verification, PIN Modification			1.4.3
500	0x1A6F	disabled	Morpho	ypsID Key E		0x0104	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0001	3.580 MHz	3.580 MHz	9600 bps	9600 bps	0	0x00000000	0x00000000	0x00020840	271 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD	No extended APDU	This device is not a real CCID device. You can try the UNTESTED patch at <a href="http://ludovic.rousseau.free.fr/softwares/pcsc-lite/ccid-morpho-v7-2.patch">ccid-morpho-v7-2.patch</a>. See also <a href="https://blog.apdu.fr/posts/2017/02/mostly-ccid-driver-for-some-morpho/"> Mostly CCID driver for some Morpho devices </a>	1.4.27
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
501	0x1A74	shouldwork	OCS ID-One Cosmo Card	USB Smart Chip Device		0x6354	4	0	0xFF	2.00	0x00	0x01	0x0000 0x0002	3.580 MHz	3.580 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x00020840	261 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD	No extended APDU		1.3.8
502	0x1A74	shouldwork	OBERTHUR TECHNOLOGIES	ID-ONE TOKEN SLIM v2		0xB111	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	4.800 MHz	12.000 MHz	12903 bps	825807 bps	252	0x00000000	0x00000000	0x00010200	270 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.2
503	0x1A74	disabled	OCS ID-One Cosmo Card	USB Smart Chip Device		0x6356	4	0	0xFF	2.00	0x00	0x01	0x0000 0x0002	3.580 MHz	3.580 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x00020840	261 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD	No extended APDU	The reader responds with bResponseType not defined in ICCD v1.0 specification. See http://archives.neohapsis.com/archives/dev/muscle/2009-q4/0059.html	1.3.12

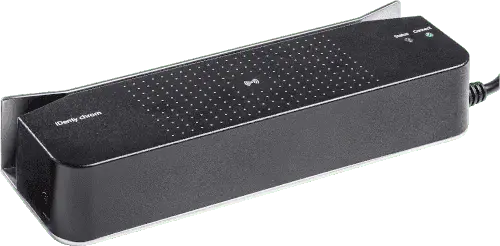

504	0x1AC2	shouldwork	DESKO GmbH	IDenty chrom		0x0300	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.685 MHz	14.320 MHz	9909 bps	848000 bps	254	0x00000000	0x00000000	0x000404BE	271 bytes	0x00	0x00	0x0000	0x00	1	contactless			1.4.34

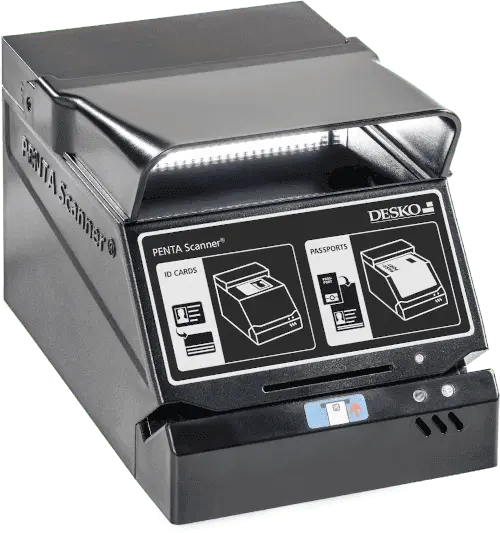

505	0x1AC2	shouldwork	DESKO GmbH	PENTA Scanner		0x0302	SmartCard Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.685 MHz	14.320 MHz	9909 bps	848000 bps	254	0x00000000	0x00000000	0x000404BE	271 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 0: SmartCard Reader, Multi interface reader			1.4.34
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
506	0x1AC2	shouldwork	DESKO GmbH	PENTA Scanner		0x0302	SmartCard Reader CT	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	9909 bps	848000 bps	254	0x00000000	0x00000000	0x000204BE	271 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 1: SmartCard Reader CT, Multi interface reader	No extended APDU		1.4.34
507	0x1B0E	supported	BLUTRONICS	BLUDRIVE II CCID		0x1078	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x01	0x0000 0x0003	3.580 MHz	3.580 MHz	9600 bps	115200 bps	252	0x00000000	0x00000000	0x00010130	271 bytes	0x00	0x00	0x0000	0x00	1				1.3.3
508	0x1B0E	shouldwork	BLUTRONICS	TAURUS NFC		0x5A02	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.685 MHz	13.560 MHz	9909 bps	848000 bps	254	0x00000000	0x00000000	0x0004047E	273 bytes	0xFF	0xFF	0x0000	0x00	1	contactless			1.5.1
509	0x1B0E	shouldwork	BLUTRONICS	BLUDRIVE II CCID		0x1079	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.700 MHz	3.700 MHz	9946 bps	318280 bps	254	0x00000007	0x00000000	0x000404BE	272 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.20
510	0x1C34	shouldwork	AF Care	One		0xAFC0	CCID	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x01	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	200080 bps	254	0x00000000	0x00000000	0x0004047E	65554 bytes	0xFF	0xFF	0x0000	0x00	0	2 slots		Card Vitale reader (1 slot), composite CCID+USB Direct	1.4.32
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
511	0x1C34	shouldwork	AF Care	One		0xAFC1	CCID	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x01	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	200080 bps	254	0x00000000	0x00000000	0x0004047E	65554 bytes	0xFF	0xFF	0x0000	0x00	0	2 slots		Card Vitale reader (1 slot), CCID only	1.4.32
512	0x1C34	shouldwork	AF Care	Two		0xAFC2	CCID	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x01	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	200080 bps	254	0x00000000	0x00000000	0x0004047E	65554 bytes	0xFF	0xFF	0x0000	0x00	1	2 slots		Card Vitale reader (2 slot), composite CCID+USB Direct	1.4.32
513	0x1C34	shouldwork	AF Care	Two		0xAFC3	CCID	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x01	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	200080 bps	254	0x00000000	0x00000000	0x0004047E	65554 bytes	0xFF	0xFF	0x0000	0x00	1	2 slots		Card Vitale reader (2 slot), CCID only	1.4.32
514	0x1C34	shouldwork	Doctolib	SR		0xAFD0	CCID	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x01	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	200080 bps	254	0x00000000	0x00000000	0x0004047E	65554 bytes	0xFF	0xFF	0x0000	0x00	0	2 slots			1.4.32
515	0x1C34	shouldwork	Doctolib	SR		0xAFD1	CCID	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x01	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	200080 bps	254	0x00000000	0x00000000	0x0004047E	65554 bytes	0xFF	0xFF	0x0000	0x00	0	2 slots			1.4.32
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
516	0x1C34	shouldwork	Doctolib	SR		0xAFD2	CCID	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x02	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	200080 bps	254	0x00000000	0x00000000	0x0004047E	65554 bytes	0xFF	0xFF	0x0000	0x00	1	3 slots			1.4.32
517	0x1C34	shouldwork	Doctolib	SR		0xAFD3	CCID	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x02	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	200080 bps	254	0x00000000	0x00000000	0x0004047E	65554 bytes	0xFF	0xFF	0x0000	0x00	1	3 slots			1.4.32
518	0x1C34	shouldwork	SpringCard	CSB6 Basic		0x7121	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	3.686 MHz	13.560 MHz	9909 bps	12643980 bps	254	0x00000000	0x00000000	0x0002047E	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless	No extended APDU		1.3.9
519	0x1C34	shouldwork	SpringCard	CSB6 Secure		0x7123	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x02	0x03	0x0000 0x0003	3.686 MHz	13.560 MHz	9909 bps	12643980 bps	254	0x00000000	0x00000000	0x0002047E	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, 3 slots	No extended APDU		1.3.9
520	0x1C34	shouldwork	SpringCard	CSB6 Ultimate		0x7124	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x04	0x03	0x0000 0x0003	3.686 MHz	13.560 MHz	9909 bps	12643980 bps	254	0x00000000	0x00000000	0x0002047E	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, 5 slots	No extended APDU		1.3.9
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
521	0x1C34	shouldwork	SpringCard	CrazyWriter		0x7113	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x02	0x03	0x0000 0x0003	3.686 MHz	13.560 MHz	9909 bps	12643980 bps	254	0x00000000	0x00000000	0x0002047E	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, 3 slots	No extended APDU		1.3.9
522	0x1C34	shouldwork	SpringCard	E518		0x6112	CCID	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x01	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	200080 bps	254	0x00000000	0x00000000	0x0004047E	65554 bytes	0xFF	0xFF	0x0000	0x00	5	contactless, 2 slots		Module with Ethernet, composite CCID+USB Direct	1.4.32
523	0x1C34	shouldwork	SpringCard	E518		0x611A	CCID	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x01	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	200080 bps	254	0x00000000	0x00000000	0x0004047E	65554 bytes	0xFF	0xFF	0x0000	0x00	5	contactless, 2 slots		Module with Ethernet, CCID only	1.4.32
524	0x1C34	shouldwork	SpringCard	EasyFinger Standard		0x7136	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x01	0x03	0x0000 0x0003	3.686 MHz	13.560 MHz	9909 bps	12643980 bps	254	0x00000000	0x00000000	0x0002047E	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, 2 slots	No extended APDU		1.3.9
525	0x1C34	shouldwork	SpringCard	EasyFinger Ultimate		0x7138	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x03	0x03	0x0000 0x0003	3.686 MHz	13.560 MHz	9909 bps	12643980 bps	254	0x00000000	0x00000000	0x0002047E	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, 4 slots	No extended APDU		1.3.9
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
526	0x1C34	shouldwork	SpringCard	H512 Series		0xA1A1	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x01	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	200080 bps	254	0x00000000	0x00000000	0x0002047E	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, 2 slots	No extended APDU		1.4.10
527	0x1C34	shouldwork	SpringCard	H518		0x6122	CCID	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x01	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	200080 bps	254	0x00000000	0x00000000	0x0004047E	65554 bytes	0xFF	0xFF	0x0000	0x00	5	contactless, 2 slots		Module without Ethernet, composite CCID+USB Direct	1.4.32
528	0x1C34	shouldwork	SpringCard	H518		0x612A	CCID	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x01	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	200080 bps	254	0x00000000	0x00000000	0x0004047E	65554 bytes	0xFF	0xFF	0x0000	0x00	5	contactless, 2 slots		Module without Ethernet, CCID only	1.4.32
529	0x1C34	shouldwork	SpringCard	H663 Series		0x91B1	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x01	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	200080 bps	254	0x00000000	0x00000000	0x0002047E	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, 2 slots	No extended APDU		1.4.10
530	0x1C34	shouldwork	SpringCard	M519		0x6212	CCID	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x05	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	250000 bps	254	0x00000000	0x00000000	0x0004047E	65554 bytes	0xFF	0xFF	0x0000	0x00	1	6 slots			1.5.3
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
531	0x1C34	shouldwork	SpringCard	M519		0x621A	CCID	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x05	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	250000 bps	254	0x00000000	0x00000000	0x0004047E	65554 bytes	0xFF	0xFF	0x0000	0x00	1	6 slots			1.5.3
532	0x1C34	shouldwork	SpringCard	NFC'Roll		0x8141	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	3.850 MHz	3.850 MHz	10752 bps	200080 bps	254	0x00000000	0x00000000	0x0002047E	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless	No extended APDU		1.4.10
533	0x1C34	shouldwork	SpringCard	Prox'N'Roll		0x7141	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	3.686 MHz	13.560 MHz	9909 bps	12643980 bps	254	0x00000000	0x00000000	0x0002047E	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless	No extended APDU		1.3.9

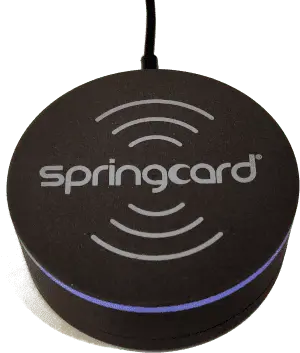

534	0x1C34	shouldwork	SpringCard	Puck		0x6132	CCID	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x01	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	200080 bps	254	0x00000000	0x00000000	0x0004047E	65554 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, 2 slots		table reader, composite CCID+USB Direct	1.4.32
535	0x1C34	shouldwork	SpringCard	Puck		0x613A	CCID	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x01	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	200080 bps	254	0x00000000	0x00000000	0x0004047E	65554 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, 2 slots		table reader, CCID only	1.4.32
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
536	0x1C34	shouldwork	SpringCard	SpringCore		0x6012	CCID	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x01	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	200080 bps	254	0x00000000	0x00000000	0x0004047E	65554 bytes	0xFF	0xFF	0x0000	0x00	5	contactless, 2 slots		OEM generic version, composite CCID+USB Direct	1.4.32
537	0x1C34	shouldwork	SpringCard	SpringCore		0x601A	CCID	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x01	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	200080 bps	254	0x00000000	0x00000000	0x0004047E	65554 bytes	0xFF	0xFF	0x0000	0x00	5	contactless, 2 slots		OEM generic version, CCID only	1.4.32
538	0x1C6A	shouldwork	Regula	RFID Reader		0x7050	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.000 MHz	13.560 MHz	672 bps	250000 bps	1024	0x00000000	0x00000000	0x00020042	512 bytes	0x00	0x00	0x0000	0x00	1	contactless	No extended APDU		1.4.27
539	0x1CF0	shouldwork	Validy	TokenA sl vt		0x0001	0	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	3.580 MHz	3.580 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x00040042	1024 bytes	0xFF	0xFF	0x0000	0x00	1				1.3.6
540	0x1D50	shouldwork	sysmocom - s.f.m.c. GmbH	sysmoOCTSIM		0x6141	CCID	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x07	0x07	0x0000 0x0001	2.500 MHz	20.000 MHz	6720 bps	921600 bps	0	0x00000000	0x00000000	0x000100B0	272 bytes	0xFF	0xFF	0x0000	0x00	8	8 slots			1.4.34
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
541	0x1DB2	shouldwork	DUALi	DE-620 Combi		0x0801	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	3.600 MHz	3.600 MHz	9677 bps	619354 bps	254	0x00000000	0x00000000	0x000406BA	2038 bytes	0x00	0x00	0x0000	0x00	1	contactless			1.4.27
542	0x1DB2	shouldwork	DUALi	DE-ABCM6 RFRW		0x080C	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	3.600 MHz	3.600 MHz	9677 bps	619354 bps	254	0x00000000	0x00000000	0x000406BA	1014 bytes	0x00	0x00	0x0000	0x00	1	contactless			1.4.35
543	0x1DB2	shouldwork	DUALi	DRAGON NFC READER		0x088B	DRAGON NFC READER	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	3.600 MHz	3.600 MHz	9677 bps	619354 bps	254	0x00000000	0x00000000	0x000406BA	2048 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 0: DRAGON NFC READER, Multi interface reader			1.4.15
544	0x1DB2	shouldwork	DUALi	DRAGON NFC READER		0x088B	DRAGON SAM READER	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	3.600 MHz	3.600 MHz	9677 bps	619354 bps	254	0x00000000	0x00000000	0x000406BA	2048 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 1: DRAGON SAM READER, Multi interface reader			1.4.15
545	0x1DB2	disabled	DUALi	DE-ABCM6		0x0600	NO NAME	3	0xFF	1.10	0x00	0x03	0x0000 0x0003	3.600 MHz	3.600 MHz	9677 bps	619354 bps	254	0x00000000	0x00000000	0x000406BA	1014 bytes	0x00	0x00	0x0000	0x00	1			The first CmdGetSlotStatus() commands fail and init fail	1.4.23
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
546	0x1E0D	shouldwork	Neowave	Weneo		0x8033	5	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0003	4.000 MHz	4.000 MHz	9600 bps	115200 bps	254	0x00000000	0x00000000	0x00010030	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.3.10
547	0x1E0D	shouldwork	Neowave	Weneo		0x0013	5	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0003	3.570 MHz	3.570 MHz	9600 bps	115200 bps	254	0x00000000	0x00000000	0x00010030	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.3.11
548	0x1E0D	shouldwork	Neowave	Weneo		0x0033	Weneo Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0003	3.570 MHz	3.570 MHz	9600 bps	115200 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.2
549	0x1E0D	shouldwork	Neowave	Weneo		0x1023	Weneo SIM Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.570 MHz	3.570 MHz	9600 bps	115200 bps	254	0x00000000	0x00000000	0x0001023A	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.3
550	0x1EA8	shouldwork	Excelsecu	Card reader		0x8013	SCSI	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.580 MHz	6.000 MHz	9600 bps	230400 bps	4098	0x00000000	0x00000000	0x000404BE	4108 bytes	0xFF	0xFF	0x0000	0x00	1				1.5.3
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
551	0x1FC9	shouldwork	CIRIGHT	ONE PASS U2F		0x0905	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	800000 bps	254	0x00000000	0x00000000	0x00010330	271 bytes	0x00		0x0000	0x00	1				1.5.3
552	0x1FC9	shouldwork	InfoThink	IT-102MU Reader		0x0102	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.685 MHz	14.320 MHz	9909 bps	848000 bps	254	0x00000000	0x00000000	0x000204BE	271 bytes	0x00	0x00	0x0000	0x00	1		No extended APDU		1.4.27
553	0x1FC9	shouldwork	NXP	PN7462AU CCID		0x0117	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.685 MHz	14.320 MHz	9909 bps	848000 bps	254	0x00000000	0x00000000	0x000204BE	271 bytes	0x00	0x00	0x0000	0x00	1	contactless	No extended APDU		1.4.31
554	0x1FC9	shouldwork	NXP	PR533		0x010B	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.685 MHz	13.560 MHz	9909 bps	848000 bps	254	0x00000000	0x00000000	0x0004047E	273 bytes	0xFF	0xFF	0x0000	0x00	1	contactless			1.4.7
555	0x1FC9	shouldwork	NXP	Pegoda 2 N		0x0107	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.800 MHz	8.000 MHz	10752 bps	250000 bps	254	0x00000000	0x00000000	0x00020430	271 bytes	0x00	0x00	0x0000	0x00	1	contactless	No extended APDU	known as "Pegoda CLRD710" and "MFEV710 evaluation package"	1.4.20
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
556	0x1FC9	shouldwork	NXP	Pegoda 3		0x0157	NXP Pegoda 3 (CL)	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.685 MHz	14.320 MHz	9909 bps	848000 bps	254	0x00000000	0x00000000	0x000204BE	271 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 0: NXP Pegoda 3 (CL), Multi interface reader	No extended APDU		1.6.0
557	0x1FC9	shouldwork	NXP	Pegoda 3		0x0157	NXP Pegoda 3 (CT)	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.685 MHz	14.320 MHz	9909 bps	848000 bps	254	0x00000000	0x00000000	0x000204BE	271 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 1: NXP Pegoda 3 (CT), Multi interface reader	No extended APDU		1.6.0
558	0x1FD3	shouldwork	ASK-RFID	CPL108		0xCC1D	Contactless	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0002	3.580 MHz	3.580 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x000400FE	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless			1.3.12
559	0x1FFA	shouldwork	ELYCTIS	CL reader		0x0002	CCID Interfa00	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0002 0x0003	3.686 MHz	3.686 MHz	10753 bps	344105 bps	1024	0x00000000	0x00000000	0x000404BE	1034 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 0: CCID Interfa00, Multi interface reader		the 2 contact readers are in fact 2 Identive CLOUD 2700 R Smart Card Reader	1.5.0
560	0x1FFA	shouldwork	Identive Technologies	Multi-ISO HF Reader - USB		0x000C	CCID IFD	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0002 0x0003	3.686 MHz	3.686 MHz	10753 bps	344105 bps	1024	0x00000000	0x00000000	0x000404BE	1034 bytes	0xFF	0xFF	0x0000	0x00	1	contactless			1.4.17
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
561	0x2021	shouldwork	AK910	CKey		0x0001	akCCID	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	250000 bps	247	0x00000000	0x00000000	0x000100B6	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.19
562	0x2021	shouldwork	AK910	CKey		0x0011	akCCID	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	250000 bps	247	0x00000000	0x00000000	0x000100B6	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.19
563	0x2021	shouldwork	AK910	IDONE		0x0101	akCCID	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	250000 bps	247	0x00000000	0x00000000	0x000100B6	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.19
564	0x2022	shouldwork	Infocrypt	HWDSSL DEVICE		0x016C	NO NAME	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0002	3.580 MHz	3.580 MHz	9600 bps	9600 bps	16665	0x00000000	0x00000000	0x0004007E	16672 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.35
565	0x20A0	shouldwork	Canokeys	Canokey		0x42D4	OpenPGP PIV OATH	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0002	4.000 MHz	4.000 MHz	307200 bps	307200 bps	1342	0x00000000	0x00000000	0x000400FE	1352 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.34
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
566	0x20A0	shouldwork	German Privacy Foundation	Crypto Stick v1.2		0x4107	0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0002	3.600 MHz	3.600 MHz	9677 bps	116129 bps	254	0x00000000	0x00000000	0x000104BA	271 bytes	0x00	0x00	0x0000	0x00	1				1.3.12
567	0x20A0	shouldwork	Nitrokey	Nitrokey HSM		0x4230	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0002	3.600 MHz	3.600 MHz	9677 bps	116129 bps	254	0x00000000	0x00000000	0x000104BA	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.21
568	0x20A0	shouldwork	Nitrokey	Nitrokey 3		0x42B2	CCID/ICCD Interface	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0002	3.580 MHz	3.580 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x00040840	3072 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD			1.5.0
569	0x20A0	shouldwork	Nitrokey	Nitrokey Pro		0x4108	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0002	3.600 MHz	3.600 MHz	9677 bps	116129 bps	254	0x00000000	0x00000000	0x000104BA	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.21
570	0x20A0	shouldwork	Nitrokey	Nitrokey Start		0x4211	NO NAME	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0002	3.571 MHz	3.571 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x00020842	271 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD	No extended APDU		1.4.21
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
571	0x20A0	shouldwork	Nitrokey	Nitrokey Storage		0x4109	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0002	3.600 MHz	3.600 MHz	9677 bps	116129 bps	48	0x00000000	0x00000000	0x000104BA	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.22
572	0x21AB	shouldwork	Planeta	RC700-NFC CCID		0x0010	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x00	0x0000 0x0003	4.000 MHz	4.000 MHz	106000 bps	424000 bps	272	0x00000000	0x00000000	0x0002047E	280 bytes	0x00	0x01	0x0000	0x00	1	contactless	No extended APDU		1.4.13
573	0x234B	shouldwork	Free Software Initiative of Japan	Gnuk		0x0000	?	2	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x01	0x0000 0x0002	3.580 MHz	3.580 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x00040042	64 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.1
574	0x23A0	shouldwork	BIFIT	ANGARA		0x0008	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0001	5.000 MHz	5.000 MHz	13440 bps	430107 bps	0	0x00000000	0x00000000	0x000100B8	270 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.30
575	0x23A0	shouldwork	BIFIT	USB-Token iBank2key		0x0001	?	2	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0002	5.000 MHz	5.000 MHz	13440 bps	430107 bps	254	0x00000000	0x00000000	0x000205B8	272 bytes	0x00	0x00	0x0000	0x00	1		No extended APDU		1.4.5
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
576	0x23A0	shouldwork	BIFIT	iBank2Key		0x0002	iBank2Key	0	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0001	3.580 MHz	3.580 MHz	9600 bps	9600 bps	64	0x00000000	0x00000000	0x00000840	271 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD			1.4.5
577	0x23A0	shouldwork	BIFIT	iToken		0x0003	iToken	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0001	1.500 MHz	1.500 MHz	4032 bps	93750 bps	0	0x00000000	0x00000000	0x000100B8	270 bytes	0x00	0x00	0x0000	0x00	1				1.4.20
578	0x23D8	shouldwork	CREATOR	CRT-603(CZ1) CCR		0x0603	CRT-603 (CZ1) CCR SAM1	3	0x0B [Chip Card Interface Device Class (CCID)]	2.10	0x00	0x07	0x0000 0x0003	3.700 MHz	3.700 MHz	9946 bps	318280 bps	254	0x00000000	0x00000000	0x000204FE	271 bytes	0x00	0x00	0x0000	0x00	1	Multi interface reader, interface 0: CRT-603 (CZ1) CCR SAM1	No extended APDU		1.5.1
579	0x23D8	shouldwork	CREATOR	CRT-603(CZ1) CCR		0x0603	CRT-603 (CZ1) CCR SAM2	3	0x0B [Chip Card Interface Device Class (CCID)]	2.10	0x00	0x07	0x0000 0x0003	3.700 MHz	3.700 MHz	9946 bps	318280 bps	254	0x00000000	0x00000000	0x000204BE	271 bytes	0x00	0x00	0x0000	0x00	1	Multi interface reader, interface 1: CRT-603 (CZ1) CCR SAM2	No extended APDU		1.5.1
580	0x23EB	shouldwork	TOPPAN FORMS CO.,LTD	TC63CUT021		0x0003	TC63CUT021	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	106000 bps	106000 bps	254	0x00000000	0x00000000	0x0002067E	271 bytes	0xFF	0xFF	0x0000	0x00	0	contactless	No extended APDU		1.4.33
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
581	0x2406	shouldwork	IID	AT90S064 CCID READER		0x6200	ICCD 1.0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0001	3.580 MHz	3.580 MHz	9600 bps	9600 bps	0	0x00000000	0x00000000	0x00020840	271 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD	No extended APDU		1.4.16
582	0x2406	shouldwork	INSIDE Secure	VaultIC 405 Smart Object		0x6303	ICCD 1.00	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0001	3.580 MHz	3.580 MHz	9600 bps	9600 bps	0	0x00000000	0x00000000	0x00020840	271 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD	No extended APDU		1.4.16
583	0x2406	shouldwork	INSIDE Secure	VaultIC 441 Smart Object		0x6305	ICCD 1.00	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0001	3.580 MHz	3.580 MHz	9600 bps	9600 bps	0	0x00000000	0x00000000	0x00020840	271 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD	No extended APDU		1.4.16
584	0x2406	shouldwork	Inside Secure	AT90SCR050		0x6404	CCID Bulk Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12902 bps	412903 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.10
585	0x2406	shouldwork	Inside Secure	AT90SCR100		0x6403	CCID Bulk Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12902 bps	412903 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.10
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
586	0x2406	shouldwork	Inside Secure	AT90SCR200		0x6407	CCID Bulk Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12902 bps	412903 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.10
587	0x2406	shouldwork	Inside Secure	VaultIC 420 Smart Object		0x6300	ICCD 1.00	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0001	3.580 MHz	3.580 MHz	9600 bps	9600 bps	0	0x00000000	0x00000000	0x00020840	271 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD	No extended APDU		1.4.8
588	0x2406	shouldwork	Inside Secure	VaultIC 440 Smart Object		0x6301	ICCD 1.00	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0001	3.580 MHz	3.580 MHz	9600 bps	9600 bps	0	0x00000000	0x00000000	0x00020840	271 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD	No extended APDU		1.4.8
589	0x2406	shouldwork	Inside Secure	VaultIC 460 Smart Object		0x6302	ICCD 1.00	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0001	3.580 MHz	3.580 MHz	9600 bps	9600 bps	0	0x00000000	0x00000000	0x00020840	271 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD	No extended APDU		1.4.6
590	0x2406	shouldwork	appidkey GmbH	ID100L-USB-SC-Reader		0x5004	CCID Bulk Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12902 bps	412903 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.25
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
591	0x2406	shouldwork	appidkey GmbH	ID50 -USB		0x5003	CCID Bulk Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12902 bps	412903 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.25
592	0x2406	shouldwork	appidkey GmbH	ID60-USB		0x5006	CCID Bulk Interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12902 bps	412903 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.26
593	0x24A2	shouldwork	SafeTech	SafeTouch		0x0102	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0003	4.000 MHz	8.000 MHz	10752 bps	421052 bps	252	0x00000000	0x00000000	0x00010000	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.10
594	0x24DC	shouldwork	Aladdin R.D.	JCR-770		0x0201	CCID	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344086 bps	254	0x00000000	0x00000000	0x000404B2	271 bytes	0x00	0x00	0x0511	0x03	1	PIN Verification, PIN Modification			1.4.22
595	0x24DC	shouldwork	Aladdin R.D.	JCR SecurBio		0x0420	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10753 bps	250000 bps	253	0x00000000	0x00000000	0x0002004A	271 bytes	0x00	0x00	0x0000	0x00	1		No extended APDU		1.6.0
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
596	0x24DC	shouldwork	Aladdin R.D.	JaCarta		0x0101	Main Interface	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	10752 bps	252	0x00000000	0x00000000	0x0001023C	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.22
597	0x24DC	shouldwork	Aladdin R.D.	JaCarta		0x0402	NO NAME	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0002	4.000 MHz	4.000 MHz	9600 bps	250000 bps	261	0x00000000	0x00000000	0x00040042	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.25
598	0x24DC	shouldwork	Aladdin R.D.	JaCartaReader		0x0428	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10753 bps	250000 bps	254	0x00000000	0x00000000	0x00010038	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.31
599	0x24DC	shouldwork	Aladdin R.D.	JaCarta Flash		0x100F	JaCarta	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344086 bps	252	0x00000007	0x00000000	0x00010330	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.22
600	0x24DC	shouldwork	Aladdin R.D.	JaCarta LT		0x0102	Main Interface	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	10752 bps	252	0x00000000	0x00000000	0x0001023C	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.22
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
601	0x24DC	shouldwork	Aladdin R.D.	JaCarta U2F (JC602)		0x0501	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	2.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	672 bps	250000 bps	261	0x00000000	0x00000000	0x00040042	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.22
602	0x24DC	shouldwork	Aladdin R.D.	JC-WebPass (JC600)		0x0401	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	2.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	672 bps	250000 bps	261	0x00000000	0x00000000	0x00040042	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.22
603	0x257B	shouldwork	DC.Ltd	DC4 5CCID READER		0xC305	DC4 Smart_Card_Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	412903 bps	3266	0x00000000	0x00000000	0x000204B2	3266 bytes	0x00	0x00	0x0000	0x00	1	Multi interface reader, interface 0: DC4 Smart_Card_Reader	No extended APDU		1.4.30
604	0x257B	shouldwork	DC.Ltd	DC4 5CCID READER		0xC305	DC4 Contactless_Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0002	4.800 MHz	4.800 MHz	12903 bps	412903 bps	3266	0x00000000	0x00000000	0x000204B2	3266 bytes	0x00	0x00	0x0000	0x00	1	Multi interface reader, interface 1: DC4 Contactless_Reader	No extended APDU		1.4.30
605	0x257B	shouldwork	DC.Ltd	DC4 5CCID READER		0xC305	DC4 SAMX_Reader	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	412903 bps	3266	0x00000000	0x00000000	0x000204B2	3266 bytes	0x00	0x00	0x0000	0x00	1	Multi interface reader, interface 2: DC4 SAMX_Reader	No extended APDU		1.4.30
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
606	0x257B	shouldwork	DC.Ltd	DC4 5CCID READER		0xC305	DC4 NFC_Peer_T0_Peer_Device	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	412903 bps	3266	0x00000000	0x00000000	0x000204B2	3266 bytes	0x00	0x00	0x0000	0x00	1	Multi interface reader, interface 3: DC4 NFC_Peer_T0_Peer_Device	No extended APDU		1.4.30
607	0x257B	shouldwork	eID_R6 001	X8		0xD205	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	412903 bps	254	0x00000000	0x00000000	0x000200B2	522 bytes	0x00	0x00	0x0000	0x00	1		No extended APDU		1.4.18
608	0x25DD	shouldwork	BIT4ID	miniLector AIR NFC v3		0x3403	miniLector AIR DI v3 CLESS	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x01	0x0000 0x0002	4.000 MHz	4.000 MHz	10752 bps	688172 bps	252	0x00000007	0x00000000	0x000404BE	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless			1.4.34
609	0x25DD	shouldwork	Bit4id	Digital-DNA Key BT		0x2361	CCID Digital DNA Key	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0002	4.000 MHz	4.000 MHz	10752 bps	129500 bps	247	0x00000000	0x00000000	0x00010030	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.29
610	0x25DD	shouldwork	Bit4id	Digital-DNA Key		0x2362	CCID Digital DNA Key	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0002	4.000 MHz	4.000 MHz	10752 bps	129500 bps	247	0x00000000	0x00000000	0x00010030	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.29
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
611	0x25DD	shouldwork	Bit4id	Digital DNA Key		0x2351	?	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0002	3.580 MHz	3.580 MHz	9600 bps	115200 bps	1080	0x00000000	0x00000000	0x000404BE	1090 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.26
612	0x25DD	shouldwork	Bit4id	Digital-DNA Key		0x2354	CCID	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0002	4.000 MHz	4.000 MHz	10752 bps	129500 bps	254	0x00000000	0x00000000	0x00010030	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.34
613	0x25DD	shouldwork	Bit4id	tokenME FIPS v3		0x2341	?	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0002	3.580 MHz	3.580 MHz	9600 bps	115200 bps	1080	0x00000000	0x00000000	0x000404BE	1090 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.26
614	0x25DD	shouldwork	Bit4id	TokenME EVO v2		0x2371	bit4CCID	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	129032 bps	247	0x00000000	0x00000000	0x00010030	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.31
615	0x25DD	shouldwork	Bit4id	cryptokey		0x1201	bit4CCID	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	250000 bps	247	0x00000000	0x00000000	0x000100B6	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.7
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
616	0x25DD	shouldwork	Bit4id	iAM		0x2221	bit4CCID	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	250000 bps	247	0x00000000	0x00000000	0x000100B6	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.7
617	0x25DD	shouldwork	Bit4id	CKey4		0x2321	bit4CCID	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	250000 bps	247	0x00000000	0x00000000	0x000100B6	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.7
618	0x25DD	shouldwork	Bit4id	miniLector AIR EVO		0x3211	CCID mLectorAir	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0002	4.000 MHz	4.000 MHz	10752 bps	250000 bps	254	0x00000000	0x00000000	0x00010040	250 bytes	0x00	0x00	0x0000	0x00	1	contactless		NFC	1.4.31
619	0x25DD	shouldwork	Bit4id	miniLector Blue		0xB001	miniLector Blue ICC Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	600000 bps	254	0x00000000	0x00000000	0x000404BA	271 bytes	0x00	0x00	0x0000	0x00	1			Bluetooth	1.4.31
620	0x25DD	shouldwork	Bit4id	miniLector-s		0x1101	bit4CCID	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	129032 bps	247	0x00000000	0x00000000	0x00010030	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.7
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
621	0x25DD	shouldwork	bit4id	miniLector-EVO		0x3111	miniLector-EVO	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	250000 bps	247	0x00000000	0x00000000	0x000100B6	271 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification		The firmware announces pinpad support but it is a wrong and bogus. You need to use libccid version 1.4.35 or later to "fix" that.	1.4.7
622	0x25DD	shouldwork	BIT4ID	mLector AIR DI V3		0x3503	miniLector AIR DI v3 CLESS	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x01	0x0000 0x0002	4.000 MHz	4.000 MHz	10752 bps	688172 bps	252	0x00000007	0x00000000	0x000404BE	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 0: miniLector AIR DI v3 CLESS, Multi interface reader			1.4.34
623	0x25DD	shouldwork	BIT4ID	mLector AIR DI V3		0x3503	miniLector AIR DI v3 Contact	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	688172 bps	252	0x00000007	0x00000000	0x000102B8	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 1: miniLector AIR DI v3 Contact, Multi interface reader			1.4.34
624	0x25DD	shouldwork	BIT4ID	mLector AIR DI V3		0x3503	miniLector AIR DI v3 SAM1	2	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	688172 bps	252	0x00000007	0x00000000	0x000102B8	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 2: miniLector AIR DI v3 SAM1, Multi interface reader			1.4.34
625	0x25DD	shouldwork	BIT4ID	mLector AIR DI V3		0x3503	miniLector AIR DI v3 SAM2	2	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	688172 bps	252	0x00000007	0x00000000	0x000102B8	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 3: miniLector AIR DI v3 SAM2, Multi interface reader			1.4.34
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
626	0x28B9	shouldwork	Kapsch TrafficCom	USB SAM reader		0x0002	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0002	3.580 MHz	14.320 MHz	9600 bps	1250000 bps	254	0x00000000	0x00000000	0x00020000	512 bytes	0x00	0x00	0x0000	0x00	1		No extended APDU		1.4.27
627	0x2925	shouldwork	Flight system consulting	Incredist		0x700A	Incredist Contact	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	16.000 MHz	12903 bps	250000 bps	1024	0x00000000	0x00000000	0x000404BA	65535 bytes	0xFF	0xFF	0x0000	0x03	1	contactless, interface 0: Incredist Contact, Multi interface reader, PIN Verification, PIN Modification			1.5.1
628	0x2925	shouldwork	Flight system consulting	Incredist		0x700A	Incredist Contactless	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	4.000 MHz	4.000 MHz	9600 bps	250000 bps	1024	0x00000000	0x00000000	0x000404BE	65535 bytes	0xFF	0xFF	0x0000	0x03	1	contactless, interface 1: Incredist Contactless, Multi interface reader, PIN Verification, PIN Modification			1.5.1
629	0x2947	shouldwork	KAPELSE	KAP-Care		0x0102	00012587 KAP-Care 1	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344064 bps	254	0x00000000	0x00000000	0x000100BA	271 bytes	0x00	0x00	0x0000	0x00	1	Multi interface reader, interface 0: 00012587 KAP-Care 1			1.5.5
630	0x2947	shouldwork	KAPELSE	KAP-Care		0x0102	00012587 KAP-Care 2	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344064 bps	254	0x00000000	0x00000000	0x000100BA	271 bytes	0x00	0x00	0x0000	0x00	1	Multi interface reader, interface 1: 00012587 KAP-Care 2			1.5.5
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
631	0x2947	shouldwork	KAPELSE	KAP-GO		0x0103	00025637 TL KAP-GO 1	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344064 bps	254	0x00000000	0x00000000	0x000100BA	271 bytes	0x00	0x00	0x0000	0x00	1	Multi interface reader, interface 0: 00025637 TL KAP-GO 1			1.5.5
632	0x2947	shouldwork	KAPELSE	KAP-GO		0x0103	00025637 TL KAP-GO 2	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344064 bps	254	0x00000000	0x00000000	0x000100BA	271 bytes	0x00	0x00	0x0000	0x00	1	Multi interface reader, interface 1: 00025637 TL KAP-GO 2			1.5.5
633	0x2947	shouldwork	KAPELSE	KAP-LINK		0x0101	01810175 KAP-LINK 0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344064 bps	254	0x00000000	0x00000000	0x000100BA	271 bytes	0x00	0x00	0x0000	0x00	1	Multi interface reader, interface 0: 01810175 KAP-LINK 0			1.5.2
634	0x2947	shouldwork	KAPELSE	KAP-LINK		0x0101	01810175 KAP-LINK 1	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344064 bps	254	0x00000000	0x00000000	0x000100BA	271 bytes	0x00	0x00	0x0000	0x00	1	Multi interface reader, interface 1: 01810175 KAP-LINK 1			1.5.2
635	0x2947	shouldwork	KAPELSE	KAP-LINK2		0x0105	00478521 KAP-LINK2 0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344064 bps	254	0x00000000	0x00000000	0x000100BA	271 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 0: 00478521 KAP-LINK2 0, Multi interface reader			1.5.5
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
636	0x2947	shouldwork	KAPELSE	KAP-LINK2		0x0105	00478521 KAP-LINK2 1	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344064 bps	254	0x00000000	0x00000000	0x000100BA	271 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 1: 00478521 KAP-LINK2 1, Multi interface reader			1.5.5
637	0x2947	shouldwork	KAPELSE	KAP-LINK2		0x0105	00478521 KAP-LINK2 2	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0001	4.000 MHz	4.000 MHz	10752 bps	344064 bps	254	0x00000000	0x00000000	0x00010270	271 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 2: 00478521 KAP-LINK2 2, Multi interface reader			1.5.5
638	0x2947	shouldwork	KAPELSE	KAP-eCV		0x0112	00000034 KAP-eCV	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0001	4.800 MHz	4.800 MHz	10752 bps	344064 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1	contactless			1.5.5
639	0x2947	shouldwork	KAPELSE	eS-KAP-Ad		0x0104	00285432 TL eS-KAP-Ad 1	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344064 bps	254	0x00000000	0x00000000	0x000100BA	271 bytes	0x00	0x00	0x0000	0x00	1	Multi interface reader, interface 0: 00285432 TL eS-KAP-Ad 1			1.5.5
640	0x2947	shouldwork	KAPELSE	eS-KAP-Ad		0x0104	00285432 TL eS-KAP-Ad 2	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344064 bps	254	0x00000000	0x00000000	0x000100BA	271 bytes	0x00	0x00	0x0000	0x00	1	Multi interface reader, interface 1: 00285432 TL eS-KAP-Ad 2			1.5.5
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
641	0x2947	shouldwork	Kapelse	KAP-Move		0x0114	CCID Interface slot0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	4.800 MHz	4.800 MHz	10752 bps	344064 bps	254	0x00000000	0x00000000	0x000100BA	271 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 0: CCID Interface slot0, Multi interface reader			1.5.5
642	0x2947	shouldwork	Kapelse	KAP-Move		0x0114	CCID Interface slot1	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	4.800 MHz	4.800 MHz	10752 bps	344064 bps	254	0x00000000	0x00000000	0x000100BA	271 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 1: CCID Interface slot1, Multi interface reader			1.5.5
643	0x2947	shouldwork	Kapelse	KAP-Move		0x0114	CCID Interface CLESS slot2	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0001	4.800 MHz	4.800 MHz	10752 bps	344064 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 2: CCID Interface CLESS slot2, Multi interface reader			1.5.5
644	0x2947	shouldwork	Kapelse	Ti-Kap		0x0111	CCID Interface slot0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	4.800 MHz	4.800 MHz	10752 bps	344064 bps	254	0x00000000	0x00000000	0x000100BA	271 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 0: CCID Interface slot0, Multi interface reader			1.5.5
645	0x2947	shouldwork	Kapelse	Ti-Kap		0x0111	CCID Interface slot1	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	4.800 MHz	4.800 MHz	10752 bps	344064 bps	254	0x00000000	0x00000000	0x000100BA	271 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 1: CCID Interface slot1, Multi interface reader			1.5.5
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
646	0x2947	shouldwork	Kapelse	Ti-Kap		0x0111	CCID Interface CLESS slot2	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0001	4.800 MHz	4.800 MHz	10752 bps	344064 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 2: CCID Interface CLESS slot2, Multi interface reader			1.5.5
647	0x2947	shouldwork	Kapelse	inSide		0x0113	CCID Interface slot0	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	4.800 MHz	4.800 MHz	10752 bps	344064 bps	254	0x00000000	0x00000000	0x000100BA	271 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 0: CCID Interface slot0, Multi interface reader			1.5.5
648	0x2947	shouldwork	Kapelse	inSide		0x0113	CCID Interface slot1	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	4.800 MHz	4.800 MHz	10752 bps	344064 bps	254	0x00000000	0x00000000	0x000100BA	271 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 1: CCID Interface slot1, Multi interface reader			1.5.5
649	0x2947	shouldwork	Kapelse	inSide		0x0113	CCID Interface CLESS slot2	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0001	4.800 MHz	4.800 MHz	10752 bps	344064 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 2: CCID Interface CLESS slot2, Multi interface reader			1.5.5
650	0x2A0C	shouldwork	Alpha-Project	ANGARA Token		0x0021	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	10.01	0x00	0x01	0x0000 0x0003	3.700 MHz	3.700 MHz	9600 bps	115200 bps	271	0x00000000	0x00000000	0x000104B4	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.5.5
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
651	0x2A17	shouldwork	udea	MILKO V1.		0x0001	MILKO V1.	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	250000 bps	254	0x00000000	0x00000000	0x000200B6	271 bytes	0xFF	0xFF	0x0000	0x03	1	PIN Verification, PIN Modification	No extended APDU		1.4.17
652	0x2A18	shouldwork	KACST	HSID Reader		0x5000	HSID Reader	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	5.000 MHz	5.000 MHz	115200 bps	115200 bps	254	0x00000000	0x00000000	0x0004047E	65504 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.23
653	0x2A18	shouldwork	KACST	HSID Reader Dual Storage		0x5002	HSID Reader	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	5.000 MHz	5.000 MHz	115200 bps	115200 bps	254	0x00000000	0x00000000	0x0004047E	65504 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.23
654	0x2A18	shouldwork	KACST	HSID Reader Single Storage		0x5001	HSID Reader	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	5.000 MHz	5.000 MHz	115200 bps	115200 bps	254	0x00000000	0x00000000	0x0004047E	65504 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.23
655	0x2ABE	shouldwork	Bluink Ltd.	Bluink CCID		0x1003	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	3.580 MHz	3.580 MHz	9600 bps	115200 bps	254	0x00000000	0x00000000	0x000200FE	240 bytes	0xFF	0xFF	0x0410	0x03	1	PIN Verification, PIN Modification	No extended APDU		1.4.29
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
656	0x2C97	shouldwork	Ledger	Flex		0x7009	Ledger Flex	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0001	3.600 MHz	3.600 MHz	9677 bps	9677 bps	0	0x00000000	0x00000000	0x000206BA	271 bytes	0x00	0x00	0x0000	0x03	1	PIN Verification, PIN Modification	No extended APDU		GIT
657	0x2C97	shouldwork	Ledger	Nano S		0x0001	Nano S	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0001	3.600 MHz	3.600 MHz	9677 bps	9677 bps	0	0x00000000	0x00000000	0x00020038	271 bytes	0x00	0x00	0x0000	0x03	1	PIN Verification, PIN Modification	No extended APDU		1.4.28
658	0x2C97	shouldwork	Ledger	Nano SP		0x0005	Nano SP	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0001	3.600 MHz	3.600 MHz	9677 bps	9677 bps	0	0x00000000	0x00000000	0x000206BA	271 bytes	0x00	0x00	0x0000	0x03	1	PIN Verification, PIN Modification	No extended APDU		1.5.1
659	0x2C97	shouldwork	Ledger	Nano S		0x1009	Nano S	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0001	3.600 MHz	3.600 MHz	9677 bps	9677 bps	0	0x00000000	0x00000000	0x000206BA	271 bytes	0x00	0x00	0x0000	0x03	1	PIN Verification, PIN Modification	No extended APDU		1.5.1
660	0x2C97	shouldwork	Ledger	Nano S Plus		0x5009	Nano S Plus	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0001	3.600 MHz	3.600 MHz	9677 bps	9677 bps	0	0x00000000	0x00000000	0x000206BA	271 bytes	0x00	0x00	0x0000	0x03	1	PIN Verification, PIN Modification	No extended APDU		1.5.1
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
661	0x2C97	shouldwork	Ledger	Nano X		0x0004	Nano X	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0001	3.600 MHz	3.600 MHz	9677 bps	9677 bps	0	0x00000000	0x00000000	0x000206BA	271 bytes	0x00	0x00	0x0000	0x03	1	PIN Verification, PIN Modification	No extended APDU		1.4.32
662	0x2C97	shouldwork	Ledger	Nano X		0x4009	Nano X	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0001	3.600 MHz	3.600 MHz	9677 bps	9677 bps	0	0x00000000	0x00000000	0x000206BA	271 bytes	0x00	0x00	0x0000	0x03	1	PIN Verification, PIN Modification	No extended APDU		1.5.1
663	0x2C97	shouldwork	Ledger	Stax		0x6009	Ledger Stax	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0001	3.600 MHz	3.600 MHz	9677 bps	9677 bps	0	0x00000000	0x00000000	0x000206BA	271 bytes	0x00	0x00	0x0000	0x03	1	PIN Verification, PIN Modification	No extended APDU		1.6.0
664	0x2CE3	shouldwork	Alcor Link	AK9563		0x9563	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.000 MHz	12.000 MHz	10753 bps	688172 bps	254	0x00000007	0x00000000	0x000404BE	272 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.31
665	0x2CE3	shouldwork	Alcor Link	AK9567		0x9567	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.000 MHz	12.000 MHz	10753 bps	688172 bps	254	0x00000007	0x00000000	0x000404BE	272 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 0: NO NAME, Multi interface reader			1.5.1
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
666	0x2CE3	shouldwork	Alcor Link	AK9567		0x9567	Contactless Card Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.700 MHz	12.000 MHz	9946 bps	688172 bps	254	0x00000007	0x00000000	0x000404BE	272 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 1: Contactless Card Reader, Multi interface reader			1.5.1
667	0x2CE3	shouldwork	Alcor Link	AK9572		0x9573	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.000 MHz	12.000 MHz	10753 bps	688172 bps	254	0x00000007	0x00000000	0x000404BE	272 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 0: NO NAME, Multi interface reader			1.5.1
668	0x2CE3	shouldwork	Alcor Link	AK9572		0x9573	Contactless Card Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.700 MHz	12.000 MHz	9946 bps	688172 bps	254	0x00000007	0x00000000	0x000404BE	272 bytes	0xFF	0xFF	0x0000	0x00	1	contactless, interface 1: Contactless Card Reader, Multi interface reader			1.5.1
669	0x2CE4	shouldwork	ESMART	Reader ER433x ICC		0x5001	Reader ER433x ICC	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	826000 bps	254	0x00000000	0x00000000	0x000100B2	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.5.1
670	0x2CE4	shouldwork	ESMART	Reader ER773x Dual & 1S		0x5020	Reader ER773x Dual & 1S	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x02	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	412903 bps	512	0x00000000	0x00000000	0x000404BA	522 bytes	0x00	0x00	0x0000	0x00	1	3 slots			1.5.1
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
671	0x2CE4	shouldwork	ESMART	Token GOST		0x7479	ESMART Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0003	4.800 MHz	12.000 MHz	9600 bps	150000 bps	254	0x00000000	0x00000000	0x000107BE	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.25
672	0x2D25	shouldwork	KRONEGGER	Micro Core Platform		0x0001	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.685 MHz	14.320 MHz	9909 bps	848000 bps	254	0x00000000	0x00000000	0x000204BE	271 bytes	0x00	0x00	0x0000	0x00	1		No extended APDU		1.4.28
673	0x2D25	shouldwork	KRONEGGER	NFC blue Reader Platform		0x0000	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.685 MHz	14.320 MHz	9909 bps	848000 bps	254	0x00000000	0x00000000	0x000204BE	271 bytes	0x00	0x00	0x0000	0x00	1		No extended APDU		1.4.28
674	0x2DFF	shouldwork	Certgate GmbH	AirID 2 USB		0xB601	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0003	3.580 MHz	3.580 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x00040040	8192 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.30
675	0x2DFF	shouldwork	Certgate GmbH	ONEKEY ID 2 USB		0xB602	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0003	3.580 MHz	3.580 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x00040040	8192 bytes	0xFF	0xFF	0x0000	0x00	1			NFC Bluetooth	1.4.31
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
676	0x2DFF	shouldwork	Unicept GmbH	AirID USB		0x1540	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.686 MHz	3.686 MHz	9909 bps	230400 bps	254	0x00000000	0x00000000	0x00040040	300 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.27
677	0x2DFF	shouldwork	Unicept GmbH	AirID USB Dongle		0x1543	AirID CCID 6000011	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	3.686 MHz	3.686 MHz	9909 bps	230400 bps	254	0x00000000	0x00000000	0x00040040	300 bytes	0xFF	0xFF	0x0000	0x00	1			When connected using the USB/Bluetooth dongle	1.4.28
678	0x2EE1	shouldwork	SAFETRUST	SABRE SCR		0x0001	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	500000 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.28
679	0x2F76	shouldwork	KeyXentic Inc.	KX906 Smart Card Reader		0x0906	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	10752 bps	254	0x00000000	0x00000000	0x000407BA	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.29
680	0x2FB0	shouldwork	Infocrypt	Token++ lite		0x003A	NO NAME	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0002	3.580 MHz	3.580 MHz	9600 bps	9600 bps	281	0x00000000	0x00000000	0x0004007E	288 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.35
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
681	0x2FD2	shouldwork	InfoCert	WirelessKey		0x0100	CCID interface	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0002	4.000 MHz	4.000 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x0002047A	271 bytes	0xFF	0xFF	0x0000	0x00	1		No extended APDU		1.4.31
682	0x316D	shouldwork	Purism, SPC	Librem Key		0x4C4B	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0002	3.600 MHz	3.600 MHz	9677 bps	116129 bps	254	0x00000000	0x00000000	0x000104BA	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.32
683	0x316E	shouldwork	SPECINFOSYSTEMS	DIAMOND HSM		0x0010	CCID Interface	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0002	4.000 MHz	4.000 MHz	307200 bps	307200 bps	3042	0x00000000	0x00000000	0x0004044E	3072 bytes	0x00	0x00	0x0000	0x03	1	PIN Verification, PIN Modification			1.4.32
684	0x316E	shouldwork	SPECINFOSYSTEMS	DIAMOND PLUS token		0x0003	CCID Interface	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0002	4.000 MHz	4.000 MHz	307200 bps	307200 bps	3042	0x00000000	0x00000000	0x0004044E	3072 bytes	0x00	0x00	0x0A14	0x03	1	PIN Verification, PIN Modification			1.4.32
685	0x316E	shouldwork	SPECINFOSYSTEMS	DIAMOND PRO token		0x0002	CCID Interface	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0002	4.000 MHz	4.000 MHz	307200 bps	307200 bps	3042	0x00000000	0x00000000	0x0004044E	3072 bytes	0x00	0x00	0x0000	0x00	1				1.4.32
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
686	0x316E	shouldwork	SPECINFOSYSTEMS	DIAMOND token		0x0001	CCID Interface	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0002	4.000 MHz	4.000 MHz	307200 bps	307200 bps	254	0x00000000	0x00000000	0x0002044E	271 bytes	0x00	0x00	0x0000	0x00	1		No extended APDU		1.4.31
687	0x31AA	shouldwork	Circle	CCR7115 ICC		0x7001	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.000 MHz	12.000 MHz	10753 bps	688172 bps	254	0x00000007	0x00000000	0x000404BE	272 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.35
688	0x31AA	shouldwork	Circle	CCR7125 ICC		0x7005	CCR7125 ICC	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	826000 bps	254	0x00000000	0x00000000	0x000100B2	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless			1.5.0
689	0x31AA	shouldwork	Circle	CCR7315		0x7003	CCR7315 PICC	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	412903 bps	512	0x00000000	0x00000000	0x000404BA	522 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 0: CCR7315 PICC, Multi interface reader			1.4.35
690	0x31AA	shouldwork	Circle	CCR7315		0x7003	CCR7315 SAM	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	0.250 MHz	0.250 MHz	10752 bps	129032 bps	254	0x00000000	0x00000000	0x000200BA	271 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 1: CCR7315 SAM, Multi interface reader	No extended APDU		1.4.35
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
691	0x31AA	shouldwork	Circle	CIR115 ICC		0x1000	CIR115 ICC	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	16.000 MHz	12903 bps	826000 bps	247	0x00000000	0x00000000	0x000100B2	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.35
692	0x31AA	shouldwork	Circle	CIR125-DOT ICC		0x7006	CIR125-DOT ICC	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	826000 bps	254	0x00000000	0x00000000	0x000100B2	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless			1.5.0
693	0x31AA	shouldwork	Circle	CIR125 ICC		0x1100	CIR125 ICC	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	826000 bps	254	0x00000000	0x00000000	0x000100B2	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless			1.5.0
694	0x31AA	shouldwork	Circle	CIR215 CL		0x2001	CIR215 CL	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	16.000 MHz	12903 bps	826000 bps	247	0x00000000	0x00000000	0x000200BA	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless	No extended APDU		1.4.35
695	0x31AA	shouldwork	Circle	CIR215 CL		0x2100	CIR215 CL	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	412903 bps	512	0x00000000	0x00000000	0x000404BA	522 bytes	0x00	0x00	0x0000	0x00	1	contactless			1.5.0
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
696	0x31AA	shouldwork	Circle	CIR215 PICC		0x2000	CIR215 PICC	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	16.000 MHz	12903 bps	826000 bps	247	0x00000000	0x00000000	0x000200BA	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless	No extended APDU		1.4.35
697	0x31AA	shouldwork	Circle	CIR315		0x3001	CIR315 PICC	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	412903 bps	512	0x00000000	0x00000000	0x000404BA	522 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 0: CIR315 PICC, Multi interface reader			1.4.35
698	0x31AA	shouldwork	Circle	CIR315		0x3001	CIR315 SAM	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	0.250 MHz	0.250 MHz	10752 bps	129032 bps	254	0x00000000	0x00000000	0x000200BA	271 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 1: CIR315 SAM, Multi interface reader	No extended APDU		1.4.35
699	0x31AA	shouldwork	Circle	CIR315		0x0324	Idaxis SecureTouch PICC	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	412903 bps	512	0x00000000	0x00000000	0x000404BA	522 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 0: Idaxis SecureTouch PICC, Multi interface reader			1.5.0
700	0x31AA	shouldwork	Circle	CIR315		0x0324	Idaxis SecureTouch SAM	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	0.250 MHz	0.250 MHz	10752 bps	129032 bps	254	0x00000000	0x00000000	0x000200BA	271 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 1: Idaxis SecureTouch SAM, Multi interface reader	No extended APDU		1.5.0
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
701	0x31AA	shouldwork	Circle	CIR315		0x3100	CIR315A IMP PICC	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	412903 bps	512	0x00000000	0x00000000	0x000404BA	522 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 0: CIR315A IMP PICC, Multi interface reader			1.4.35
702	0x31AA	shouldwork	Circle	CIR315		0x3100	CIR315A IMP SAM	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	0.250 MHz	0.250 MHz	10752 bps	129032 bps	254	0x00000000	0x00000000	0x000200BA	271 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 1: CIR315A IMP SAM, Multi interface reader	No extended APDU		1.4.35
703	0x31AA	shouldwork	Circle	CIR315		0x7004	CIR315A-DOT PICC	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	412903 bps	512	0x00000000	0x00000000	0x000404BA	522 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 0: CIR315A-DOT PICC, Multi interface reader			1.5.0
704	0x31AA	shouldwork	Circle	CIR315		0x7004	CIR315A-DOT SAM	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	0.250 MHz	0.250 MHz	10752 bps	129032 bps	254	0x00000000	0x00000000	0x000200BA	271 bytes	0x00	0x00	0x0000	0x00	1	contactless, interface 1: CIR315A-DOT SAM, Multi interface reader	No extended APDU		1.5.0
705	0x31AA	shouldwork	Circle	CIR315 CL		0x3002	CIR315 CL	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	412903 bps	512	0x00000000	0x00000000	0x000404BA	522 bytes	0x00	0x00	0x0000	0x00	1	contactless			1.4.35
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
706	0x31AA	shouldwork	Circle	CIR315 DI		0x3003	CIR315 DI	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	412903 bps	512	0x00000000	0x00000000	0x000404BA	522 bytes	0x00	0x00	0x0000	0x00	1	contactless			1.5.0
707	0x31AA	shouldwork	Circle	CIR315 Dual & 1S		0x3000	CIR315 Dual & 1S	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x02	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	412903 bps	512	0x00000000	0x00000000	0x000404BA	522 bytes	0x00	0x00	0x0000	0x00	1	contactless, 3 slots			1.4.35
708	0x31AA	shouldwork	Circle	CIR415 CL		0x4001	CIR415 CL	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	129032 bps	254	0x00000000	0x00000000	0x000404BA	522 bytes	0x00	0x00	0x0000	0x00	1	contactless			1.5.0
709	0x31AA	shouldwork	Circle	CIR415 CL & 1S		0x4000	CIR415 CL & 1S	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x01	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	129032 bps	254	0x00000000	0x00000000	0x000404BA	522 bytes	0x00	0x00	0x0000	0x00	1	contactless, 2 slots			1.4.35
710	0x31AA	shouldwork	Circle	CIR515 ICC		0x5000	CIR515 ICC	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	129032 bps	254	0x00000000	0x00000000	0x000404BA	522 bytes	0x00	0x00	0x0000	0x00	1	contactless			1.5.0
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
711	0x31AA	shouldwork	Circle	CIR615 CL		0x6001	CIR615 CL	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x01	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	129032 bps	254	0x00000000	0x00000000	0x000404BA	522 bytes	0x00	0x00	0x0000	0x00	1	contactless, 2 slots			1.5.0
712	0x31AA	shouldwork	Circle	CIR615 CL & 1S		0x6000	CIR615 CL & 1S	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x01	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	129032 bps	254	0x00000000	0x00000000	0x000404BA	522 bytes	0x00	0x00	0x0000	0x00	1	contactless, 2 slots			1.5.0
713	0x31AA	shouldwork	Circle	Idaxis SecurePIV		0x0224	Idaxis SecurePIV	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	16.000 MHz	12903 bps	826000 bps	247	0x00000000	0x00000000	0x000100B2	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.35
714	0x32A3	shouldwork	GoTrust	Idem Key		0x3201	FIDO2 DEVICE	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x02	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	800000 bps	254	0x00000000	0x00000000	0x00010330	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.34
715	0x33B6	shouldwork	ArkSigner	Connect2Sign		0x0001	Arksigner CCID Device	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x06	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	312500 bps	254	0x00000000	0x00000000	0x0002007E	510 bytes	0xFF	0xFF	0x0000	0x00	1		No extended APDU		1.4.35
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
716	0x349E	shouldwork	TOKEN2	FIDO2 Security Key(0026)		0x0026	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	3.580 MHz	3.580 MHz	9600 bps	9600 bps	2344	0x00000000	0x00000000	0x00040480	2344 bytes	0xFF	0xFF	0x0000	0x00	1				GIT
717	0x349E	shouldwork	TOKEN2 MFA	NFC Reader		0x0430	R502 Contactless Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x01	0x0000 0x0002	4.000 MHz	4.000 MHz	10752 bps	688172 bps	252	0x00000007	0x00000000	0x000404BE	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless			1.5.2
718	0x349E	shouldwork	TOKEN2	Molto2		0x0300	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0003	3.580 MHz	3.580 MHz	9600 bps	9600 bps	2088	0x00000000	0x00000000	0x00040480	2088 bytes	0xFF	0xFF	0x0000	0x00	1				1.5.2
719	0x34EB	shouldwork	WCMi	SD5931		0x1506	PCSC QR Code Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.800 MHz	13.560 MHz	106000 bps	424000 bps	512	0x00000000	0x00000001	0x000404BE	528 bytes	0x00	0x00	0x0000	0x00	1				1.5.3
720	0x356F	shouldwork	Sensyl	SSC-HV Reader		0x23FE	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0003	4.000 MHz	12.000 MHz	10752 bps	500000 bps	252	0x00000000	0x00000000	0x00010238	271 bytes	0xFF	0xFF	0x0000	0x00	1				1.5.2
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
721	0x356F	shouldwork	Sensyl	SSC-NFC Reader		0x22FC	SSC-NFC Reader	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x01	0x0000 0x0002	4.000 MHz	4.000 MHz	10752 bps	688172 bps	271	0x00000000	0x00000000	0x000404BE	271 bytes	0xFF	0xFF	0x0000	0x00	1	contactless			1.5.1
722	0x3606	shouldwork	authenton	#1- CTAP2.1		0x5A11	authenton#1- CTAP2.1	2	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x07	0x0000 0x0002	3.580 MHz	3.580 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x00010622	64 bytes	0xFF	0xFF	0x0000	0x00	1				1.6.0
723	0x413C	supported	Dell	Dell Smart Card Reader Keyboard		0x2101	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.01	0x00	0x07	0x0000 0x0003	4.800 MHz	4.800 MHz	12903 bps	825806 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x03	1	PIN Verification, PIN Modification		Seems to support SPE only if the VERIFY command has a fixed length. See http://comments.gmane.org/gmane.comp.encryption.opensc.devel/12773	0.9.0
724	0x413C	supported	Dell	keyboard SK-3106		0x2100	?????	3	0xFF	1.00	0x00	0x03	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	129032 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x01	1	PIN Verification			0.9.0
725	0x4D55	shouldwork	Mulann	PVT		0x0010	SmartCard Reader C	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	3.600 MHz	3.600 MHz	9677 bps	9677 bps	254	0x00000000	0x00000000	0x0002007A	271 bytes	0x00	0x00	0x0000	0x00	1	Multi interface reader, interface 0: SmartCard Reader C	No extended APDU		1.4.27
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
726	0x4D55	shouldwork	Mulann	PVT		0x0010	SmartCard Reader CL	3	0x0B [Chip Card Interface Device Class (CCID)]	1.10	0x00	0x03	0x0000 0x0003	3.600 MHz	3.600 MHz	9677 bps	9677 bps	254	0x00000000	0x00000000	0x0002007A	271 bytes	0x00	0x00	0x0000	0x00	1	Multi interface reader, interface 1: SmartCard Reader CL	No extended APDU		1.4.27
727	0x8829	shouldwork	CCB	eSafeLD		0xCCB2	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x01	0x0000 0x0002	3.580 MHz	3.580 MHz	9600 bps	9600 bps	1041	0x00000000	0x00000000	0x00040672	1041 bytes	0xFF	0xFF	0x0000	0x00	1				1.4.7
728	0xA625	supported	TianYu CCID Key	TianYu CCID SmartKey		0x0801	0	2	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x01	0x0000 0x0001	3.580 MHz	3.580 MHz	9600 bps	115200 bps	0	0x00000000	0x00000000	0x00020840	512 bytes	0x00	0x00	0x0000	0x00	1	ICCD	No extended APDU		1.3.10
729	0xA625	shouldwork	Tianyu	Smart Card Reader		0x0810	?	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0003	4.000 MHz	4.000 MHz	10752 bps	344086 bps	254	0x00000000	0x00000000	0x00010230	271 bytes	0x00	0x00	0x0000	0x00	1				1.4.0
730	0xAE68	shouldwork	GHI	NC001		0x8001	NO NAME	3	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x07	0x0000 0x0002	4.000 MHz	4.000 MHz	10752 bps	250000 bps	256	0x00000000	0x00000000	0x00020040	271 bytes	0x00	0x00	0x0000	0x00	1		No extended APDU		1.5.3
#	idVendor	section	iManufacturer	iProduct	image	idProduct	iInterface	bNumEndpoints	bInterfaceClass	bcdCCID	bMaxSlotIndex	bVoltageSupport	dwProtocols	dwDefaultClock	dwMaximumClock	dwDataRate	dwMaxDataRate	dwMaxIFSD	dwSynchProtocols	dwMechanical	dwFeatures	dwMaxCCIDMessageLength	bClassGetResponse	bClassEnvelope	wLcdLayout	bPINSupport	bMaxCCIDBusySlots	features	limitations	note	release
731	0xC1A6	shouldwork	AvestUA	AvestKey		0x0131	NO NAME	2	0x0B [Chip Card Interface Device Class (CCID)]	1.00	0x00	0x01	0x0000 0x0002	3.580 MHz	3.580 MHz	9600 bps	9600 bps	254	0x00000000	0x00000000	0x00040840	271 bytes	0xFF	0xFF	0x0000	0x00	1	ICCD			1.4.31

Generated: Fri Sep 6 21:10:38 2024
